Gigabyte B550M AORUS MASTER DDR4 rev. 1.0 AM4

Name: Gigabyte B550M AORUS MASTER DDR4 rev. 1.0 AM4 - Clix Gamers
SKU: B550-AORUS-MASTER
Price: 1449 ILS
Availability: OutOfStock

מק"ט B550-AORUS-MASTER Category لوحات الام - AMD Tags 4-Slots, AM4, ATX, B550, DDR4, GIGABYTE

Product Details

₪1,449

أضف الى السلة

תיאור מוצר

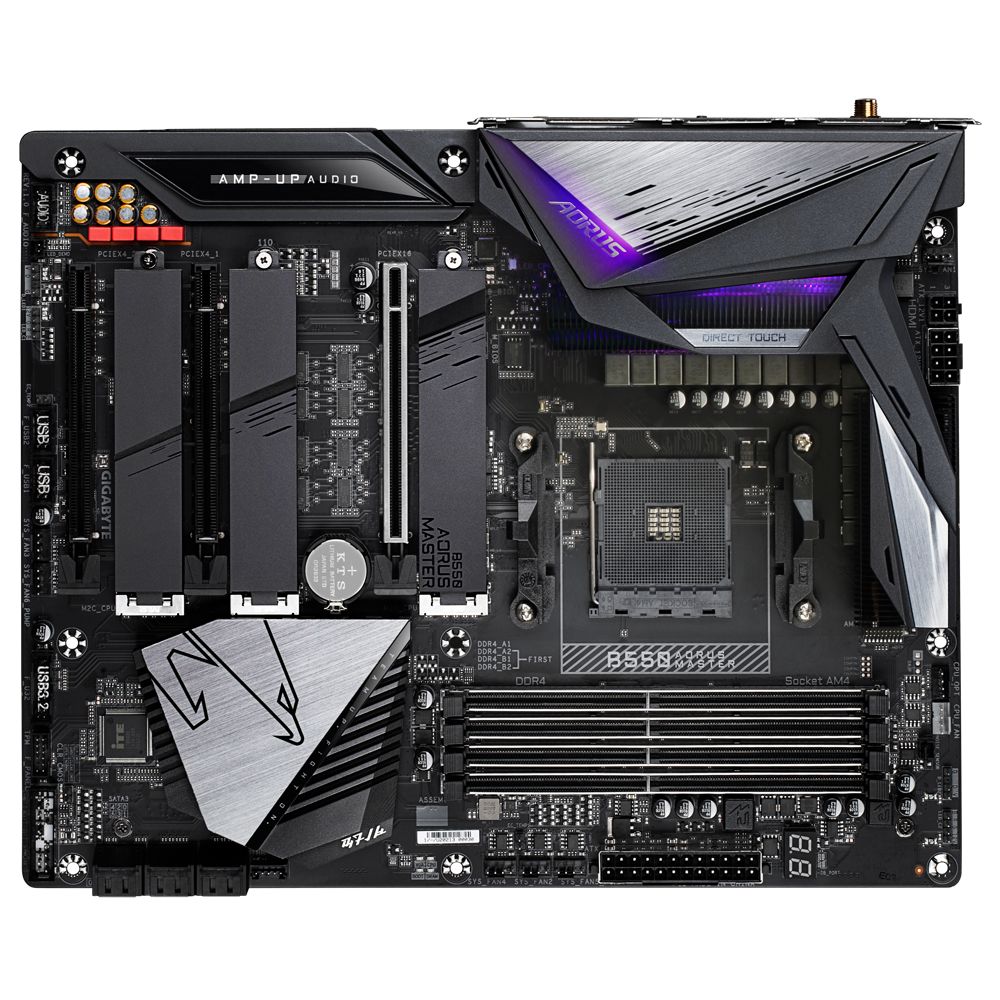

B550 AORUS MASTER (rev. 1.0)

AMD B550 AORUS Motherboard with Direct 16 Phases Digital VRM, Fins-Array Heatsink, Direct-Touch Heatpipe, Thermal Backplate, Triple PCIe 4.0 x4 M.2 Direct from CPU, Intel^® WiFi 6 802.11ax, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
Direct 16 Phases Digital VRM Solution with 70A Power Stage
Advanced Thermal Design with Fins-Array Heatsink, Direct Touch Heatpipe and Thermal Baseplate
Ultra Durable™ PCIe 4.0 Ready x16 Slot
Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards
Onboard Intel^® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
AMP-UP Audio with ALC1220-VB and WIMA Capacitors for Rear 120dB SNR
Blazing Fast 2.5GbE LAN with Bandwidth Management
USB 3.2 Gen2 Type-C™ & HDMI Support
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Pre-installed IO Shield for Easy and Quick Installation

B550 AORUS MASTER Unboxing Video

ULTIMATE POWER DESIGN

UNPARALLELED PERFORMANCE

ADVANCED THERMAL SOLUTION

NEXT GENERATION CONNECTIVITY

HI-FI AUDIO SYSTEM

DEFINITIVE AESTHETICS

ULTRA DURABLE

GIGABYTE BIOS & APP CENTER

DESIGN CONCEPT

DOMINANT IN DARKNESS

In the dark, starless night, the falcon strikes fear into the heart of its prey. Even with minimal visibility, the falcon pinpoints its prey and patiently anticipates the perfect moment to swoop in for the kill. The falcon with its laser sharp gaze dominates the darkness of night in the same manner that AORUS Core Lighting illuminates the vast AORUS ecosystem.

Intel^® WiFi 6 802.11ax & BT5

HDMI

Q-Flash Plus Button

2.5 GbE LAN

Rear USB 3.2 Gen2 Type-C™

Advanced Thermal Design

Fins-Array Heatsink
Direct-Touch Heatpipe
7.5 W/mK LAIRD Thermal Conductivity Pad
Pre-installed I/O Shield
Thermal Baseplate

Audio Solutions

ALC1220-VB Audio
Nichicon Fine Gold Audio Capacitors
Audiophile Grade WIMA Capacitors
Gold Plated Audio Jacks

Triple M.2 Connectors

① 22110 M.2 with Thermal Guard
– PCIe 4.0 M.2 Connector
– NVMe PCIe 4.0/3.0 x4 and SATA Mode (from CPU)
②③ Dual 22110 M.2 with Thermal Guards
– 2X PCIe 4.0 M.2 Connectors
– 2X NVMe PCIe 4.0/3.0 x4 (from CPU)

Direct 16 Phases Digital VRM with Power Stage

70A Power Stage
Premium Choke and Capacitor
6 Layer PCB
PCIe 4.0 Ready Mid-Loss PCB
2X Copper PCB

Noise Detection

Debug Port

Solid Pin Power Connectors with Metal Shielding

24 pin ATX Power Connector
8+4 pin CPU Power Connector

Dual Channel DDR4, 4 DIMMs with Ultra Durable Memory Armor

DDR4 XMP Up to 5400MHz+

Supports 3rd Gen AMD Ryzen™ Processors

Smart Fan 5 + FAN STOP

8 Fan / Water Pump Connectors
7 Internal Temperature Sensors
2 External Temperature Sensors

DualBIOS™ with Q-Flash Plus

Ultra Durable PCIe Armor

PCIe 4.0 Slot
Running 1*x16 or 1*x8 for dGPU

RGB FUSION 2.0

Addressable LED Header*2
RGB LED Header*3

Thunderbolt Header

AMD StoreMI Technology

GIGABYTE B550 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI:

• Making the PC experience fast, smooth and easy
• Optimizing computer responsiveness from system boot to application launch
• Offering SSD performance with HDD capacity at an affordable cost
• Quickly accessing key files by automatically learning users' computing behaviors

Detail information please refer AMD official website: https://www.amd.com/en/technologies/store-mi

Digital PWM

Driver MOSFET

All-Solid Capacitor

CPU Power Connector

New Direct Multiphase Power Design
No Doubler / Not Parallel
Next-Gen Infineon PWM Controller
70A Power Stages
The Lowest Voltage Ripple
The Highest Efficiency

B550 AORUS MASTER motherboard uses an pure digital CPU power design which includes a digital PWM Controller and a total 16 phases for Vcore and SOC, is capable of providing 70A from each phase and a total of 1,120A power design.
With additional 8+4 Solid-pin CPU Power Connectors offer incredible precision and stability in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum overclocking performance from 3rd Gen AMD Ryzen™ processors.

Direct Touch Heatpipe

Fins-Array Heatsink

Thermal Baseplate

LAIRD 7.5 W/mK Thermal Pad

3X M.2 Thermal Guard

2.5GbE LAN Onboard

2X Faster than ever

Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least two times faster transfer speeds compared to general 1GbE networking. It’s perfectly suit for gamers and streamer with ultimate and smooth online experience. It also backward compatible with Multi-Gig(10/100/1000/2500Mbps) RJ-45 ethernet.

Hi-Res Audio

Hi-Res Audio certified, meaning that the product is capable of reproducing frequencies up to 40kHz or above which ensures user with the best audio quality at all times.

ALC1220-VB Immersive Gaming ViBes

All New Realtek High-End HD Audio Codec

ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion.
With the new VB series audio controller, stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).

Multi-Zone Light Show Design

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

Note: Lighting effects depicted are for demonstration purposes only. Actual lighting effects may vary by model.

Ultra Durable™ Memory Armor

AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference.

BIOS

New User Interface

All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.

My Favorites

Add constantly used items into the favorite menu for quick access.

Storage Information

Show all kinds of storage information including SATA, PCIE and M.2 interface.

Changelog

List all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive Load Line Curve

Clearly show each loadline calibration setting in an intuitive curve graph.

XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere

Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!

* Free 1 year XSplit Gamecaster + Broadcaster Premium License.
