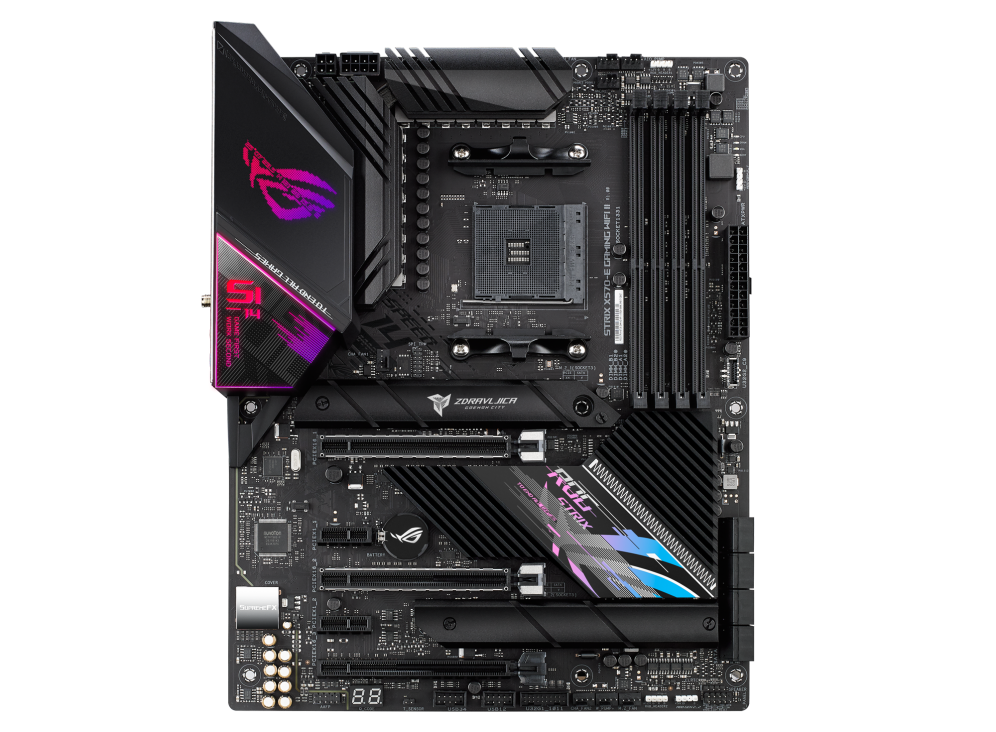

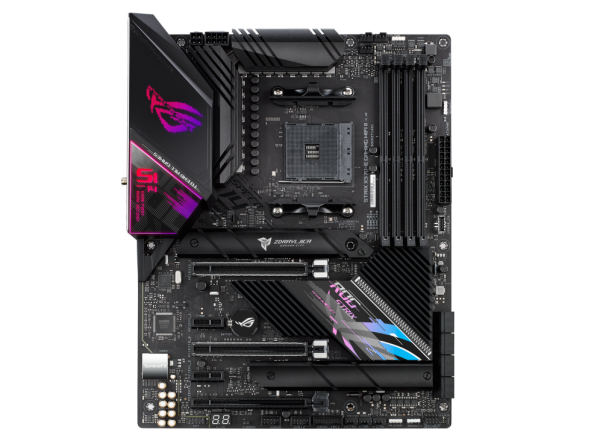

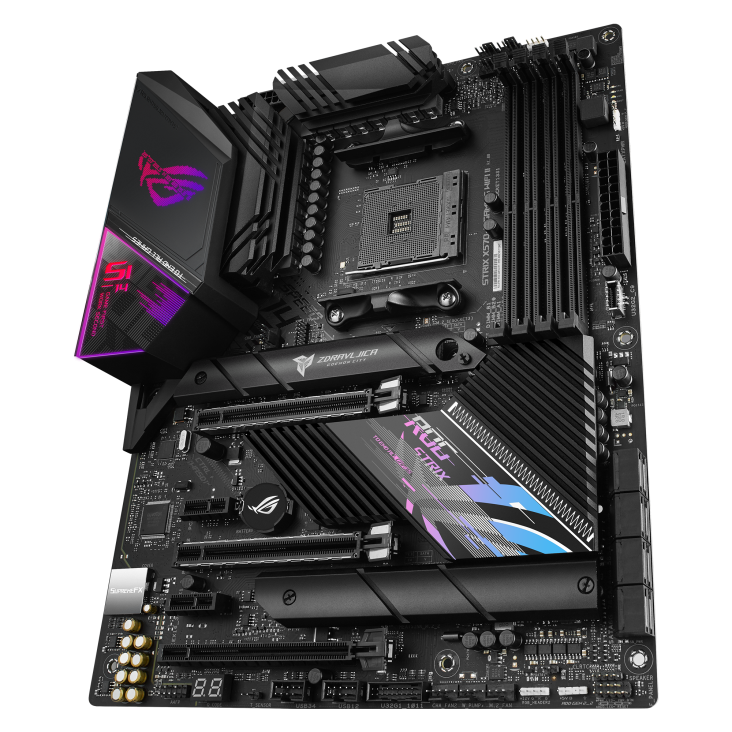

Asus ROG STRIX X570-E GAMING WIFI II GAMING AM4

מק"ט 90MB19W0-M0EAY0 Categories , Tags , , , , , , ,

1,899

תיאור מוצר



Socket AMD Socket AM4
Chipset AMD X570
Memory slots 4x DDR4
Memory Slot Support Up To 128GB Memory Support
SATA Ports 8x SATA 6Gb/s
M.2 Slot 2x M.2
DisplayPort Connector 1 x DisplayPort
HDMI Connector 1 x HDMI Port
DVI Connector No DVI Onboard
VGA Connector No VGA Onboard
Form Factor ATX
NVIDIA SLI/AMD CrossFire Not Supported



STORAGE
Storage Supports 2 x M.2 slots and 8 x SATA 6Gb/s ports AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen™ 5000 G-Series/4000 G-Series/ 3000 G-Series/ 2000 G-Series/2000 Series Processor M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) AMD X570 Chipset M.2_2 slot (Key M), type2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 8 x SATA 6Gb/s ports Supports RAID 0, 1, 10

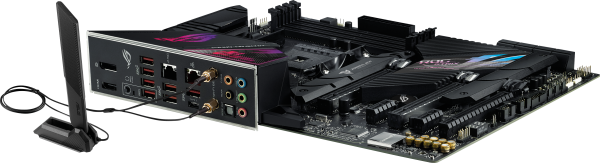

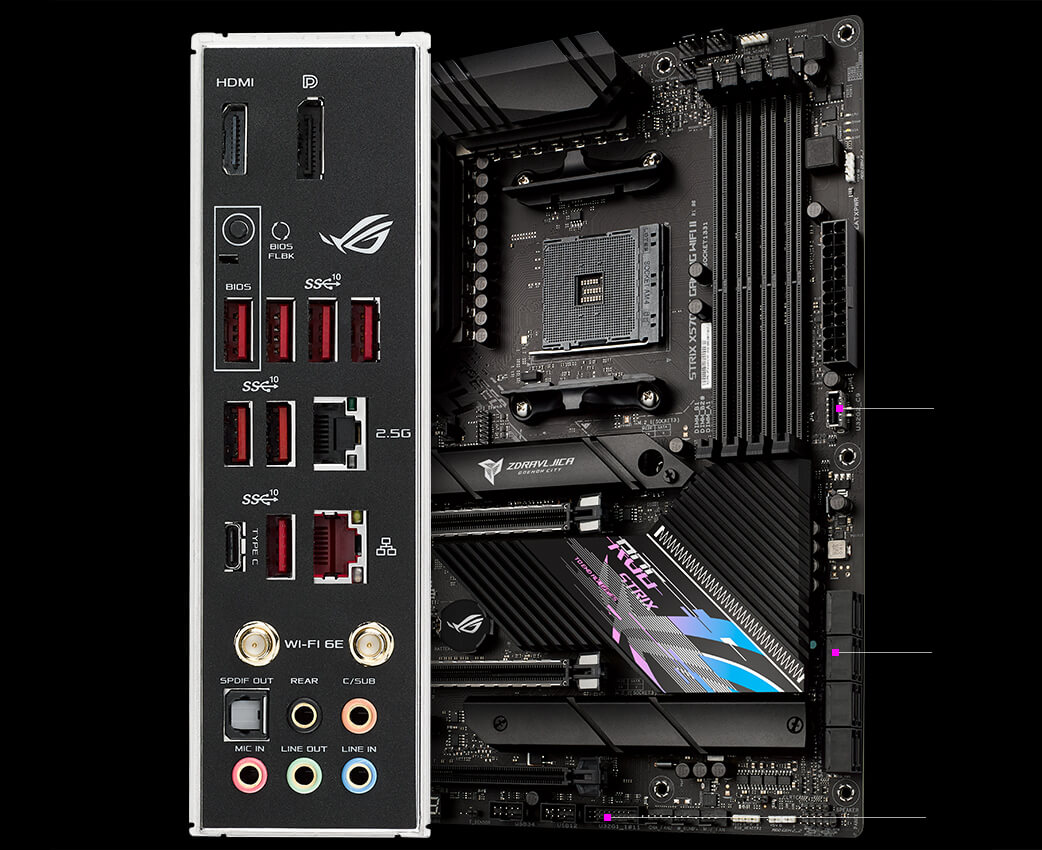

BACK PANEL I/O PORTS
Back Panel I/O Ports 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® I211-AT 1Gb Ethernet port 1 x Realtek 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button
BIOS
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
ACCESSORIES
Accessories Cables 4 x SATA 6Gb/s cables 1 x Thermistor cable pack Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Rubber Package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Installation Media 1 x Support DVD Documentation 1 x User manual
MEMORY
Memory AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 4 x DIMM, Max. 128GB, DDR4 4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133, un-buffered memory AMD Ryzen™ 5000 and 4000 G-Series Processors 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133, un-buffered memory AMD Ryzen™ 2000 Series Desktop Processors 4 x DIMM, max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133, un-buffered memory AMD Ryzen™ 2000 and 3000 G-Series Desktop Processors 4 x DIMM, max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133, un-buffered memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
EXPANSION SLOTS
Expansion Slots AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 2 x PCIe 4.0 x16 (x16 or dual x8)* AMD Ryzen™ 5000 G Series/4000 G-Series/ 2000 Series Processor 2 x PCIe 3.0 x16 (x16 or dual x8)* AMD Ryzen™ 2000 G-Series/ 3000 G-Series Processor 1 x PCIe 3.0 x16 (x8 mode)* AMD X570 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x1 *PCIeX16_3 slot shares bandwidth with PCIeX1_2.
AUDIO
Audio Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback* Audio Features – SupremeFX Shielding Technology – Gold-plated audio jacks – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
OPERATING SYSTEM
Operating System Windows® 11 64-bit, Windows® 10 64-bit
SOFTWARE FEATURES
Software Features ROG Exclusive Software – RAMCache III – ROG CPU-Z – GameFirst V – Sonic Studio III + Sonic Studio Virtual Mixer – Sonic Radar III – DTS® Sound Unbound – Overwolf – Anti-virus software ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (60 days free trial) – AURA Creator – AURA Sync – Two-Way AI Noise Cancelation AI Suite 3 – 5-Way Optimization by Dual Intelligent Processors 5 TPU EPU DIGI+ VRM Fan Xpert 4 Turbo app – EZ update DAEMON Tools WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode Dynamic OC Switcher
FORM FACTOR
Form Factor ATX 30.5cm x 24.4cm
CPU
CPU AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors * Refer to www.asus.com for CPU support list.
USB
USB AMD RyzenTM 5000, 5000 G-Series, 4000 G-Series, and 3000 Series Desktop Processors – 4 x USB 3.2 Gen2 ports (4 ports at back panel, Type-A) AMD RyzenTM 3000 G-Series, 2000, and 2000 G-Series Desktop Processors – 4 x USB 3.2 Gen 1 ports (4 ports at back panel, Type-A) AMD X570 chipset – 1 x USB 3.2 Gen2 front panel connector – 4 x USB3.2 Gen2 (at back panel, 3x Type-A, 1x Type-C) – 2 x USB3.2 Gen1 ports (at front panel) – 4 x USB 2.0 ports (at front panel) Front USB: Total 7 ports
SPECIAL FEATURES
Special Features Extreme Engine Digi+ – 5K Black Metallic Capacitors ASUS Q-Design – M.2 Q-Latch – Q-Code – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – ProCool II – Pre-mounted I/O shield – SafeSlot AURA Sync – AURA RGB headers – Addressable Gen 2 headers
GRAPHICS
Graphics 1 x DisplayPort 1.2 1 x HDMI 2.0** 1 x DisplayPort 1 x HDMI® port – Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz – Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz * VGA resolution support depends on processors' or graphic cards' resolution. For more details about the video input and output settings please refer to the user manual.
ETHERNET
Ethernet 1 x Realtek 2.5Gb Ethernet 1 x Intel® I211-AT 1Gb Ethernet Anti-surge LANGuard ROG GameFirst Technology 1 x Intel® 1Gb Ethernet 1 x Realtek 2.5Gb Ethernet
INTRERNAL I/O CONNECTORS
Intrernal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers 1 x 4-pin M.2 Fan header 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 8 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x Speaker header 1 x 10-1 pin System Panel header 1 x Thermal Sensor header
CHIPSET
Chipset AMD X570 Chipset
WIRELESS & BLUETOOTH
Wireless & Bluetooth Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
MANAGEABILITY
Manageability WOL by PXE
