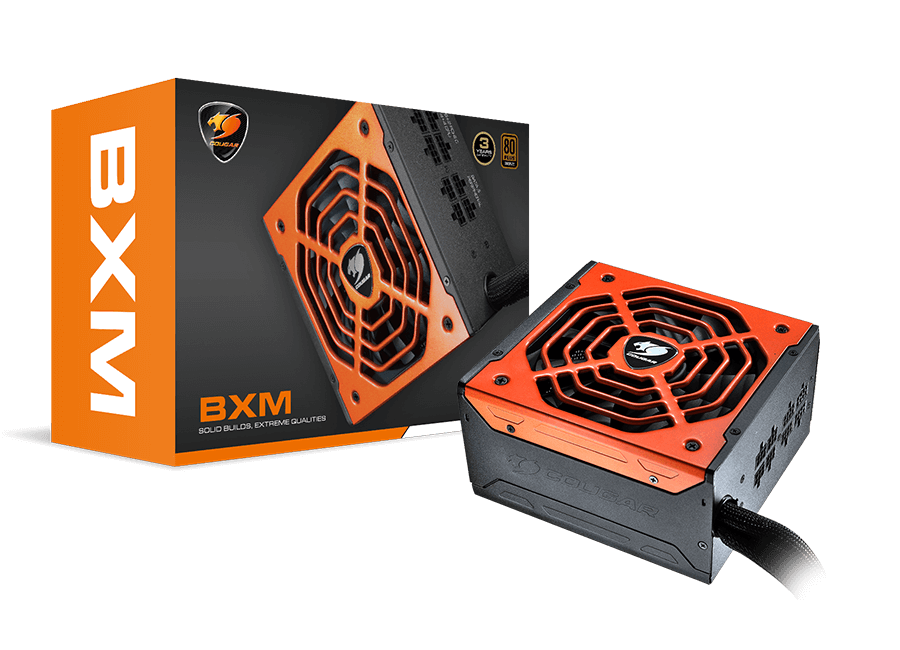

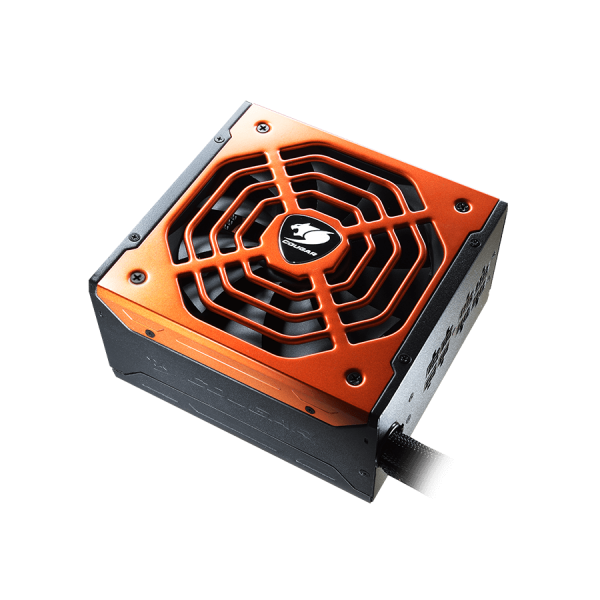

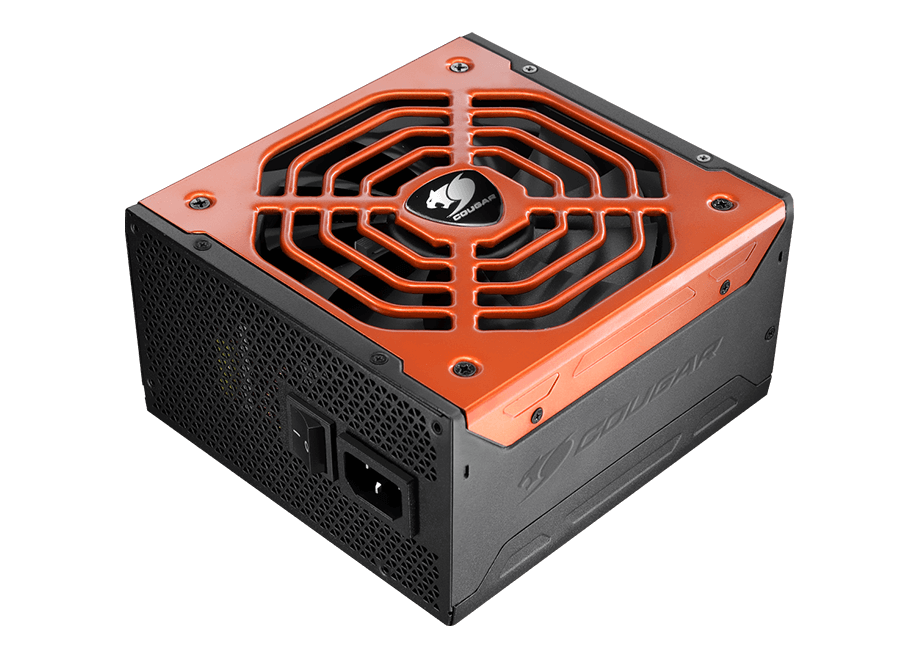

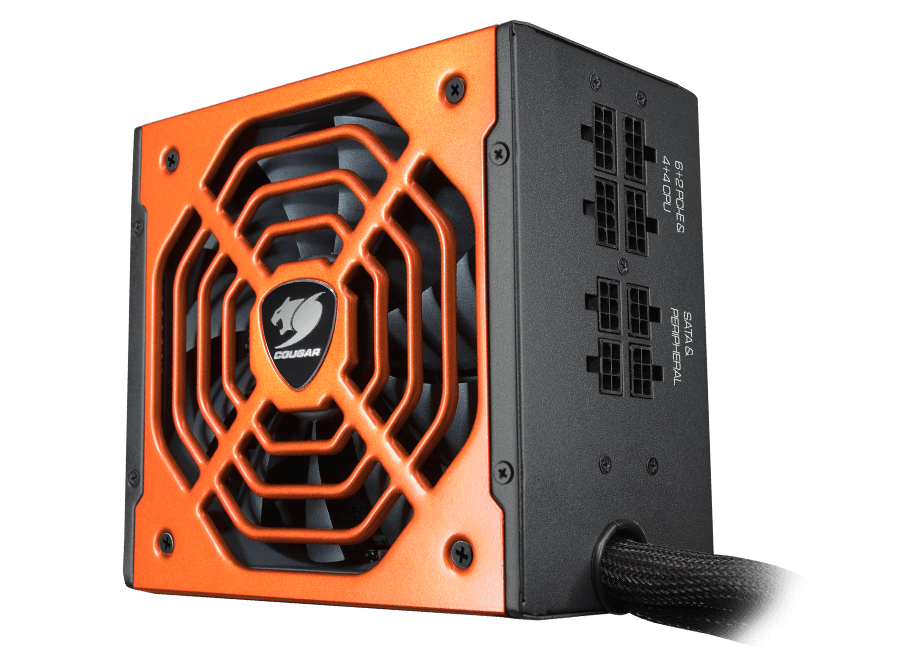

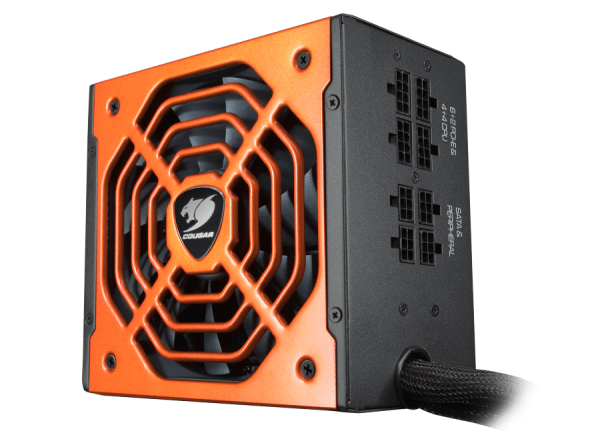

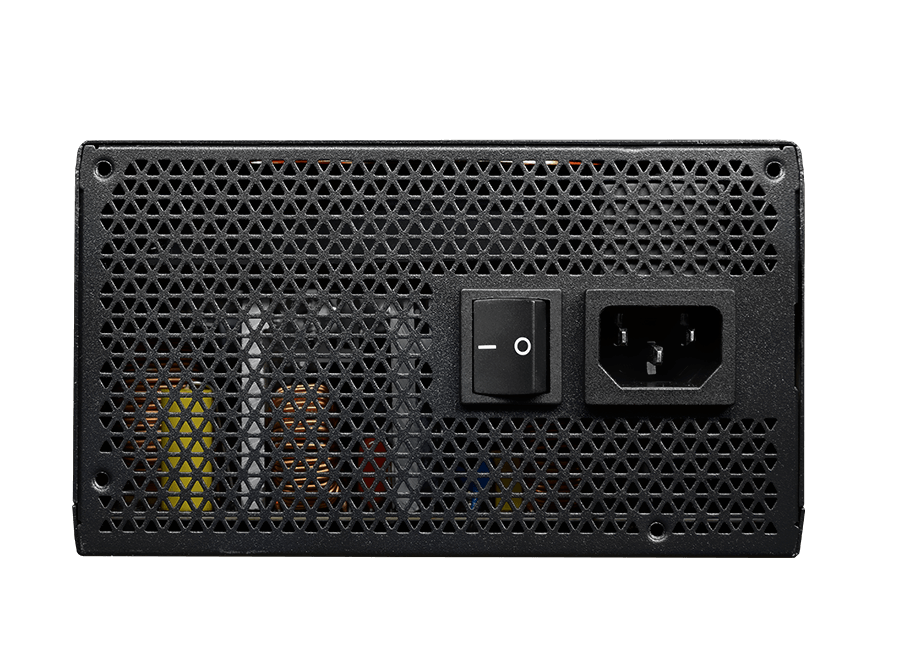

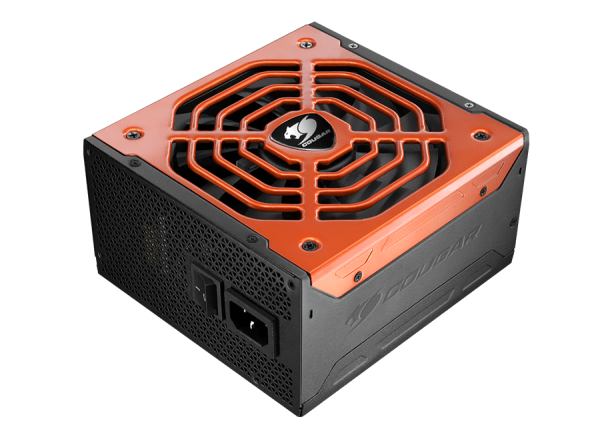

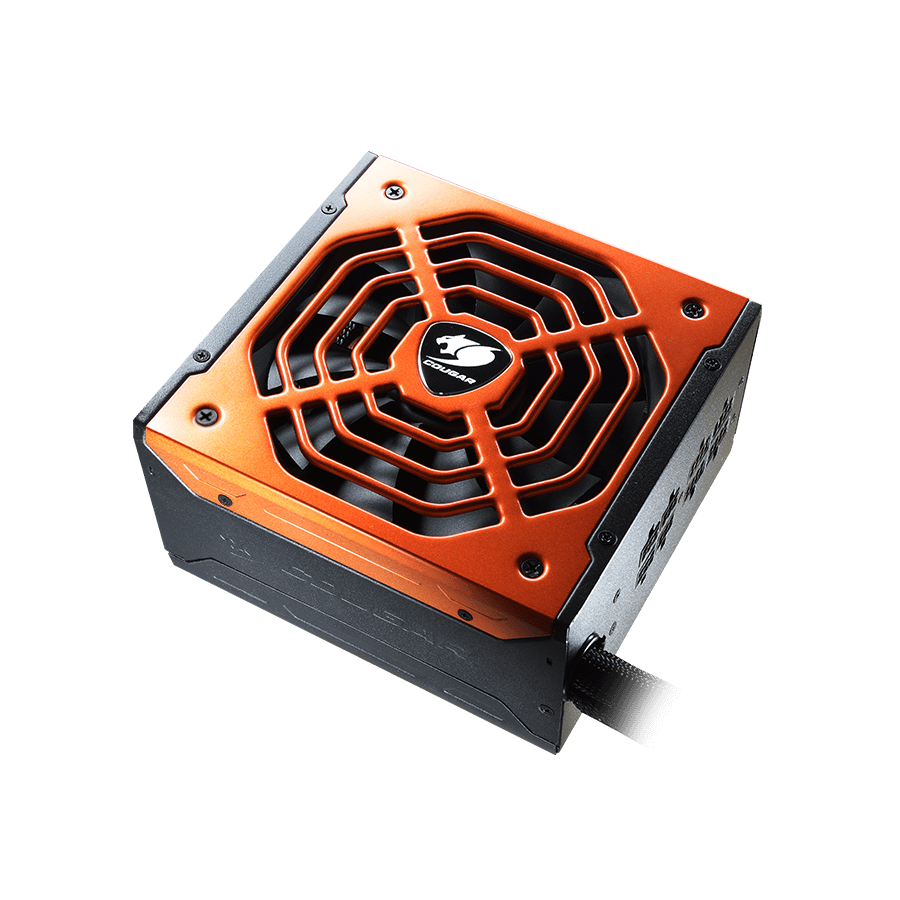

Cougar BXM 700W Bronze Semi-Modular 140mm Fan

480

תיאור מוצר

BXM

700W

Solid Builds, Extreme Qualities
BXM is a high-reliability PSU with 80Plus Bronze efficiency certification. Its DC-DC structure plus durable HDB fan provide stable voltage output and smoother cooling. BXM is the best value choice.

Efficency

Surpasses 80Plus Bronze efficiency power requirements to minimize your electricity bill

Ventilation System

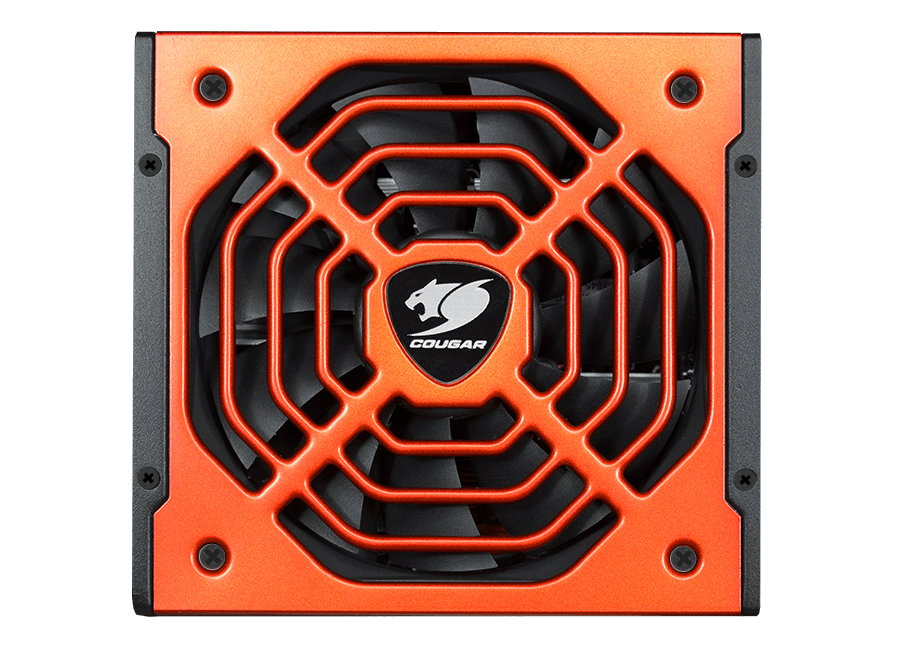

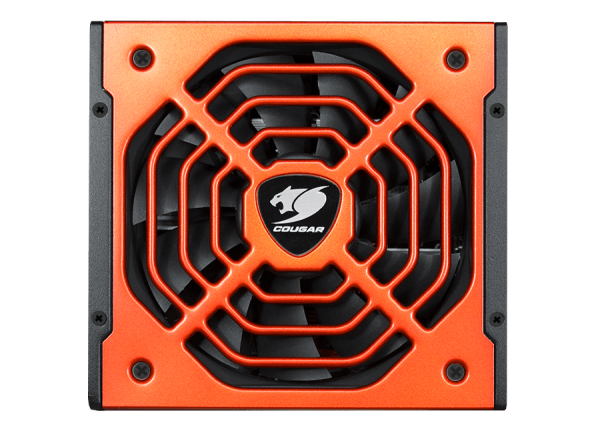

A key component of BXM is its 135mm HDB fan. The advanced fan’s blade curvature has been fine-tuned to reduce vibration and helping you enjoy a quieter gaming experience.
Highly durable and consistently reliable 105°C Japanese standby capacitors
COUGAR 135mm HDB fan achieves the best balance between RPM and noise

COUGAR Xformer + Stable Performance

COUGAR Xformer: This high-frequency transformer reduces copper loss and adapts to rising temperatures, while its PQ-Type core further increases efficiency and reliability while keeping the temperature under control.
Tight voltage regulation for ultra-stable operation
Continuous and flawless power delivery at 40°C

Assigned Japanese Components

BXM includes 105ºC Japanese standby capacitor will keep providing the stable PSU for a long time.
*Comparison based on BXM850’s performance data.

Features

80 PLUS Bronze Certified

Up to 86% efficiency power conversion to cut down your electricity bill

Semi-modular Power Supply Unit

Connect only the cables you need for less clutter and better airflow

HDB Fan

Hydro Dynamic Bearing Fan: Extended durability and lower noise levels

Superior fan Curve Tuning

Advanced technology for noise minimization

Flawless Operation at 40°C

Powerful performance at 40°C ambient temperature

Ultra-stable Voltage Outputs

DC to DC technology for enhanced voltage stability

Dimension

160 x 150 x 86 (mm)

Strong Safeguards : OCP, OPP, OVP, UVP, SCP & OTP

Maximum safety for your key system components

Awards & Reviews

FunkyKit

"…Cougar has definitely impressed me once again with the BXM 850. The Power Supply holds up very well under load and looks good while doing so with spectacular paint. With several size options to choose from I am sure Cougar will have the right one to meet your demands!"

Specifications

Model Name AC Input DC output
+3.3V +5V +12V -12V +5Vsb Total
BXM700 AC100-240V
50/60Hz 12A
24A 22A 58.3A 0.3A 3A 700W
140W 700W
BXM850 AC100-240V
50/60Hz 16A
25A 25A 70.8A 0.3A 3A 850W
150W 850W
Connector Main CPU Peripherals S-ATA PCI-E
Pin 24(20+4) Pins 8(4+4) Pins 4 Pins 5 Pins 8(6+2) Pins
BXM700 1 2 3 8 4
BXM850 1 2 3 8 6

Packing Data

BXM700 BXM850
Product Number (P/N) 31BX070.0001P 31BX085.0001P
EAN CODE 4715302444815 4715302444822
UPC CODE 192554001494 192554001500
JAN CODE 4541995034121 4541995034138
Individual W/O Packaging Weight (N.Weight) 2.1 (Kg) 2.15 (Kg)
Individual Packaging Weight (G.Weight) 2.88 (Kg) 2.93 (Kg)
Individual Size W/O Packaging (LxWxH) 160 x 150 x 86 (mm)
Individual Packaging Size (LxWxH) 331 X 229 x 107 (mm)

Protection

UVP (Under Voltage Protection)

If the voltages fall below a certain tolerance value on the single lines, the PSU automatically switches off.

OCP (Overcurrent Protection)

If the current on a single line is higher than indicated, the PSU automatically switches off.

SCP (Short-Circuit Protection)

In the case of a short-circuit, this feature prevents damage to the core components of the PSU and its System components.

OVP (Over Voltage Protection)

If the voltages increase above a certain tolerance value on the single lines, the PSU automatically switches off.

OTP (Over Temperature Protection)

If the temperature gets too high, the PSU automatically switches off.

OPP (Over Power Protection)

If the system is oversized and requires more power from the PSU than it can provide, this protection function is activated.
