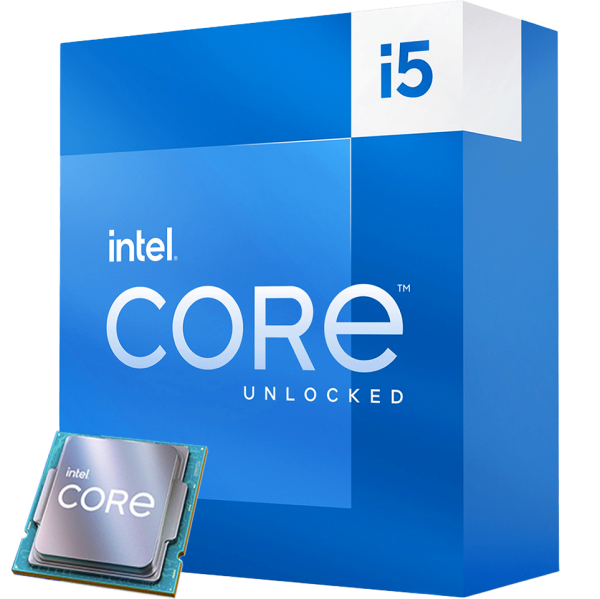

Intel® Core™ i5-13400F Processor

• ARK | Compare Intel® Products
  03/07/2023 12:41
  	Intel® Core™ i5-13400F Processor  (20M Cache- up to 4.60 GHz)
  Essentials
  Product Collection	13th Generation Intel® Core™ i5 Processors
  Code Name	Products formerly Raptor Lake
  Vertical Segment	Desktop
  Processor Number	i5-13400F
  Lithography	Intel 7
  Use Conditions	PC/Client/Tablet
  Recommended Customer Price	$196.00
  CPU Specifications
  Total Cores	10
  # of Performance-cores	6
  # of Efficient-cores	4
  Total Threads	16
  Max Turbo Frequency	4.60 GHz
  Performance-core Max Turbo Frequency	4.60 GHz
  Efficient-core Max Turbo Frequency	3.30 GHz
  Performance-core Base Frequency	2.50 GHz
  Efficient-core Base Frequency	1.80 GHz
  Cache	20 MB Intel® Smart Cache
  Total L2 Cache	9.5 MB
  Processor Base Power	65 W
  Maximum Turbo Power	148 W
  Supplemental Information
  Marketing Status	Launched
  Launch Date	Q1’23
  Embedded Options Available	No
  Memory Specifications
  Max Memory Size (dependent on memory type)	128 GB
  Memory Types	Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
  Max # of Memory Channels	2
  Max Memory Bandwidth	76.8 GB/s
  Expansion Options
  Direct Media Interface (DMI) Revision	4
  Max # of DMI Lanes	8
  Scalability	1S Only
  PCI Express Revision	5.0 and 4.0
  PCI Express Configurations ‡	Up to 1×16+4 |  2×8+4
  Max # of PCI Express Lanes	20
  Package Specifications
  Sockets Supported	FCLGA1700
  Max CPU Configuration	1
  Thermal Solution Specification	PCG 2020C
  TJUNCTION	100°C
  Package Size	45.0 mm x 37.5 mm
  Advanced Technologies
  Intel® Gaussian & Neural Accelerator	3
  Intel® Thread Director	Yes
  Intel® Deep Learning Boost (Intel® DL Boost)	Yes
  Intel® Speed Shift Technology	Yes
  Intel® Turbo Boost Max Technology 3.0 ‡	No
  Intel® Turbo Boost Technology ‡	2
  Intel® Hyper-Threading Technology ‡	Yes
  Intel® 64 ‡	Yes
  Instruction Set	64-bit
  Instruction Set Extensions	Intel® SSE4.1 |  Intel® SSE4.2 |  Intel® AVX2
  Idle States	Yes
  Enhanced Intel SpeedStep® Technology	Yes
  Thermal Monitoring Technologies	Yes
  Intel® Volume Management Device (VMD)	Yes
  Security & Reliability
  Intel® Standard Manageability (ISM) ‡	Yes
  Intel® Control-Flow Enforcement Technology	Yes
  Intel® AES New Instructions	Yes
  Secure Key	Yes
  Intel® OS Guard	Yes
  Execute Disable Bit ‡	Yes
  Intel® Boot Guard	Yes
  Mode-based Execute Control (MBEC)	Yes
  Intel® Virtualization Technology (VT-x) ‡	Yes
  Intel® Virtualization Technology for Directed I/O (VT-d) ‡	Yes
  Intel® VT-x with Extended Page Tables (EPT) ‡	Yes
