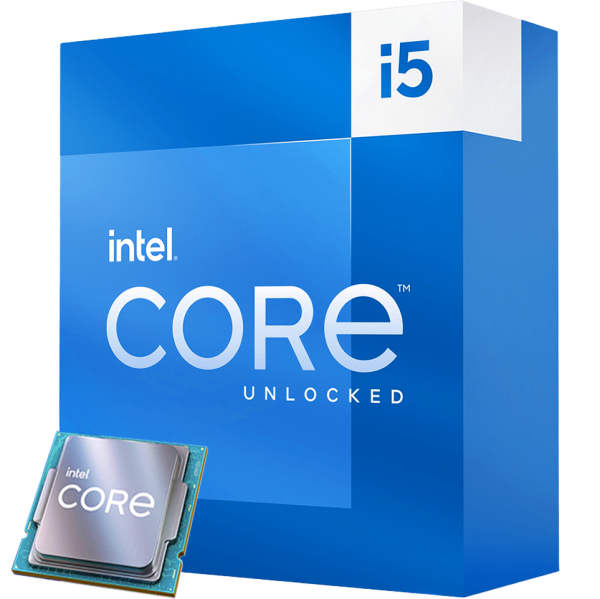

Intel® Core™ i5-13600KF Processor

• • ARK | Compare Intel® Products
    10/28/2022 06:03:11 PM
    	Intel® Core™ i5-13600KF Processor  (24M Cache- up to 5.10 GHz)
    Essentials
    Product Collection	13th Generation Intel® Core™ i5 Processors
    Code Name	Products formerly Raptor Lake
    Vertical Segment	Desktop
    Processor Number	i5-13600KF
    Status	Launched
    Launch Date	Q4’22
    Lithography	Intel 7
    Use Conditions	PC/Client/Tablet
    CPU Specifications
    Total Cores	14
    # of Performance-cores	6
    # of Efficient-cores	8
    Total Threads	20
    Max Turbo Frequency	5.10 GHz
    Performance-core Max Turbo Frequency	5.10 GHz
    Efficient-core Max Turbo Frequency	3.90 GHz
    Performance-core Base Frequency	3.50 GHz
    Efficient-core Base Frequency	2.60 GHz
    Cache	24 MB Intel® Smart Cache
    Total L2 Cache	20 MB
    Processor Base Power	125 W
    Maximum Turbo Power	181 W
    Supplemental Information
    Embedded Options Available	No
    Memory Specifications
    Max Memory Size (dependent on memory type)	128 GB
    Memory Types	Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s
    Max # of Memory Channels	2
    Max Memory Bandwidth	89.6 GB/s
    Expansion Options
    Direct Media Interface (DMI) Revision	4
    Max # of DMI Lanes	8
    Scalability	1S Only
    PCI Express Revision	5.0 and 4.0
    PCI Express Configurations ‡	Up to 1×16+4 |  2×8+4
    Max # of PCI Express Lanes	20
    Package Specifications
    Sockets Supported	FCLGA1700
    Max CPU Configuration	1
    TJUNCTION	100°C
    Advanced Technologies
    Intel® Gaussian & Neural Accelerator	3
    Intel® Thread Director	Yes
    Intel® Deep Learning Boost (Intel® DL Boost)	Yes
    Intel® Speed Shift Technology	Yes
    Intel® Turbo Boost Max Technology 3.0 ‡	No
    Intel® Turbo Boost Technology ‡	2
    Intel® Hyper-Threading Technology ‡	Yes
    Intel® 64 ‡	Yes
    Instruction Set	64-bit
    Instruction Set Extensions	Intel® SSE4.1 |  Intel® SSE4.2 |  Intel® AVX2
    Idle States	Yes
    Enhanced Intel SpeedStep® Technology	Yes
    Thermal Monitoring Technologies	Yes
    Intel® Volume Management Device (VMD)	Yes
    Security & Reliability
    Intel® Standard Manageability (ISM) ‡	Yes
    Intel® Control-Flow Enforcement Technology	Yes
    Intel® AES New Instructions	Yes
    Secure Key	Yes
    Intel® OS Guard	Yes
    Execute Disable Bit ‡	Yes
    Intel® Boot Guard	Yes
    Mode-based Execute Control (MBEC)	Yes
    Intel® Virtualization Technology (VT-x) ‡	Yes
    Intel® Virtualization Technology for Directed I/O (VT-d) ‡	Yes
    Intel® VT-x with Extended Page Tables (EPT) ‡	Yes
