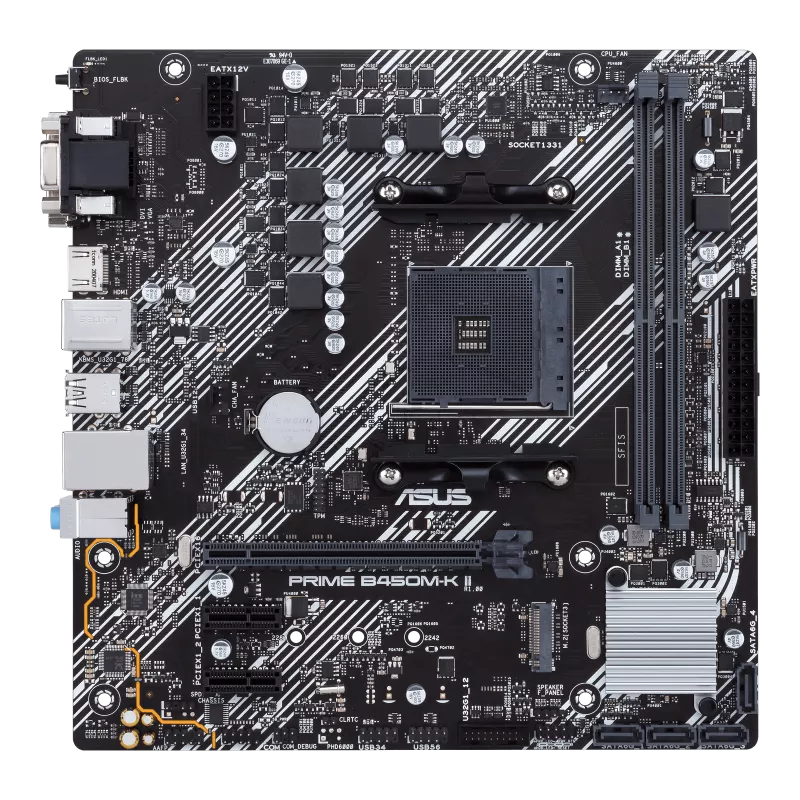

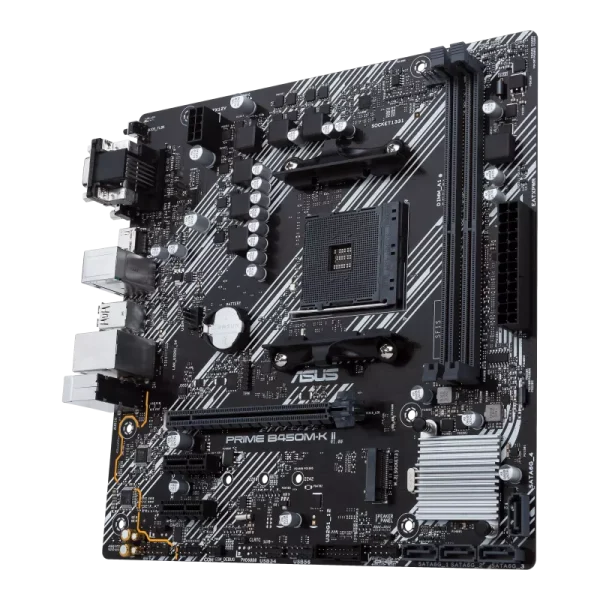

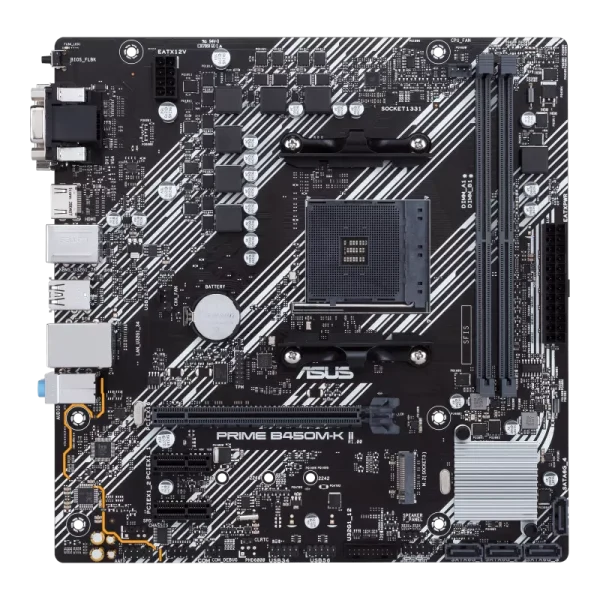

Asus PRIME B450M-K II AM4

מק"ט 90MB1600-MOEAY0 קטגוריה תגיות , , , , ,

329

תיאור מוצר
  • Comprehensive cooling: PCH heatsink and Fan Xpert
  • Ultrafast connectivity: M.2 support, 1 Gb Ethernet, and USB 3.2 Gen 1 Type-A
  • 5X Protection III: Multiple hardware safeguards for all-around system protection
  • LED illumination: Lighting control for both PCIe slot and audio trace paths
ASUS Prime B450M II Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. We’ve melded all the good stuff that’s packed into AMD Ryzen™ processors with essential ASUS design and engineering, so you benefit from industry-leading technologies — including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime B450M II Series motherboard, you build smart, easy and affordably.
Tune It Your Way
Comprehensive controls form the foundation of the ASUS Prime series. The Prime B450M II motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximising your productivity.
All-around Energy Efficiency
With the Energy Processing Unit (EPU), you’ll enjoy system-wide power savings. The EPU automatically optimises power consumption and maximises savings with Away mode.
Flexible Cooling Controls
Fan Xpert software provides comprehensive control over system fans. Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various Advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Quick and Simple Setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.
Cooler by Design
PRIME B450M-K II is engineered with an array of hybrid fan headers and features comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS, ensuring your rig stays cool and stable under intense workloads.
Smart Protection
A dedicated integrated circuit protects the fan header, including short circuit and over temperature protections.
4-Pin PWM/DC Fan
The onboard CHA FAN header supports PWM and DC mode.
Multiple Temperature Sources
Each header can monitor and react to dedicated thermal sensors.
Build on a Solid Foundation
Prime B450M II motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
PCIe 3.0 M.2 (up to 32 Gbps)

Achieve speed with onboard M.2

M.2 Slot supports data-transfer speed up to 32Gbps via x4 PCI Express® 3.0 bandwidth. It‘s the perfect choice for an operating system or application drive, providing fast access to data.

USB 3.2 Gen 1 Type-A
Numerous USB ports support high-end rigs loaded with peripherals, including four rear-panel USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases.
Little Things Make a Big Difference
Prime B450M II series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive interface that let you customise your system to create a unique personal look.
Combined onboard features deliver elevated audio
Outstanding Audio
Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.
Armoury Crate
Armoury Crate is a new software utility designed to give you centralised control of supported products, from a single intuitive interface. Armoury Crate provides control of settings for ASUS products, including keyboard and mouse preferences. This software even features dedicated product registration and highlight to help you stay in touch with the ASUS community.
Driver & Manual Download
Account Management
Fortified PCIe slot prevents damage
SafeSlot Core
SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that’s anchored to the motherboard by a special hook, SafeSlot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.
ASUS Prime motherboards have strengthened solder points around both the PCIe and DIMM pins.
Socket AMD Socket AM4
Chipset AMD B450
Generation Support Ryzen 1st, 2nd, 3rd Gen Processors
CPU (Max Support) Ryzen 3rd Gen Processors
Memory slots 2x DDR4
Memory Slot Support Up to 64GB Memory Support
SATA Ports 4x SATA 6Gb/s
Internal USB Connectors 1 x USB 3.2 Gen 1, 2 x USB 2.0

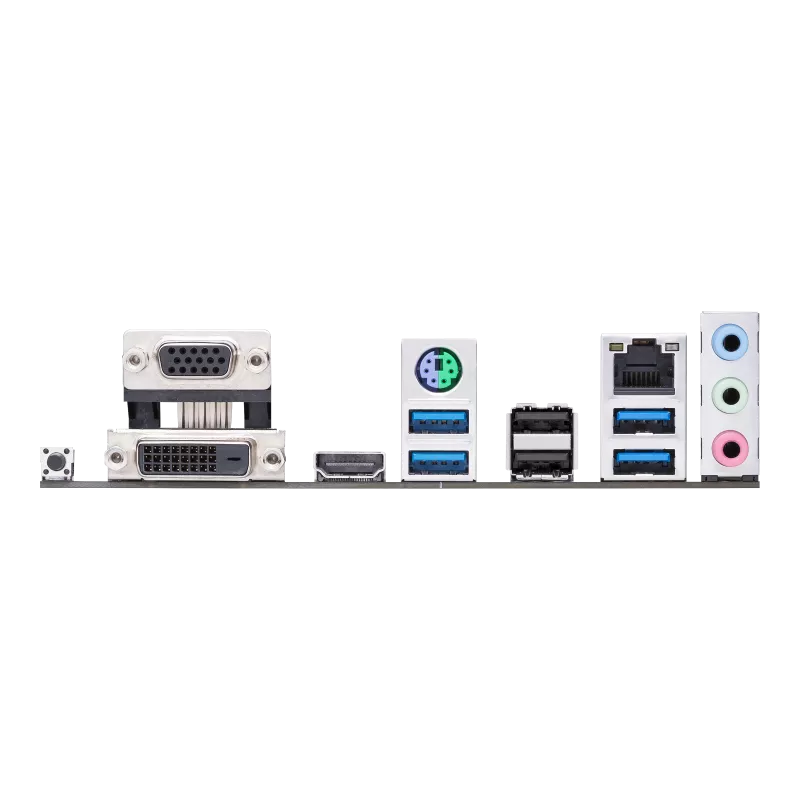

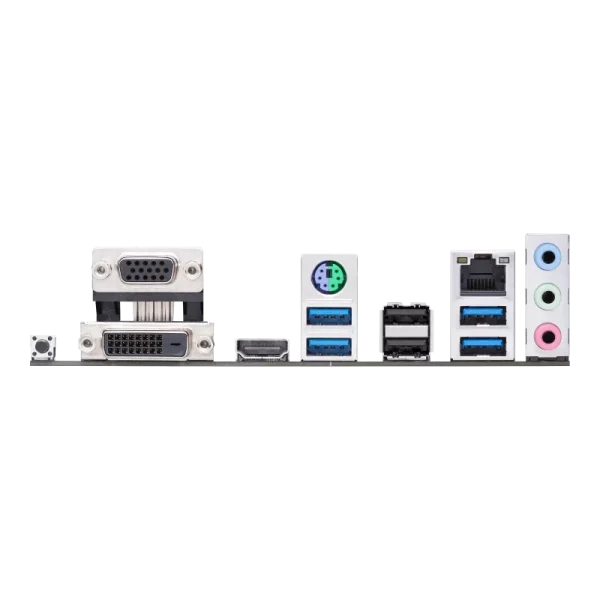

Rear USB Ports 4 x USB 3.2 Gen 1, 2 x USB 2.0
M.2 Slot 1x M.2
HDMI Connector 1 x HDMI Port
DVI Connector 1 x DVI-D Port
Form Factor Micro-ATX
NVIDIA SLI/AMD CrossFire Not Supported
