₪589
| Main characteristics | |
| Description | Diagnostic indication, Sound card uses electrolytic audio capacitors, M.2 heatsink , USB 3.1 10 Gbps connectors, Audio shielding |
| Manufacturer | ASUS |
| Series | PRIME |

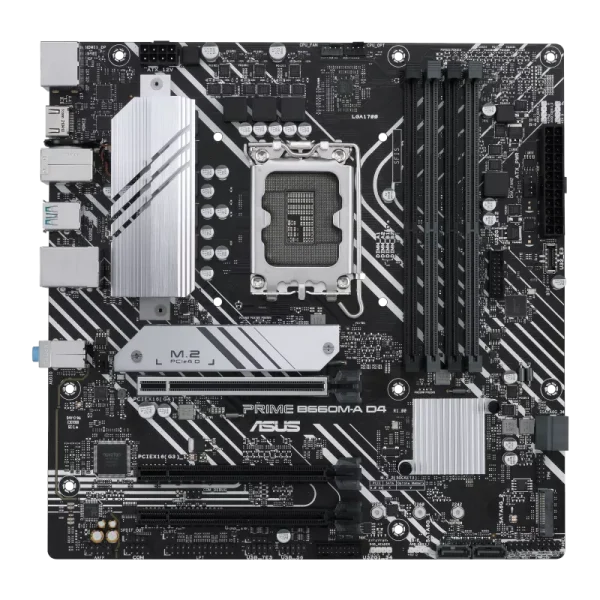

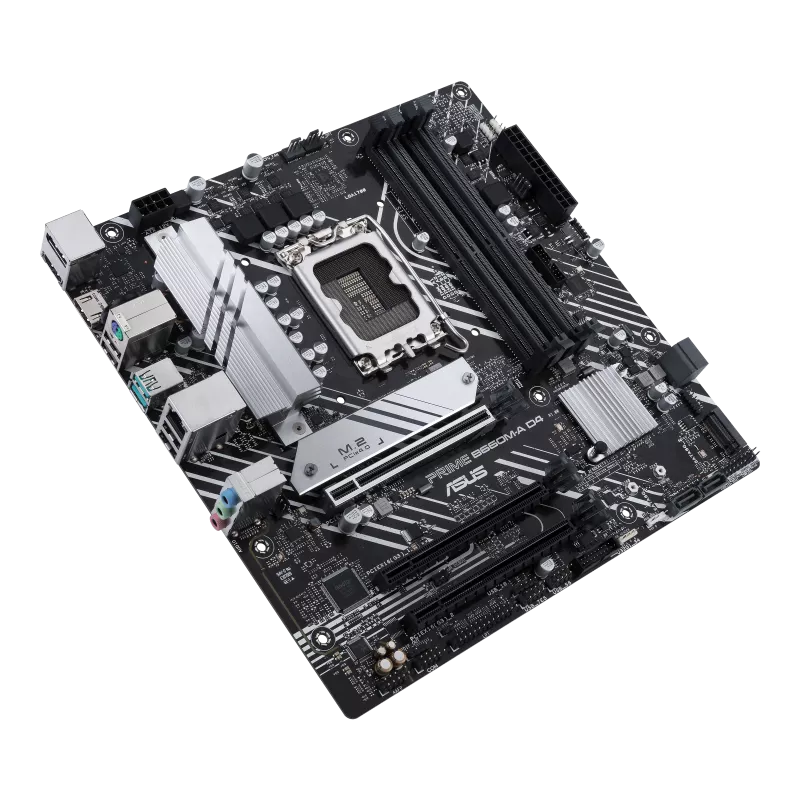

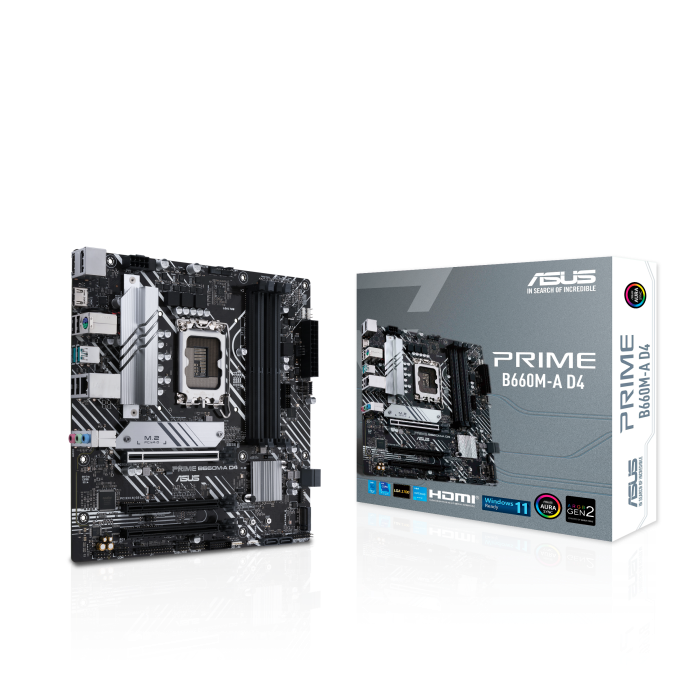

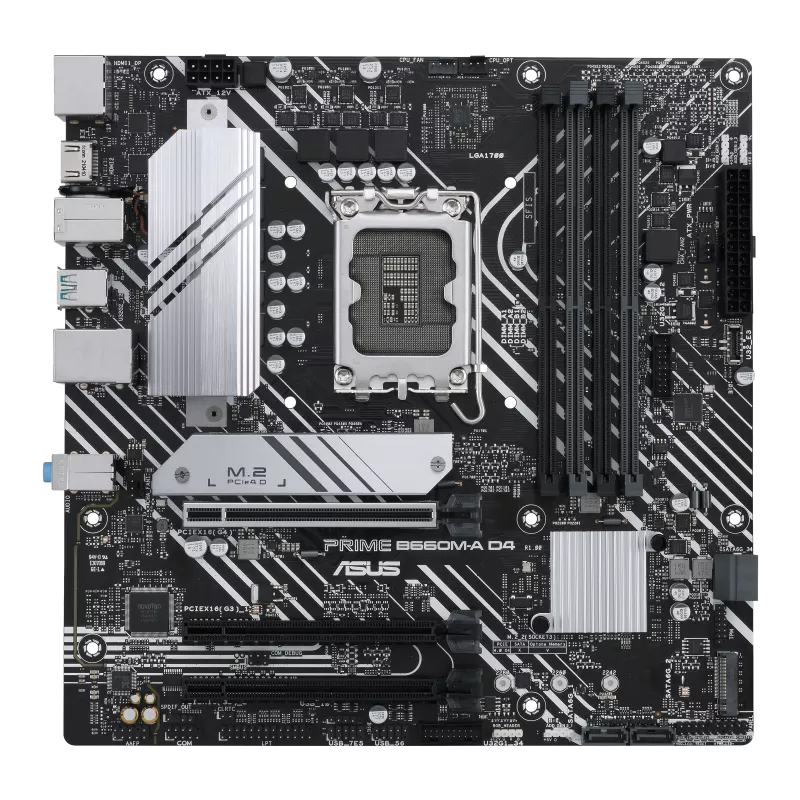

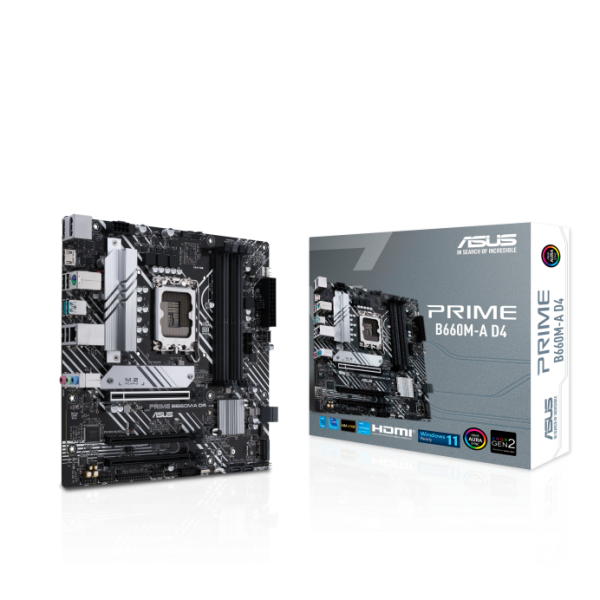

| Model | PRIME B660M-A D4 |
| Type of equipment | Desktop Motherboard |
| Purpose | Desktop PC |
| Chipset mat. Boards | Intel B660 |
| Processor socket | Socket LGA1700 |
| Board Format | Micro ATX (244 x 244mm) |
| OS support | Windows 11 (64 bit only), Windows 10 (64 bit only) |
| PTT/fTPM support | Yes |
| Unique technologies | |
| Unique ASUS Technologies | DIGI+ VRM, Fan Xpert 2+, LANGuard, Optimem II, ProCool, SafeSlot |
| Support RGB backlight timing | Aura Sync RGB LED |
| ARGB 5V connectors on the board | 3x 3-pin Addressable RGB connector |
| RGB 12V connectors on the board | 1x 4-pin RGB connector |
| Processor support | |
| Max. number of processors on the motherboard | one |
| Support for processor types | Intel Core i9-12xxx, Core i7-12xxx, Core i5-12xxx, Core i3-12xxx, Pentium G7xxx, Celeron G6xxx seriescompatible processors |
| Support for processor cores | Alder Lake |
| Bus frequency | 16 GT/s (DMI 4.0) |
| Memory support | |
| Supported memory type | DDR4. The maximum supported memory bandwidth is listed in the processor description |
| Number of memory slots | 4 |
| Number of DDR4 slots | 4 (2-channel memory controller) |
| Maximum Supported Memory Standards | PC4-42664 (DDR4 5333 MHz), Processor dependent |
| Maximum RAM | 128 GB |
| Disk system | |
| Number of M.2 connectors ( NGFF ) | 2 M Key PCI-E slots supporting Type 2242/2260/2280 cards (up to 80mm long). The first slot works in PCI-E 4.0 4x mode. The second slot works in PCI-E 4.0 4x mode.m.2 SSD |
| NVMe Boot support | Yes |
| Intel Optane Memory | Yes, Intel Optane Memory H-series |
| RAID controller | Built into the chipset, it is possible to build RAID arrays of levels 0, 1, 10, 5 from SATA devices |
| SATA 6Gb/s | 4 channels |
| Communications | |
| Net | 1 Gbps. Intel network controller |
| Interface, connectors and outputs | |
| USB controller | USB 3.2 controller built into the chipset |

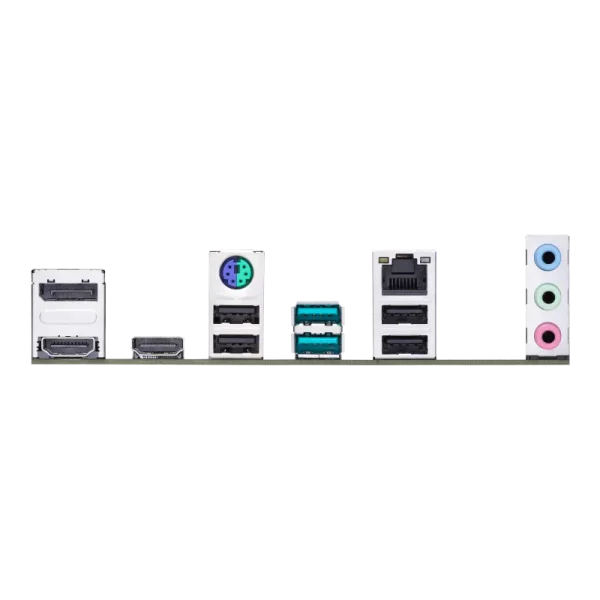

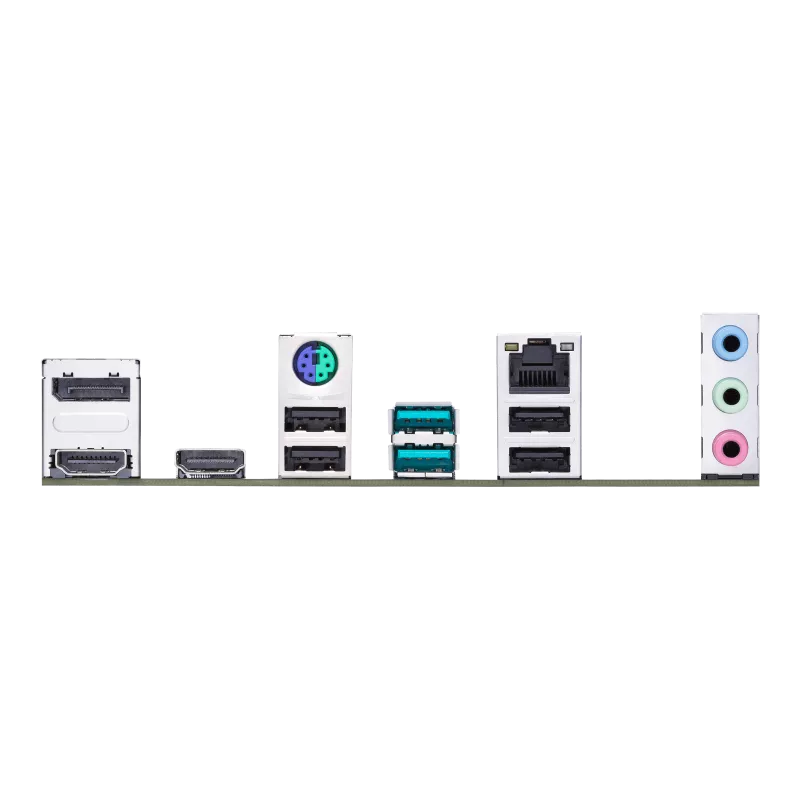

| USB connectors on the rear panel | 2x USB 3.1 Gen2, 4x USB 2.0 |
| Internal USB ports on the board | 1x USB 3.1 Gen1 (type C), 4x USB 3.0 ( USB 3.1 Gen1), 5x USB 2.0 can be connected on the case or via the port bar |
| Ports | 1x RJ-45 LANports |
| Keyboard/mouse | PS/2 keyboard/mouse + USB |
| Slots for installing expansion cards | |
| Number of PCI Express 16x slots | 3 x 16x PCI-E slots operate in 16-4-1 mode; The first slot works as PCI-E 4.0; The second slot works as PCI-E 3.0; The third slot works as PCI-E 3.0 |
| Integrated graphics | |
| Video M/B | Used built into the processor. WARNING When using processors without integrated video, the video outputs on the board do not work . |
| Display Port Version | 1.4 |
| HDMI vrsion | 2.1 |
| Maximum screen resolution | 4096 x 2304 @ 60Hz with DP monitor, 4096 x 2160 @ 60Hz with HDMI monitor |
| Video connectors on the rear panel | DisplayPort v1.4, 2 HDMI 2.1 outputs |
| Max. number of connected monitors | 2 |
| Built-in sound card | |
| Sound | Realtek 8-channel HDA codec. 192 kHz/24 bit |
| Audio connectors on the rear panel | Line-in, Line-out, Mic-in |
| Cooling | |
| Cooling | Passive cooling |
| Number of fan headers | 4x 4-pin MP connector |
| Cooling System Noise Reduction Technologies | ASUS Fan Xpert 2+ |
| Nutrition | |
| Power Supply Requirements | Only 24+8 pin power supplies are supported |
| Other characteristics | |
| BIOS | UEFI AMI BIOS, 128 MB |
| OA 3.0 support | Yes |
| External sources of information | |
| Manufacturer hotline | |
| Logistics | |
| Package dimensions (measured in NYX) | 26.85 x 26.09 x 5.56 cm |
| Gross weight (measured in NYX) | 1.041 kg |
