Gigabyte B550M AORUS PRO-P DDR4 rev. 1.0 AM4

Name: Gigabyte B550M AORUS PRO-P DDR4 rev. 1.0 AM4 - Clix Gamers
SKU: B550M-AORUS-PRO-P
Price: 669 ILS
Availability: OutOfStock

מק"ט B550M-AORUS-PRO-P קטגוריות AMD לוחות, חומרה תגיות 4-Slots, AM4, B550, DDR4, GIGABYTE, Micro ATX

Product Details

₪669

הוסף לסל

תיאור מוצר

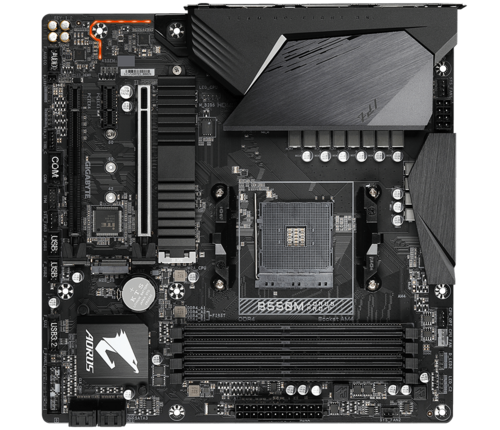

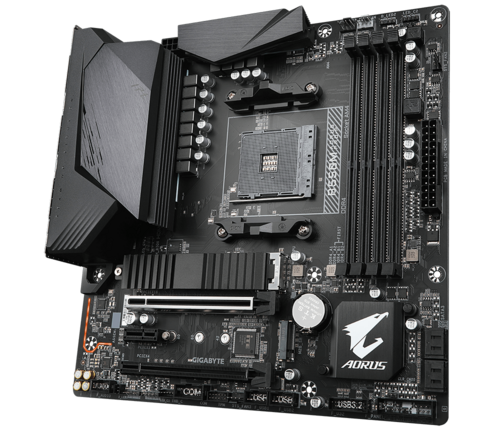

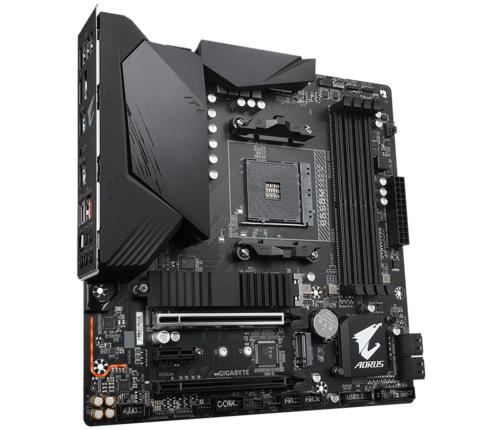

B550M AORUS PRO-P (rev. 1.0)

AMD B550 AORUS Motherboard with 10+2 Phases Digital Twin Power Design, Enlarged Surface Heatsinks, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 x4 M.2 with One Thermal Guard, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
10+2 Phases Digital Twin Power Design with 50A DrMOS
Advanced Thermal Design with Enlarged VRM Heatsinks
Ultra Durable™ PCIe 4.0 Ready x16 Slot
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with One Thermal Guard
AMP-UP Audio with ALC1200 and premium capacitor
Blazing Fast 2.5GbE LAN with Bandwidth Management
DisplayPort & HDMI for Multiple Display
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Pre-installed IO Shield for Easy and Quick Installation

ULTIMATE POWER DESIGN

UNPARALLELED PERFORMANCE

ADVANCED THERMAL SOLUTION

NEXT GENERATION CONNECTIVITY

AUDIO

DEFINITIVE AESTHETICS

ULTRA DURABLE

GIGABYTE BIOS & APP CENTER

DisplayPort

HDMI

Q-Flash Plus Button

USB 3.2 Gen2 Type-C™

2.5 GbE LAN

Ultra Durable PCIe Armor

PCIe 4.0 Slot
Running 1 x16

AMP-UP Audio

ALC 1200 Audio Codec
Audio Noise Guard
High-End Audio Capacitors

RGB FUSION 2.0

Addressable LED Header*2
RGB LED Header*3

10+2 Phases Digital Twin Power Design with DrMOS

50A DrMOS
Premium Choke and Capacitor
2X Copper PCB

Advanced Thermal Design

Enlarged Heatsink
5 W/mK LAIRD Thermal Conductivity Pad

Supports 3rd Gen AMD Ryzen™ Processors

Solid Pin Power Connectors

24 Pin ATX Power Connector
8 Pin CPU Power Connector

Dual M.2 Connectors

1. 22110 M.2 with Thermal Guard

PCIe 4.0 M.2 Connector
NVMe PCIe 4.0/3.0 x4 and SATA Mode (from CPU)

2. 2280 M.2

NVMe PCIe 3.0 x4 and SATA Mode (from Chipset)

Smart Fan 5 + FAN STOP

5 Fan / Water Pump Connectors
6 Temperature Sensors

Thunderbolt Header

AMD StoreMI Technology

GIGABYTE B550 motherboards maximize your PC’s potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI:

• Making the PC experience fast, smooth and easy
• Optimizing computer responsiveness from system boot to application launch
• Offering SSD performance with HDD capacity at an affordable cost
• Quickly accessing key files by automatically learning users’ computing behaviors

Detail information please refer AMD official website: https://www.amd.com/en/technologies/store-mi

Digital PWM

Driver MOSFET

All-Solid Capacitor

CPU Power Connector

10*+2 Phases Digital Twin Power Design

Digital PWM Controller delivers appropriate voltage to the CPU
With 10+2 Phases 50A DrMOS, each power phase connects to the CPU and provides more balanced and efficient power delivery. With capability to handle up to 600 Amps current in a total
All-solid capacitors to improve Transient response and minimize oscillation
24pin+8pin Solid Pin CPU Power Connectors

B550M AORUS PRO-P motherboard uses a 10+2 phases Digital Twin Power Design which includes PWM controller, DrMOS and Ferrite core choke as high quality selected components. These 100% digital controller offer incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from 3rd Gen AMD Ryzen™ processors.

*5+5 Phases parallel power design

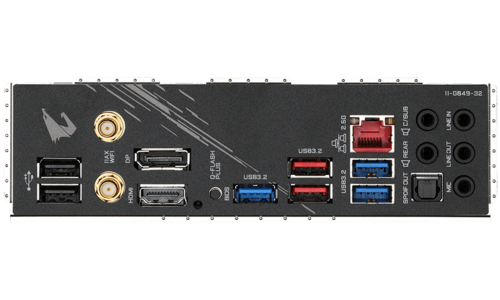

Pre-Installed IO Armor

Enlarged MOSFET Heatsink

Thermal Guard for M.2

2.5GbE LAN Onboard

2X Faster than ever

Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least two times faster transfer speeds as compared to general 1GbE networking. It’s perfectly suit for gamers and streamer with ultimate and smooth online experience. It also backward compatible with Multi-Gig (10/100/1000/2500Mbps)of RJ-45 ethernet.

HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support

HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.

Note: Only New Gen AMD Ryzen™ with Radeon™ Graphics processors support displaying function.

Native USB 3.2 Gen2

AMD B550 chipset provides native USB 3.2 Gen2 ports with speeds up to 10Gbps. Available over the USB Type-A connector, the USB3.2 Gen2 is much improved with twice the bandwidth compared to its previous generation as well as backwards compatibility with USB2.0 and USB3.2 Gen1.

Multi-Zone Light Show Design

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

Note: Lighting effects depicted are for demonstration purposes only. Actual lighting effects may vary by model.

Ultra Durable™ PCIe Armor

Industry Leading Ultra Durable™ PCIe Armor

The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

BIOS

New User Interface

All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.

My Favorites

Add constantly used items into the favorite menu for quick access.

Storage Information

Show all kinds of storage information including SATA, PCIE and M.2 interface.

Changelog

List all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive Load Line Curve

Clearly show each loadline calibration setting in an intuitive curve graph.

XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere

Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!

* Free 14 days XSplit Gamecaster + Broadcaster Premium License.
