SPECIFICATIONS |
Brand |
Gigabyte |
Series |
Ultra Durable |
Model |

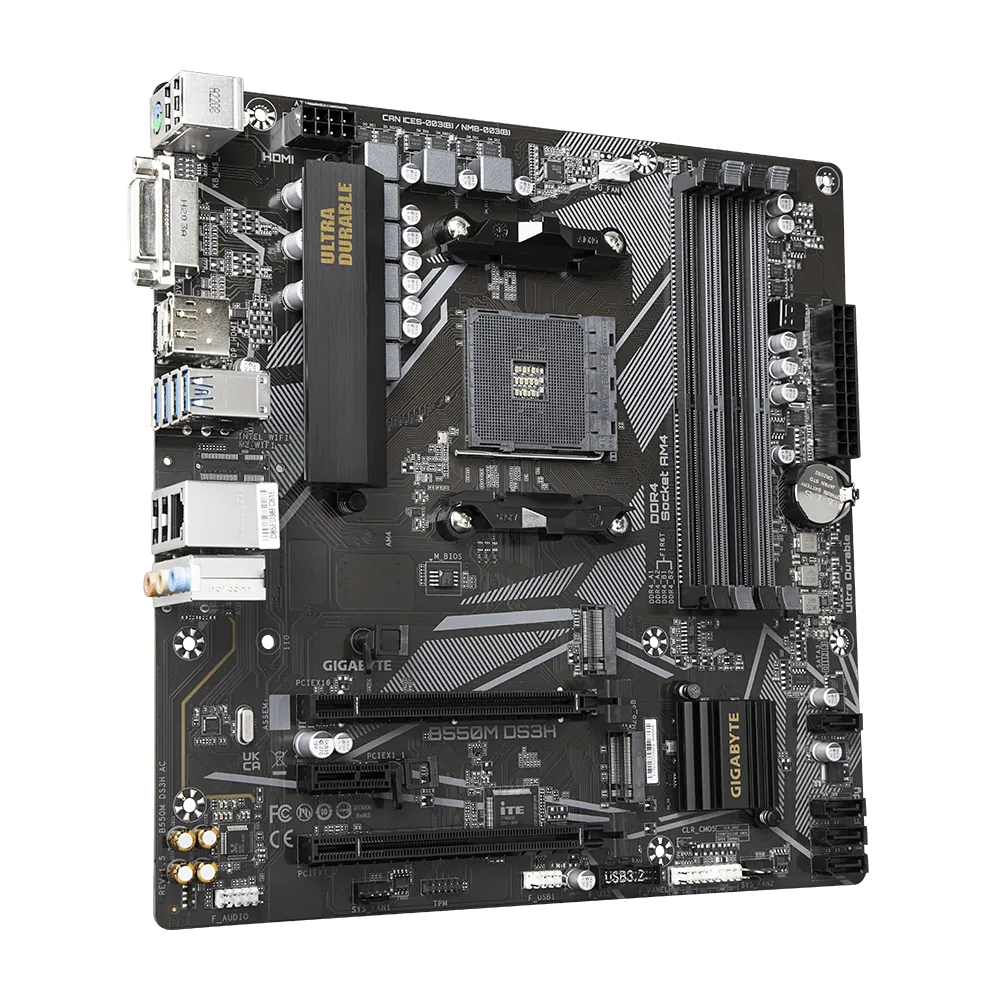

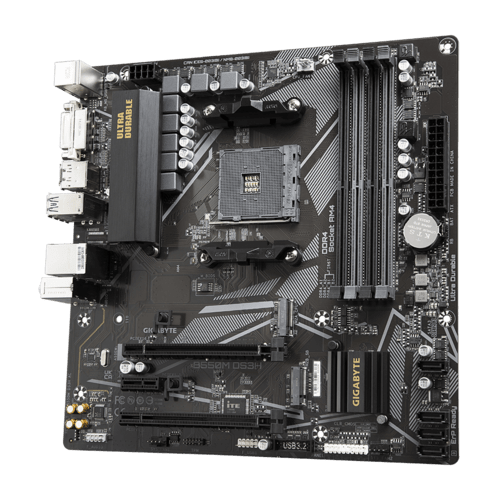

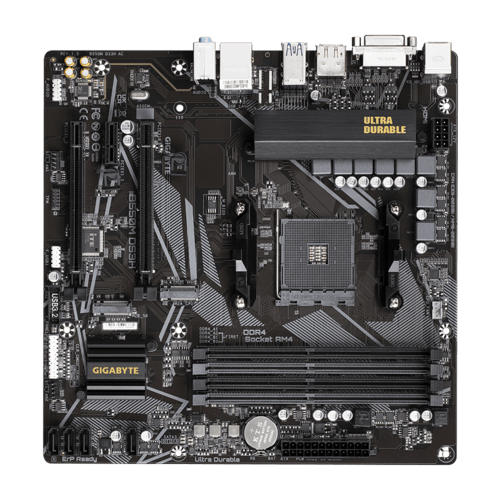

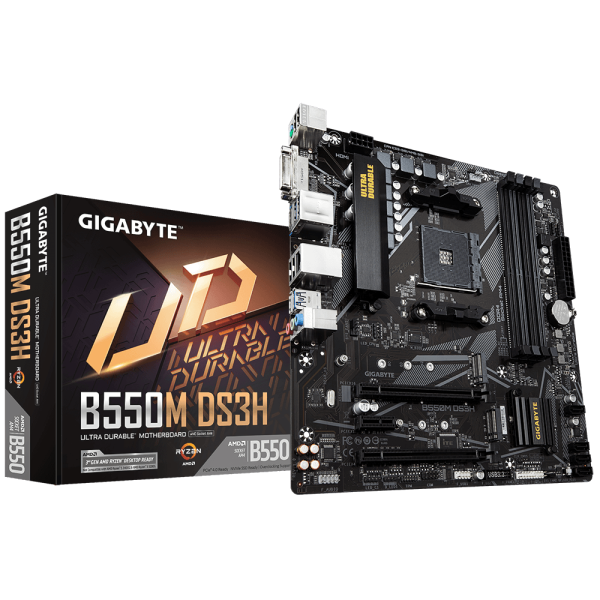

B550M DS3H (rev. 1.x) |
CPU |
AMD Socket AM4, Support for: AMD Socket AM4, Support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors |
Chipset |
AMD B550 |
Memory |
4x DDR4 DIMM Sockets Supporting Up to 128 GB (32 GB Single DIMM Capacity) of System Memory |
AMD Ryzen 5000 Series Processors/ 3rd Generation AMD Ryzen: |
Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz Memory Modules |
3rd Gen AMD Ryzen with Radeon Graphics Processors: |
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz Memory Modules |
Dual Channel Memory Architecture |
Support for ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules |
Support for Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules |
Support for Extreme Memory Profile (XMP) Memory Modules |
On-Board Graphics |
Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics Processors: |
1x DVI-D Port, Supporting a Maximum Resolution of 1920×1200@60 Hz *1 |
1x HDMI Port, Supporting a Maximum Resolution of 4096×2160@60 Hz *2 |
Maximum Shared Memory of 16 GB |
Audio |
Realtek Audio CODEC |
High Definition Audio |
2/4/5.1/7.1-Channel *3 |
LAN |
Realtek GbE LAN Chip (1000 Mbit/100 Mbit) |
Expansion Slots |
1x PCI Express x16 Slot (PCIEX16), Integrated in the CPU: |
3rd Generation AMD Ryzen Processors Support PCIe 4.0 x16 Mode |
3rd Generation AMD Ryzen with Radeon Graphics Processors Support PCIe 3.0 x16 Mode *4 |
1x PCI Express x16 Slot (PCIEX4), Integrated in the Chipset: |
Supporting PCIe 3.0 x4 Mode |
1x PCI Express x1 Slot (PCIEX1), Integrated in the Chipset: |
Supporting PCIe 3.0 x1 Mode |
Storage Interface |
1x M.2 Connector (M2A_CPU), Integrated in the CPU, Supporting Socket 3, M Key, Type 2242/2260/2280/22110 SSDs: |
3rd Generation AMD Ryzen Processors Support SATA and PCIe 4.0 x4/x2 SSDs |
3rd Generation AMD Ryzen with Radeon Graphics Processors Support SATA and PCIe 3.0 x4/x2 SSDs |
1x M.2 Connector (M2B_SB), Integrated in the Chipset, Supporting Socket 3, M key, type 2242/2260/2280 SSDs: |
Supporting SATA and PCIe 3.0 x2 SSDs |
4x SATA 6Gb/s Connectors, Integrated in the Chipset: |
Support for RAID 0, RAID 1, and RAID 10 |
USB |
CPU: |
4x USB 3.2 Gen 1 Ports on the Back Panel |
Chipset: |
2x USB 3.2 Gen 1 Ports Available Through the Internal USB Header |
6x USB 2.0/1.1 Ports (4 Ports on the Back Panel, 2 Ports Available Through the Internal USB Header) |
Internal I/O Connectors |
1x 24-pin ATX Main Power Connector |
1x 8-pin ATX 12V Power Connector |
1x CPU Fan Header *5 |
2x System Fan Headers *5 |
2x Addressable LED Strip Headers |
2x RGB LED Strip Headers |
1 x CPU Cooler LED Strip/RGB LED Strip Header |
2x M.2 Socket 3 Connectors |
4x SATA 6Gb/s Connectors |
1x Front Panel Header |
1x Front Panel Audio Header |
1x USB 3.2 Gen 1 Header |
1x USB 2.0/1.1 Header |
1x Trusted Platform Module (TPM) Header (2×6 pin, for the GC-TPM2.0_S Module Only) |
1x Serial Port Header |
1x Clear CMOS Jumper |
1x Q-Flash Plus Button |

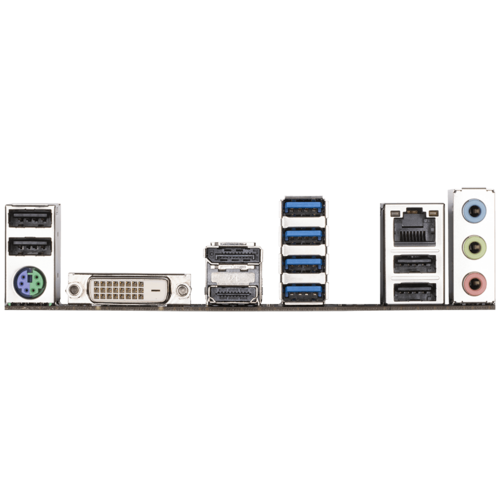

Back Panel Connectors |
1x PS/2 Keyboard/Mouse Port |
1x DVI-D Port |
1x HDMI Port |
4x USB 3.2 Gen 1 Ports |
4x USB 2.0/1.1 Ports |
1x RJ-45 Port |
3x Audio Jacks |
I/O Controller |
iTE I/O Controller Chip |
Hardware Monitoring |
Voltage Detection |
Temperature Detection |
Fan Speed Detection |
Overheating Warning |
Fan Fail Warning |
Fan Speed Control *6 |
BIOS |
1x 256 Mbit Flash |
Use of Licensed AMI UEFI BIOS |
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Operating System Support |
Windows 10 64-bit |
Form Factor |
Micro ATX Form Factor; 24.4cm x 24.4cm |
Notes |
*1 The DVI-D port does not support D-Sub connection by adapter. |
*2 Support for HDMI 2.1 version, HDCP 2.3, and HDR. |
*3 To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software. |
*4 For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
*5 All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. |
*6 Whether the fan speed control function is supported will depend on the cooler you install. |
