| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | AMD B650 |

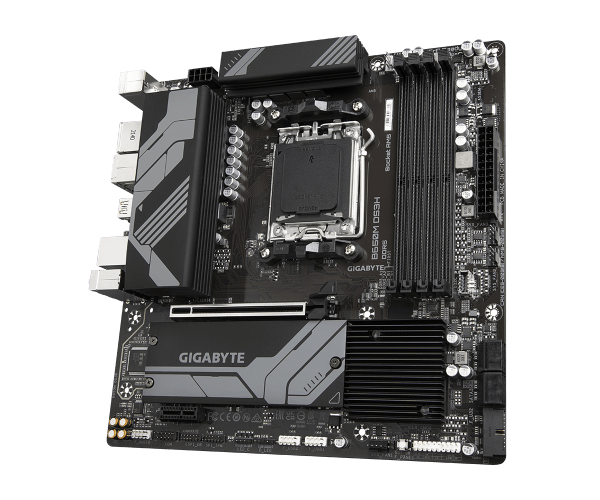

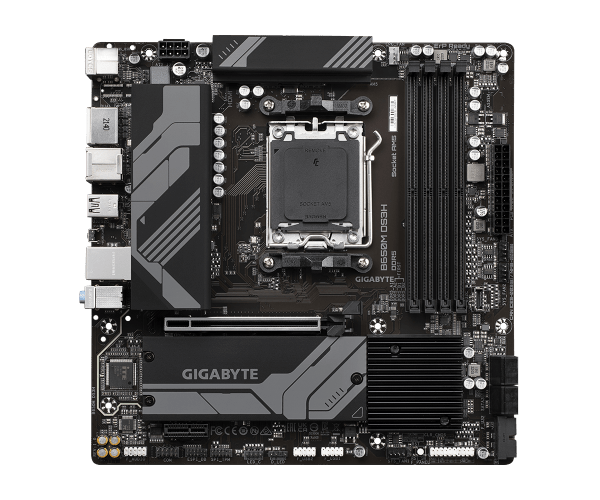

| Model | B650M DS3H |
| CPU | AMD Socket AM5, support for: AMD Ryzen 7000 Series Processors |
| Chipset | AMD B650 |
| Memory | Support For DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/S Memory Modules |
| 4x DDR5 DIMM Sockets Supporting Up To 128 GB (32 GB Single DIMM Capacity) Of System Memory | |
| Dual Channel Memory Architecture | |
| Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules | |
| Support For AMD EXtended Profiles For Overclocking (AMD EXPO) And Extreme Memory Profile (XMP) Memory Modules | |
| Onboard Graphics | Integrated Graphics Processor: |
| 2x DisplayPorts, Supporting A Maximum Resolution Of 3840×2160@144 Hz | |
| * Support For DisplayPort 1.4 Version And HDR. | |
| 1x HDMI Port, Supporting A Maximum Resolution Of 4096×2160@60 Hz | |
| * Support For HDMI 2.1 Version And HDCP 2.3. | |
| ** Support Native HDMI 2.1 TMDS Compatible Ports. | |
| (Graphics Specifications May Vary Depending On CPU Support.) | |
| Support For Up To 3 Displays At The Same Time | |
| Audio | Realtek Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * You Can Change The Functionality Of An Audio Jack Using The Audio Software. To Configure 7.1-Channel Audio, Access The Audio Software For Audio Settings. | |
| LAN | Realtek 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | CPU: |
| 1x PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X16 (PCIEX16) | |
| Chipset: | |
| 1x PCI Express X1 Slot, Supporting PCIe 3.0 And Running At X1 (PCIEX1) | |
| Storage Interface | CPU: |
| 2 X M.2 Connectors (Socket 3, M Key, Type 25110/2280 PCIe 4.0 X4/X2 SSD Support) | |
| Chipset: | |
| 4 X SATA 6Gb/S Connectors | |
| RAID 0, RAID 1, And RAID 10 Support For NVMe SSD Storage Devices | |
| RAID 0, RAID 1, And RAID 10 Support For SATA Storage Devices | |
| USB | CPU: |
| 1x USB Type-C Port On The Back Panel, With USB 3.2 Gen 2 Support | |
| 1x USB 3.2 Gen 2 Type-A Port (Red) On The Back Panel | |
| CPU USB 2.0 Hub: | |
| 4x USB 2.0/1.1 Ports On The Back Panel | |
| Chipset: | |
| 1x USB Type-C Port With USB 3.2 Gen 2 Support, Available Through The Internal USB Header | |
| 4x USB 3.2 Gen 1 Ports (2 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header) | |
| 4x USB 2.0/1.1 Ports Available Through The Internal USB Headers | |
| Internal I/O Connectors | 1x 24-Pin ATX Main Power Connector |
| 1x 8-Pin ATX 12V Power Connector | |
| 1x CPU Fan Header | |
| 3x System Fan Headers | |
| 1x Addressable LED Strip Header | |
| 1x RGB LED Strip Header | |
| 2x M.2 Socket 3 Connectors | |
| 4x SATA 6Gb/S Connectors | |
| 1x Front Panel Header | |
| 1x Front Panel Audio Header | |
| 1x USB Type-C Header, With USB 3.2 Gen 2 Support | |
| 1x USB 3.2 Gen 1 Header | |
| 2x USB 2.0/1.1 Headers | |
| 1x Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only) | |
| 1x Serial Port Header | |
| 1x Reset Button | |
| 1x Reset Jumper | |
| 1x Clear CMOS Jumper | |
| Back Panel Connectors | 4x USB 2.0/1.1 Ports |
| 1x PS/2 Keyboard/Mouse Port | |
| 2x DisplayPorts | |
| 1x HDMI Port | |
| 1x USB 3.2 Gen 2 Type-A Port (Red) | |
| 1x USB Type-C Port, With USB 3.2 Gen 2 Support | |
| 1x Q-Flash Plus Button | |
| 1x RJ-45 Port | |
| 2x USB 3.2 Gen 1 Ports | |
| 3x Audio Jacks | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage Detection |
| Temperature Detection | |
| Fan Speed Detection | |
| Fan Fail Warning | |
| Fan Speed Control | |
| * Whether The Fan Speed Control Function Is Supported Will Depend On The Cooler You Install. | |
| BIOS | 1x 256 Mbit Flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor |
| 24.4cm x 24.4cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
