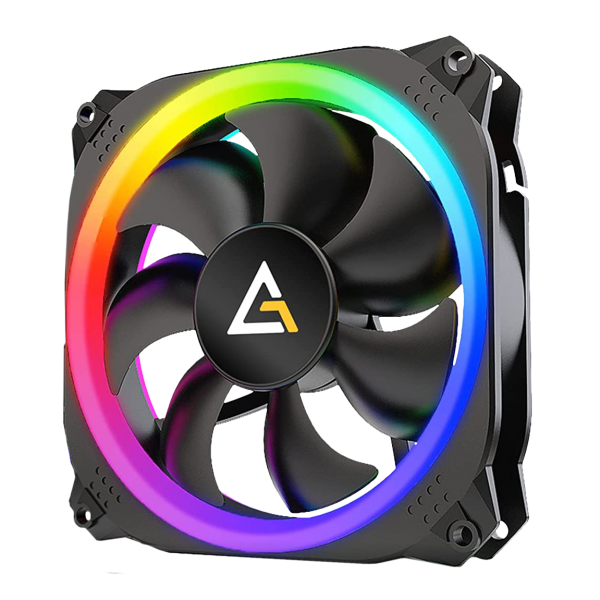

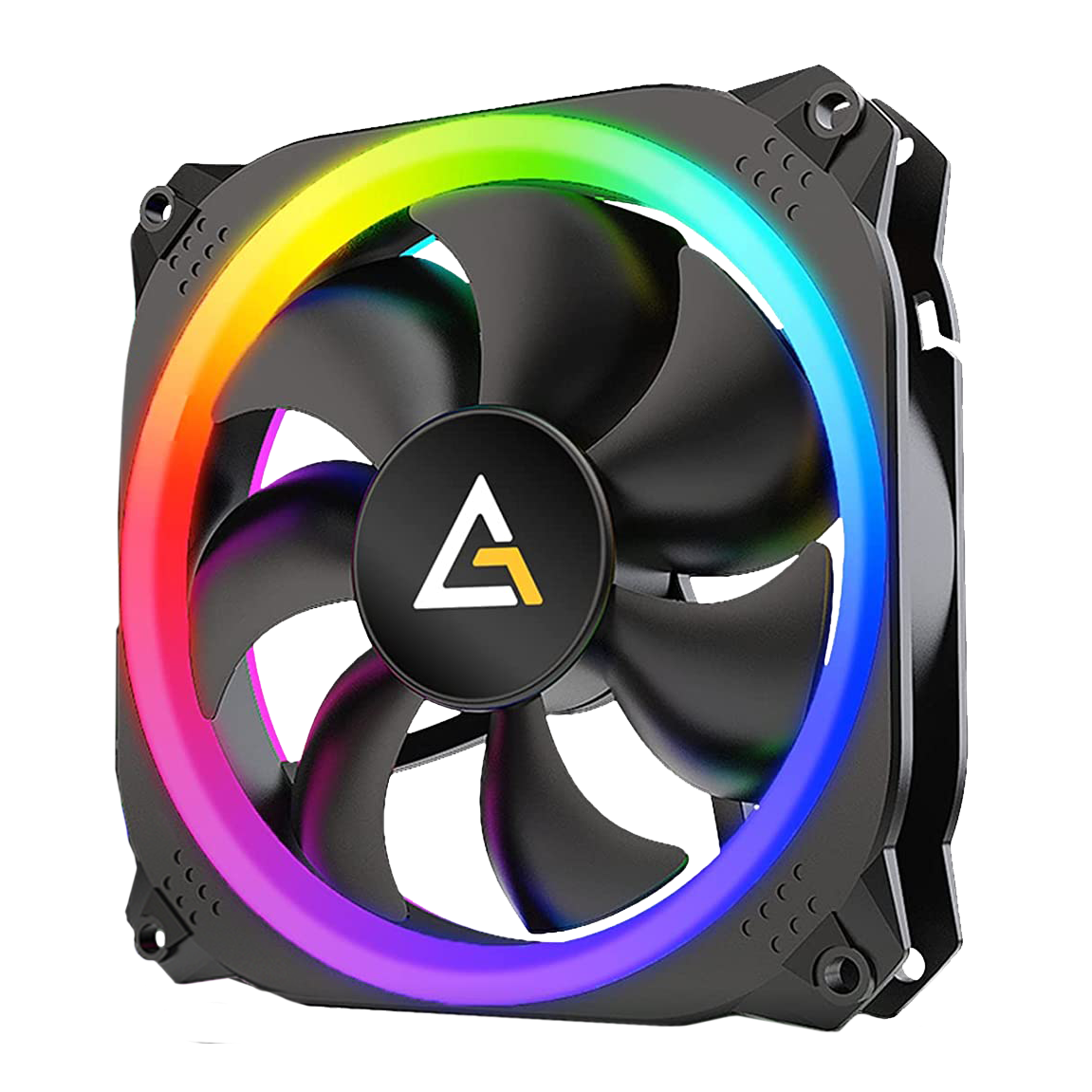

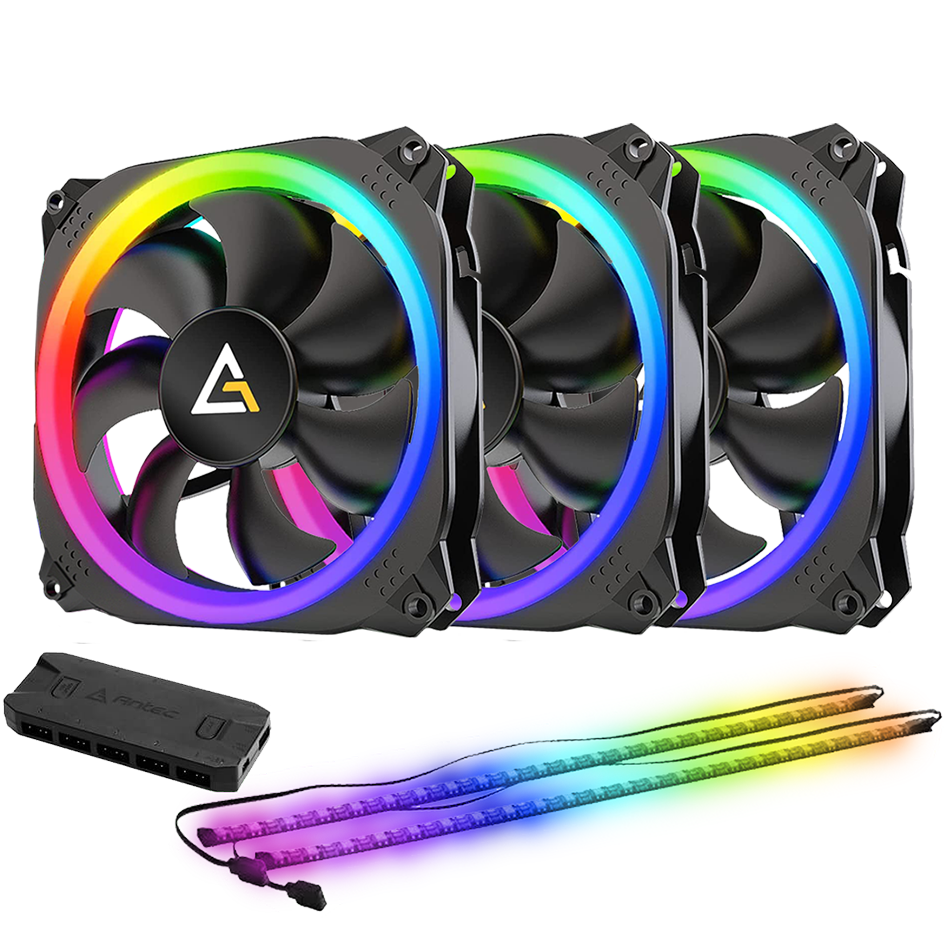

The Prizm ARGB series case fans come in two sizes -120 and 140 mm, and feature a dual-ring aperture design, which allows you to display RGB effects on both sides of the assembly.

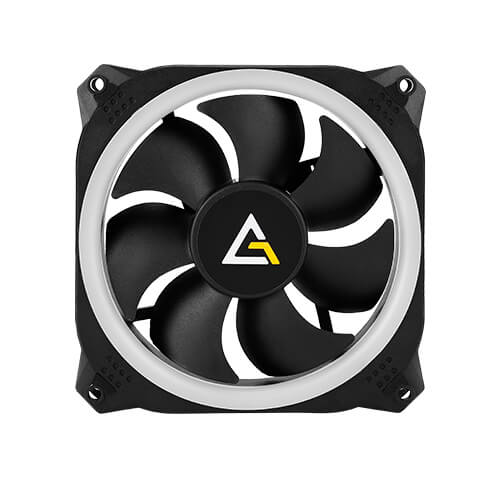

FRONT

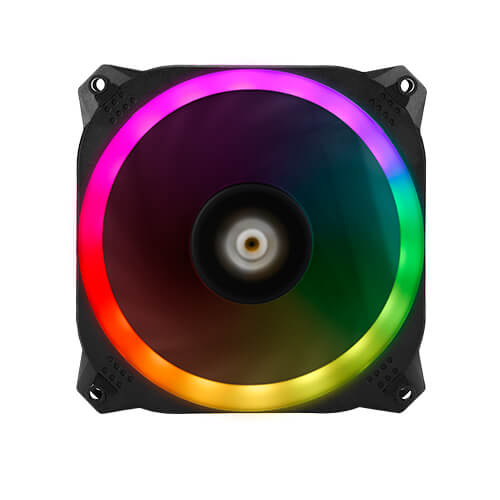

BACK
18 Independent RGB LED Beads
Each LED bead can emit a variety of lighting colors to enrich your vision.
Motherboard SyncAddressable RGB LED Lighting
Enjoy nearly 16.8 million customized RGB colors and effects through compatibility with top-end motherboard manufacturers.
To sync with Gigabyte Motherboard, please connect the additional cable (included in the package).*Exclude Z390 Model
ARGB LED Lighting Mode
up to 16.8 million colors and coordinate your own custom schemes for endless variety.

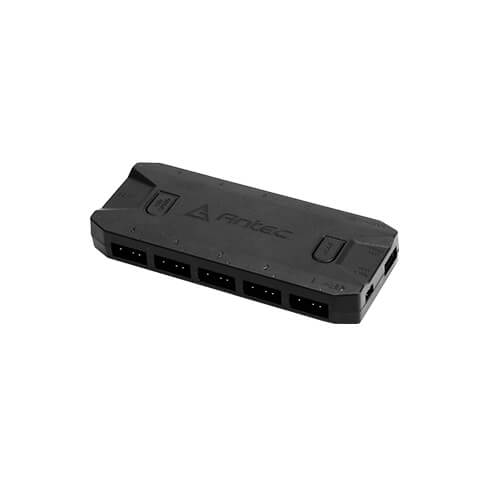

Fan Controller (Included)
Multi-function fan controller for up to 5 fans. Easily switch between light modes to create a unique custom color.
PWM Intelligent Case Fan
Fan speed automatically adjusts according to temperature, effectively reducing system noise while achieving excellent heat dissipation

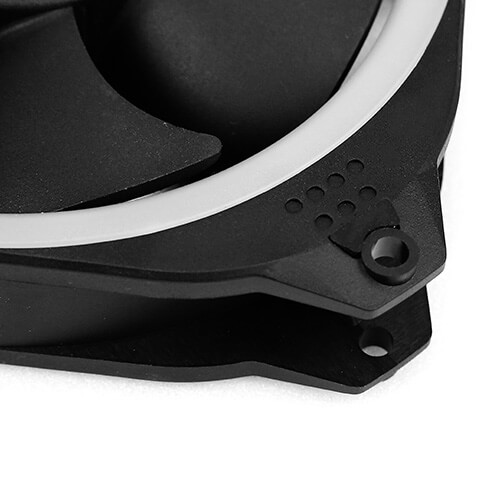

Hydraulic Bearing /Shock-Absorbing Pads onAll Four Corners

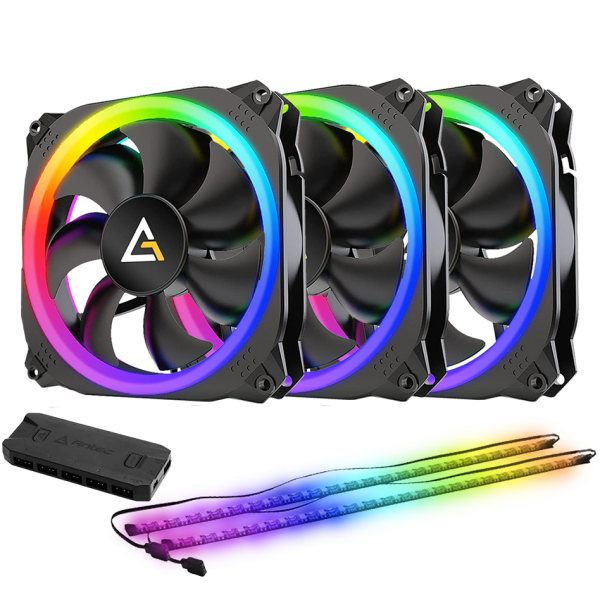

ARGB LED Strip Light Included
The light strip also uses Single RGB LED, which is compatible with the motherboard ARGB control system.
SPECIFICATIONS
Model Name
Prizm 120 ARGB 3+2+C
Fan Type
PWM Fan
Dimensions (mm)
120*120*25 mm
Bearing Type
Hydraulic
LED Type
Addressable RGB
Fan Speed (RPM)
2000 max.
Airflow (CFM)
45.03 max.
Air Pressure (mmH2O)
2.56 max.
Fan Noise Level (dBA)
32.6 max.
Lifespan
40000 hours
Connector
Fan: 4 pin ; ARGB: 3 pin
Rated Voltage
FAN: DC12V ; LED: DC5V
Operating Voltage
FAN: DC6.0-13.8V; LED: DC4.5-5.3V
Rated Current (A)
FAN: 0.18A±20% ; LED: 0.80A±20%
Warranty
2 years
Fan Control Box
ARGB port x 5, PWM fan port x 5,
SATA, Mode, External LED CTRL,
M/B Sync, LED Speed
