₪949
| SPECIFICATIONS | |
| Brand | Asus |
| Series | Asus Prime |
| Model | PRIME X570-P |
| CPU | AMD AM4 Socket 3rd and 2nd AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors *1 |
| Chipset | AMD X570 |
| Memory | 3rd Gen AMD Ryzen Processors: |
| 4x DIMM, Maximum 128GB, DDR4 MHz Un-Buffered Memory | |
| 2nd Gen AMD Ryzen Processors: | |
| 4x DIMM, Maximum 128GB, DDR4 MHz Un-Buffered Memory | |
| 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors: | |
| 4x DIMM, Maximum 128GB, DDR4 MHz Memory | |
| Dual Channel Memory Architecture | |
| ECC Memory (ECC Mode) Support Varies by CPU. *2 | |
| Graphics | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors: |
| VGA Output Support: HDMI Port | |
| Supports HDMI 1.4b with Maximum Resolution 4096 x 2160 @ 24 Hz | |
| Multi-GPU Support | 3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors: |
| Supports AMD 2-Way CrossFireX Technology | |
| Expansion Slots | 3rd Gen AMD Ryzen Processors: |
| 1x PCIe 4.0 x16 (x16 Mode) | |
| 2nd Gen AMD Ryzen Processors: | |
| 1x PCIe 3.0 x16 (x16 Mode) | |
| 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors: | |
| 1x PCIe 3.0 x16 (x8 Mode) | |
| AMD X570 Chipset: | |
| 1x PCIe 4.0 x16 (Max at x4 Mode) | |
| 3x PCIe 4.0 x1 | |
| Storage | 3rd Gen AMD Ryzen Processors: |
| 1x M.2_1 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA Modes) Storage Devices Support | |
| 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors: | |
| 1x M.2_1 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA Modes) Storage Devices Support | |
| AMD X570 Chipset: | |
| 1x M.2_2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA Modes) Storage Devices Support | |
| 6x SATA 6Gb/s Ports | |
| Support Raid 0, 1, 10 | |
| LAN | Realtek RTL8111H |
| ASUS LAN Guard | |
| Audio | Realtek S1200A 8-Channel High Definition Audio CODEC *3 |
| Supports: Jack-Detection, Front Panel Jack-Retasking | |
| Front Panel Audio Connector (AAFP) | |
| Audio Feature: | |
| Audio Shielding: Ensures Precision Analog/Digital Separation and Greatly Reduced Multi-Lateral Interference | |
| Dedicated Audio PCB Layers: Separate Layers for Left and Right Channels to Guard the Quality of the Sensitive Audio Signals | |
| Premium Japanese-Made Audio Capacitors: Provide Warm, Natural and Immersive Sound with Exceptional Clarity and Fidelity | |
| USB Ports | 3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors: |
| 2x USB 3.2 Gen 2 Ports (2 at Back Panel, Teal Blue, Type-A) *4 | |
| 3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors: | |
| 2x USB 3.2 Gen 1 Ports (2 at Back Panel, Blue, Type-A) | |
| AMD X570 Chipset: | |
| 2x USB 3.2 Gen 2 Ports (2 at Back Panel, Teal Blue, Type-A) | |
| 4x USB 3.2 Gen 1 Ports (4 at Mid-Board) | |
| 5x USB 2.0 Ports (2 at Back Panel, 3 at Mid-Board) | |

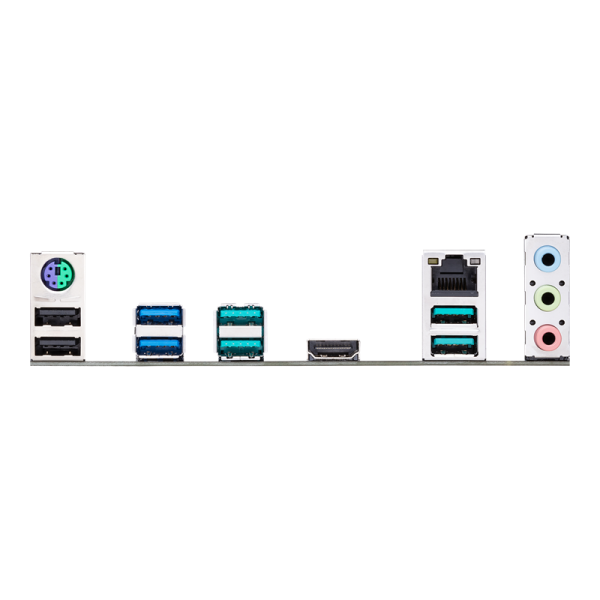

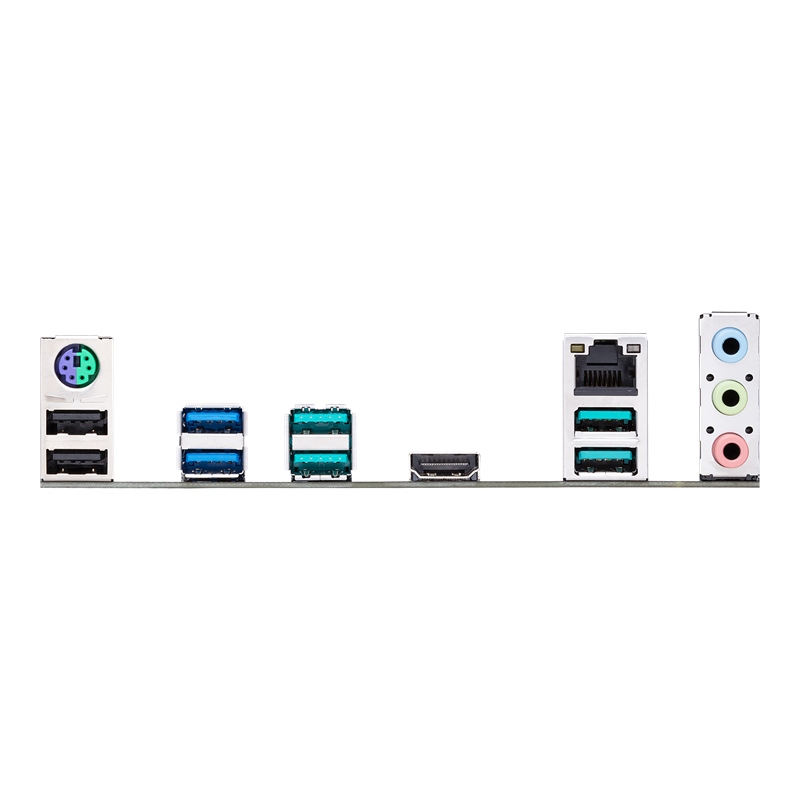

| Back I/O Ports | 1x PS/2 Keyboard/Mouse Combo Port |
| 1x HDMI | |
| 1x LAN (RJ45) Port | |
| 2x USB 2.0 | |
| 3x Audio Jacks | |
| 2x USB 3.2 Gen 1 (Up to 5Gbps) Ports Type-A | |
| 4x USB 3.2 Gen 2 (Up to 10Gbps) Ports (Type-A *5) | |
| Internal I/O Ports | 2x Aura RGB Strip Headers |
| 1x Addressable Gen 2 Headers | |
| 2x USB 2.0 Connectors Supports Additional 5 USB 2.0 Ports | |
| 1x M.2 Socket 3 with M Key, Type 2242/2260/2280/22110 Storage Devices Support (SATA Mode & X4 PCIE Mode) | |
| 1x M.2 Socket 3 with M Key, Type 2242/2260/2280 Storage Devices Support (SATA Mode & X4 PCIE Mode) | |
| 1x SPI TPM Header | |
| 1x COM Port Connector | |
| 6x SATA 6Gb/s Connectors | |
| 1x CPU Fan Connector (1 x 4 -pin) | |
| 3x Chassis Fan Connectors (3 x 4 -pin) | |
| 1x PCH_FAN (1 x 4 -pin) | |
| 1x AIO_PUMP Connector (1 x 4 -pin) | |
| 1x S/PDIF out Header | |
| 1x 24-pin EATX Power Connector | |
| 1x 8-pin ATX 12V Power Connector | |
| 1x 4-pin ATX 12V Power Connector | |
| 1x Front Panel Audio Connector (AAFP) | |
| 1x System Panel | |
| 1x Clear CMOS Jumper | |
| 2x USB 3.2 Gen 1 (Up to 5Gbps) Connector Support Additional 2 USB Ports | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-Language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified Log, F12 PrintScreen, F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) Memory Information |
| Manageability | WOL by PME, PXE |
| Operating System Support | Windows 10 64-bit |
| Form Factor | ATX Form Factor |
| 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | |
| Accessories | User Manual |
| I/O Shield | |
| 2x SATA 6Gb/s Cables | |
| 1x M.2 Screw Package | |
| 1x Supporting DVD | |
| 1x Extension Cable for Addressable LED | |
| Notes | *1 Due to CPU limitation, CPU cores supported varies by processors. |
| *2 The maximum memory capacity supported vary depending on the CPU you installed. | |
| *3 Choose the chassis with HD audio module in front panel to support 8-channel audio output. | |
| *4 The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with 3rd Gen AMD Ryzen Processors | |
| *5 The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with 3rd Gen AMD Ryzen Processors | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
