₪1,599
| Main characteristics | |
| Description | Charging USB devices when the computer is turned off, Protection against static electricity on the rear panel connectors, Shielding the sound subsystem |
| Manufacturer | ASUS |
| Series | workstation |

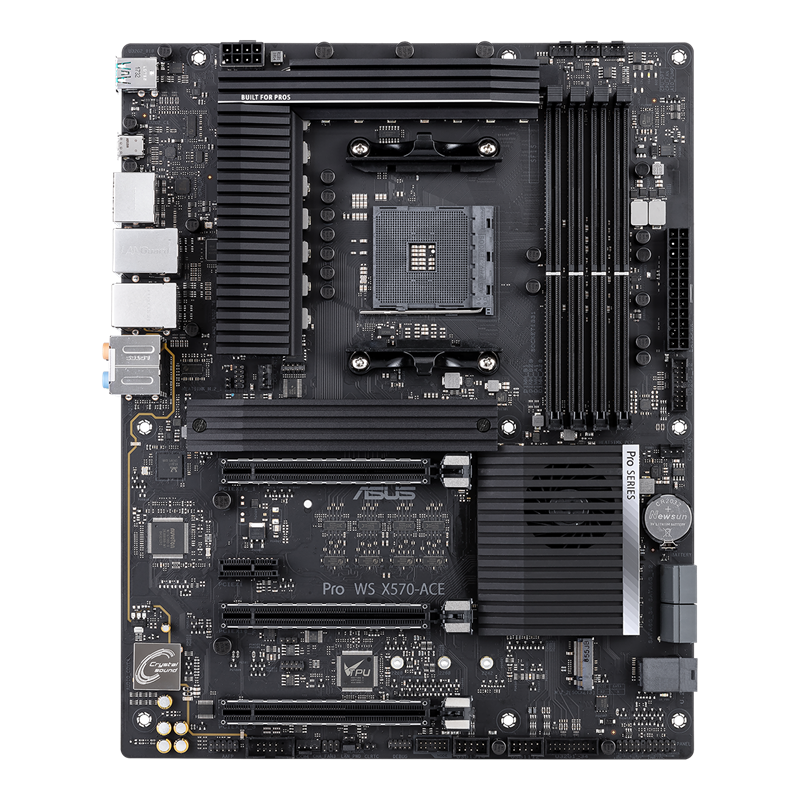

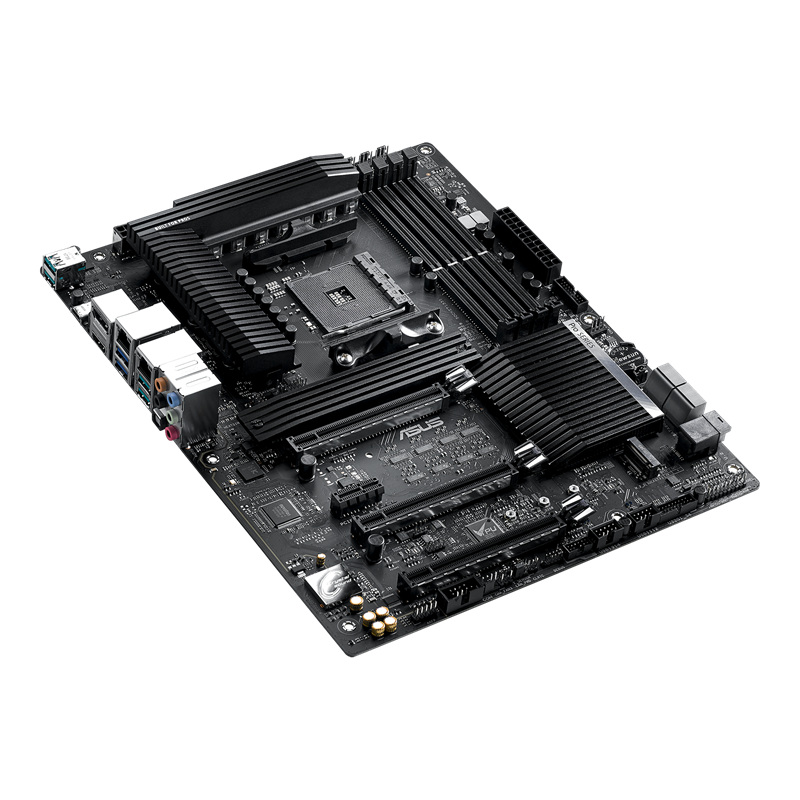

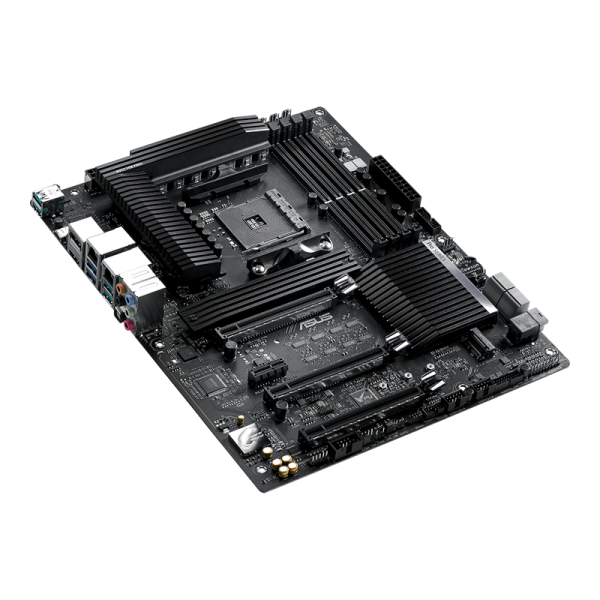

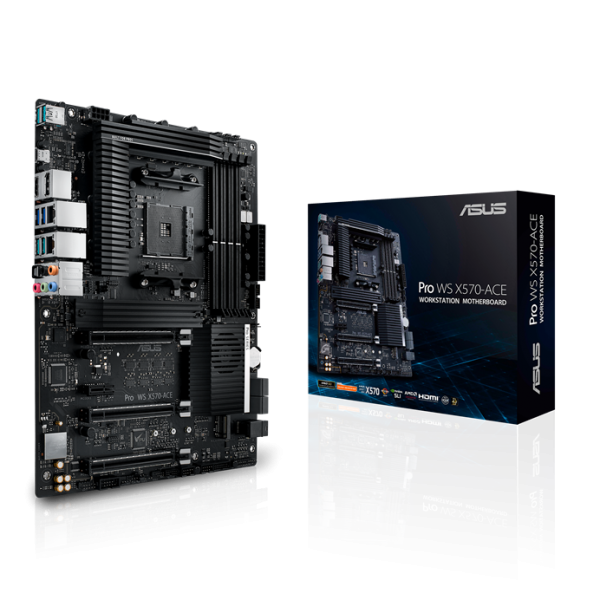

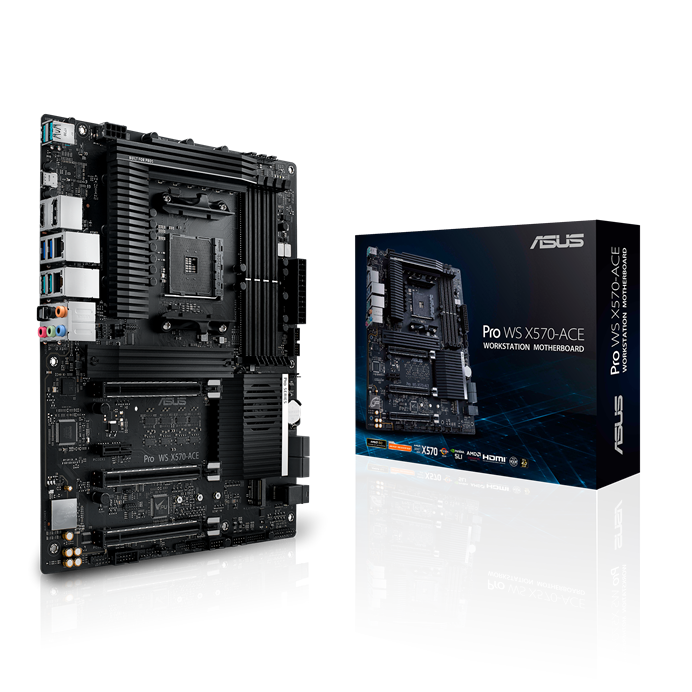

| Model | PRO WS X570-ACE |
| Type of equipment | Desktop Motherboard |
| Purpose | Desktop PC |
| Chipset mat. Boards | AMD X570 |
| Processor socket | SocketAM4 |
| Board Format | ATX (305 x 244mm) |
| OS support | Windows 10 (64 bit only) |
| Unique technologies | |
| Unique ASUS Technologies | DIGI+ VRM, Fan Xpert 4, LANGuard, SafeSlot, Intel Network Card , IR3555 PoweIRstage, ASUS Control Center ( ACC ), ProCool Power Connector |
| Backlight | Aura RGB LED, backlighting of board heatsinks with a choice of colors, as well as backlighting effects: constant, flickering, cyclic color, light music, comet, yo-yo, starry night, flash, wave or backlight color depending on CPU temperature |
| Support RGB backlight timing | Aura Sync RGB LED |
| ARGB 5V connectors on the board | 2x 3-pin Addressable RGB connector |
| RGB 12V connectors on the board | 2x 4-pin RGB connector |
| Processor support | |
| Max. number of processors on the motherboard | one |
| Support for processor types | AMD series Ryzen 9 5xxx, Ryzen 7 5xxx, Ryzen 5 5xxx, Ryzen 7 4xxx, Ryzen 5 4xxx, Ryzen 3 4xxx, Ryzen 9 3xxx, Ryzen 7 3xxx, Ryzen 5 3xxx, Ryzen 3 3xxx, Ryzen 7 2xxx, Ryzen 5 2xxx, Ryzen 3 2xxx |
| Support for processor cores | Matisse, Picasso, Pinnacle Ridge, Raven Ridge, Renoir, Vermeer |
| Memory support | |
| Supported memory type | DDR4 ECC , DDR4. The maximum supported memory bandwidth is listed in the processor description |
| Number of memory slots | 4 |
| Number of DDR4 slots | 4 (2-channel memory controller). Extreme Memory Profile ( XMP ) supported |
| Maximum Supported Memory Standards | PC4-35200 (DDR4 4400 MHz), Processor dependent |
| Maximum RAM | 128 GB |
| Disk system | |
| Number of NVMe slots | 1x SFF-8643 (mini SAS HD) |
| Number of M.2 connectors ( NGFF ) | 2 M Key SATA/PCI-E connectors supporting Type 2242/2260/2280/22110 cards (up to 110mm long). Second 2280 slotm.2 SSD |
| NVMe Boot support | Yes |
| RAID controller | Built into the chipset, it is possible to build RAID arrays of levels 0, 1, 10 from SATA devices |
| SATA 6Gb/s | 4 channels |
| Connector for FDD connection | Not |
| Communications | |
| Net | 2x 1Gbps. Intel + Realtek Network Controllers: Intel I211-AT + Realtek RTL8117 |
| Interface, connectors and outputs | |
| USB controller | USB 3.0 controller built into the chipset |
| USB connectors on the rear panel | 4x USB 3.1 Gen2, 1x USB 3.1 Gen2 Type C, 2x USB 3.0 (USB 3.1 Gen1) |
| Internal USB ports on the board | 2x USB 3.0 ( USB 3.1 Gen1), 2x USB 2.0 can be connected on the case or through the port bar |
| Keyboard/mouse | USB |
| Slots for installing expansion cards | |
| Number of PCI Express 16x slots | 3x 16x PCI-E 4.0 slots (PCI-E 3.0 if Ryzen 2nd Gen installed) operate in 16-0-4 or 8-8-4 mode. When installing an AMD Ryzen processor with Vega PCI-E graphics, they work in 8-4 mode |
| Number of PCI Express 1x slots | 1 slot 1x PCI-E 4.0 (flexible) |
| Integrated graphics | |
| Video M/B | Used built into the processor. The maximum video buffer size is 2 GB. WARNING When using processors without integrated video, the video outputs on the board do not work . |
| Maximum screen resolution | 4096 x 2160 @ 60Hz with DP monitor, 4096 x 2160 @ 60Hz with HDMI monitor |
| Video connectors on the rear panel | Display Port, HDMI |
| Max. number of connected monitors | 2 |
| SLI support | Yes |
| Crossfire support | Yes |
| Built-in sound card | |
| Sound | 8-channel HDA codec Realtek S1220A. Crystal Sound 3 support |

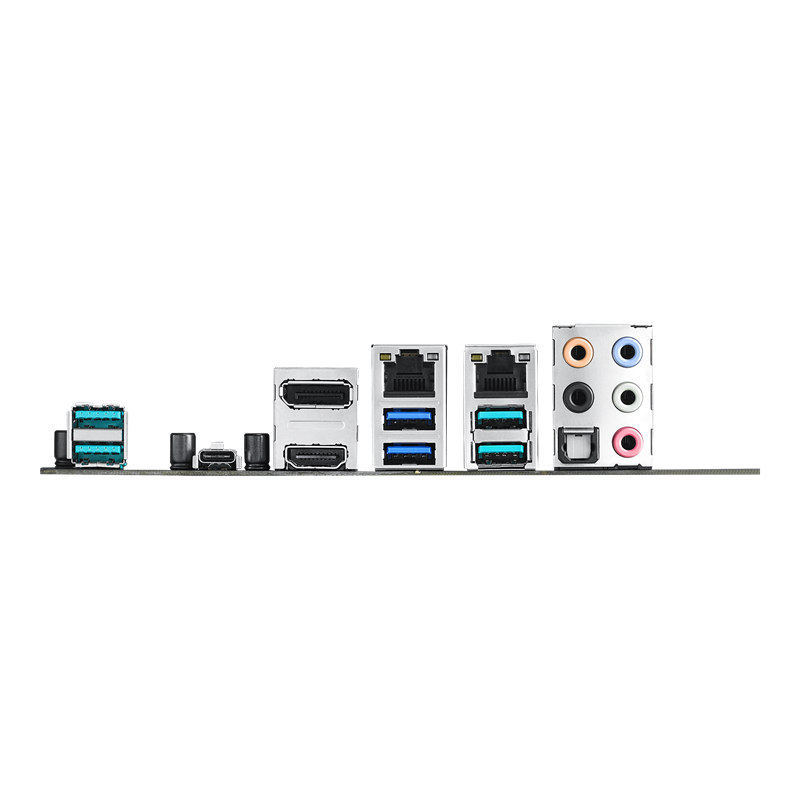

| Audio connectors on the rear panel | 1x optical S/PDIF-out, Front-out, Line-in, Line-out, Mic-in, Rear-out |
| Cooling | |
| Cooling | Active cooling |
| Number of fan headers | 6x 4-pin MP connector |
| Nutrition | |
| Power Supply Requirements | Only 24+8 pin power supplies are supported |
| Scope of delivery and options | |

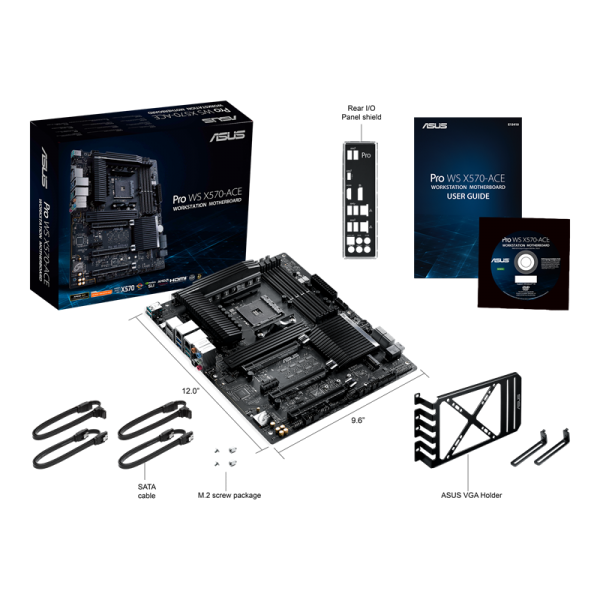

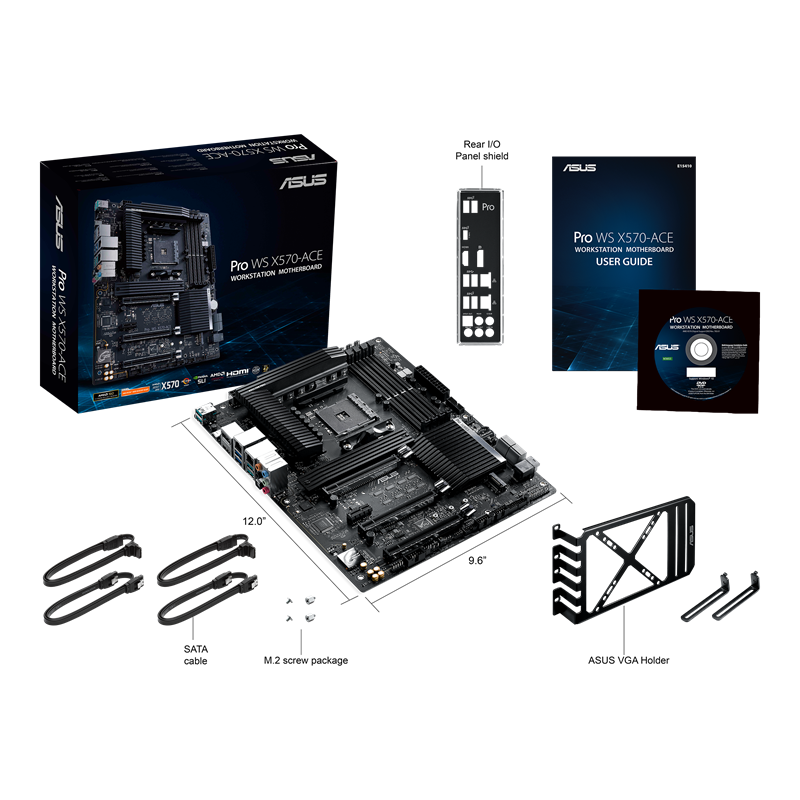

| Contents of delivery | Video card holderset №1set №2set №3 |
| Other characteristics | |
| BIOS | UEFI AMI BIOS, 256 MB |
| OA 3.0 support | Yes |
| External sources of information | |
| Manufacturer hotline | (495) 231-19-99 – in Moscow; 8-800-100-27-87 – a free call from any region of Russia. Mon – Fri: from 09:00 to 18:00 |
| Logistics | |
| Package dimensions (measured in NYX) | 34.43 x 27.43 x 7.79 cm |
| Gross weight (measured in NYX) | 2.05 kg |
