SPECIFICATIONS |
Brand |
Asus |
Series |
ProArt |
Model |

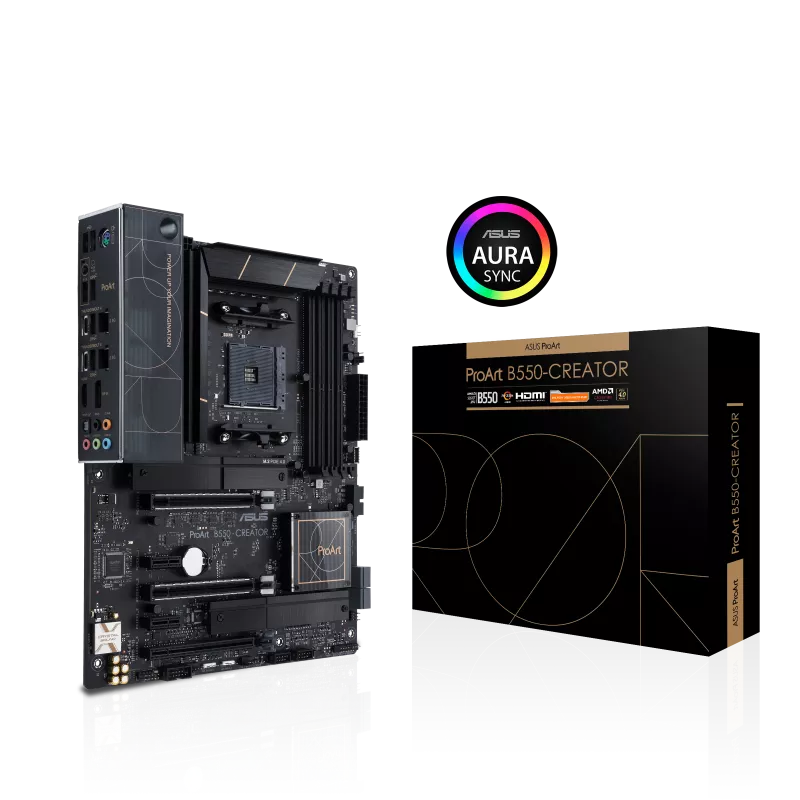

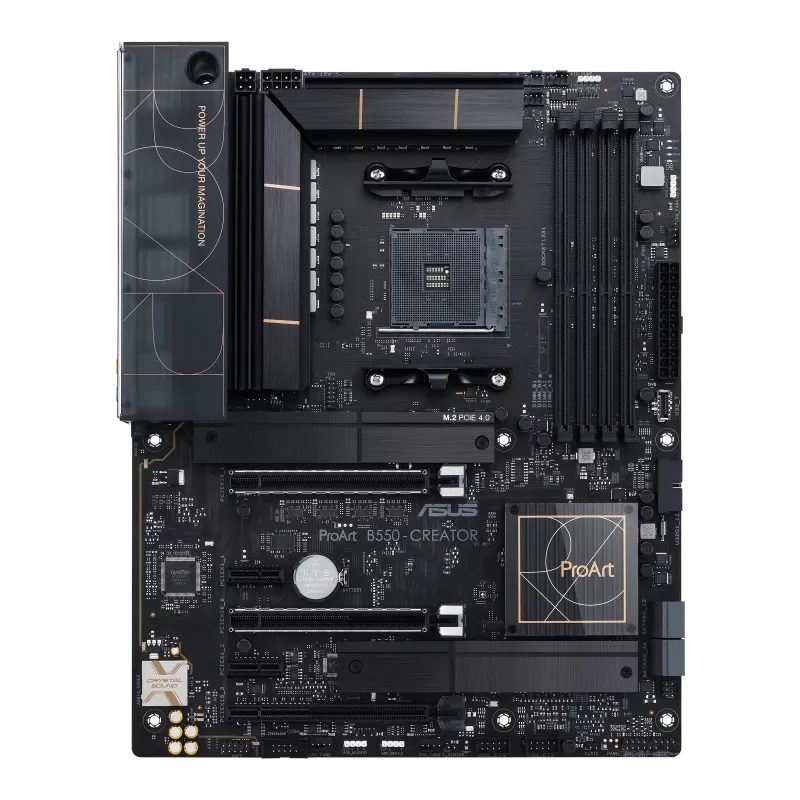

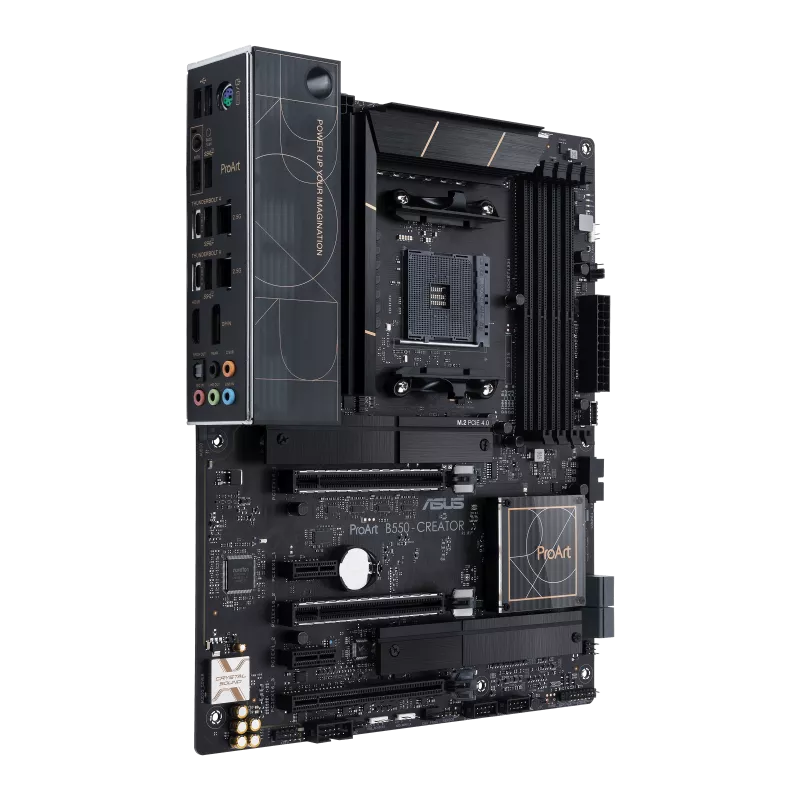

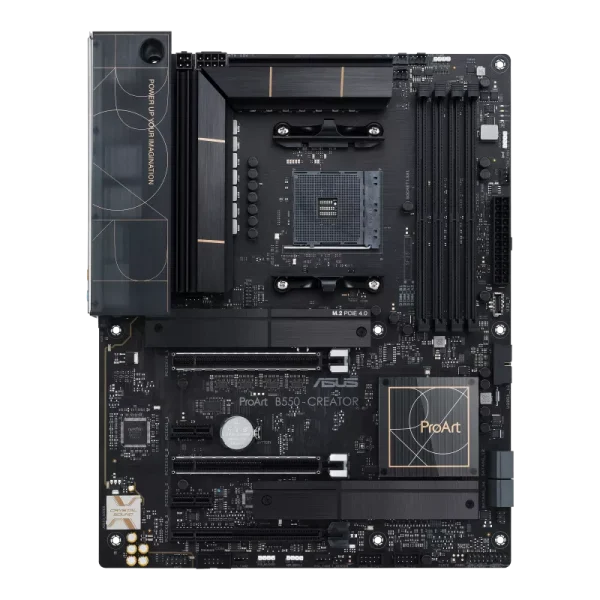

ProArt B550-CREATOR |
CPU |
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors |
Chipset |
AMD B550 Chipset |
Memory |
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors |
DDR4 4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-Buffered Memory |
AMD Ryzen 4000 G-Series Processors |
DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-Buffered Memory |
OptiMem II |
Dual Channel Memory Architecture |
ECC Memory (ECC Mode) Support Varies by CPU |
Graphics |
Output at TBT4_E1 and TBT4_E2, the USB Type-C Ports Right Under RJ45 Ports, Each Requires a USB-C to DisplayPort Adapter Cable. Graphics Specifications May Vary Between CPU Types |
VGA Resolution Support Depends on Processors’ or Graphic Cards’ Resolution |
Expansion Slots |
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors |
2x PCIe 4.0 x16 (x16 or Dual x8) *1 |
AMD Ryzen 4000 G-Series Processor |
2x PCIe 3.0 x16 (x16 or Dual x8) *1 |
AMD B550 Chipset |
1x PCIe 3.0 x16 Slot (Supports x4 Mode) *2 |
2x PCIe 3.0 x1 Slots *3 |
Storage |
Supports 2x M.2 Slots and 4x SATA 6Gb/s Ports |
Total Supports 2x M.2 Slots and 4x SATA 6Gb/s Ports |
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors: |
M.2_1 Slot (Key M), Type 2242/2260/2280/22110 (Supports PCIe 4.0 x4 & SATA Modes) |
AMD Ryzen 4000 G-Series Processor: |
M.2_1 Slot (Key M), Type 2242/2260/2280/22110 (Supports PCIe 3.0 x4 & SATA Modes) |
AMD B550 Chipset |
M.2_2 Slot (Key M), Type 2242/2260/2280/22110 (Supports PCIe 3.0 x4 & SATA Modes) |
4x SATA 6Gb/s Ports |
Supports RAID 0, 1, 10 |
Ethernet |
2x Intel I225-V 2.5Gb Ethernet |
USB |
Rear USB: Total 8 Ports |
2x Thunderbolt 4 Ports (2x USB Type-C) with Up to 5V/3A, 15W Charging Support |
4x USB 3.2 Gen 2 Ports (4x Type-A) |
2x USB 2.0 Ports (2x Type-A) |
Front USB: Total 7 Ports |
1x USB 3.2 Gen 1 Connector (Supports USB Type-C) |
1x USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports |
2x USB 2.0 Headers Supports Additional 4 USB 2.0 Ports |
Audio |
Impedance Sense for Front and Rear Headphone Outputs |
Internal Audio Amplifier to Enhance the Highest Quality Sound for Headphone and Speakers |
Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking |
High Quality 120 dB SNR Stereo Playback Output and 113 dB SNR Recording Input (Line-In) |
Supports Up to 32-Bit/192 kHz Playback *4 |
Audio Features |
Power Pre-Regulator Reduces Power Input Noise to Ensure Consistent Performance |
Rear Optical S/PDIF Out Port |
Premium Japanese Audio Capacitors |
Dedicated Audio PCB Layers |
Audio Cover |
Unique De-Pop Circuit |

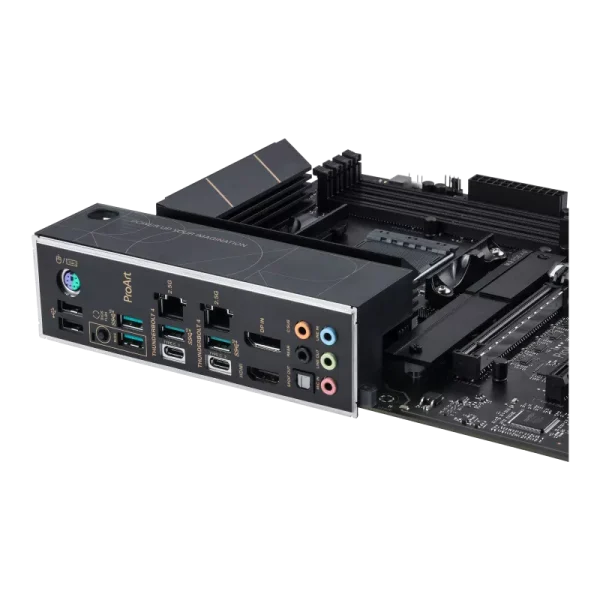

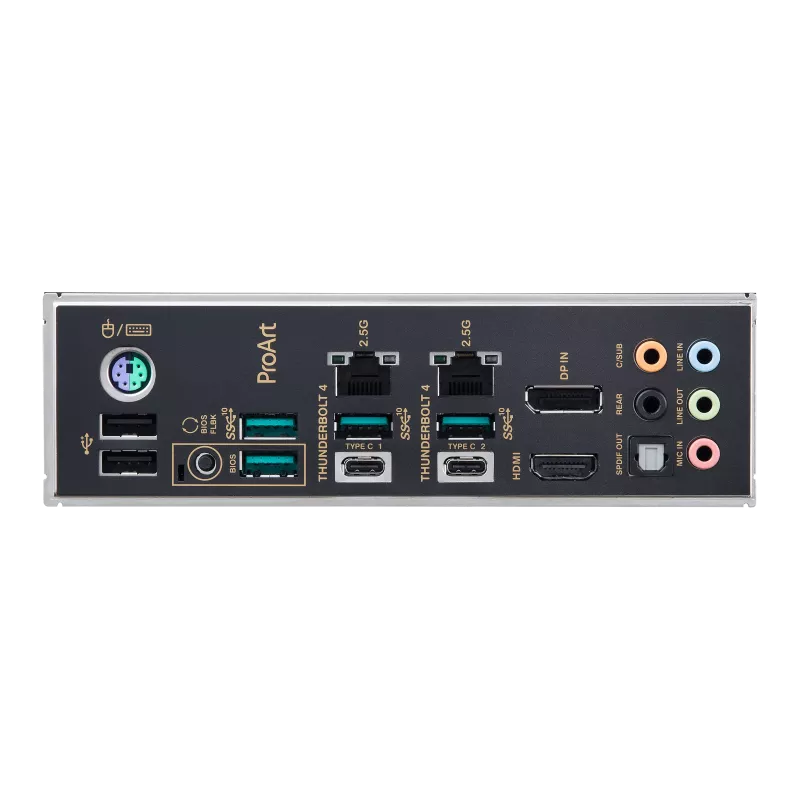

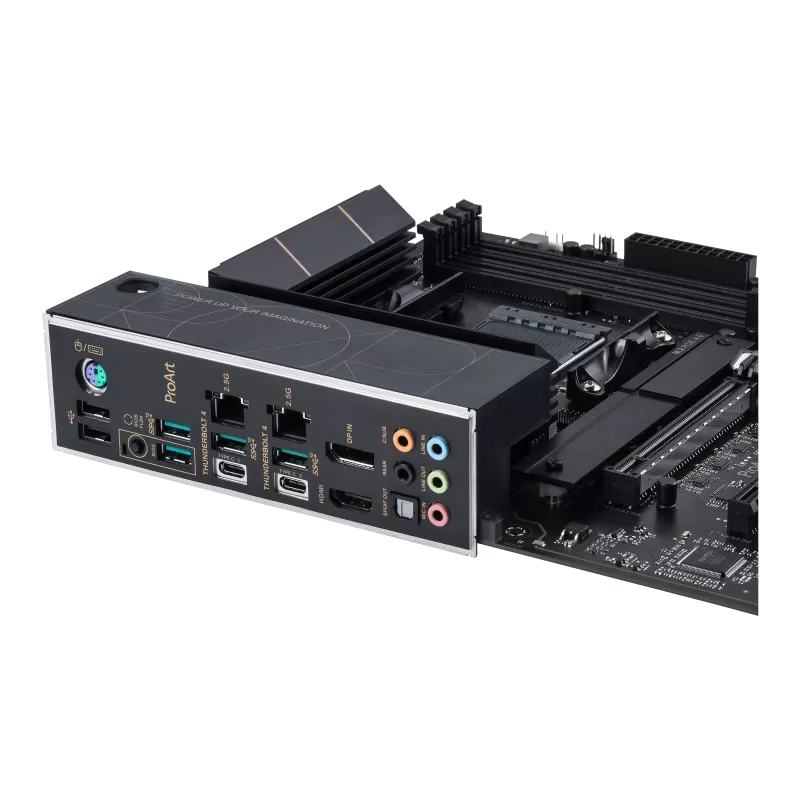

Back Panel I/O Ports |
2x Thunderbolt 4 USB Type-C Port(s) |
4x USB 3.2 Gen 2 Port(s) (4x Type-A) |
2x USB 2.0 Port(s) (2x Type-A) |
1x DisplayPort (Input Only) |
1x HDMI Port |
2x Intel I225-V 2.5Gb Ethernet Ports |
5x Audio Jacks |
1x Optical S/PDIF Out Port |
1x BIOS FlashBack Button |
1x PS/2 Keyboard/Mouse Combo Port |
Internal I/O Connectors |
Fan and Cooling Related |
1x 4-pin CPU Fan Header |
1x 4-pin CPU OPT Fan Header |
1x 4-pin AIO Pump Header |
4x 4-pin Chassis Fan Headers |
Power Related |
1x 24-pin Main Power Connector |
1x 8-pin +12V Power Connector |
1x 4-pin +12V Power Connector |
Storage Related |
2x M.2 Slots (Key M) |
4x SATA 6Gb/s Ports |
USB |
1x USB 3.2 Gen 1 Connector (Supports USB Type-C) |
1x USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports |
2x USB 2.0 Headers Supports Additional 4 USB 2.0 Ports |
Miscellaneous |
2x AURA Addressable Gen 2 Headers |
2x AURA RGB Headers |
1x Clear CMOS Header |
1x COM Port Header |
1x Front Panel Audio Header (AAFP) |
1x Speaker Header |
1x SPI TPM Header (14-1pin) |
1x 20-5 pin System Panel Header |
1x Thermal Sensor Header |
BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
Form Factor |
30.5cm x 24.4cm |

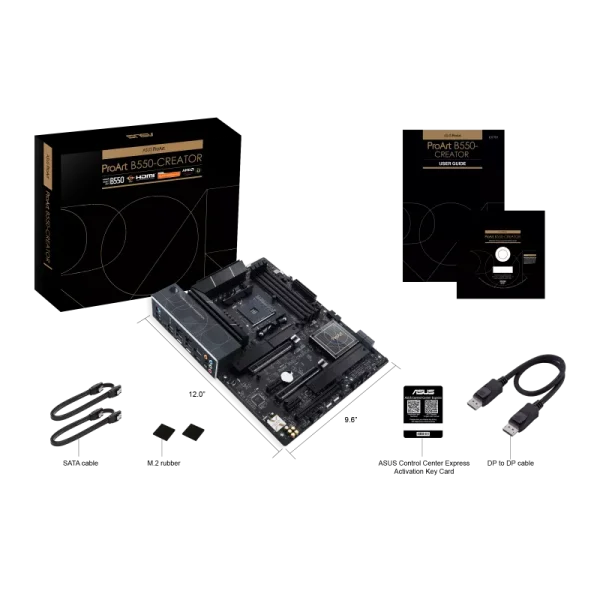

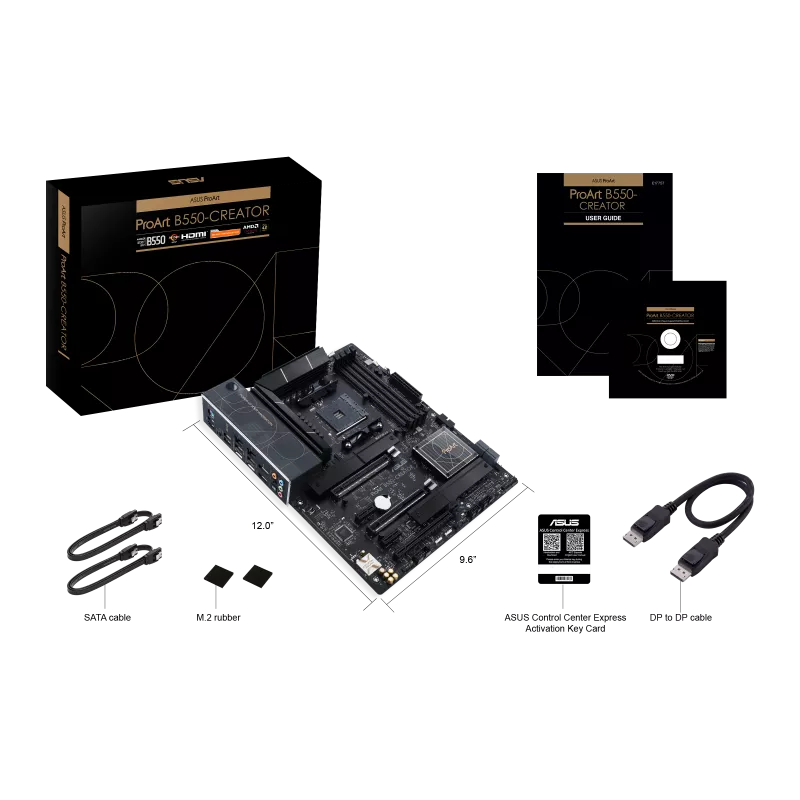

Package Contents |
Cables |
2x SATA 6Gb/s Cables |
1x DP to DP Cable for Thunderbolt 4 |
Miscellaneous |
1x M.2 Rubber Package |
Installation Media |
1x Support DVD |
Documentation |
1x ACC Express Activation Key Card |
1x User Manual |
Notes |
*1 Support PCIe bandwidth bifurcation for RAID on CPU function. |
*2 PCIe 3.0 x4 will be switched from Thunderbolt 4 to PCIEX16_3 if the slot is populated; by then Thunderbolt 4 will have no output |
*3 These PCIe x1 slots share bandwidth with M.2_2, which runs at PCIe 3.0 x4 by default. You may go to BIOS setting to set M.2_2 to PCIe 3.0 x4 or x2 at will |
*4 Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
Warranty Information |
Warranty |
3 Year Warranty |
