SPECIFICATIONS |
Brand |
Asus |
Series |
ROG Strix |
Model |
ROG STRIX B550-XE GAMING WIFI |
CPU |
AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors |
Chipset |
AMD B550 |
Memory |
4x DIMM, Max. 128GB, DDR4 4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-bBuffered Memory |
AMD Ryzen 4000 G-Series Desktop Processors |
4x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-Buffered Memory |
OptiMem II |
Dual Channel Memory Architecture |
ECC Memory (ECC Mode) Support Varies by CPU. |
Graphic |
1x HDMI 2.1 (4K@60HZ) |
1x DisplayPort 1.2 |
(Graphics Specifications May Vary Between CPU Types.) |
Integrated Graphics Processor |
Multi-GPU Support |
Supports NVIDIA 2-Way SLI Technology |
Supports AMD 3-Way CrossFireX Technology |
Expansion Slots |
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors |
AMD B550 Chipset |
1x PCIe 3.0 x16 (x4 Mode) |
2x PCIe 3.0 x1 |
2x PCIe 4.0 x16 (x16 or Dual x8) |
2x PCIe 3.0 x16 (x16 or Dual x8) |
Storage |
AMD Ryzen 4000 G-Series Desktop Processors: |
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors: |
1x M.2_2 Socket 3, with M Key, Type 2242/2260/2280/22110 Storage Devices Support (SATA & PCIE 3.0 x 4 Mode) |
Total Supports 2 x M.2 Slot(s) and 6 x SATA 6Gb/s Ports |
1x M.2_1 Socket 3, with M Key, Type 2242/2260/2280/22110 Storage Devices Support (SATA & PCIe 4.0 x4 Mode) |
AMD B550 Chipset: |
1x M.2_2 Socket 3, with M Key, Type 2242/2260/2280/22110 Storage Devices Support (SATA & PCIE 3.0 x 4 Mode) |
Support Raid 0, 1, 10 |
6x SATA 6Gb/s Port(s) |
LAN |
Intel I225-V 2.5Gb Ethernet |
ASUS LANGuard |
Wireless Data Network |
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Support 1024QAM/OFDMA/MU-MIMO |
Intel Wi-Fi 6 AX200 |
Supports Dual Band Frequency 2.4/5 GHz |
Supports Channel Bandwidth: HT20/HT40/HT80/HT160 |
Bluetooth |
Bluetooth v5.1 *1 |
Audio |
Rear Audio USB Type-C Port |
Audio Shielding |
ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220A |
Premium Japanese Audio Capacitors |
Audio Cover |
Dual OP Amplifiers |
Impedance Sense for Front and Rear Headphone Outputs |
Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking |
High Quality 120dBSNR Stereo Playback Output and 113dBSNR Recording Input |
Supports Up to 32-Bit/192kHz Playback *2 |
Audio Feature: |
SupremeFX Shielding Technology |
USB Ports |
3x USB 3.2 Gen 2 Ports (2x Type-A +1 x USB Type-C) |
1x USB 2.0 Port (1x Audio USB Type-C) |
4x USB 2.0 Ports (4x Type-A) |
Rear USB Port (Total 8) |
Front USB Port (Total 7) |
2x USB 3.2 Gen 1 Ports |
4x USB 2.0 Ports |
1x USB 3.2 Gen 2 Front Panel Connector Port |

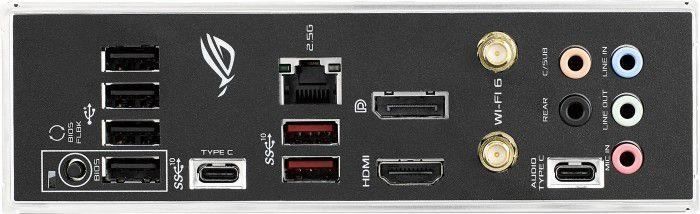

Back I/O Ports |
3x USB 3.2 Gen 2 (2x Type-A+1 x USB Type-C) |
5x USB 2.0 (1 for Audio USB Type-C) |
1x BIOS FlashBack Button |
1x Intel I225-V 2.5Gb Ethernet |
1x DisplayPort |
1x HDMI |
5x Audio Jacks |
ASUS Wi-Fi Module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0) |
Internal I/O Ports |
1x M.2 Socket 1 with M Key, Type 2242/2260/2280/22110 Storage Devices Support (SATA & PCIe 4.0 x4 Mode) |
1x M.2 Socket 2 with M Key, Type 2242/2260/2280/22110 Storage Devices Support (SATA & PCIE 3.0 x 4 Mode) |
1x USB 3.2 Gen2 Connector Support Additional 1 USB Ports (20-pin, Type-C) |
1x USB 3.2 Gen 1 (Up to 5Gbps) Connector Supports Additional 2 USB 3.2 Gen 1 Ports |
1x Thunderbolt Header |
1x Q-Code |
1x CPU Fan Connector |
1x CPU OPT Fan Connector |
3x Chassis Fan Connectors |
1x AIO_PUMP Connector |
1x AAFP Connector |
2x Aura RGB Strip Headers |
2x Addressable Gen 2 Headers |
2x USB 2.0 Connectors Supports Additional 4 USB 2.0 Ports |
6x SATA 6Gb/s Connectors |
1x 24-pin EATX Power Connector |
1x 8-pin ATX 12V Power Connector |
1x 4-pin ATX 12V Power Connector |
1x System Panel |
1x Thermal Sensor Connector |
1x Clear CMOS Jumper |
BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
Manageability |
WOL by PME, PXE |
Operating System |
Windows 10 64-bit |
Form Factor |
ATX Form Factor |
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Package Contents |

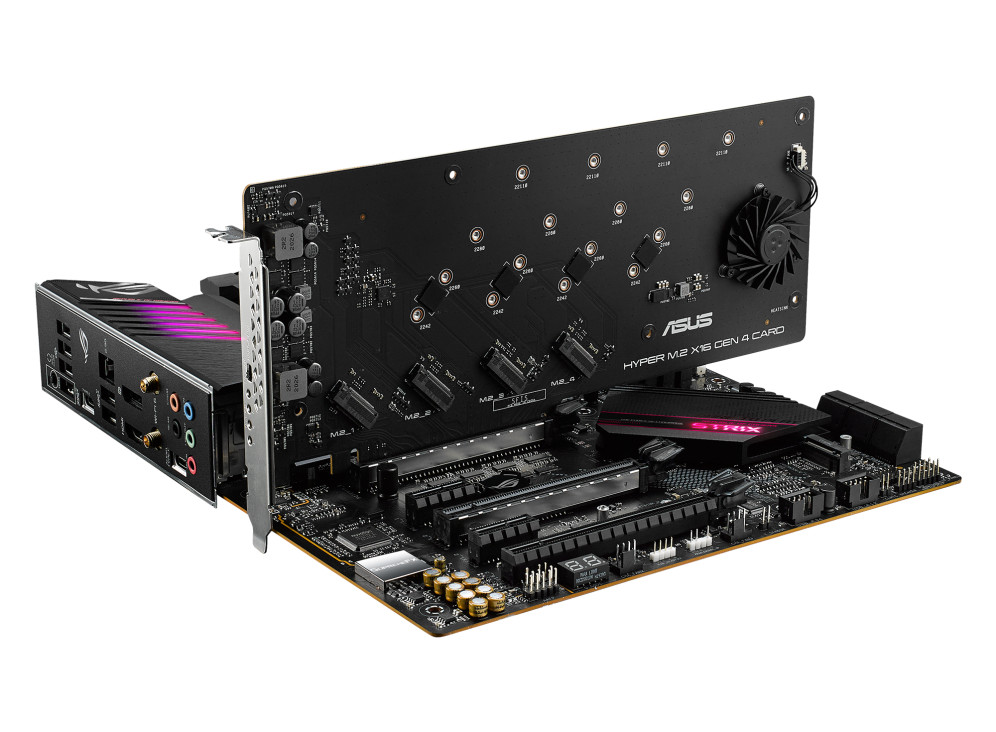

1x Hyper M.2 x16 Gen 4 Card |
5x M.2 SSD Screw Packages |
3x M.2 Rubber Packages |
1x ROG Audio USB Type-C Cable |
1x ROG Key Chain |
1x Wi-Fi Moving Antenna |
User Manual |
4x SATA 6Gb/s Cables |
1x Supporting DVD |
1x ROG Strix Stickers |
1x Cable Ties Pack |
1x Extension Cable for RGB Strips (80 cm) |
1x Extension Cable for Addressable LED |
1x ROG Thank You Card |
Notes |
*1 BT 5.1 function will be ready in Windows 10 build 19041 or later. |
*2 Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1-Channel audio. |
Warranty Information |
Warranty |
3 Year Warranty |
