SPECIFICATIONS | |
Brand | Asus |
Series | ROG Strix Motherboards |

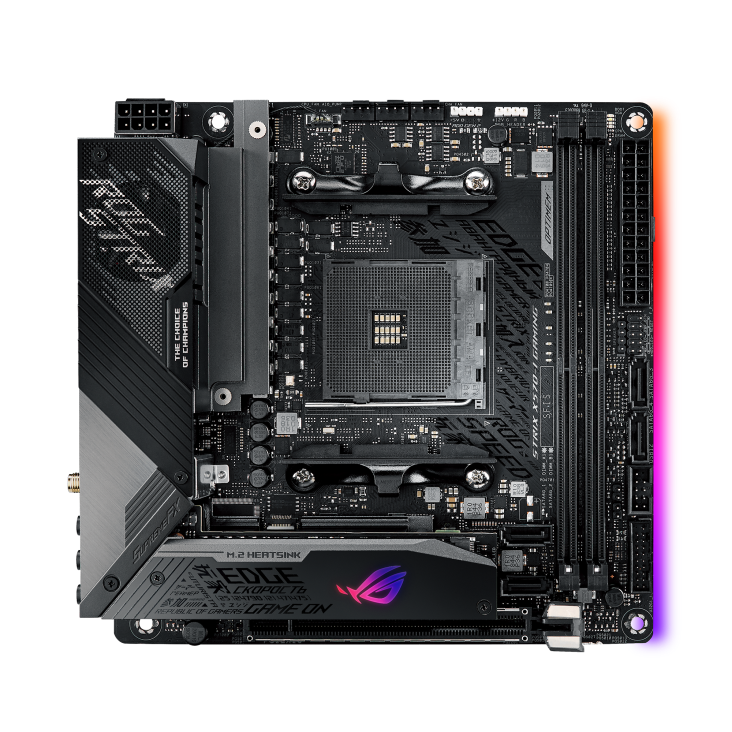

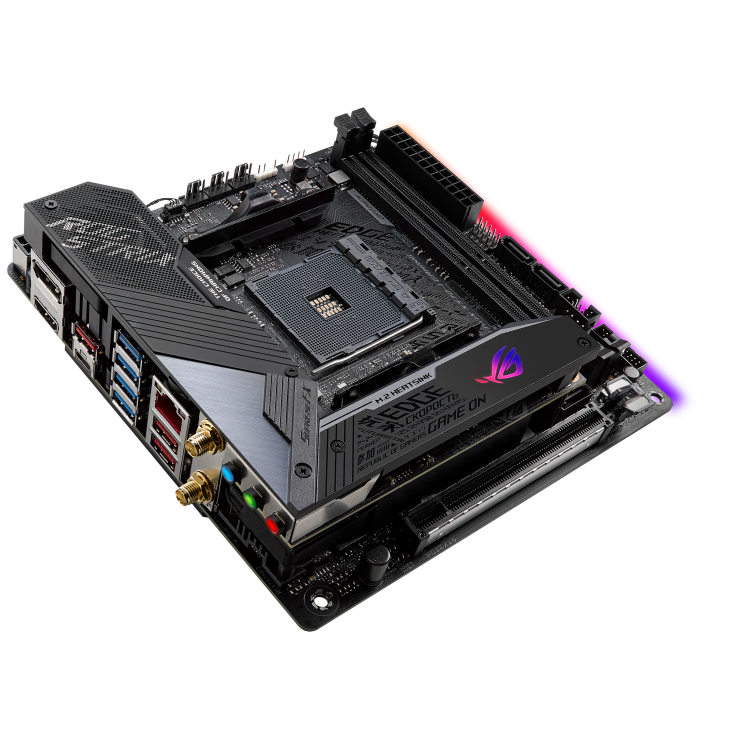

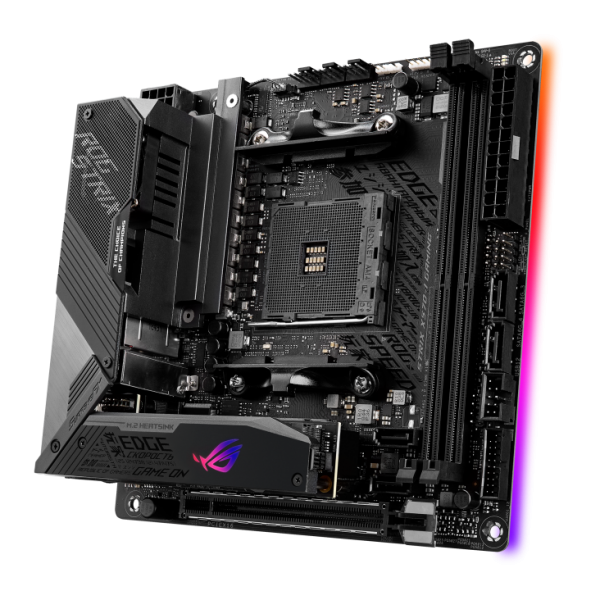

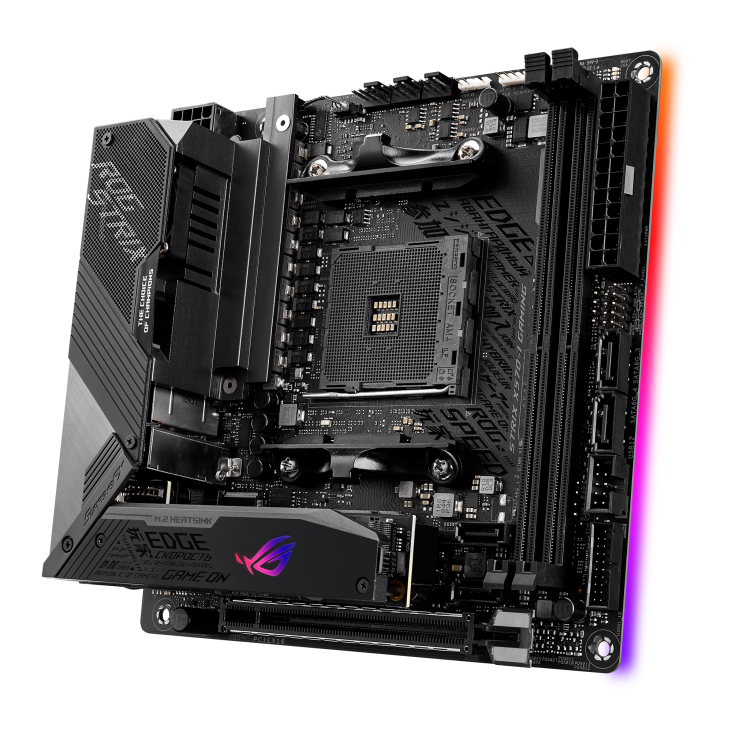

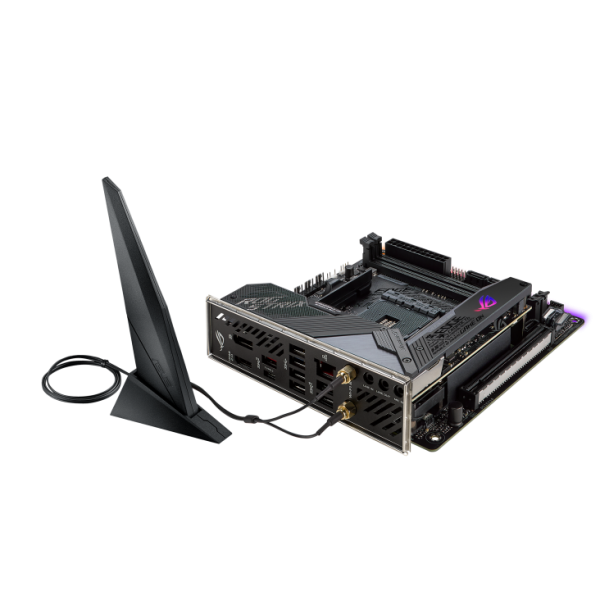

Model | ROG Strix X570-I Gaming |
CPU | AMD AM4 Socket 3rd and 2nd AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors |
Chipset | AMD X570 |
Memory | 3rd Gen AMD Ryzen Processors: |
2x DIMM, Max. 64GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-Buffered Memory | |
2nd Gen AMD Ryzen Processors: | |
2x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-Buffered Memory *1 | |
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors: | |
2x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-Buffered Memory | |
Dual Channel Memory Architecture | |
Graphics | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors |
Multi-VGA Output Support: HDMI/DisplayPort Ports | |
Supports HDMI 2.0b with Maximum Resolution of 4096 x 2160 @ 60 Hz | |
Support DisplayPort 1.4 with Maximum Resolution 8 K 7680 × 4320 @60 Hz | |
Expansion Slots | 3rd Gen AMD Ryzen Processors: |
1x PCIe 4.0 x16 (x16 Mode) | |
2nd Gen AMD Ryzen Processors: | |
1x PCIe 3.0 x16 (x16 Mode) | |
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors: | |
1x PCIe 3.0 x16 (x8 Mode) | |
Storage | 3rd Gen AMD Ryzen Processors: |
1x M.2_1 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA odes) Storage Devices Support | |
2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors: | |
1x M.2_1 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA Modes) Storage Devices Support | |
AMD X570 Chipset: | |
1x M.2_2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA Modes) Storage Devices Support | |
4x SATA 6Gb/s Ports | |
Support Raid 0, 1, 10 | |
LAN | Intel I211-AT |
Anti-Surge LANGuard | |
ROG GameFirst Technology | |
Wireless Data Network | Supports Channel Bandwidth: HT20/HT40/HT80/HT160 |

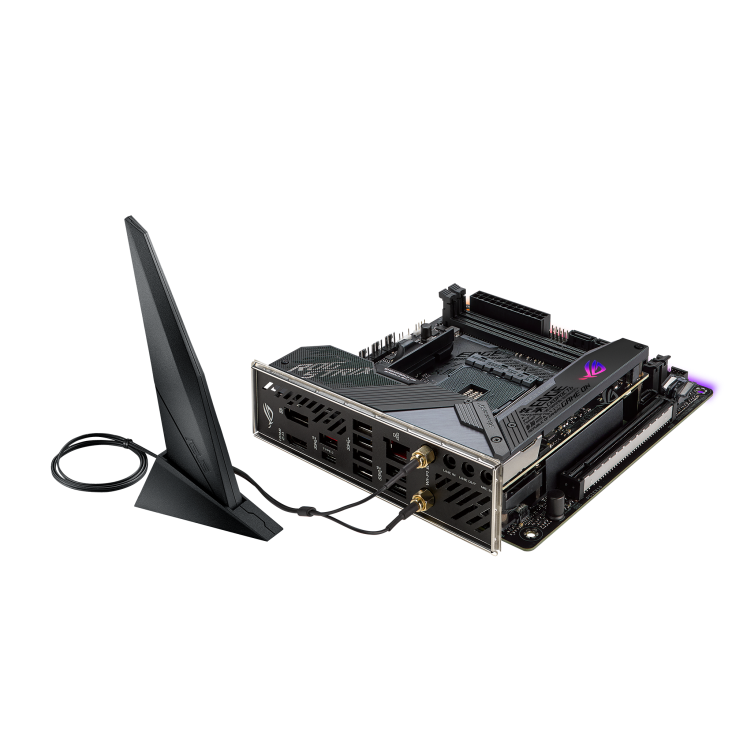

Intel Wi-Fi 6 AX200 | |
2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO Supports Dual Frequency Band 2.4/5GHz | |
Up to 2.4Gbps Transfer Speed | |
Bluetooth | Bluetooth 5.0 |
Audio | SupremeFX 8-Channel High Definition Audio CODEC S1220A |
Dual OP Amplifiers | |
Impedance Sense for Front and Rear Headphone Outputs | |
Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking | |
High Quality 120 dB SNR Stereo Playback Output and 113 dB SNR Recording Input | |
Supports Up to 32-Bit/192kHz Playback *2 | |
Audio Feature: | |
DTS Sound Unbound | |
LED-Illuminated Design – Brighten up your build with the gorgeous illuminated audio trace path. | |
Sonic Radar III | |
Sonic Studio III + Sonic Studio Virtual Mixer | |
USB Ports | 3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors: |
4x USB 3.2 Gen 1 Port(s) (4 at Back Panel, Blue) | |
AMD X570 Chipset: | |
4x USB 3.2 Gen 2 Port(s) (3 x Type-A+1 x Type-C) | |
AMD X570 Chipset: | |
2x USB 3.2 Gen 1 Port(s) (2 at Mid-Board) | |
AMD X570 Chipset: | |
2x USB 2.0 Port(s) | |

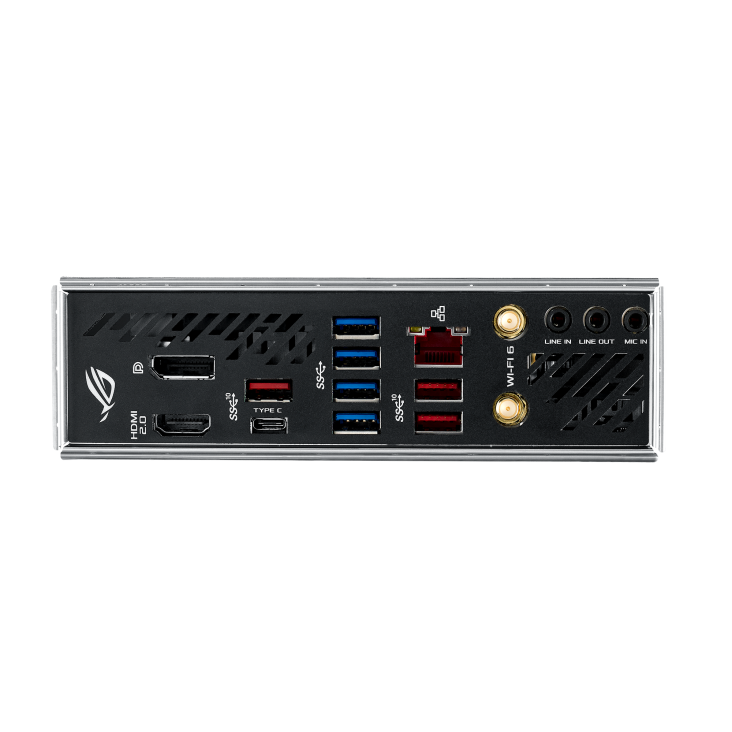

Back I/O Ports | 1x DisplayPort |
1x HDMI | |
1x ASUS Wi-Fi Module | |
3x LED-Illuminated Audio Jacks | |
4x USB 3.2 Gen 1 (Bblue) | |
3x USB 3.2 Gen 2 (Up to 10Gbps) Ports (Type-A) | |
1x USB 3.2 Gen 2 (Up to 10Gbps) Ports (Type-C) | |
Anti-Surge LAN (RJ45) Port | |
Internal I/O Ports | 1x HS_FAN |
1x PCH_FAN | |
1x AAFP Connector | |
1x Aura RGB Strip Header | |
1x Addressable Gen 2 Header | |
1x USB 3.2 Gen 1(Up to 5Gbps) Connector(s) Support(s) Additional 2 USB 3.2 Gen 1 Port(s) | |
1x USB 2.0 Connector(s) Support(s) Additional 2 USB 2.0 Port(s) | |
2x M.2 Socket 3 with M Key Design, Type 2242/2260/2280 Storage Devices Support (Supports Both SATA & PCIE SSD) | |
4x SATA 6Gb/s Connectors | |
1x CPU Fan Connector | |
1x Chassis Fan Connector | |
1x AIO_PUMP Connector | |
1x 24-pin EATX Power Connector | |
1x 8-pin ATX 12V Power Connector | |
1x Front Panel Audio Connector (AAFP) | |
1x Thermal Sensor Connector | |
1x Clear CMOS Jumper | |
1x System Panel Connector | |
1x T_Sensor Connector | |
1x Speaker Connector | |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2. |
Manageability | WOL, PXE |
Operating System Support | Windows 10 64-bit |
Form Factor | Mini ITX Form Factor |
6.7 inch x 6.7 inch ( 17 cm x 17 cm ) | |
Notes | *1 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
*2 Use a chassis with HD audio module in the front panel to support an 8-channel audio output. | |
Warranty Information | |
Warranty | 3 Year Warranty |
