SPECIFICATIONS |
Brand |
Asus |
Series |
TUF Gaming |
Model |

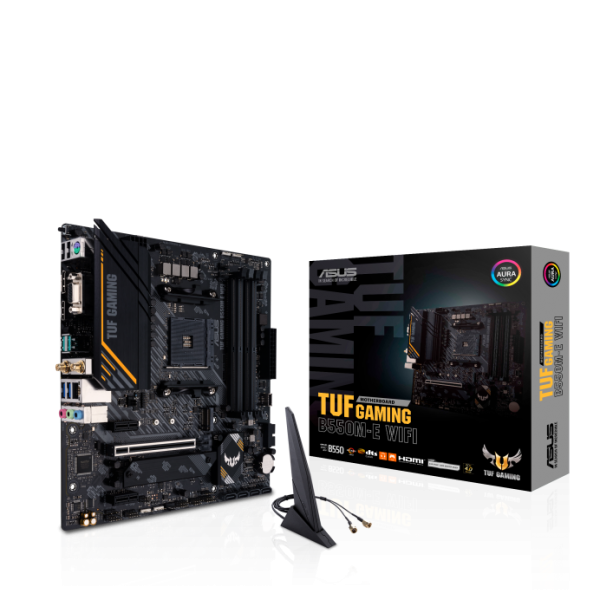

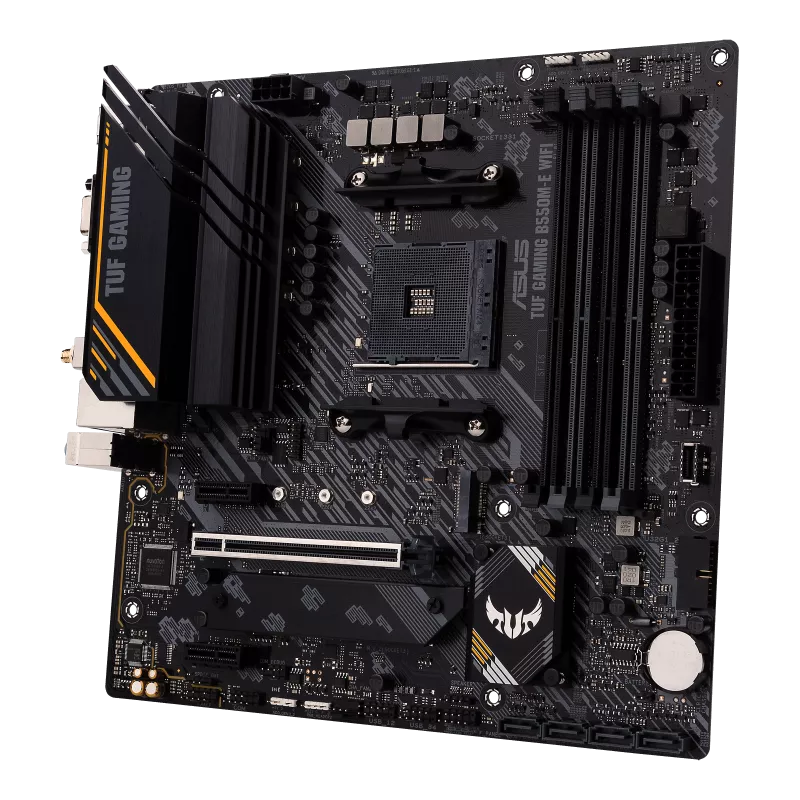

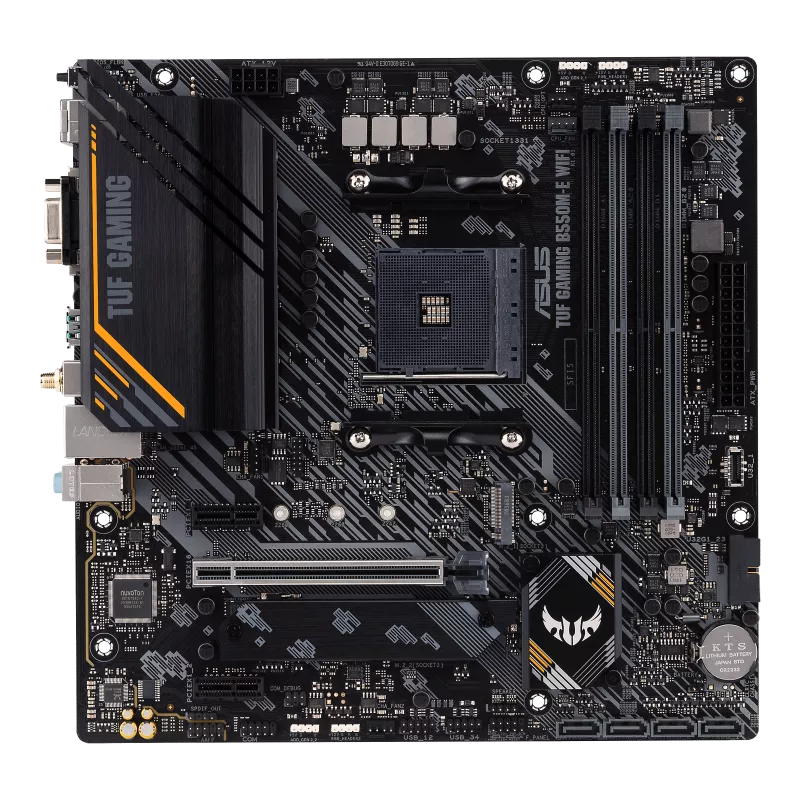

TUF GAMING B550M-E WIFI |
CPU |
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors |
Chipset |
AMD B550 Chipset |
Memory |
4x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-Buffered Memory *1 |
Dual Channel Memory Architecture |
Graphics |
1x DisplayPort 1.2 |
1x D-Sub |
(Graphics Specifications May Vary Between CPU Types.) |
Expansion Slots |
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors |
1x PCIe 4.0 x16 Slot (Supports x16 Mode) |
AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors |
1x PCIe 3.0 x16 Slot (Supports x16 Mode) |
AMD B550 Chipset |
2x PCIe 3.0 x1 Slots |
Storage |
Supports 2x M.2 Slots and 4 x SATA 6Gb/s Ports |
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors |
M.2_1 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 4.0 x4 & SATA Modes) |
AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors |
M.2_1 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 3.0 x4 & SATA Modes) |
AMD B550 Chipset |
M.2_2 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 3.0 x4 & SATA Modes) |
4x SATA 6Gb/s Ports |
Support RAID 0, RAID 1, RAID 10 |
Ethernet |
1x Realtek 1Gb Ethernet |
Wireless & Bluetooth |
Intel Wi-Fi 6 AX200 |
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Support 1024QAM/OFDMA/MU-MIMO |
Supports Up to 2.4Gbps Max Data Rate |
Supports 2.4/5GHz Dual-Band |
Supports Channel Bandwidth: HT20/HT40/HT80/HT160 |
Supports PCIe Interface |
Bluetooth v5.1 *3 |
USB |
Rear USB: Total 6 Ports |
2x USB 3.2 Gen 2 Ports (2x Type-A) |
2x USB 3.2 Gen 1 Ports (2x Type-A) |
2x USB 2.0 Ports (2x Type-A) |
Front USB: Total 7 Ports |
1x USB 3.2 Gen 1 Connector (Supports USB Type-C) |
1x USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports |
2x USB 2.0 Headers Support Additional 4 USB 2.0 Ports |
Audio |
Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC *2 |
Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking |
Supports Up to 24-Bit/192 kHz Playback |
Audio Features |
Audio Shielding |
Premium Japanese Audio Capacitors |
Dedicated Audio PCB Layers |

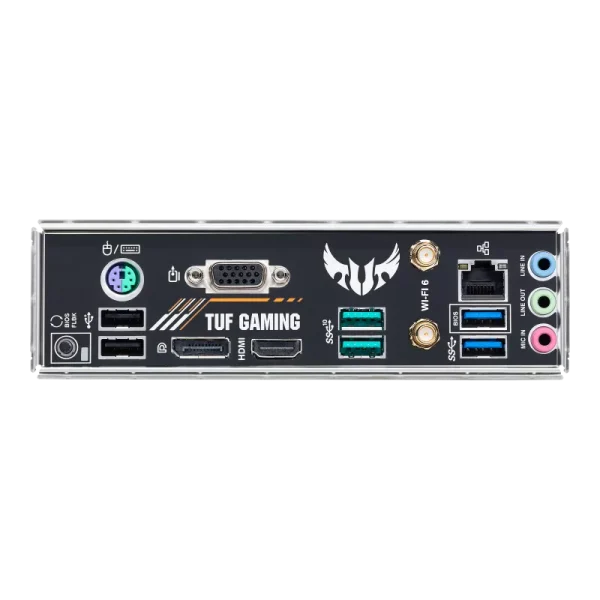

Back Panel I/O Ports |
2x USB 3.2 Gen 2 Ports (2x Type-A) |
2x USB 3.2 Gen 1 Ports (2x Type-A) |
2x USB 2.0 Ports (2x Type-A) |
1x DisplayPort |
1x D-Sub Port |
1x HDMI Port |
1x ASUS Wi-Fi Module |
1x Realtek 1Gb Ethernet Port |
3x Audio Jacks |
1x BIOS FlashBack Button |
1x PS/2 Keyboard/Mouse Combo Port |
Internal I/O Connectors |
Fan and Cooling Related |
1x 4-pin CPU Fan Header |
1x 4-pin CPU OPT Fan Header |
2x 4-pin Chassis Fan Headers |
Power Related |
1x 24-pin Main Power Connector |
1x 8-pin +12V Power Connector |
Storage Related |
2x M.2 Slots (Key M) |
4x SATA 6Gb/s Ports |
USB |
1x USB 3.2 Gen 1 Connector (Supports USB Type-C) |
1x USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports |
2x USB 2.0 Headers Support Additional 4 USB 2.0 Ports |
Miscellaneous |
2x AURA Addressable Gen 2 Headers |
2x AURA RGB Headers |
1x Clear CMOS Header |
1x COM Port Header |
1x Front Panel Audio Header (AAFP) |
1x S/PDIF Out Header |
1x Speaker Header |
1x SPI TPM Header (14-1pin) |
1x 10-1 pin System Panel Header |
BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
Manageability |
WOL by PME, PXE |
Form Factor |
Micro-ATX 24.4cm x 24.4cm |

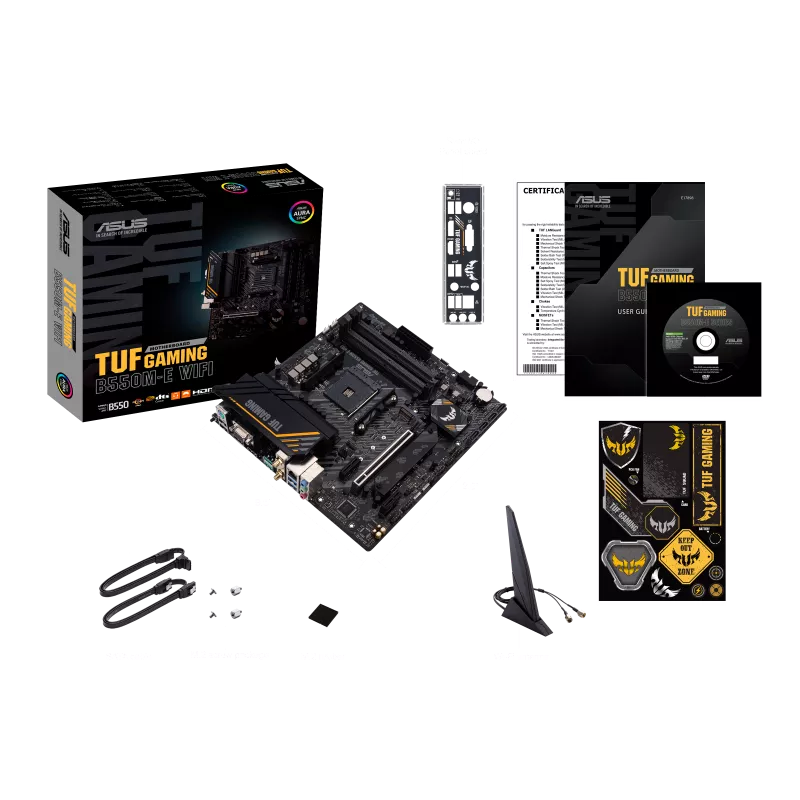

Package Contents |
Cables |
2x SATA 6Gb/s Cables |
Miscellaneous |
1x I/O Shield |
1x M.2 Rubber Package |
1x M.2 SSD Screw Package |
1x TUF Gaming Sticker |
Installation Media |
1x Support DVD |
Documentation |
1x TUF Certification Card |
1x User Manual |
Notes |
*1 ECC memory (ECC mode) support varies by CPU. |
*2 A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
*3 Bluetooth v5.1 function will be ready in Windows 10 build 19041 or later |
Warranty Information |
Warranty |
3 Year Warranty |
