SPECIFICATIONS | |
Brand | Asus |
Series | TUF Gaming |

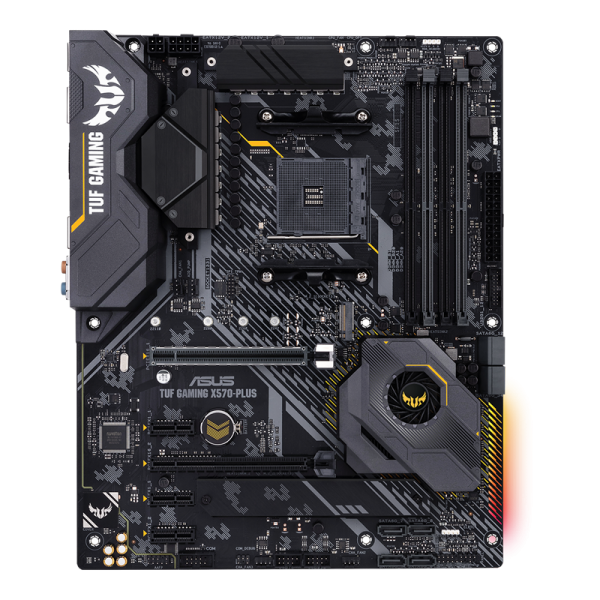

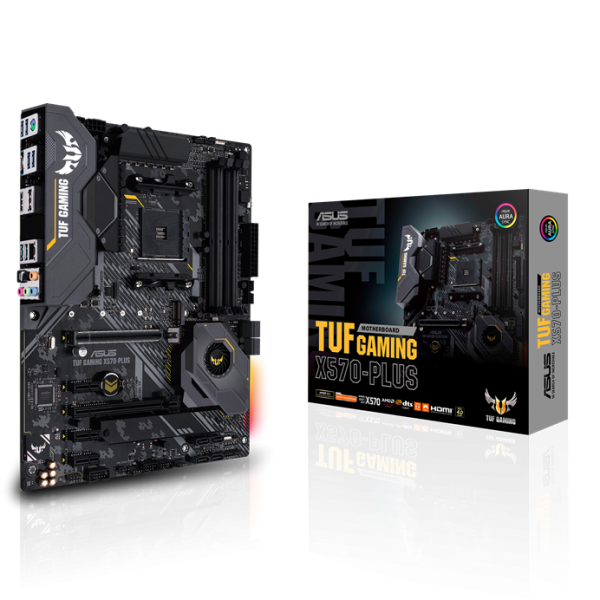

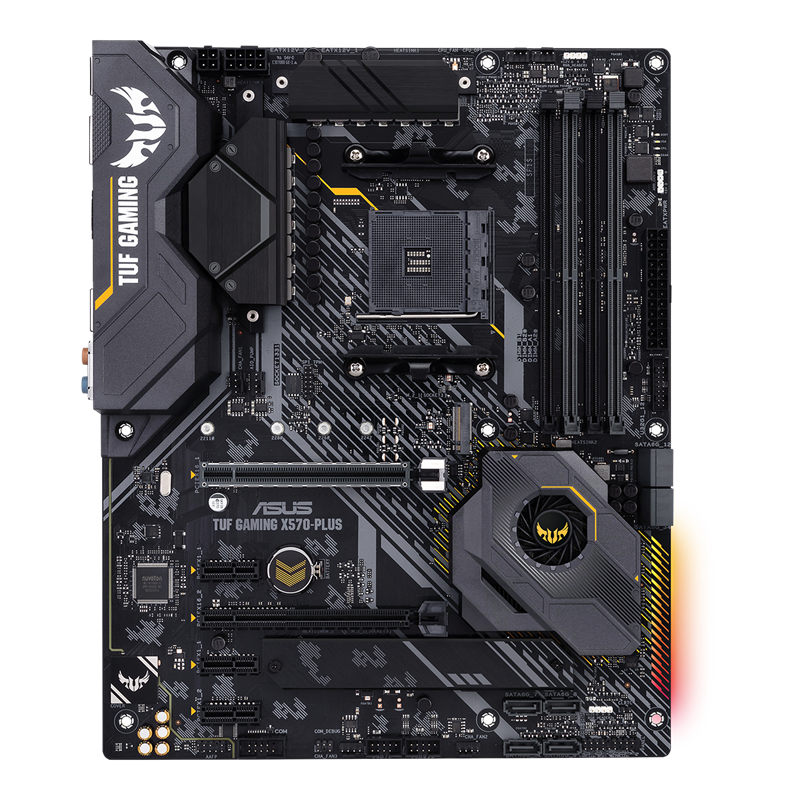

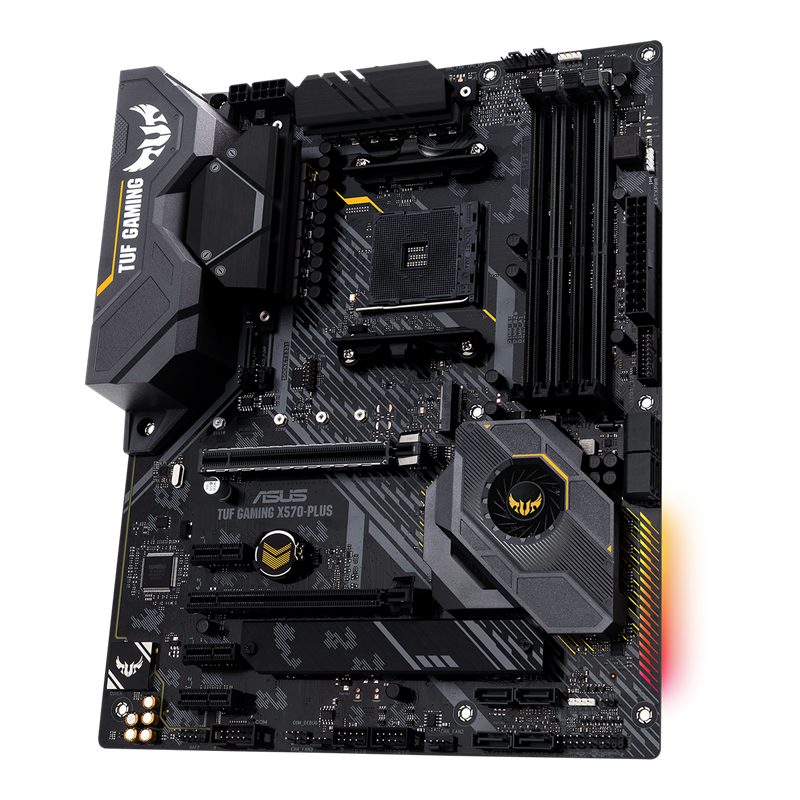

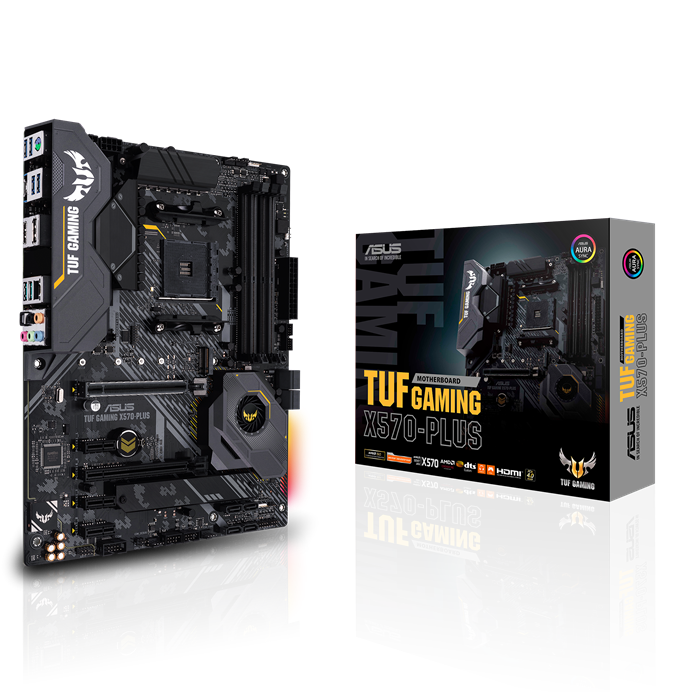

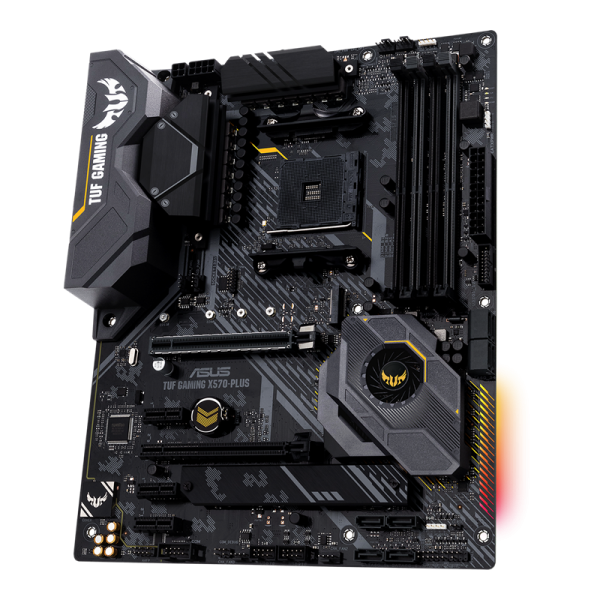

Model | TUF GAMING X570-PLUS |
CPU | AMD AM4 Socket AMD Ryzen 2nd Generation/3rd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors |
Chipset | AMD X570 |
Memory | 3rd Gen AMD Ryzen Processors: |
4x DIMM, Maximum 128GB, DDR4 MHz Un-Buffered Memory | |
2nd Gen AMD Ryzen Processors: | |
4x DIMM, Maximum 128GB, DDR4 MHz Un-Buffered Memory | |
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors: | |
4x DIMM, Maximum 128GB, DDR4 MHz Un-Buffered Memory | |
Dual Channel Memory Architecture | |
ECC Memory (ECC Mode) Support Varies by CPU. | |
Graphics | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors: |
Multi-VGA Ooutput Support: HDMI/DisplayPort Ports | |
Supports HDMI 1.4b with Maximum Resolution 4096 x 2160 @ 24 Hz | |
Supports DisplayPort with Maximum Resolution 4096 x 2160 @ 60 Hz | |
Multi-GPU Support | 3rd and 2nd Gen AMD Ryzen Processors: |
AMD Ryzen 2nd Generation/Ryzen 1st Generation Processors: | |
Supports AMD CrossFireX Technology | |
Expansion Slots | 3rd Gen AMD Ryzen Processors: |
1x PCIe 4.0 x16 (x16 Mode) | |
2nd Gen AMD Ryzen Processors: | |
1x PCIe 3.0 x16 (x16 Mode) | |
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors: | |
1x PCIe 3.0/2.0 x16 (x8 Mode) | |
AMD X570 Chipset: | |
1x PCIe 4.0 x16 (Maximum at x4 Mode) | |
3x PCIe 4.0 x1 | |
Storage | 3rd Gen AMD Ryzen Processors: |
1x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA Modes) Storage Devices Support | |
2nd Gen AMD Ryzen Processors: | |
1x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA Modes) Storage Devices Support | |
AMD X570 Chipset: | |
1x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA Modes) Storage Devices Support | |
8x SATA 6Gb/s Ports | |
Support Raid 0, 1, 10 | |
LAN | Realtek L8200A |
ASUS Turbo LAN Utility | |
TUF LANGuard | |
Audio | Realtek ALC S1200A 8-Channel High Definition Audio CODEC |
Audio Feature: | |
Exclusive DTS Custom for GAMING Headsets. | |
Audio Shielding: Ensures Precision Analog/Digital Separation and Greatly Reduced Multi-Lateral Interference | |
Dedicated Audio PCB Layers: Separate Layers for Left and Right Channels to Guard the Quality of the Sensitive Audio Signals | |
Premium Japanese Audio Capacitors: Provide Warm, Natural and Immersive Sound with Exceptional Clarity and Fidelity | |
Audio Cover: Effective Shielding Preserves the Integrity of Audio Signals to Ensure Best Quality. | |
USB Ports | 3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors: |
4x USB 3.2 Gen 1 Ports (4 at Back Panel) | |
AMD X570 Chipset: | |
3x USB 3.2 Gen 2 Ports (3 at Back Panel, 2x Type-A+1 x USB Type-C) | |
2x USB 3.2 Gen 1 Ports (2 at Mid-Board) | |
4x USB 2.0 Ports (4 at Mid-Board) | |

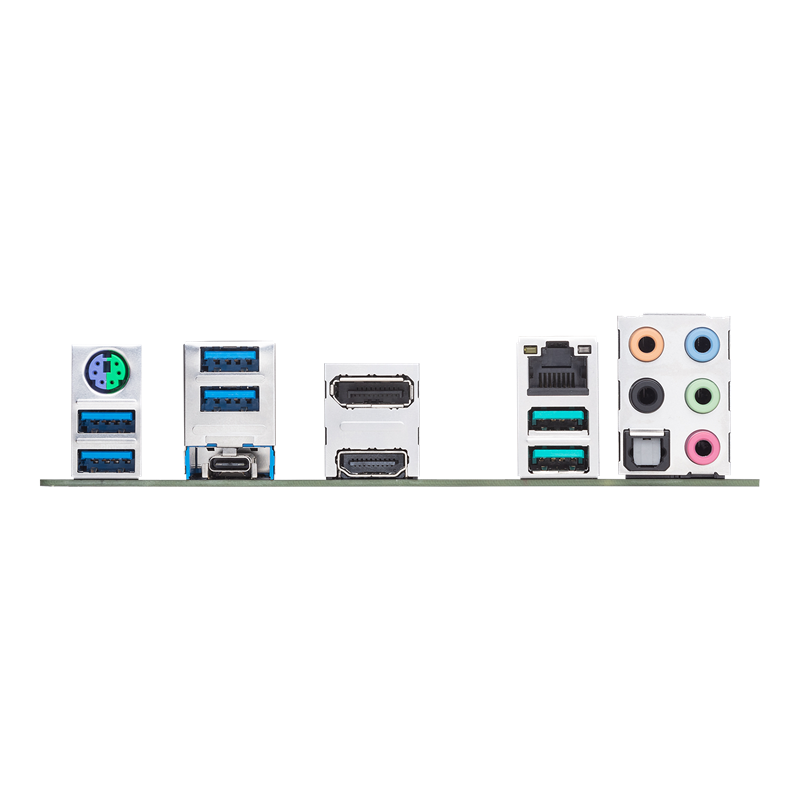

Back I/O Ports | 1x PS/2 Keyboard/Mouse Combo Port |
1x DisplayPort | |
1x HDMI | |
1x LAN (RJ45) Port | |
1x Optical S/PDIF Out | |
5x Audio Jacks | |
4x USB 3.2 Gen 1 (Up to 5Gbps) Ports | |
3x USB 3.2 Gen 2 (Up to 10Gbps) Ports (Type-A + USB Type-C) | |
Internal I/O Ports | 2x Aura RGB Strip Headers |
1x Addressable Gen 2 Header | |
2x USB 2.0 Connectors Supports Additional 4 USB 2.0 Ports | |
1x M.2 Socket 3 with M Key, Type 2242/2260/2280/22110 Storage Devices Support (SATA Mode & X4 PCIE Mode) | |
1x M.2 Socket 3 with M Key, Type 2242/2260/2280/22110 Storage Devices Support (SATA Mode & X4 PCIE Mode) | |
1x SPI TPM Header | |
8x SATA 6Gb/s Connectors | |
1x CPU Fan Connector | |
1x CPU OPT Fan Connector | |
3x Chassis Fan Connectors | |
1x AIO_PUMP Connector | |
1x 24-pin EATX Power Connector | |
1x 8-pin ATX 12V Power Connector | |
1x 4-pin ATX 12V Power Connector | |
1x Front Panel Audio Connector (AAFP) | |
1x System Panel | |
1x Clear CMOS Jumper | |
1x COM Port Header | |
1x USB 3.2 Gen 1 (Up to 5Gbps) Connector Support Additional 2 USB Ports | |
BIOS | 256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-Language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified Log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) Memory Information |
Manageability | WOL by PME, PXE |
Operating System Support | Windows 10 64-bit |

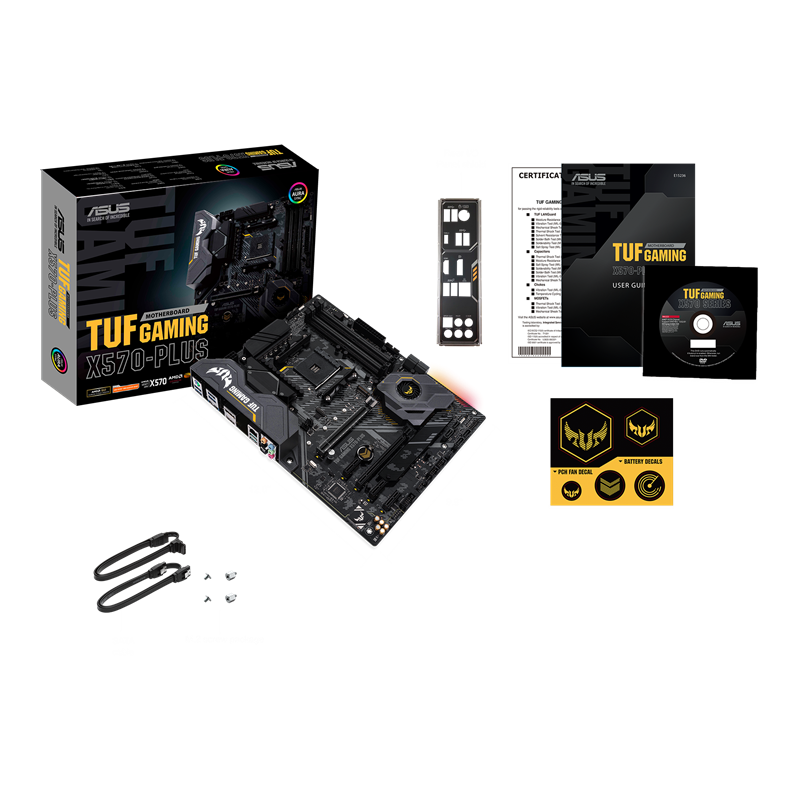

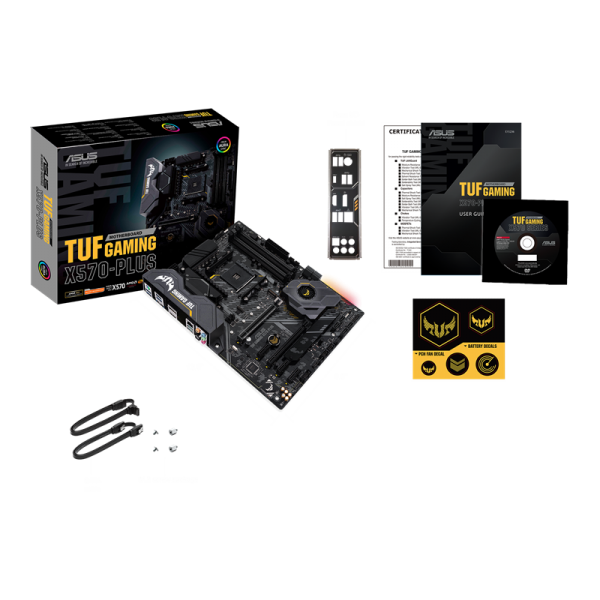

Accessories | User Manual |
I/O Shield | |
2x SATA 6Gb/s Cables | |
1x M.2 Screw Package | |
1x Supporting DVD | |
1x TUF GAMING Sticker | |
1x TUF Certification Card | |
Warranty Information | |
Warranty | 3 Year Warranty |
