GIGABYTE B560M H Rev. 1.1 LGA 1200 DDR4

Name: GIGABYTE B560M H Rev. 1.1 LGA 1200 DDR4 - Clix Gamers
SKU: B560M-H-1.1
Price: 479 ILS
Availability: OutOfStock

מק"ט B560M-H-1.1 קטגוריה INTEL לוחות תגיות 2-Slots, B560, DDR4, GIGABYTE, LGA1200, Micro ATX

₪479

תיאור מוצר

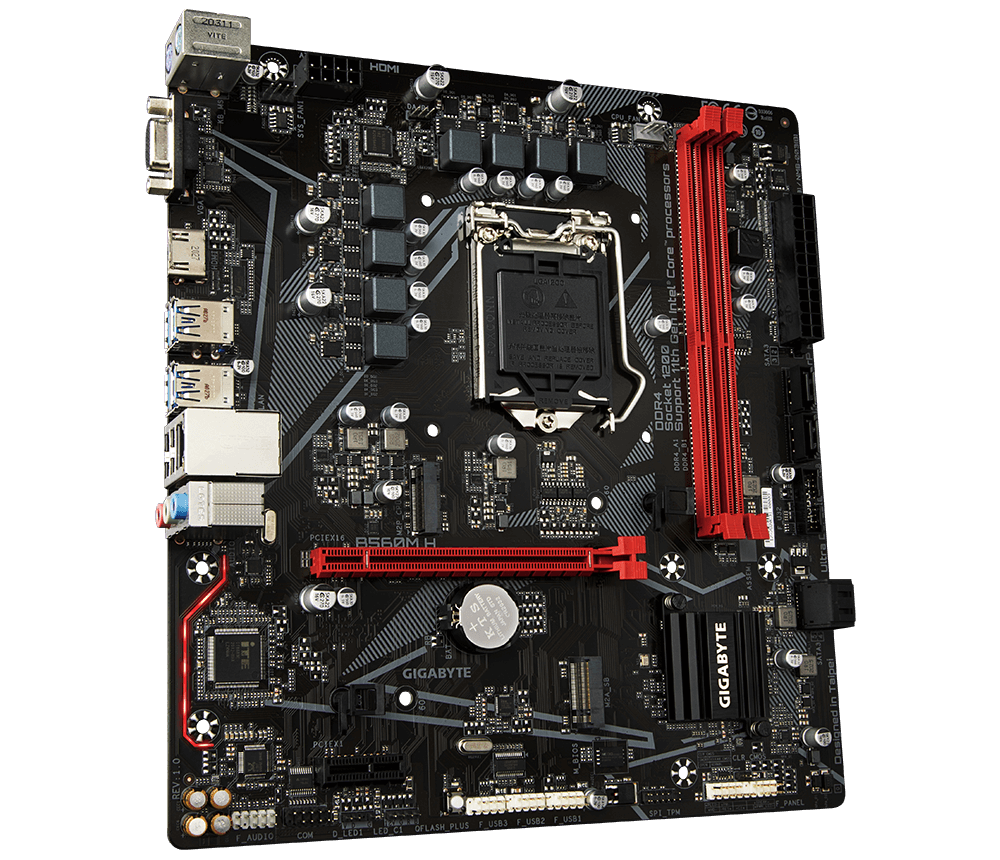

Intel® B560 Ultra Durable Motherboard

with Direct 6+2 Phases Digital VRM, Full PCIe 4.0* Design, Dual PCIe x4 M.2, GIGABYTE 8118 Gaming LAN, RGB FUSION 2.0, Q-Flash Plus

Supports 11th and 10th Gen Intel® Core™ Series Processors

Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs

Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs

Dual Ultra-Fast NVMe PCIe 4.0* /3.0 x4 M.2

GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting

RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips

Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP

Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

* Actual support may vary by CPU.

Specifications

FORM FACTOR	Micro ATX
SOCKET TYPE	LGA 1200 (Socket H5)
COMPATIBLE PROCESSORS	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
CHIPSET	Intel B560 Express
MEMORY STANDARD	Supported memory types: DDR4-SDRAM Supported memory clock speeds: 2133,2400,2666,2933,3000,3200 MHz
MEMORY SLOTS	2
MEMORY CHANNELS	Dual-channel
MAXIMUM INTERNAL MEMORY	64GB
PORTS	1 x Ethernet LAN RJ-45 1 x HDMI 4 x USB 3.2 Gen 1 (3.1 Gen 1) Type-A 2 x USB2.0 2 x PS/2 1 x VGA (D-Sub)
ETHERNET	Gigabit Ethernet LAN
ONBOARD USB 2.0	3
ONBOARD USB 3.1	1 x USB3.2 Gen 1 (3.1 Gen 1)
M.2 SLOTS	Number of M.2 (M) slots: 2 Supported storage drive interfaces: M.2,PCI Express 3.0,SATA III
SATA III CONNECTORS	N4
FRONT PANEL AUDIO	Front panel audio connector
FRONT PANEL CONNECTOR	Front panel connector
MAIN POWER CONNECTOR	ATX Power connector (24-pin)
CPU FAN CONNECTOR	CPU fan connector
CHASSIS FAN CONNECTORS	1
TPM	TPM connector
RGB LED HEADER	RGB LED pin header
AUDIO CHANNELS	7.1 channels
PCI EXPRESS X1	PCI Express x1 slots: 1
PCI EXPRESS X16	1 x PCI Express x16
SUPPORTED OPERATING SYSTEMS	Windows 10 x64
RESOLUTION	Maximum resolution: 4096 x 2160 pixels

המלאי אזל
