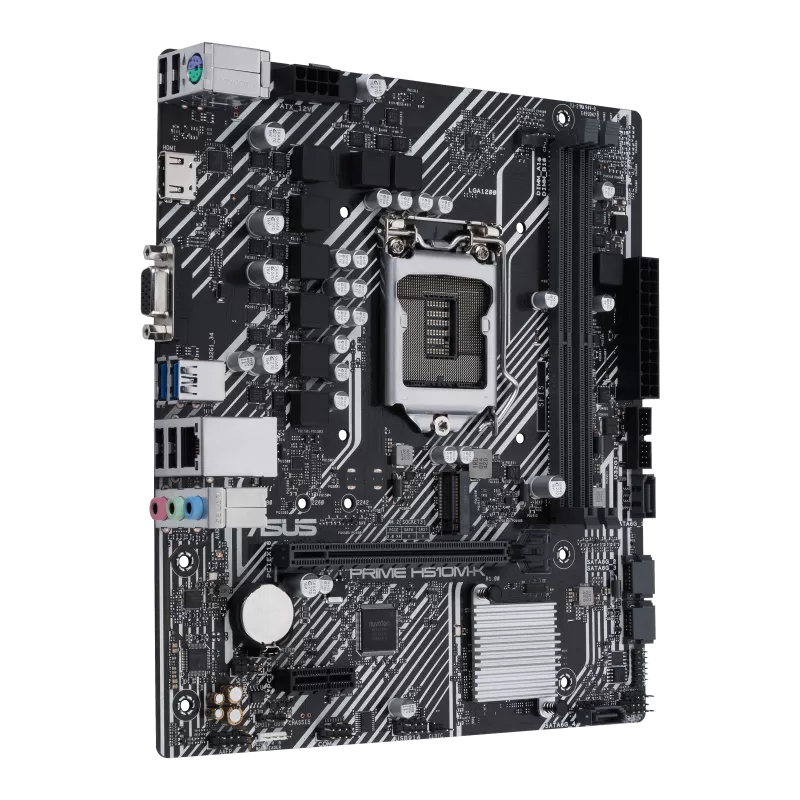

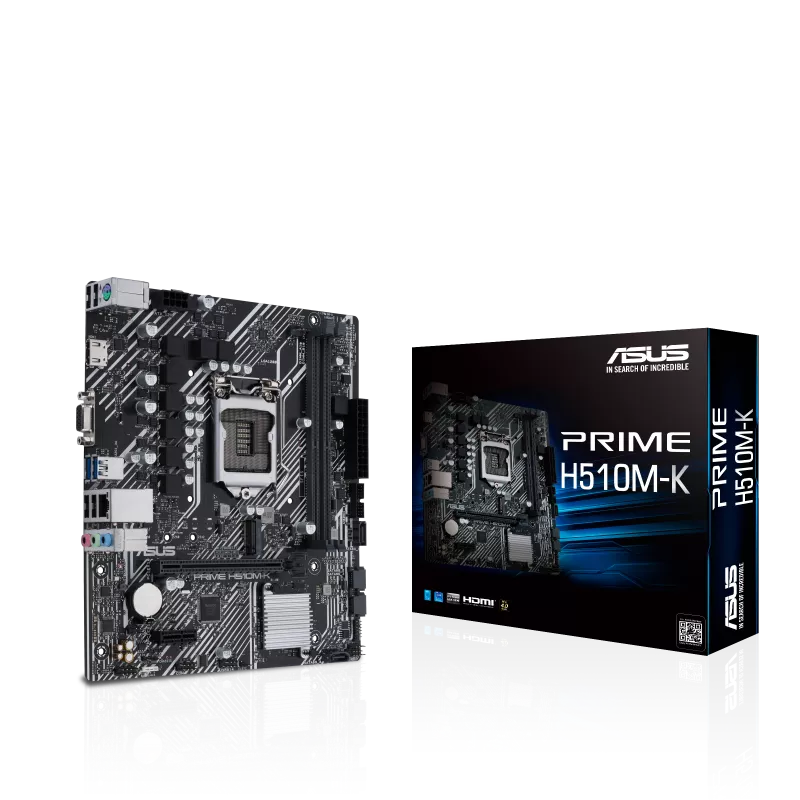

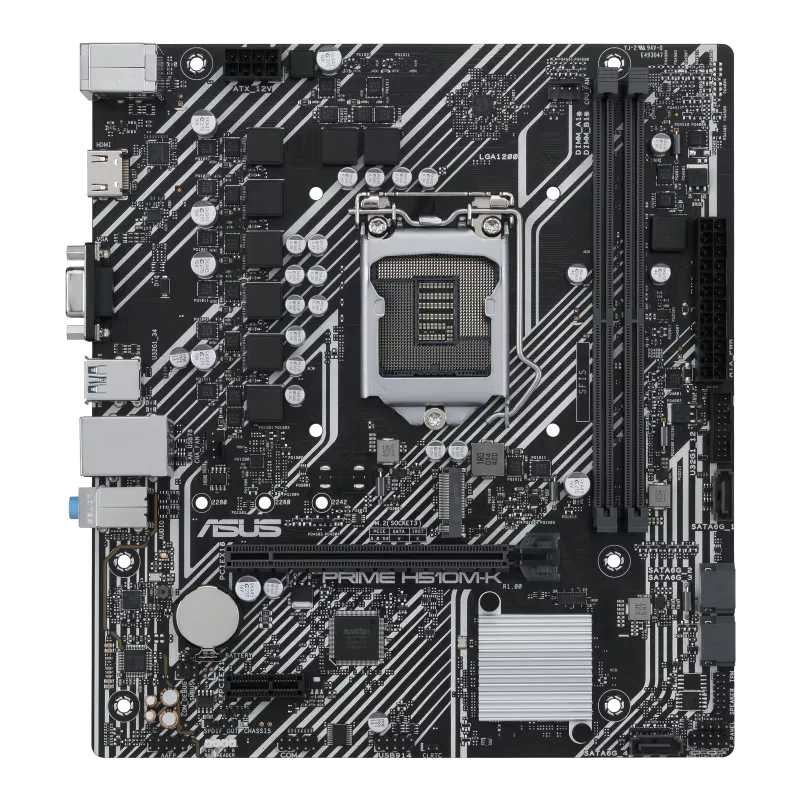

ASUS PRIME H510M-K LGA 1200 DDR4

מק"ט 90MB17N0-M0EAY0 קטגוריה תגיות , , , , ,

359

תיאור מוצר

Intel® H510 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet, HDMI, D-Sub, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, COM header, and RGB header

  • Intel® LGA 1200 socket: Ready for 11th and 10th Gen Intel® Processors
  • Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet and USB 3.2 Gen 1
  • Comprehensive cooling: PCH heatsink and Fan Xpert
  • 5X Protection III: Multiple hardware safeguards for all-round protection

Specifications

CPU Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPUSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset H510
Memory Memory Channels:2DDR4 (Dual Channel)
Max Memory Size:64GB
DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.* 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency
Graphics 1 x DisplayPort 1.4
1 x D-Sub
1 x HDMI 2.0***
* Graphics specifications may vary between CPU types.** Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.*** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.Expansion Slots Intel® 11th & 10th Gen Processors
Expansion Slots Intel® 11th & 10th Gen Processors

1 x PCIe 4.0/3.0 x16 slot

– Intel® 11th Gen processors support PCIe 4.0 x16

– Intel® 10th Gen processors support PCIe 3.0 x16

Intel® H510 Chipset

2 x PCIe 3.0 x1 slots

Storage Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H510 ChipsetM.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)4 x SATA 6Gb/s ports* The M.2 slot shares bandwidth with SATA6G_2. When a device in SATA mode is installed on the M.2 slot, SATA6G_2 port cannot be used.
Ethernet 1 x Intel® I219-V 1Gb Ethernet
USB Rear USB:Total 4 ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB:Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC*

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– Supports up to 24-Bit/192 kHz playback”

Audio Features

– Audio Shielding

– Premium Japanese audio capacitors

– Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

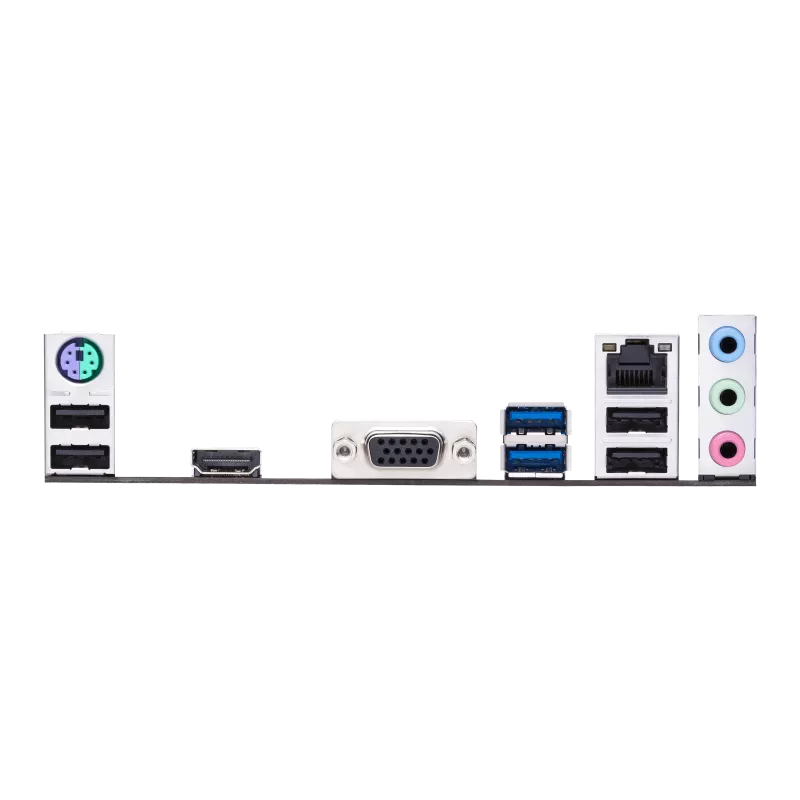

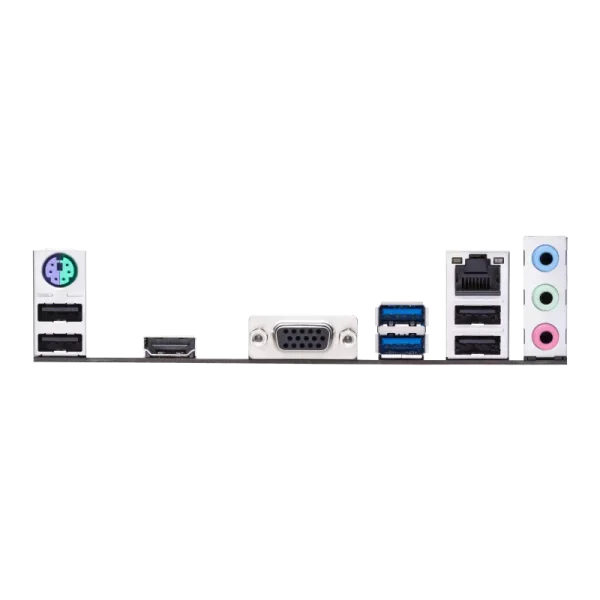

Back Panel I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x D-Sub port

1 x HDMI™ port

1 x Intel® I219-V 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard (purple) port

1 x PS/2 Mouse (green) port

Intrernal I/O Connectors Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

1 x M.2 slot (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header

Special Features ASUS 5X PROTECTION III

– DIGI+ VRM

– LANGuard

– Overvoltage Protection

– SafeSlot Core

– Stainless-Steel Back I/O

ASUS Q-Design

– Q-DIMM

– Q-Slot

ASUS Thermal Solution

– Aluminum heatsink design

ASUS Lighting Control

– RGB header

Software Features ASUS Exclusive Software

Armoury Crate

AI Suite 3

– Performance And Power Saving Utility

TurboV EVO

EPU

DIGI+ VRM

Fan Xpert

– EZ update

ASUS CPU-Z

AI Charger

DAEMON Tools

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE

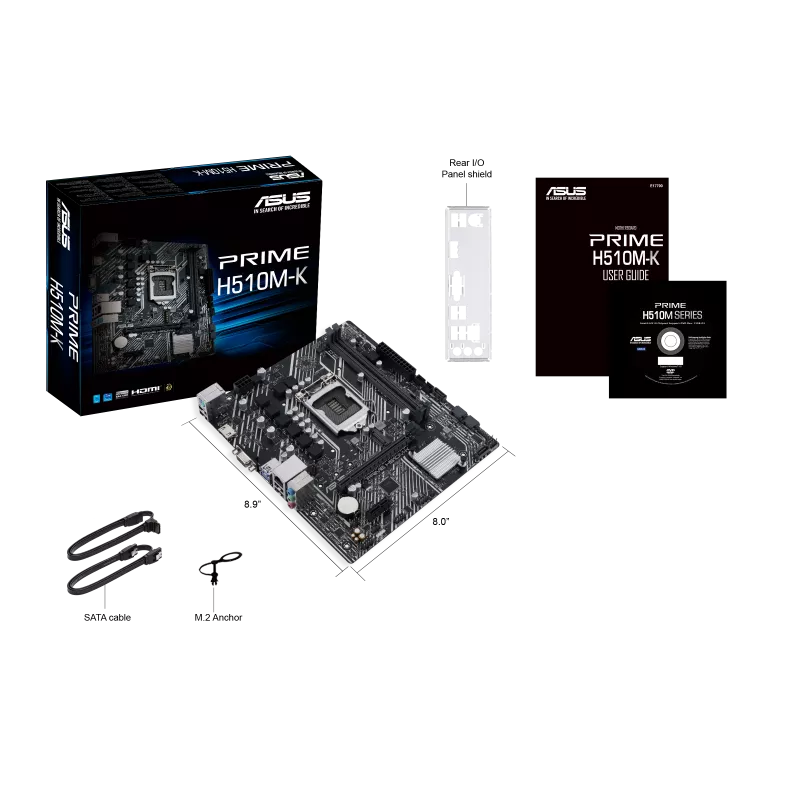

Accessories Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

1 x M.2 SSD screw package

Installation Media

1 x Support DVD

Documentation

1 x User manual

Operating System Windows® 10 64-bit
Form Factor microATX
22.6cm x 21.1cm
Warranty 3 Years
