GIGABYTE B560 UD3 Rev. 1.2 LGA 1200 DDR4

מק"ט B560-HD3-(rev1.2) קטגוריה תגיות , , , , ,

649

תיאור מוצר
  • Supports 11th and 10th Gen Intel Core Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
  • Dual Ultra-Fast NVMe PCIe 4.0* /3.0 x4 M.2
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Allocation
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

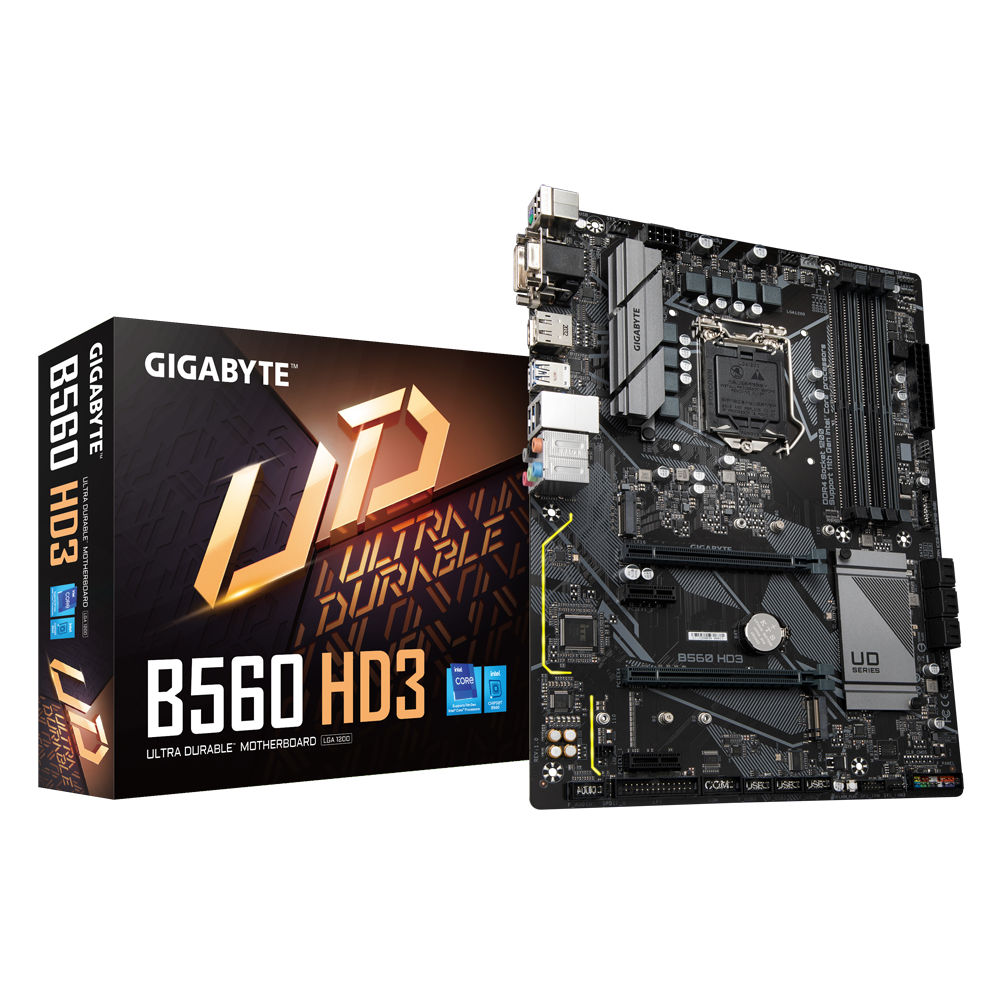

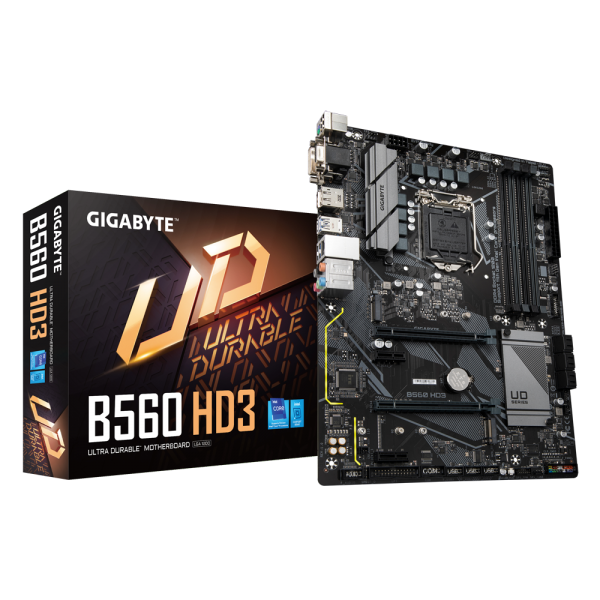

Gigabyte B560 HD3

This B560 HD3 motherboard offers all essentials needed to build a well-balanced gaming or office PC based on the 11th / 10th Gen Intel Core processors. Along with boosted power design and onboard heatsinks for chipset and power zone, this ATX motherboard features PCIe 4.0 to fully support the latest graphics and M.2 storage hardware. Quad outputs, including VGA, DVI, HDMI and DisplayPort, natively work with your choice of any new or legacy display devices*.

* Require processors with integrated graphics to use onboard video outputs.

Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs

Cleaner and more efficient power delivery to the CPU with better thermal performance ensures stability under high CPU frequencies and heavy loading.

  • Digital PWM Controller to deliver appropriate voltage to the CPU
  • Direct 6+2 Phases Low RDS(on) MOSFETs without PWM Doublers: each power phase connects directly to the CPU.
  • All-solid capacitors to improve transient response and minimize oscillation.
  • 8-pin Solid Pin CPU Power Connector.

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Headers & Sensors


6 Internal Temperature Sensors


6 Internal Temperature Sensors

Cooling Features

High Current Support

Each fan header supports PWM and DC fan and Water cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection

Precision Control

Up to 7 temperature/fan speed control points for precise fan curve

Dual Curve Mode

Slope/Stair dual mode for different user scenarios

Fan Stop

Fan can stop completely below users’ specified temperature point

Support for DDR4 XMP Up to 4600 MHz and Beyond*

GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 4600 MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.

* XMP Profile support may vary depending on memory module.


Full PCIe 4.0* Design

1. PCIe 4.0 M.2 Slot

M.2 PCIe 4.0 x4 slot with lower impedance.

2. 1 x PCIe 4.0 Slot

Reinforced PCIe 4.0 x 16.

3. PCIe 4.0 Ready PCB

Low signal Loss PCB.

* PCIe 4.0 support varies by processor installed. Refer to product spec for further details.


High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.


Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Dual PCIe 4.0/3.0 x4 M.2 Connectors

GIGABYTE Ultra Durable Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their Systems’ potential.

* PCIe 4.0 support varies by processor installed. Refer to product spec for further details.


Exclusive Realtek 8118 Gaming LAN

High Speed Gigabit LAN with Automatic Bandwidth Allocation

Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users with the most comprehensive features and the fastest and smoothest Internet experience.

Program On Top Gets Highest Priority


Real-Time Network Monitoring


High Definition Outputs

Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs.

* Maximum support of 3 independent display at one time.


RGB FUSION 2.0

With B560 Motherboard, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on B560 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

B560 Motherboard will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings and with more to come.

* Addressable LEDs are available only on select Motherboards. External LED Strips and Addressable LED Strips are not included with Motherboard purchase.


Solid Pin Power Connectors

B560 motherboards feature solid plated ATX 12V 8-pin power connectors to offer a stable power supply during CPU overloading.

Solid pin power connector advantages

  • Larger contact area for electricity
  • More metal quantity to sustain higher power and generated heat
  • Ultra durable and longer lifespan

Q-Flash Plus

Update the BIOS easily without installing CPU, memory and graphics card

With GIGABYTE Q-Flash Plus, you don’t need to install CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

START SULFURIZATION PROTECTION

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

Refreshed BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

* Photos are for reference only. Product features may vary by model.

Model
Brand GIGABYTE
Model B560 HD3
Supported CPU
CPU Socket Type  LGA 1200
CPU Type Supports 11th / 10th Gen Intel Core processors
Supports Intel Pentium / Celeron processors** Limited to with 4MB Intel Smart Cache, Intel Celeron G5xx5 family.
Chipsets
Chipset  Intel B560
Onboard Video
Onboard Video Chipset  Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 4×288pin
Memory Standard DDR4 5333(OC) / DDR4 5133(OC) / DDR4 5000(OC) / 4933(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 (11th Gen Intel Core i9 / i7 / i5 processors)

DDR4 2933 / 2666 / 2400 / 2133 (10th Gen Intel Core i9 / i7 processors)

DDR4 2666 / 2400 / 2133 (10th Gen Intel Core i5 / i3 / Pentium / Celeron processors)

Maximum Memory Supported 128GB
Channel Supported  Dual Channel
Expansion Slots
PCI Express 4.0 x16 1 x PCI Express 4.0 x16*

* Actual support may vary by CPU.

PCI Express 3.0 x16 1 x PCI Express 3.0 x16*

* Running at x4.

PCI Express x1 2 x PCI Express 3.0 x1
Storage Devices
SATA 6Gb/s  6 x SATA 6Gb/s
M.2 CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)*Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)* System Acceleration with Intel Optane Memory enabled on the M2P_CPU connector only.
* Supported by 11th Generation processors only.
Intel Optane Ready Yes
Onboard Audio
Audio Chipset  Realtek Audio CODEC
Audio Channels  7.1 Channels
Onboard LAN
LAN Chipset Realtek GbE LAN chip
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
Back I/O Ports 1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x DisplayPort
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 1 header
3 x USB 2.0/1.1 headers
Other Connectors 1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button* All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0″ x 8.9″
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features
Features I/O Controller:
iTE I/O Controller ChipH/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress InstallBundled Software:
Norton Internet Security (OEM version)
Realtek 8118 Gaming LAN bandwidth Control Utility

Operating System:
Support for Windows 10 64-bit
