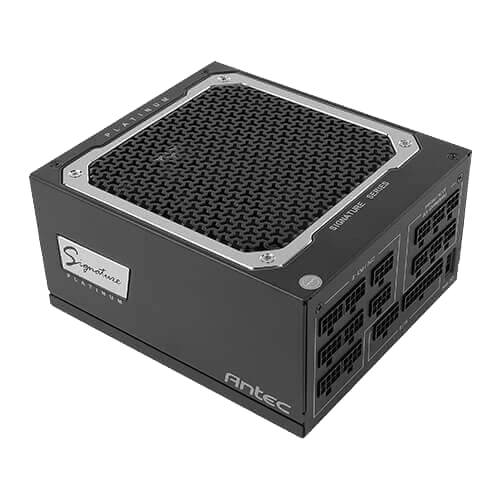

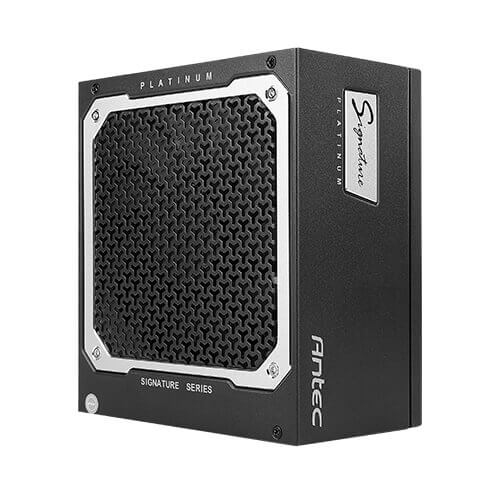

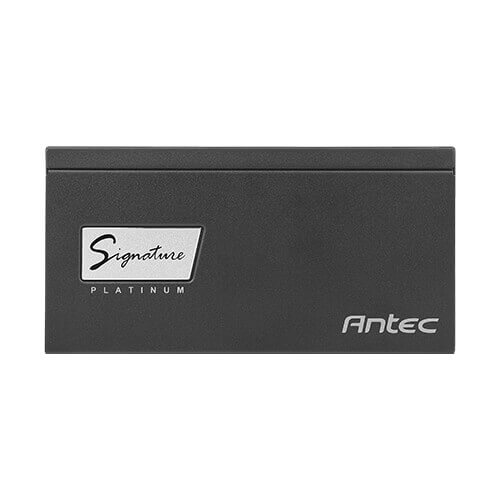

Antec SIGNATURE SP1000 1000W Modular 80+ PLATINUM

מק"ט SP1000 קטגוריה תגיות , , ,

1,399

תיאור מוצר

SIGNATURE
1000 PLATINUM

Equipped with superior features that ensure peak performance for the enthusiast and gaming-oriented segment, the Signature power supply Series boasts unparalleled stability and 80 PLUS® Platinum-certified efficiencies. Advanced thermal control with the Zero RPM mode enables the optimal balance between silence and cooling. The CircuitShield™ suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable in any environment. Signature Series are a great choice for a reliable and efficient PC system for gamers and professionals.

100% Top-Grade Japanese Capacitors

Achieve unprecedented tight voltage regulation & low ripple
& noise to maximize your system’s performance.

PhaseWavetm Design

A server-class full-bridge LLC design
with a synchronous rectification
based on a DC-DC topology.

OC Linktm Feature

Allows 2 Signature PSUs to work in tandem to power the most demanding systems.

10-year Warranty

This new PSU line from Antec pushes the standard for excellence with the circuit shield suite of industrial protections and is backed by a 10-year warranty.

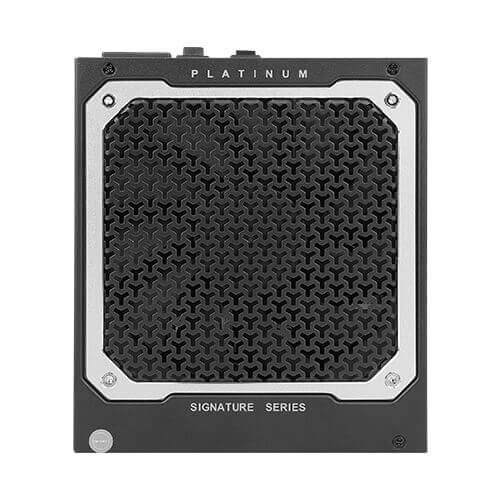

FDB 135mm
Silent Fan

Featuring whisper-quiet, fluid dynamic bearing 135mm fan provides high airflow with durability and longevity.



Zero RPM Mode

The Zero RPM fan mode further ensures a longer-lasting and quieter system by using thermal sensors to activate the fan only when you need it.

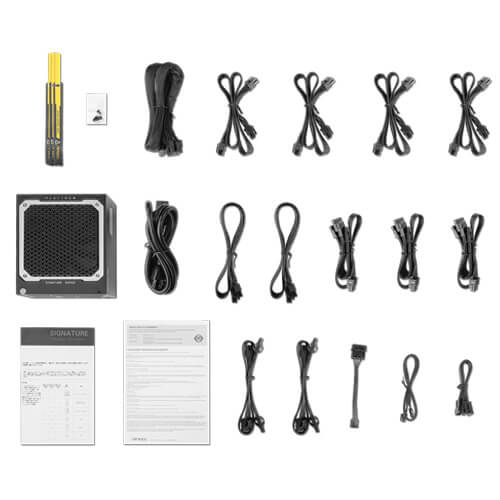

Connectors

Full Modular
Cable Management

Enables users to use only the cables which are needed and help clear out excess cables that can obstruct and reduce airflow.

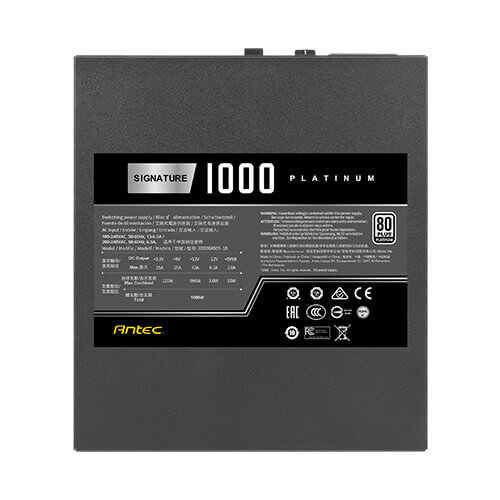

Input / Output
& Efficiency Chart

FEATURES

    • Guaranteed 1000W of Continuous Power from Antec
    • 100% Modular-Improves airflow and reduces clutter
    • 80 PLUS® GOLD certified-Up to 92% efficient, to reduce your electricity bill
    • PhaseWave™ Design-A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
    • Antec Quality 10-year warranty and lifetime global 24/7 support
    • 120mm FDB Silence-Whisper-quiet high-quality fluid-dynamic bearing fan with long lifetime
    • Zero RPM Manager-An advanced low voltage fan control with fan-off mode at low loads for absolute silence
    • 99%+12V – Output for maximum CPU & GPU support
    • CircuitShield™-Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
    • 100% Japanese capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance
    • 28(18+10) pin MBU socket – For possible future MBU connectors
    • ATX12V 2.4-Engineered according to the newest PSU guideline and compatible with the latest CPU generation
    • Compact size 140mm depth power supply is the best choice for compact ATX chassis

SPECIFICATIONS

Product Name SP1000 Platinum
Model Name X8000A505-18
Type ATX
Modular Fully
Dimension (W x L x H) 150 x 170 x 86mm
Warranty 10 years
Input Voltage 100-240
Input Current 13A ~ 6.5A
Input Frequency Range 47Hz ~ 63Hz
PFC APFC
PFC at half / full load:
>0.95 at AC 110v 60Hz(typical)
>0.90 at AC 230v 50Hz(typical)
Power Good Signal 100 ~ 500mS
Efficiency At 20% / 50% / 100% load AC 115V internal,
the power efficiency should be at least 90% / 92% / 89%.
Protection OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO
Output Capacity 1000W
Operation Temperature 0 ~ 40°C
Regulatory cTUVus / TUV / CB [IEC62368 Compliant] / CE /
FCC / BSMI / 3C / RCM
Fan 135 x 135 x 25(mm) FDB Silent Fan
Certifications 80 Plus Platinum

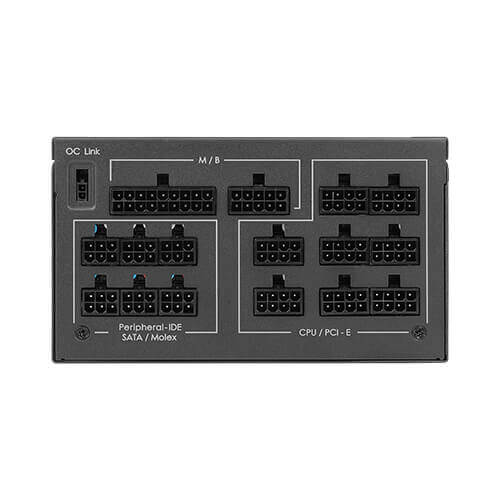

Connector 1 x MB 24(20+4) Pin
2 x 8(4+4) Pin EPS 12V
8 x 8(6+2) Pin PCI-E
14 x SATA
5 x Molex
1 x FDD
UPC# 0-761345-11700-5 SP1000
0-761345-11701-2 SP1000 AU
0-761345-11702-9 SP1000 EC
0-761345-11703-6 SP1000 GB
0-761345-11704-3 SP1000 JP
Net Weight 2.11 Kgs
Gross Weight 3.93 Kgs
