12th Gen Intel® Core™ processors – It divides so you can conquer.

Get the performance you need, right when and where you need it most.

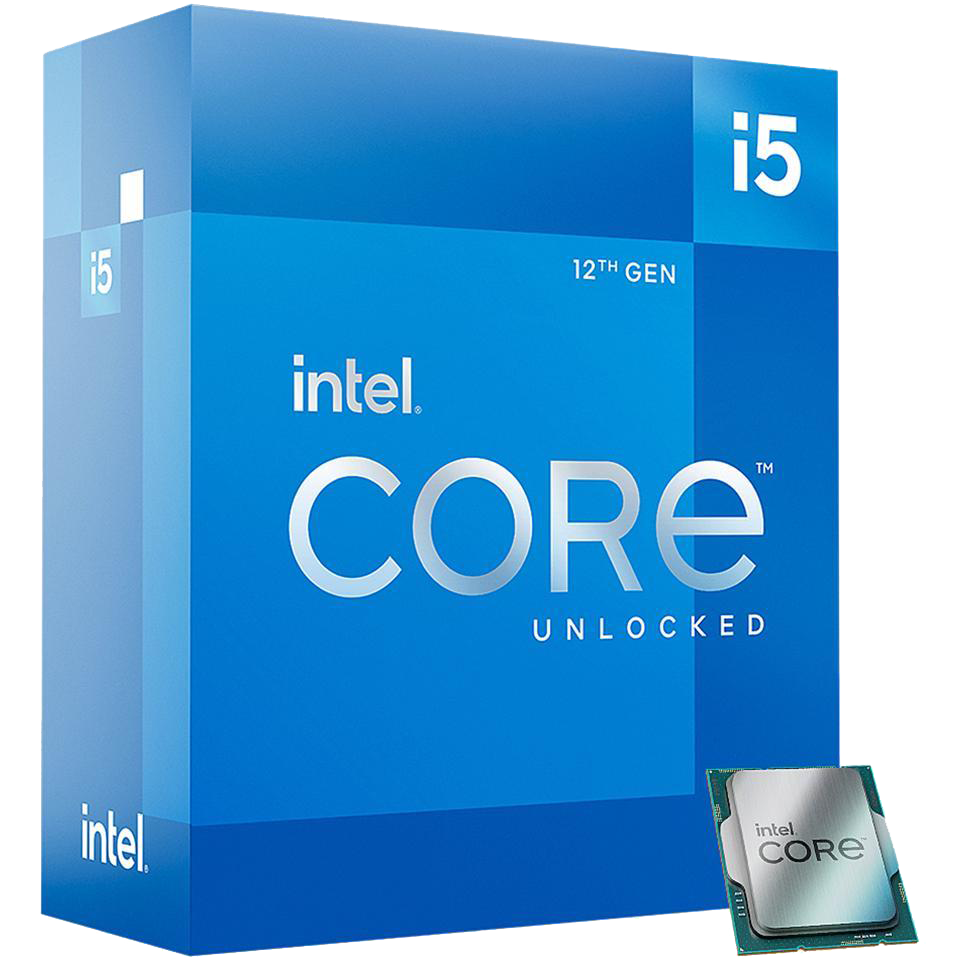

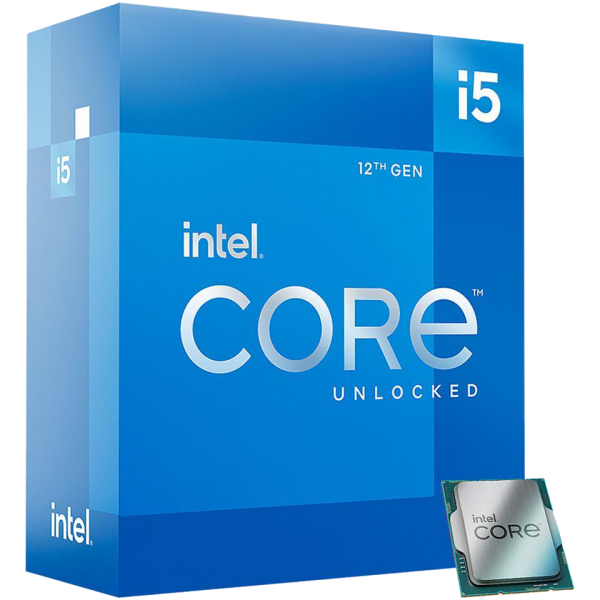

Intel® Core™ i5-12600K Processor

20M Cache, up to 4.90 GHz

The 12th Gen Intel® Core™ desktop processor redefines x86 architecture performance. Introducing our new performance hybrid architecture, combining Performance-cores with Efficient-cores to elevate gaming, productivity, and creation. These breakthrough processors intelligently optimize workloads and pave the way for future leaps in processor design. Enjoy the full range of the latest platform innovations like industry first PCIe 5.0 readiness and DDR5 memory. With Intel® UHD graphics immerse yourself in a visually stunning experience with up to 8K HDR support and the ability to view 4 simultaneous 4K displays. 12th Gen Intel® Core™ desktop processors bring all the features you need to game, work, and create like never before.



ARK | Compare Intel® Products
2/17/2022 14:10
	Intel® Core™ i5-12600K Processor  (20M Cache- up to 4.90 GHz)
Essentials
Product Collection	12th Generation Intel® Core™ i5 Processors
Code Name	Products formerly Alder Lake
Vertical Segment	Desktop
Processor Number	i5-12600K
Status	Launched
Launch Date	Q4’21
Lithography	Intel 7
Use Conditions	PC/Client/Tablet
Recommended Customer Price	$289.00 – $299.00
CPU Specifications
Total Cores	10
# of Performance-cores	6
# of Efficient-cores	4
Total Threads	16
Max Turbo Frequency	4.90 GHz
Performance-core Max Turbo Frequency	4.90 GHz
Efficient-core Max Turbo Frequency	3.60 GHz
Performance-core Base Frequency	3.70 GHz
Efficient-core Base Frequency	2.80 GHz
Cache	20 MB Intel® Smart Cache
Total L2 Cache	9.5 MB
Processor Base Power	125 W
Maximum Turbo Power	150 W
Supplemental Information
Embedded Options Available	No
Datasheet	View now
Memory Specifications
Max Memory Size (dependent on memory type)	128 GB
Memory Types	Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels	2
Max Memory Bandwidth	76.8 GB/s
Processor Graphics
Processor Graphics ‡	Intel® UHD Graphics 770
Graphics Base Frequency	300 MHz
Graphics Max Dynamic Frequency	1.45 GHz
Graphics Output	eDP 1.4b |  DP 1.4a |  HDMI 2.1
Execution Units	32
Max Resolution (HDMI)‡	4096 x 2160 @ 60Hz
Max Resolution (DP)‡	7680 x 4320 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel)‡	5120 x 3200 @ 120Hz
DirectX* Support	12
OpenGL* Support	4.5
Multi-Format Codec Engines	2
Intel® Quick Sync Video	Yes
Intel® Clear Video HD Technology	Yes
# of Displays Supported ‡	4
Device ID	0x4680
OpenCL* Support	2.1
Expansion Options
Direct Media Interface (DMI) Revision	4
Max # of DMI Lanes	8
Scalability	1S Only
PCI Express Revision	5.0 and 4.0
PCI Express Configurations ‡	Up to 1×16+4 |  2×8+4
Max # of PCI Express Lanes	20
Package Specifications
Sockets Supported	FCLGA1700
Max CPU Configuration	1
Thermal Solution Specification	PCG 2020A
TJUNCTION	100°C
Package Size	45.0 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator	3
Intel® Thread Director	Yes
Intel® Deep Learning Boost (Intel® DL Boost)	Yes
Intel® Optane™ Memory Supported ‡	Yes
Intel® Speed Shift Technology	Yes
Intel® Turbo Boost Max Technology 3.0 ‡	No
Intel® Turbo Boost Technology ‡	2
Intel® Hyper-Threading Technology ‡	Yes
Intel® Virtualization Technology (VT-x) ‡	Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡	Yes
Intel® VT-x with Extended Page Tables (EPT) ‡	Yes
Intel® 64 ‡	Yes
Instruction Set	64-bit
Instruction Set Extensions	Intel® SSE4.1 |  Intel® SSE4.2 |  Intel® AVX2
Idle States	Yes
Enhanced Intel SpeedStep® Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® Volume Management Device (VMD)	Yes
Security & Reliability
Intel® AES New Instructions	Yes
Secure Key	Yes
Intel® OS Guard	Yes
Execute Disable Bit ‡	Yes
Intel® Boot Guard	Yes
Mode-based Execute Control (MBEC)	Yes
Intel® Control-Flow Enforcement Technology	Yes
