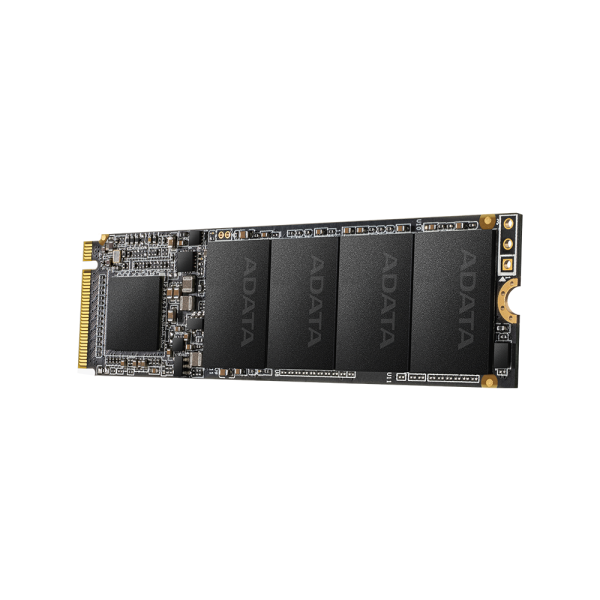

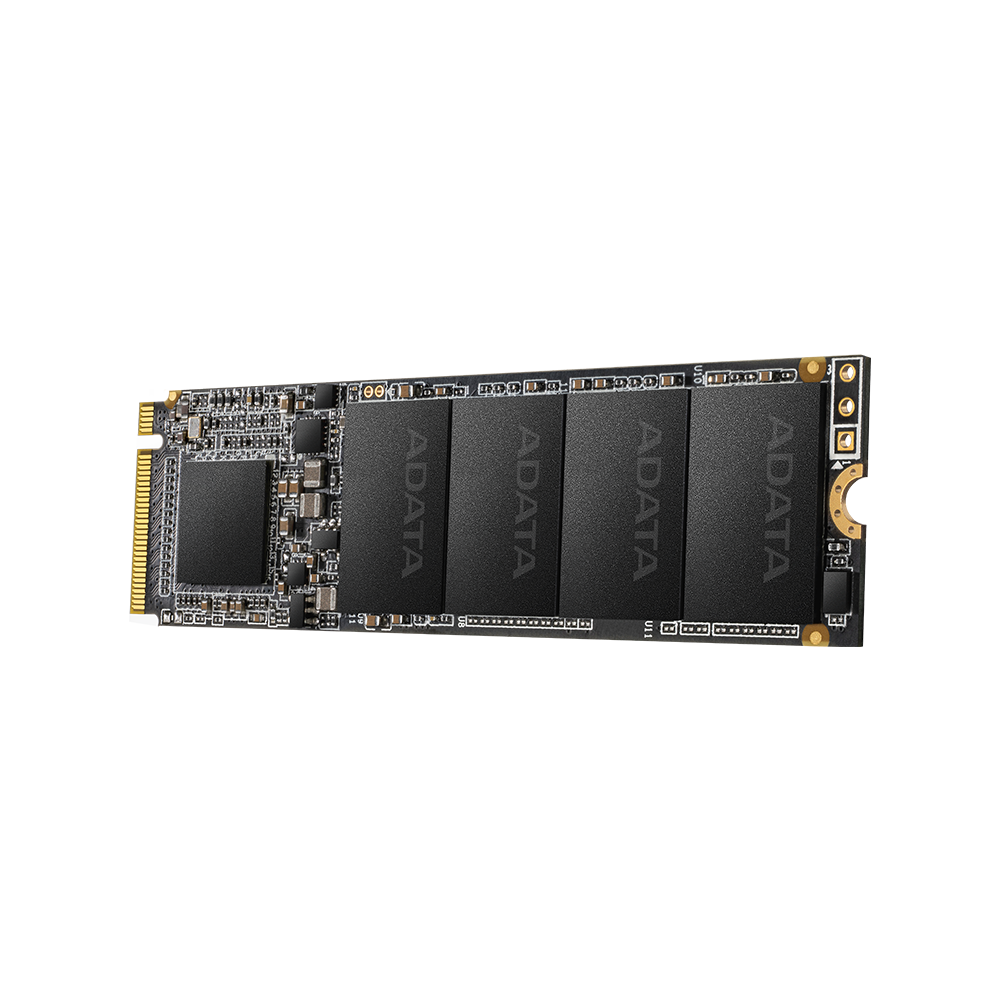

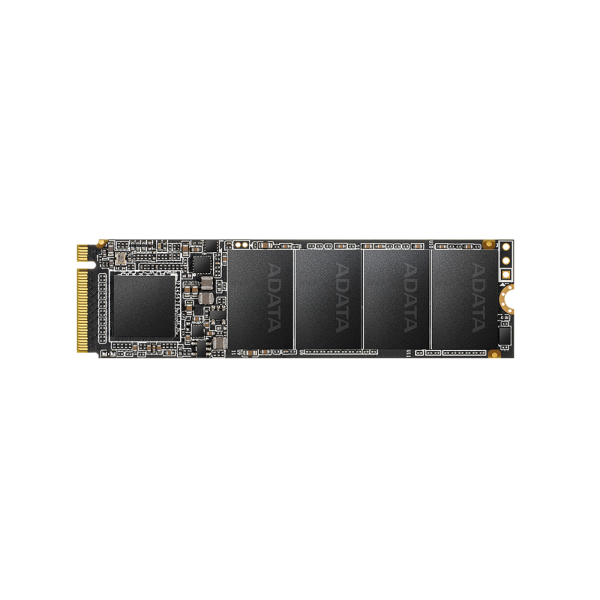

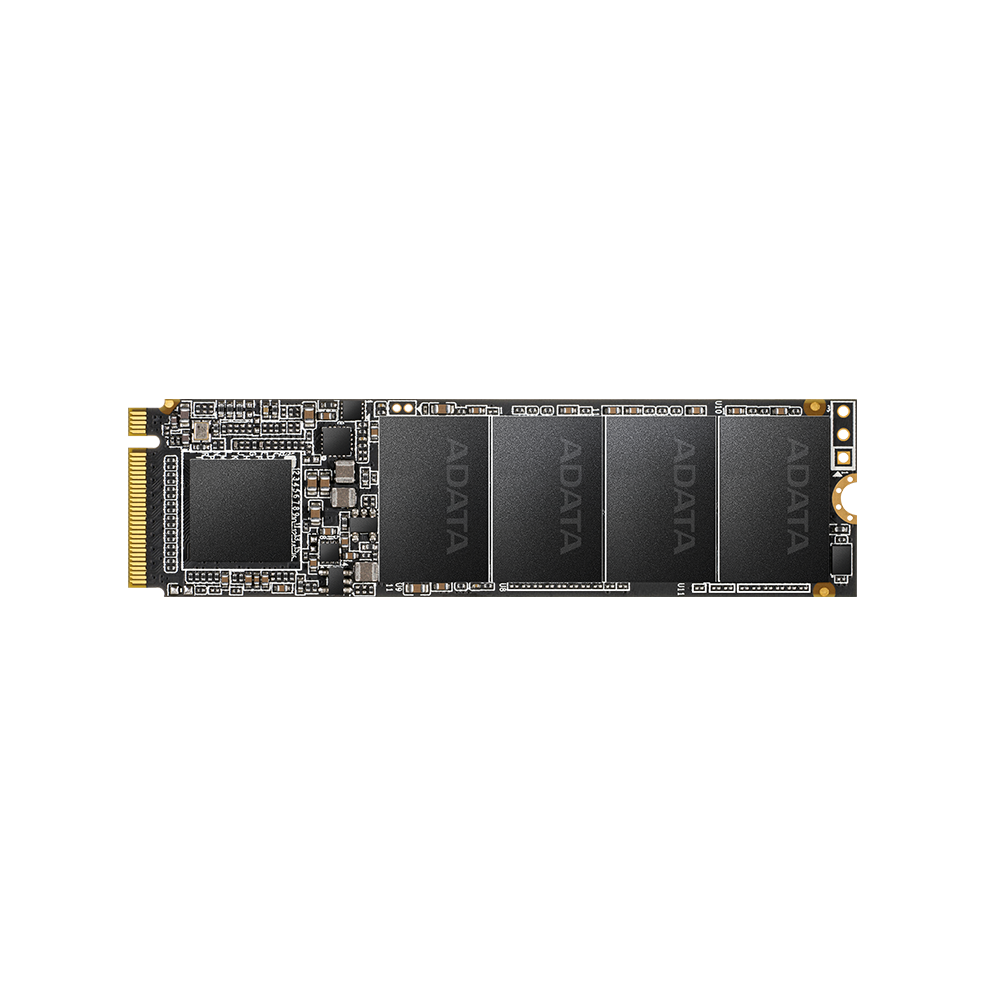

ASX6000LNP-256GT-C
SPECIFICATIONS
Model | ASX6000LNP-256GT-C |
Capacity | 256GB |
NAND Flash | 3D NAND |
Interface | PCIe Gen3x4 |
Form Factor | M.2 2280 |
MTBF | 1,800,000 hours |
Dimensions (L x W x T) | 22 x 80 x 2.15mm |
Power Consumption | 0.33W Active (Typical) 0.14W Slumber (Typical) (*measured by power meter) |
Operating Temperature | 0°C~70°C |
Storage Temperature | -40°C~85°C |
Shock Resistance | 1500G/0.5ms |
Certifications | RoHS, CE, FCC, BSMI, VCCI, KC |
Warranty | 3 Years |
FEATURES
- Ultra-fast PCIe Gen3x4 interface:R/W speed up to 1800/1200MB/s
- NVMe 1.3 support
- 3D NAND Flash for higher capacity and durability
- Advanced LDPC ECC Technology
- HMB (Host Memory Buffer) and SLC Caching
- Compact M.2 2280 form factor – ideal for high-end desktops, notebooks and Ultrabooks
