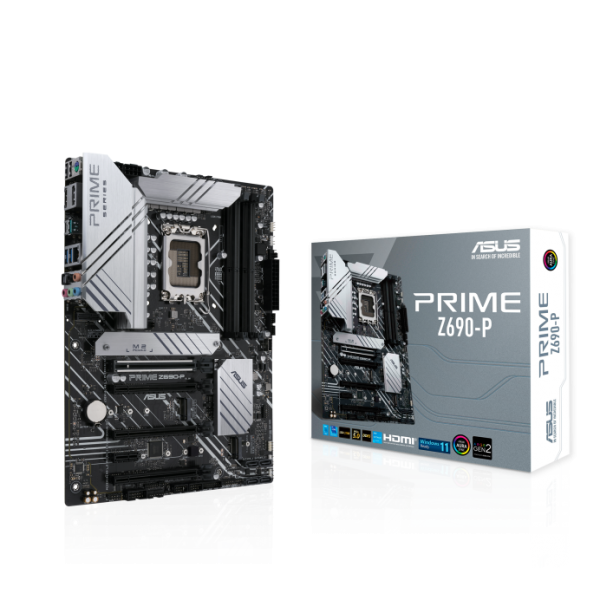

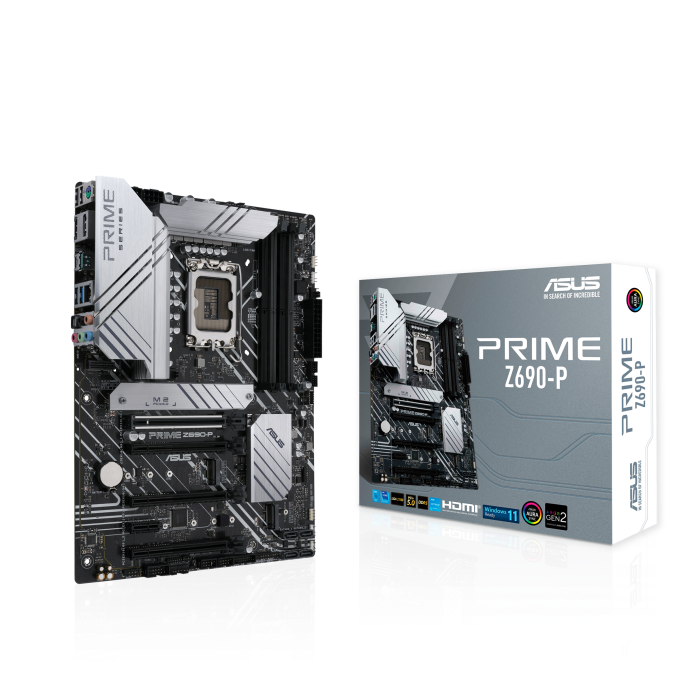

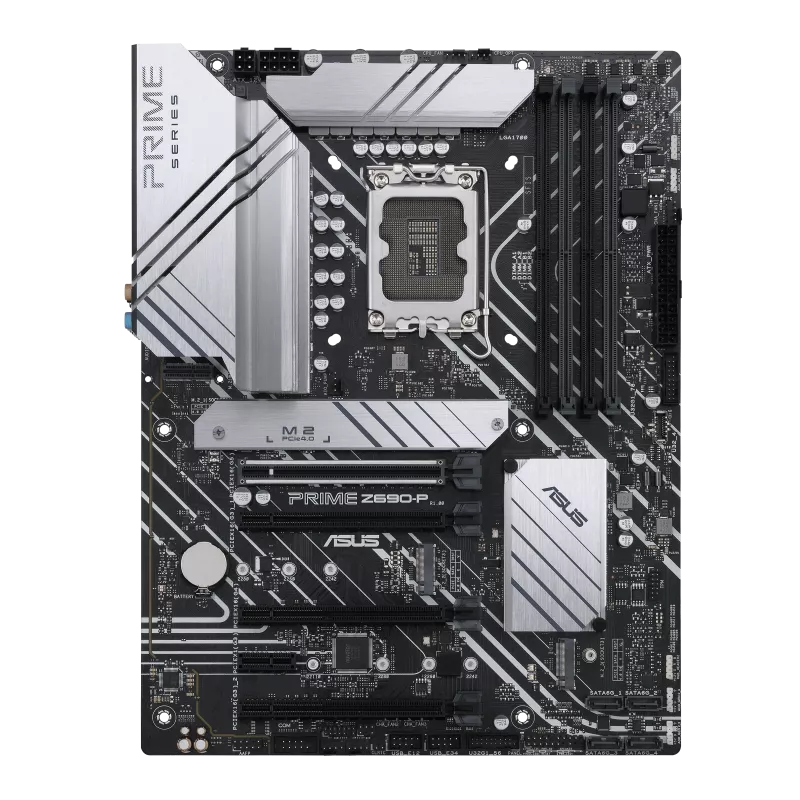

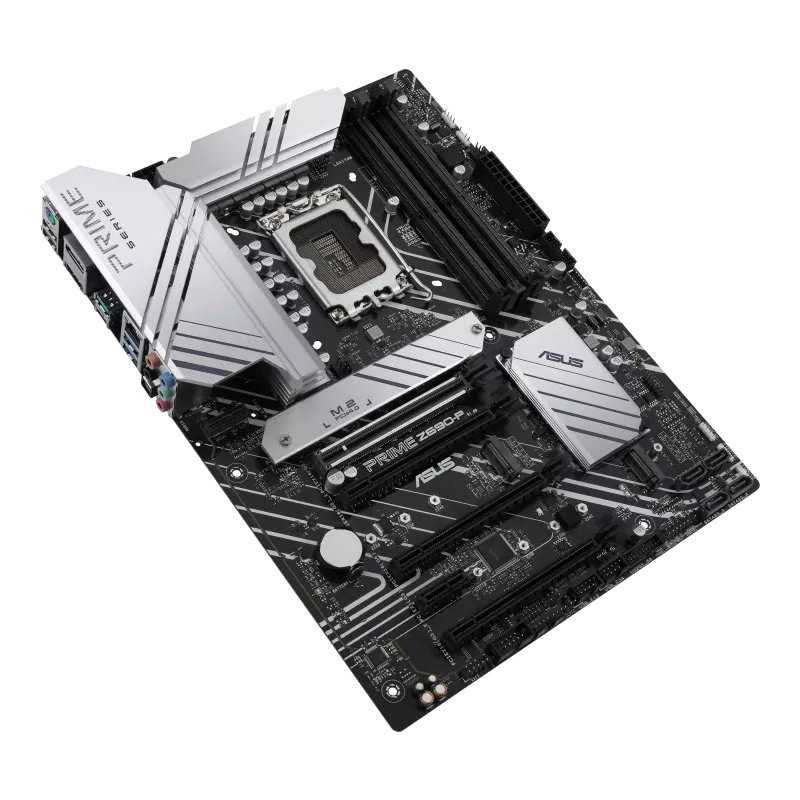

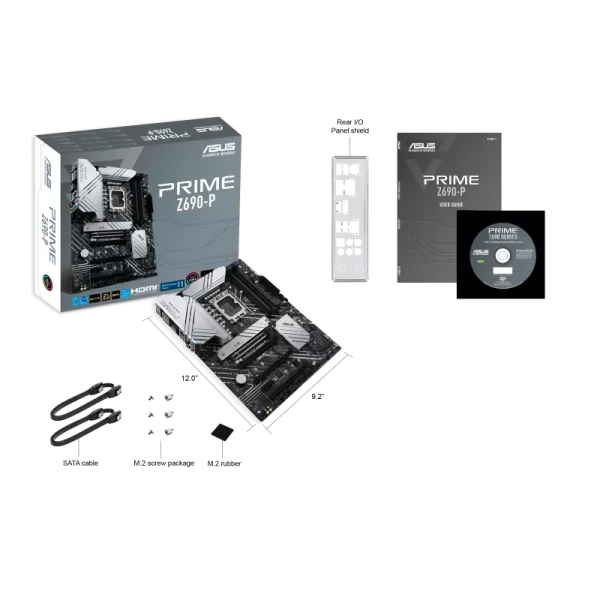

ASUS PRIME Z690-P LGA 1700 DDR5

מק"ט 90MB19Q0-M0EAY0 קטגוריות , תגיות , , , , , , ,

1,049

תיאור מוצר







Main characteristics
Description Driver-MOSFET (DrMOS), M.2 SSD RAID , Diagnostic indication, Sound card uses electrolytic audio capacitors, M.2 heatsink, USB 3.1 10 Gbps connectors, USB 3.1 20 Gbps connectors, Audio shielding
Manufacturer ASUS
Series PRIME
Model PRIME Z690-P
Type of equipment Motherboard
Purpose Desktop PC
Chipset mat. Boards Intel Z690
Processor socket Socket LGA1700
Board Format ATX (305 x 234 mm)
OS support Windows 11 (64 bit only), Windows 10 (64 bit only)
PTT/fTPM support Yes
Unique technologies
Unique ASUS Technologies DIGI+ VRM, Fan Xpert 4, LANGuard, Optimem II, ProCool, SafeSlot
Support RGB backlight timing Aura Sync RGB LED
ARGB 5V connectors on the board 3x 3-pin Addressable RGB connector
RGB 12V connectors on the board 2x 4-pin RGB connector
Processor support
Max. number of processors on the motherboard one
Support for processor types Intel Core i9-12xxx, Core i7-12xxx, Core i5-12xxx, Core i3-12xxx, Pentium G7xxx, Celeron G6xxx series
Support for processor cores Alder Lake
Bus frequency 16 GT/s (DMI 4.0)
Memory support
Supported memory type DDR5. The maximum supported memory bandwidth is listed in the processor description
Number of memory slots 4
Number of DDR5 sockets 4 (2-channel memory controller). Supports Extreme Memory Profile 3.0 (XMP 3.0)
Maximum Supported Memory Standards PC5-48000 (DDR5 6000 MHz), Processor dependent
Maximum RAM 128 GB
Disk system
Number of M.2 connectors ( NGFF ) 3 M Key SATA/PCI-E connectors supporting Type 2242/2260/2280/22110 cards (up to 110mm long). The first slot works in PCI-E 4.0 4x mode. The second slot operates in PCI-E 4.0 4x mode and has a maximum length of 80 mm (2280). The third slot works in PCI-E 4.0 4x/SATA mode.m.2 SSD
M.2 RAID _ RAID 0, 1, 5 from NVME (PCI-E M.2 )
NVMe Boot support Yes
Intel Optane Memory Yes, Intel Optane Memory H-series
RAID controller Built into the chipset, it is possible to build RAID arrays of levels 0, 1, 10, 5 from SATA devices
SATA 6Gb/s 4 channels
Communications
Net 2.5 Gbps. Realtek network controller
Slot for WiFi/BT module M.2 E Key 2230 , M.2 E Key 2230 CNVi, Intel AX201, Intel AX210, Intel AX200, Intel 9560NGW, Intel 9461, Intel 9260NGW adapters are supported
Interface, connectors and outputs
USB controller USB 3.2 controller built into the chipset

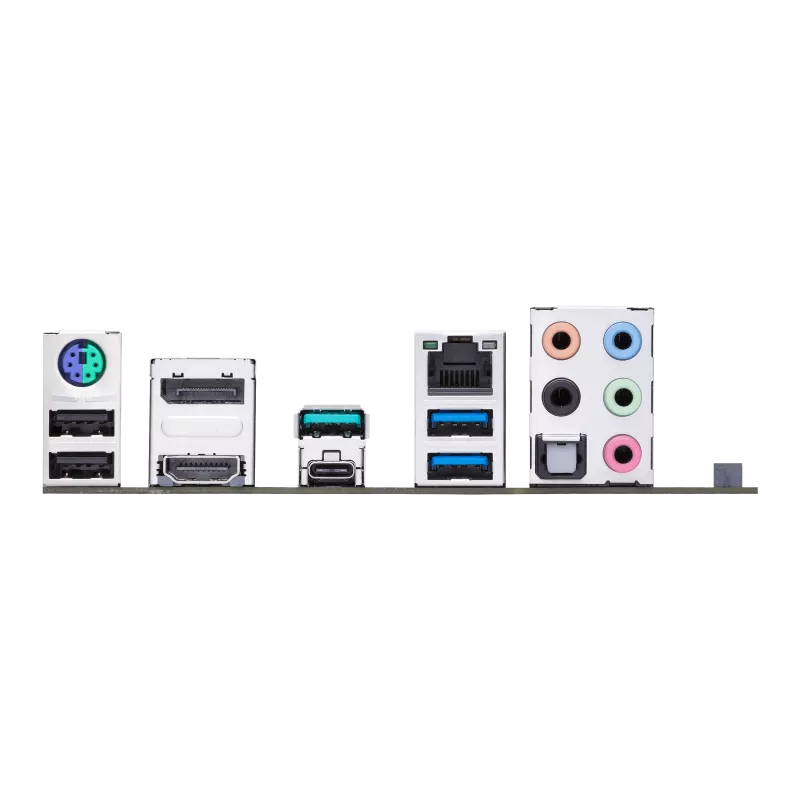

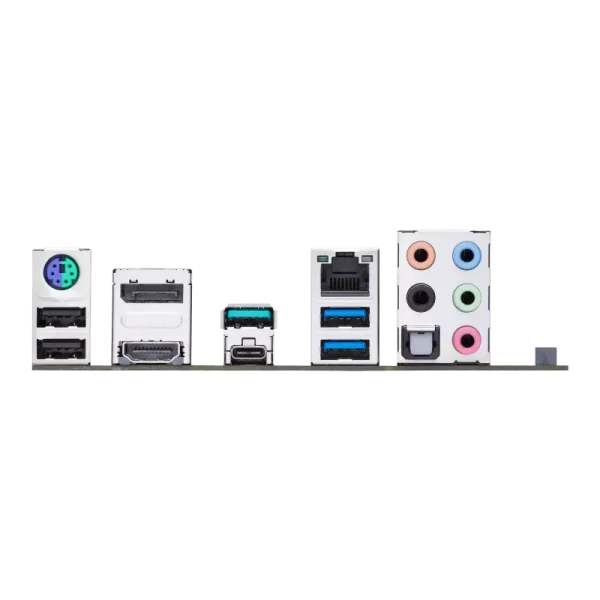

USB connectors on the rear panel 1x USB 3.2 Gen2x2 Type C, 1x USB 3.1 Gen2, 2x USB 3.0 ( USB 3.1 Gen1), 2x USB 2.0
Internal USB ports on the board 1x USB 3.1 Gen1 (type C), 4x USB 3.0 ( USB 3.1 Gen1), 4x USB 2.0 can be connected on the case or via the port bar
Keyboard/mouse PS/2 keyboard/mouse + USB
Slots for installing expansion cards
Number of PCI Express 16x slots 4 x 16x PCI-E slots operate in 16-4-4-4 mode; The first slot works as PCI-E 5.0; The second as PCI-E 3.0; Third and quadruple as PCI-E 3.0
Number of PCI Express 1x slots 1 x PCI-E 3.0 slot
Integrated graphics
Video M/B Used built into the processor.
WARNING When using processors without integrated video, the video outputs on the board do not work .
Display Port Version 1.4
HDMI version 2.1
Maximum screen resolution 4096 x 2304 @ 60Hz with DP monitor, 4096 x 2160 @ 60Hz with HDMI monitor
Video connectors on the rear panel Display Port, HDMI
Max. number of connected monitors 2
Built-in sound card
Sound Realtek 8-channel HDA codec. 192 kHz/24 bit
Audio connectors on the rear panel 1x optical S/PDIF-out, Front-out, Line-in, Line-out, Mic-in, Rear-out
Cooling
Cooling Passive cooling
Number of fan headers 6x 4-pin MP connector
Cooling System Noise Reduction Technologies ASUS Fan Xpert 4
Nutrition
Power Supply Requirements Only 24+8+4 pin power supplies are supported
Other characteristics
BIOS UEFI AMI BIOS, 192 (128+64) MB
OA 3.0 support Yes
External sources of information
Manufacturer hotline (495) 231-19-99 – in Moscow; 8-800-100-27-87 – a free call from any region of Russia. Mon – Fri: from 09:00 to 18:00
Logistics
Package dimensions (measured in NYX) 33.96 x 27.14 x 7.14 cm
Gross weight (measured in NYX) 1.576 kg
