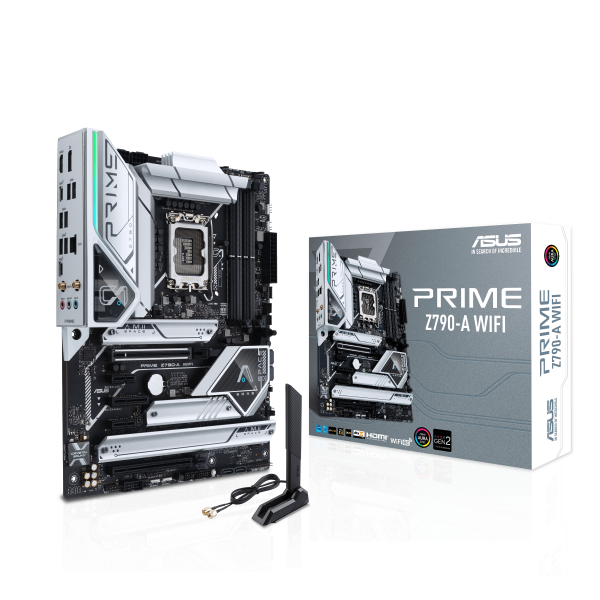

ASUS PRIME Z790-A WIFI Intel LGA1700 DDR5

מק"ט 90MB1CS0-M0EAY0 קטגוריות , תגיות , , , , , , ,

1,719

תיאור מוצר

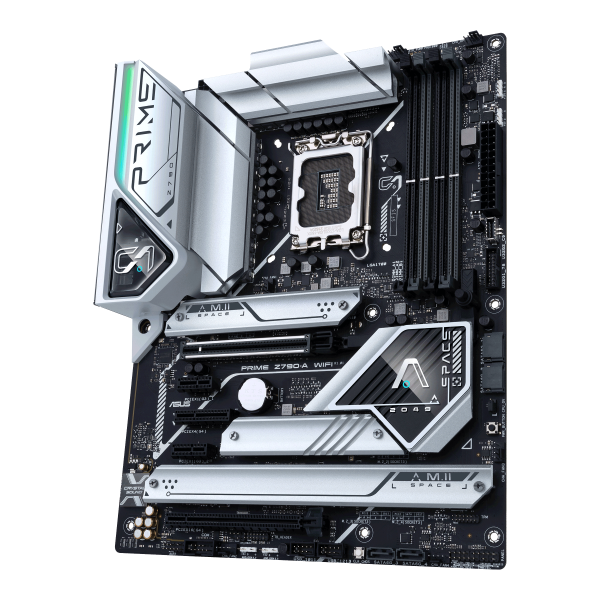

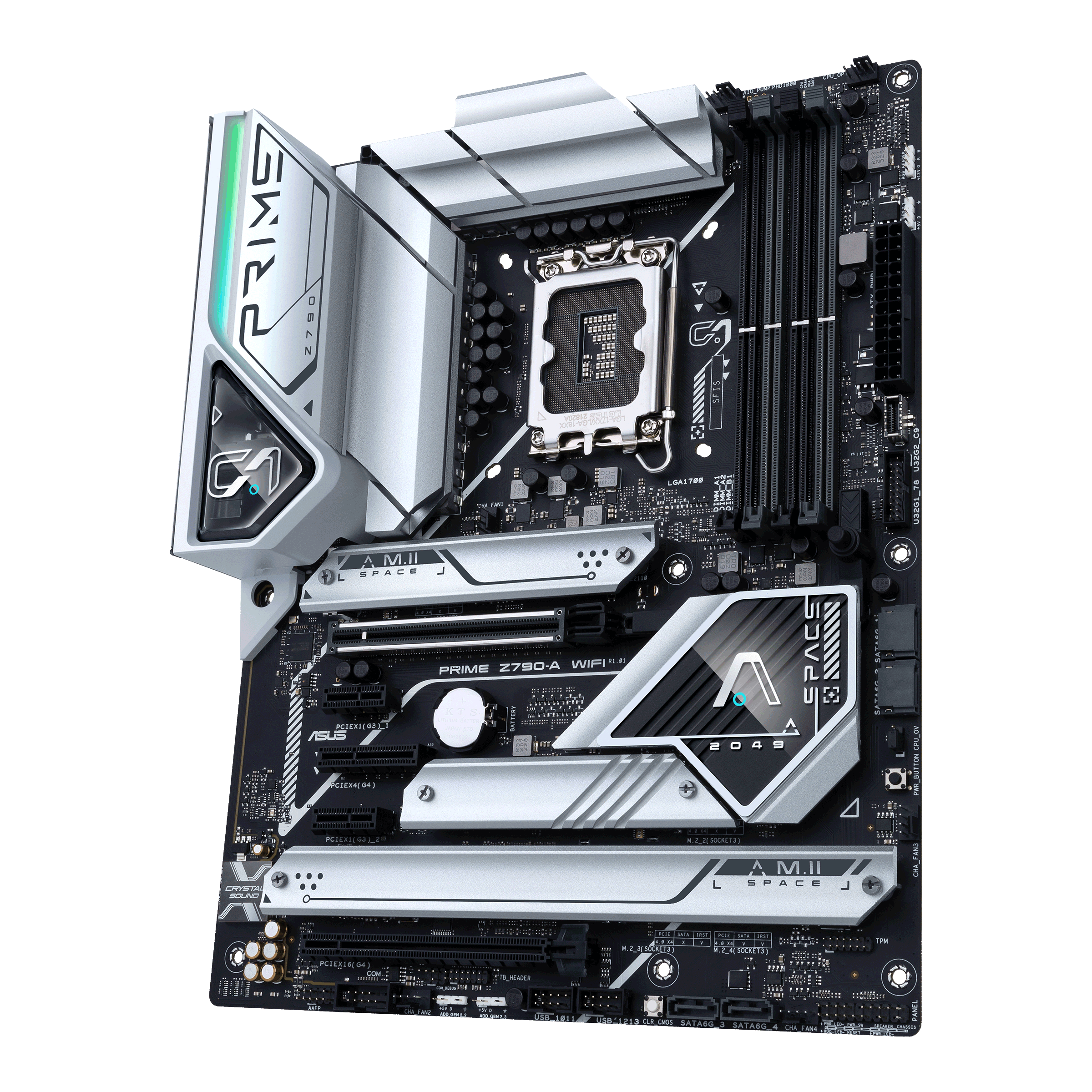

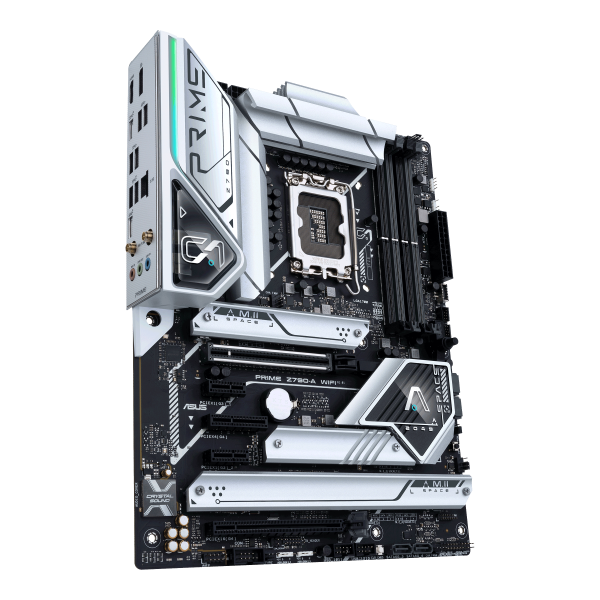

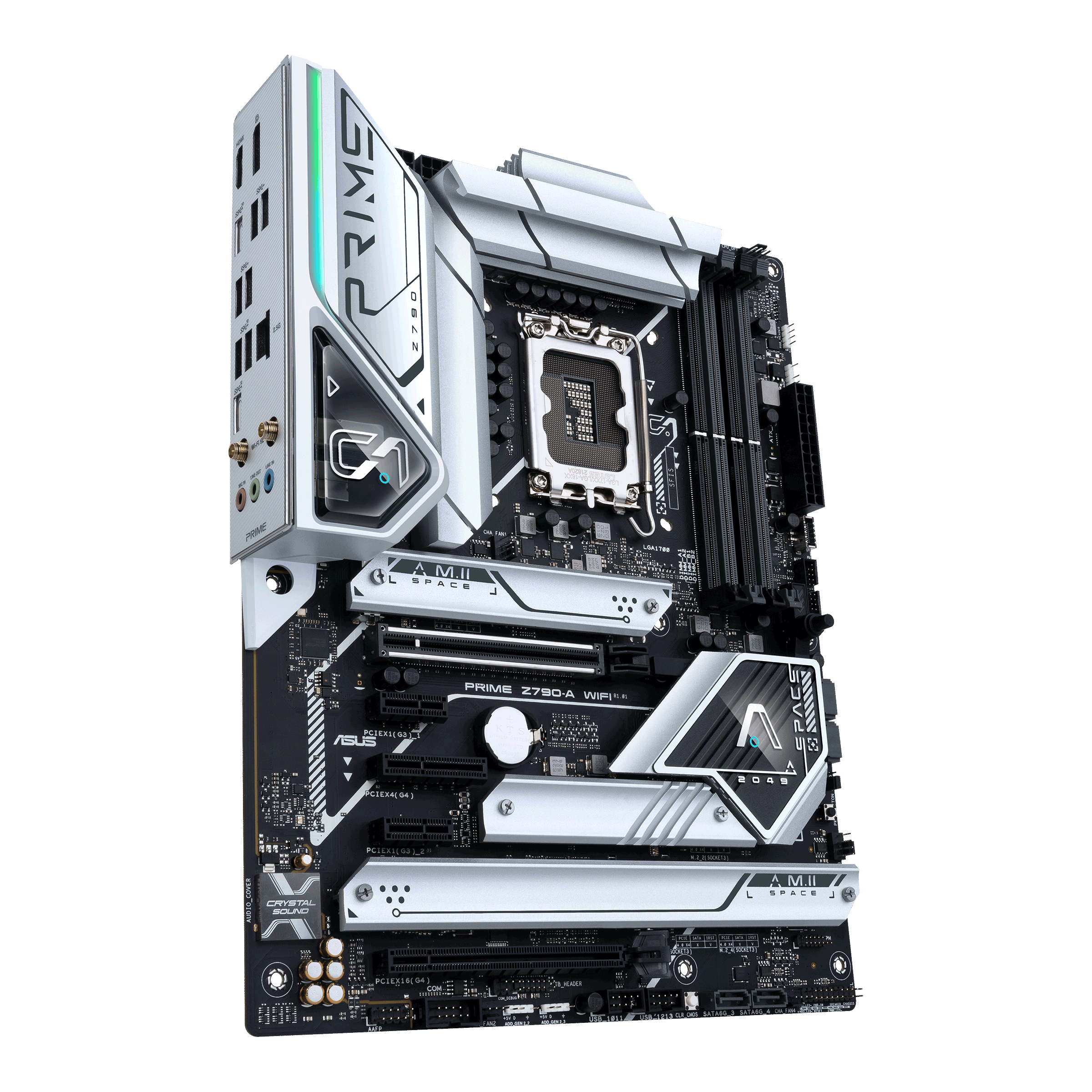

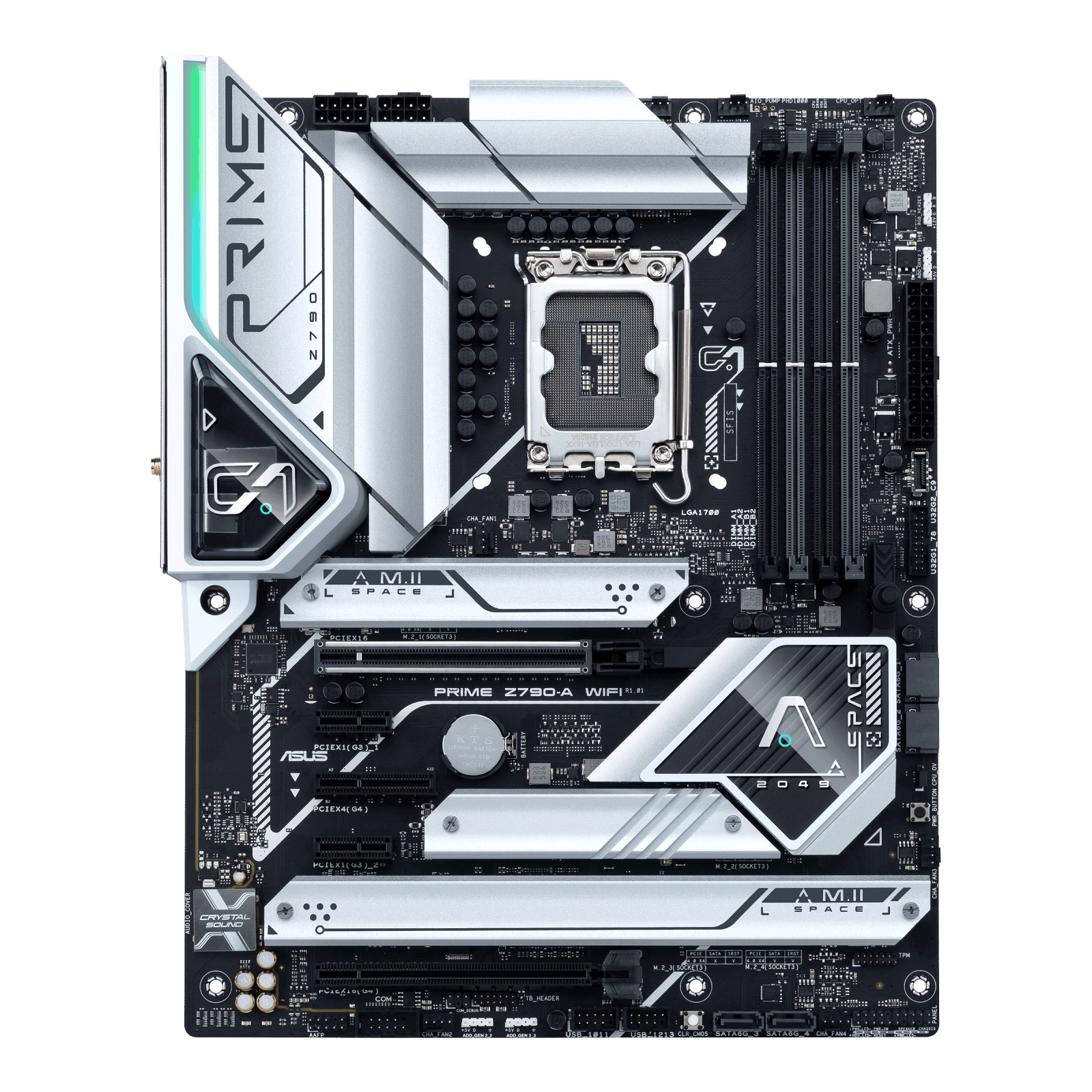

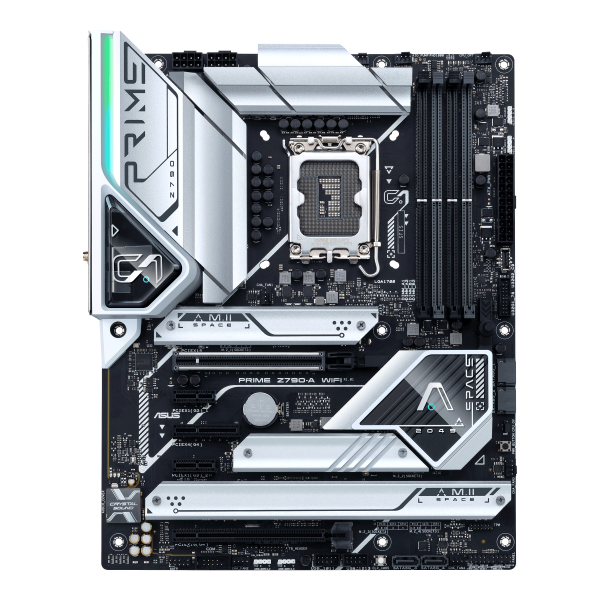

PRIME Z790-A WIFI

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-A WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

The ASUS PRIME Z790-A WIFI offers this all in a sleek, futuristic-looking package centered around a spaceship design aesthetic, with a silver-toned nameplate and chipset cover.

icon-intel



  • SPECIFICATIONS
    Brand ASUS
    Series PRIME
    Model PRIME Z790-A WIFI (90MB1CS0-M0EAY0)
    CPU Support Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
    Chipset Intel Z790 Express
    Memory Support
    Intel 13th Gen & 12th Gen Processors 4x DIMM, Max. 128GB, DDR5 7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800 OC)/5600/5400/5200/5000/4800, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports Intel Extreme Memory Profile (XMP) 3.0
    OptiMem II
    Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
    Video
    HDMI 1 x HDMI 2.1 supports max. resolution up to 4K 60Hz
    DisplayPort 1 x DisplayPort 1.4 supports max. resolution up to 8K 60Hz
    * Actual support may vary by CPU with integrated Intel UHD graphics.
    Expansion Slots
    CPU Direct 1x PCIe 5.0 x16 Physical, x16 Electrical slot
    Intel Z790 Chipset 1x PCIe 4.0 x16 Physical, x4 Electrical slot
    1x PCIe 4.0 x4 Physical, x4 Electrical slot
    2x PCIe 3.0 x1 slot
    Storage
    CPU Direct M.2_1 slot (Key M), type 2242/2260/2280/22110 (support PCIe 4.0 x4 mode)
    Intel Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
    4x SATA 6Gb/s ports
    Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
    Networking
    LAN Intel I225-V 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    WiFi WiFi 6E 2×2 MIMO Dual-Band Adapter
    Bluetooth Bluetooth 5.3
    Audio
    Codec Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
    Impedance sense for front and rear headphone outputs
    Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
    Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
    Supports up to 32-Bit/192 kHz playback*
    Audio Shielding
    Power pre-regulator reduces power input noise to ensure consistent performance
    Premium audio capacitors
    Dedicated audio PCB layers
    Unique de-pop circuit
    Audio Cover
    *Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio

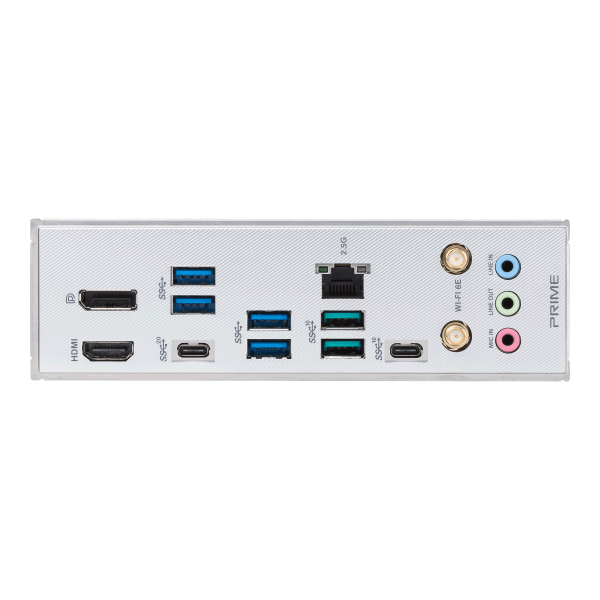

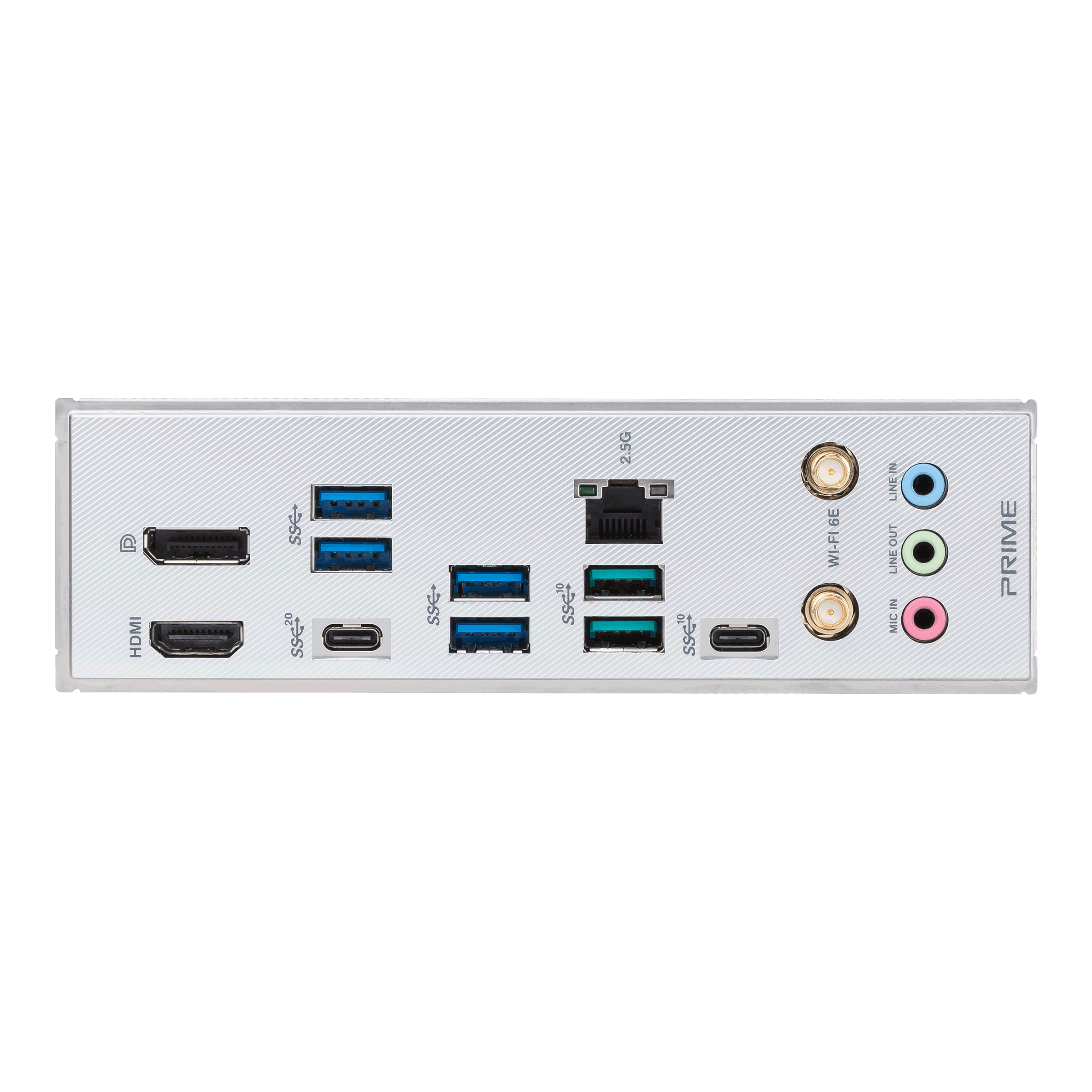

    Connectivity
    Ports 1x USB 3.2 Gen 2×2 port (1 x USB Type-C)
    3x USB 3.2 Gen 2 ports (2 x Type-A 1 x USB Type-C)
    4x USB 3.2 Gen 1 ports (4 x Type-A)
    1x DisplayPort
    1x HDMI port
    1x Intel 2.5Gb Ethernet port
    3x Audio jacks
    2x SMA Connectors for WiFi
    General
    Internal Connectors 1x 4-pin CPU Fan header
    1x 4-pin CPU OPT Fan header
    1x 4-pin AIO Pump header
    4x 4-pin Chassis Fan headers
    1x 24-pin Main Power connector
    2x 8-pin 12V Power connectors
    4x M.2 slots (Key M)
    4x SATA 6Gb/s ports
    1x USB 3.2 Gen 2 connector (supports USB Type-C)
    1x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    2x USB 2.0 headers support 4 additional USB 2.0 ports
    3x Addressable Gen 2 headers
    1x Aura RGB header
    1x Clear CMOS header
    1x COM Port header
    1x CPU Over Voltage jumper
    1x Front Panel Audio header (AAFP)
    1x Power button
    1x SPI TPM header (14-1pin)
    1x 20-3 pin System Panel header with Chassis intrude function
    1x Thunderbolt header
    LED Displays ASUS Q-LED Diagnostic Array
    BIOS 256 Mb Flash ROM, UEFI AMI BIOS
    Form Factor ATX Form Factor, 305 x 244 mm (H x W)
    Operating System Support Windows 10 64-bit
    Windows 11 64-bit

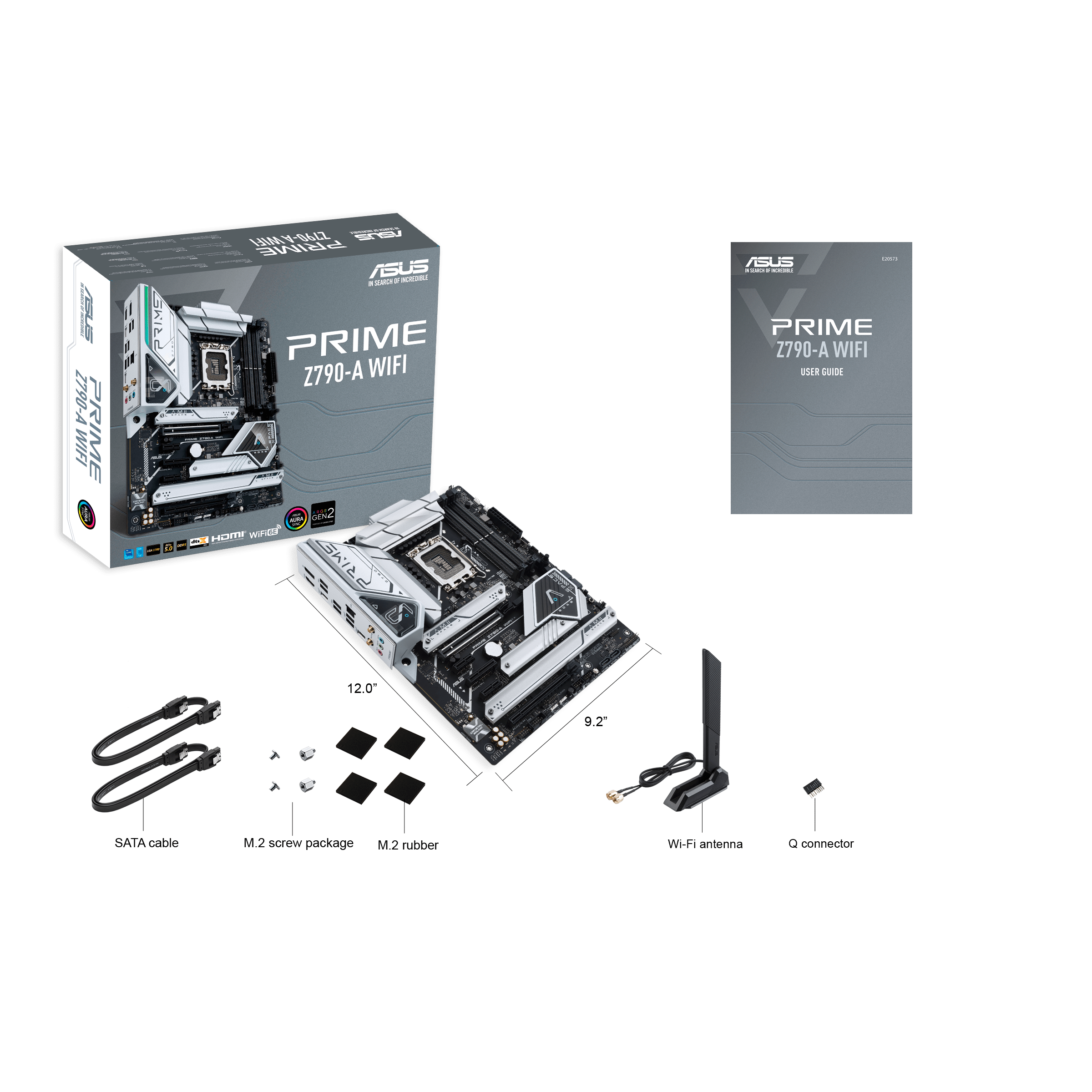

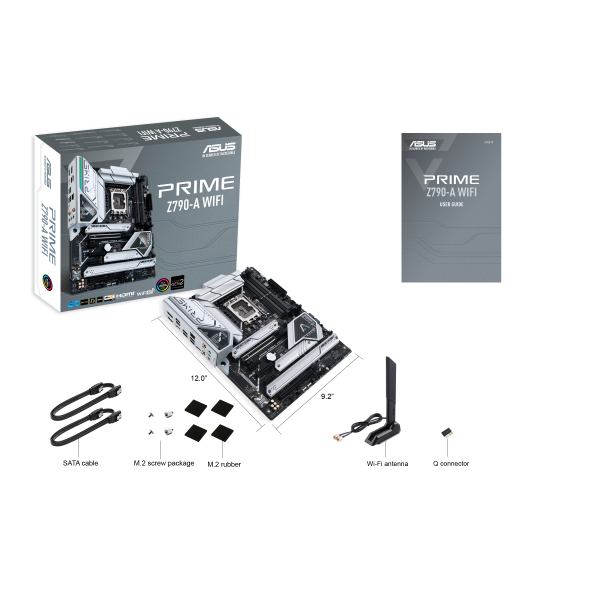

    Box Contents 2x SATA 6Gb/s cables
    1x ASUS Wi-Fi moving antenna
    1x Q-connector
    2x M.2 Rubber Packages
    1x Screw package for M.2 SSD
    1x User guide
    Warranty Information
    Warranty 3 Year Warranty
