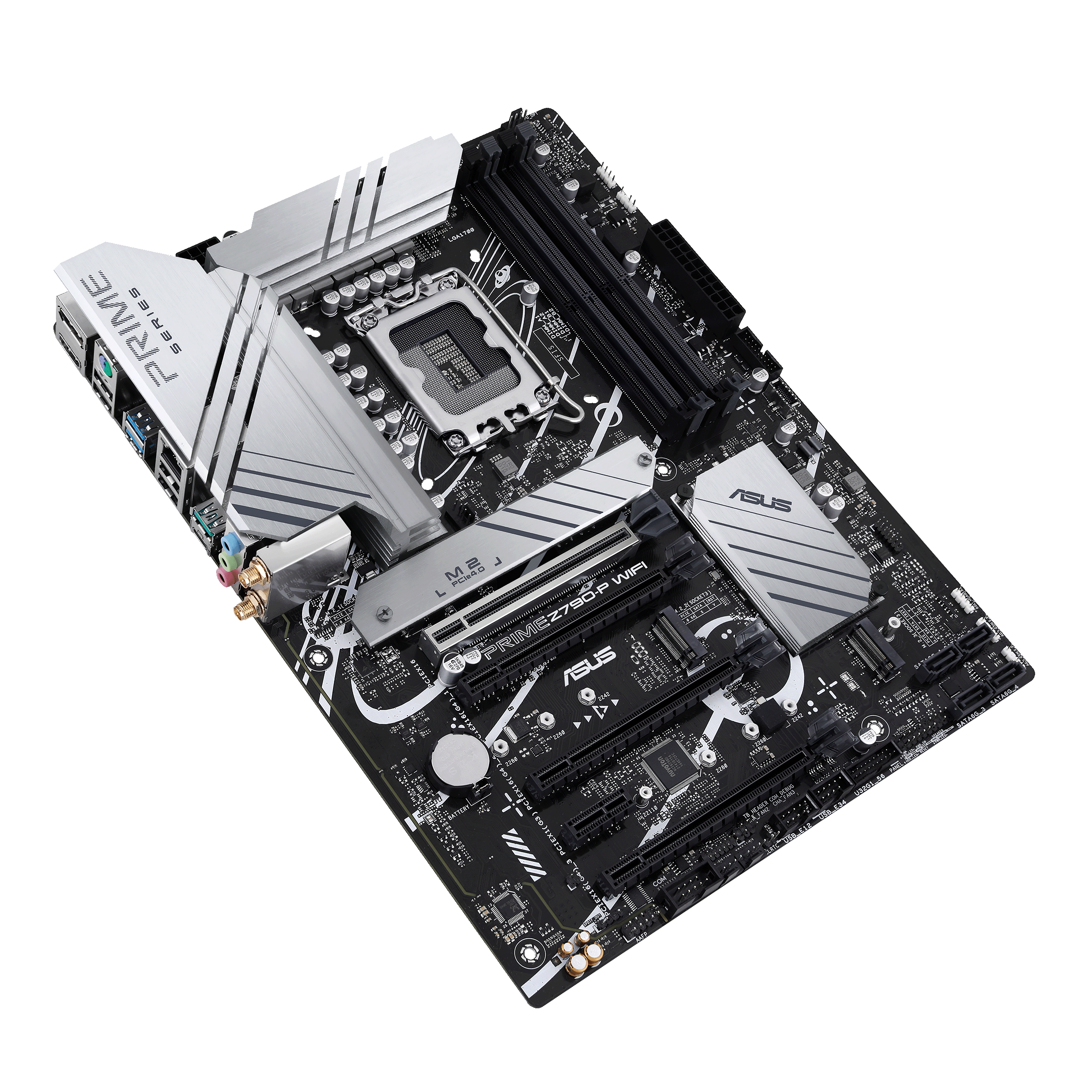

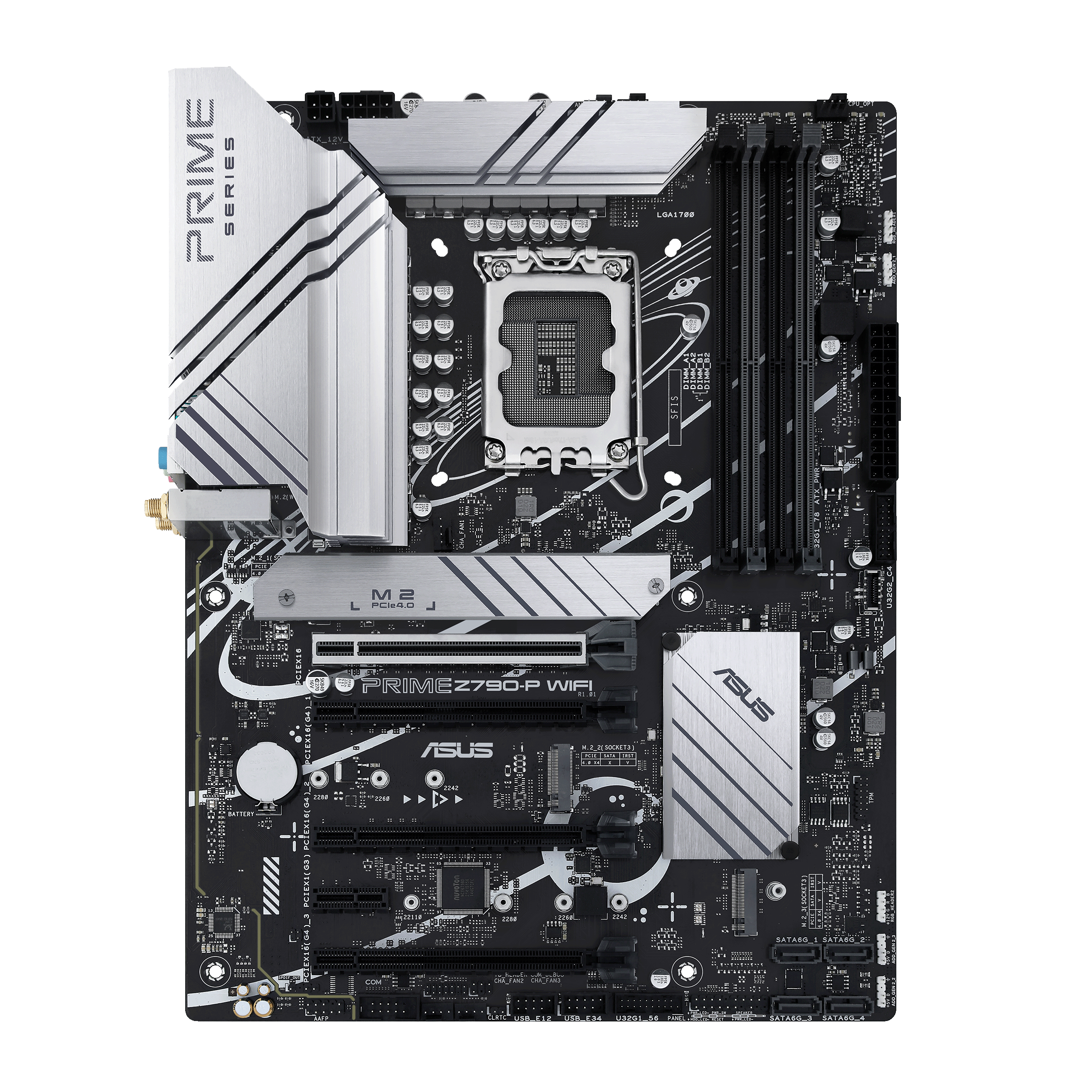

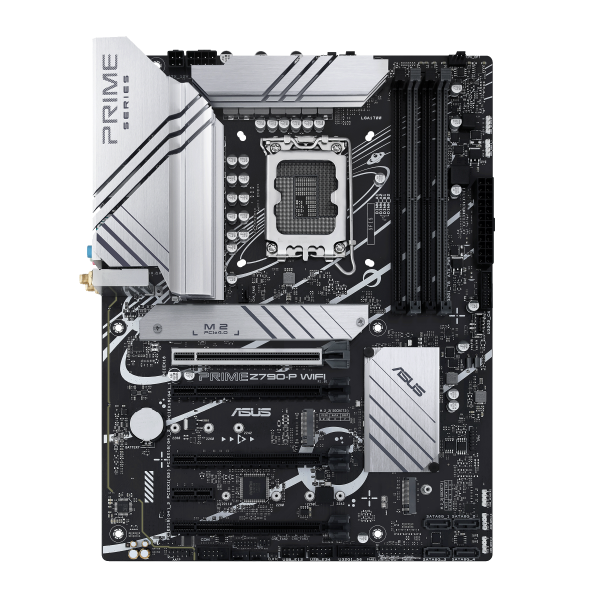

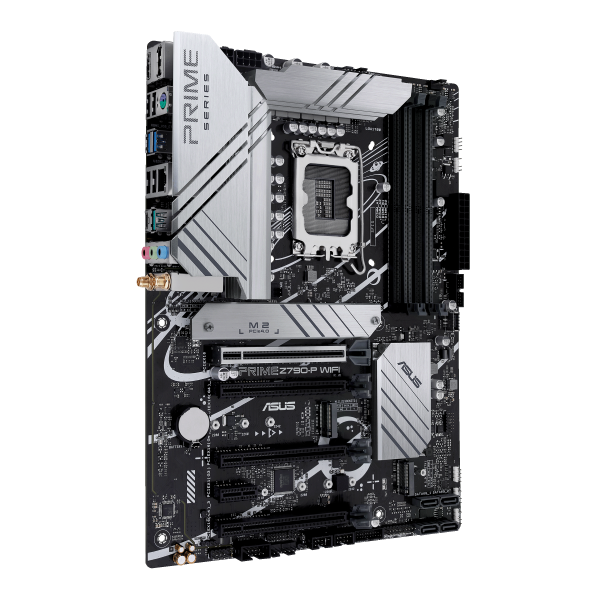

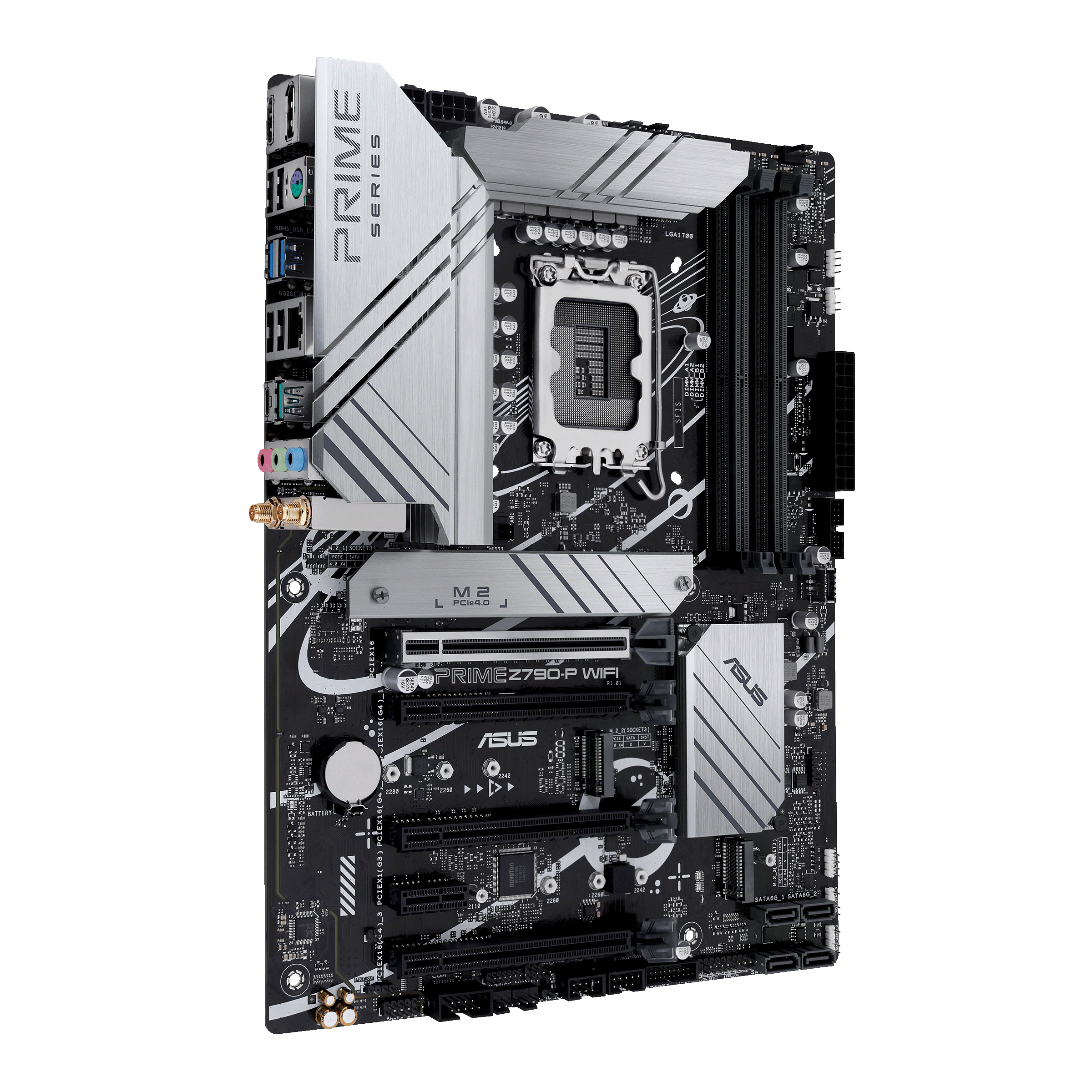

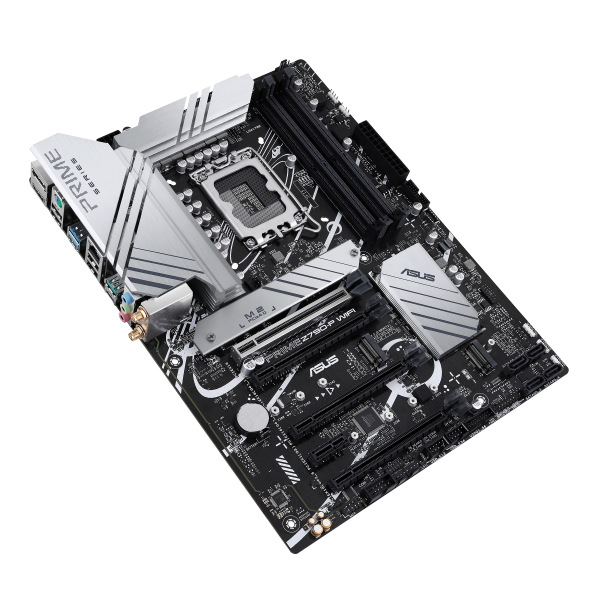

ASUS PRIME Z790-P WIFI Intel LGA1700 DDR5

מק"ט 90MB1CJ0-M0EAY0 קטגוריות , תגיות , , , , , , ,

1,439

תיאור מוצר

PRIME Z790-P WI-FI

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
icon-intel



  • SPECIFICATIONS
    Brand ASUS
    Series PRIME
    Model PRIME Z790-P WIFI
    CPU Support Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
    Chipset Intel Z790 Express
    Memory Support
    Intel 13th Gen & 12th Gen Processors 4x DIMM, Max. 128GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel Extreme Memory Profile (XMP) 3.0
    ASUS OptiMem II
    Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
    Video
    HDMI 1 x HDMI 2.1 supports max. resolution up to 4K 60Hz
    DisplayPort 1 x DisplayPort 1.4 supports max. resolution up to 4K 60Hz
    * Actual support may vary by CPU with integrated Intel UHD graphics.
    Expansion Slots
    CPU Direct 1x PCIe 5.0 x16 Physical, x16 Electrical slot
    Intel Z790 Chipset 3x PCIe 4.0 x16 Physical, x4 Electrical slots
    1x PCIe 3.0 x1 slot
    Storage
    CPU Direct M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    Intel Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
    4 x SATA 6Gb/s ports
    Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
    Networking
    LAN Realtek 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    WiFi WiFi 6 2×2 MIMO Dual-Band Adapter
    Bluetooth Bluetooth 5.2
    Audio
    Codec Realtek 7.1 Surround Sound High Definition Audio CODEC *
    Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    Supports up to 24-Bit/192 kHz playback
    Audio Shielding
    Premium audio capacitors
    Dedicated audio PCB layers
    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output

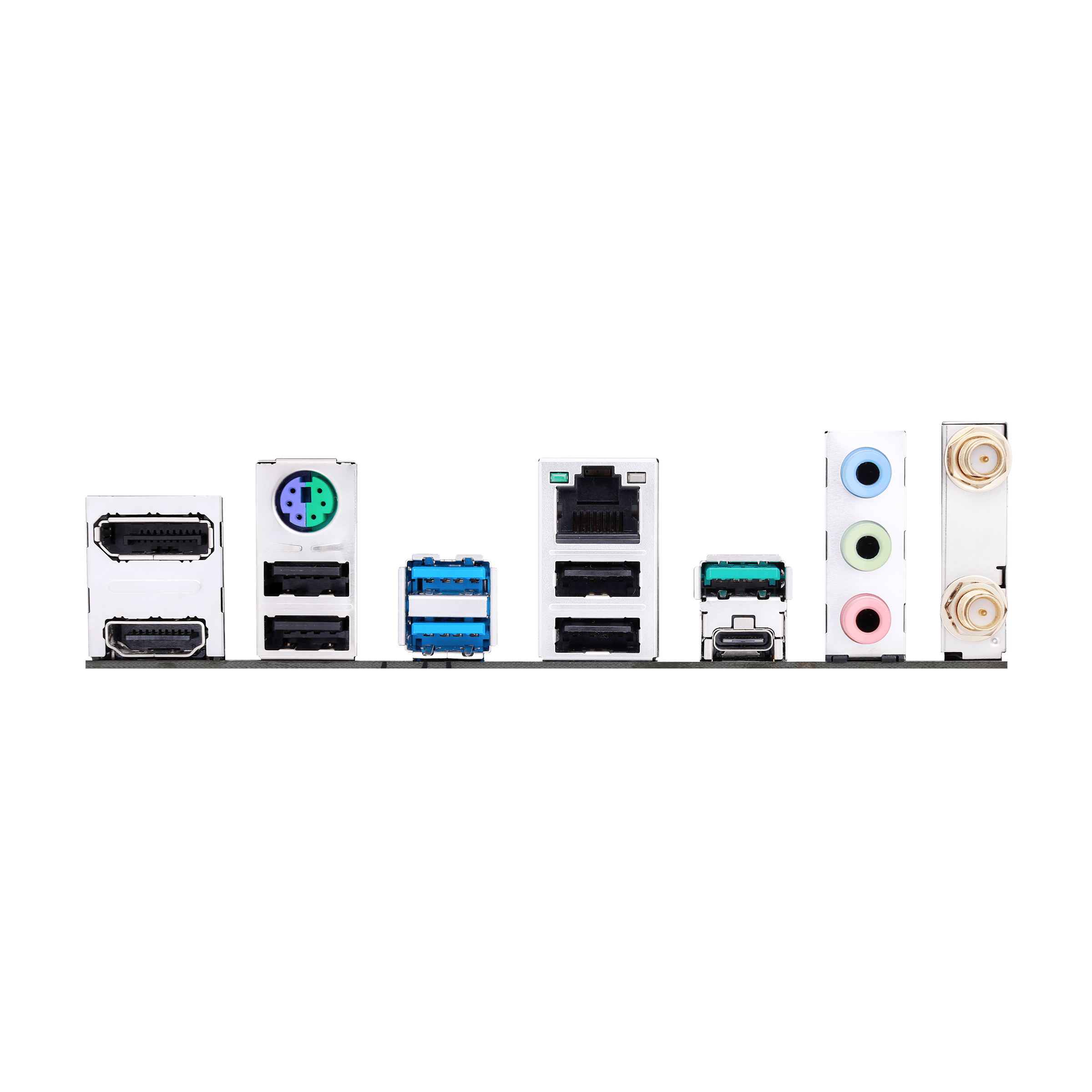

    Connectivity
    Ports 1x USB 3.2 Gen 2×2 port (1 x USB Type-C)
    1x USB 3.2 Gen 2 port (1 x Type-A)
    2x USB 3.2 Gen 1 ports (2 x Type-A)
    4x USB 2.0 ports (4 x Type-A)
    1x DisplayPort
    1x HDMI port
    1x Vertical M.2 slot (Key E)
    1x Realtek 2.5Gb Ethernet port
    3x Audio jacks
    1x PS/2 Keyboard/Mouse combo port
    General
    Internal Connectors 1x 4-pin CPU Fan header
    1x 4-pin CPU OPT Fan header
    1x 4-pin AIO Pump header
    3x 4-pin Chassis Fan headers
    1x 24-pin Main Power connector
    1x 8-pin 12V Power connector
    1x 4-pin 12V Power connector
    3x M.2 slots (Key M)
    4x SATA 6Gb/s ports
    1x USB 3.2 Gen 2 connector (supports USB Type-C)
    2x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
    2x USB 2.0 headers support 4 additional USB 2.0 ports
    3x Addressable Gen 2 headers
    1x Aura RGB header
    1x Clear CMOS header
    1x COM Port header
    1x Front Panel Audio header (AAFP)
    1x S/PDIF Out header
    1x SPI TPM header (14-1pin)
    1x 20-5pin System Panel header
    1x Thunderbolt (USB4) Header
    LED Displays ASUS Q-LED Diagnostic Array
    BIOS 192 (128 64) Mb Flash ROM, UEFI AMI BIOS
    Form Factor ATX Form Factor, 305 x 244 mm (H x W)
    Operating System Support Windows 10 64-bit
    Windows 11 64-bit

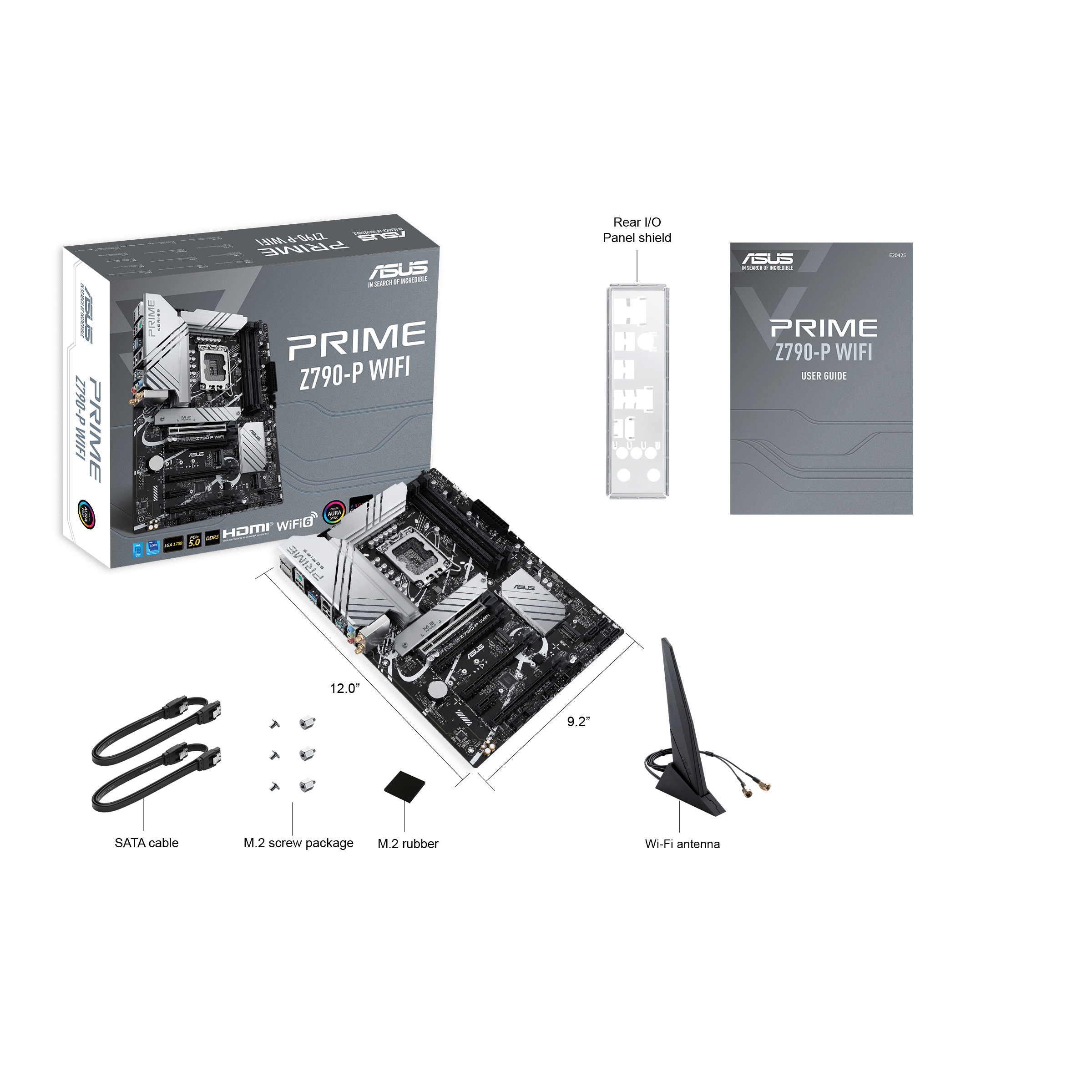

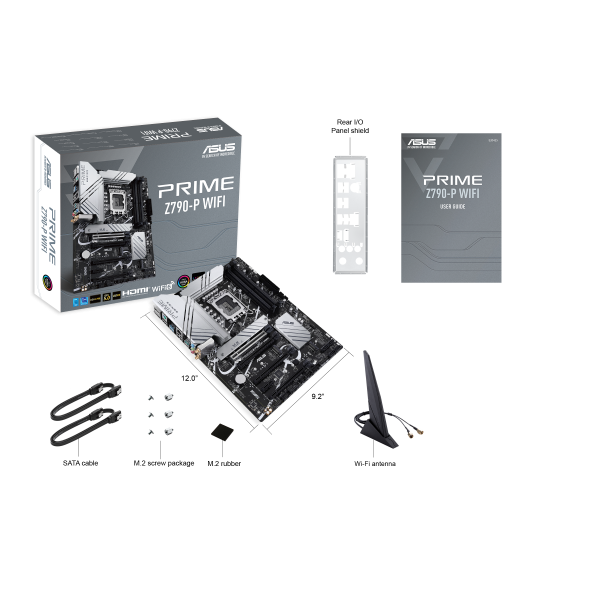

    Box Contents 2x SATA 6Gb/s cables
    1x I/O Shield
    1x M.2 Rubber Package
    2x Screw packages for M.2 SSD
    1x User guide
    1x ASUS Wi-Fi moving antennas
    Warranty Information
    Warranty 3 Year Warranty
