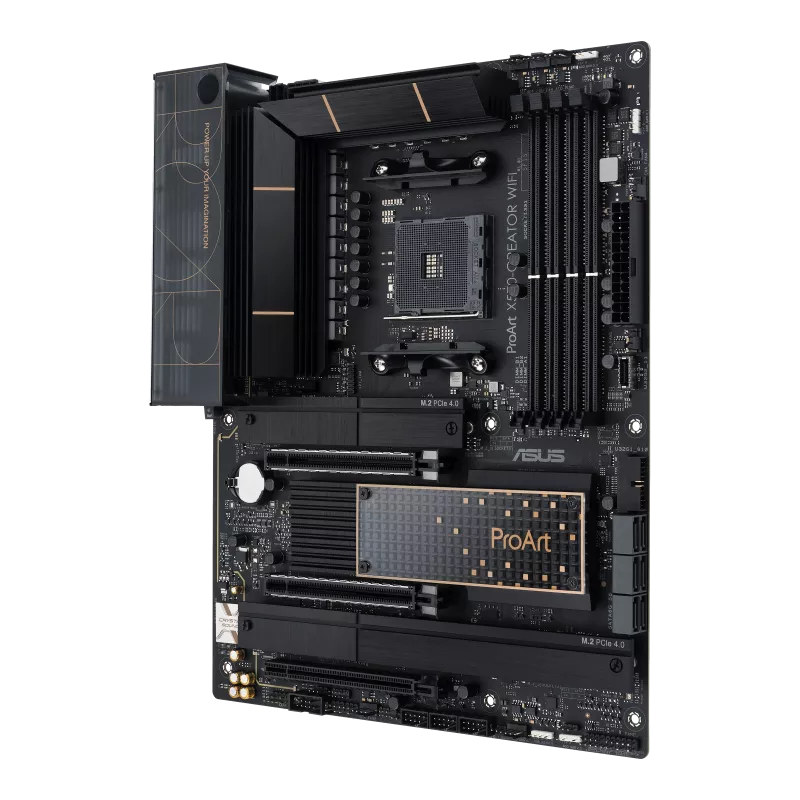

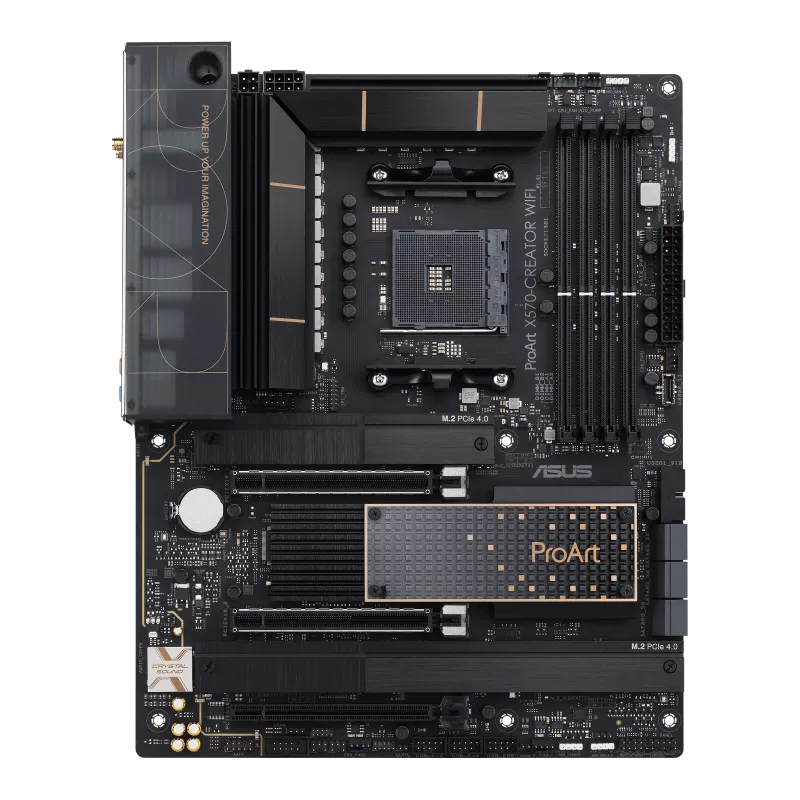

Asus ProArt X570-CREATOR WIFI AM4

מק"ט 90MB18Z0-M0EAY0 קטגוריות , תגיות , , , , , , ,

1,959

תיאור מוצר





Main characteristics
Manufacturer ASUS
Model PROART X570-CREATOR WIFI
Type of equipment Motherboard
Purpose Desktop PC
Chipset mat. Boards AMD X570
Processor socket SocketAM4
Board Format ATX (305 x 224mm)
Processor support
Max. number of processors on the motherboard one
Memory support
Supported memory type DDR4
Number of memory slots 4
Maximum RAM 128 GB
Disk system
SATA 6Gb/s 6 channels
Slots for installing expansion cards
Number of PCI Express 16x slots 3 slots 16x PCI-E 4.0
Built-in sound card
Sound Realtek ALC1220 8-channel codec
Cooling
Number of fan headers 7x 4-pin MP connector
Nutrition
Power Supply Requirements Only 24+8+4 pin power supplies are supported
Other characteristics
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
External sources of information

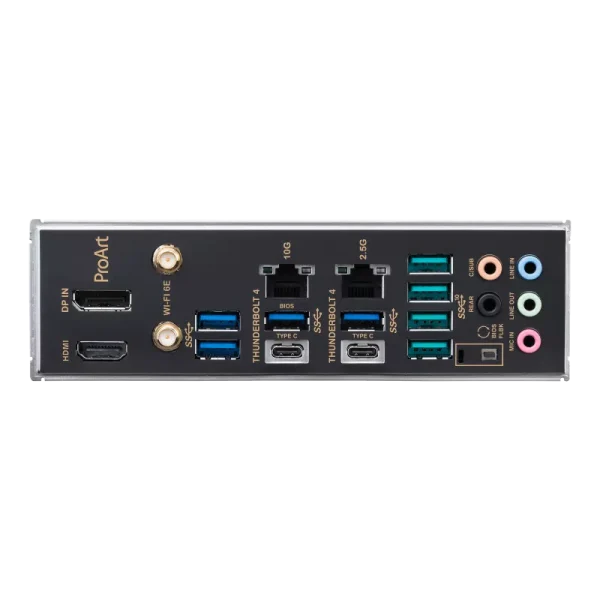

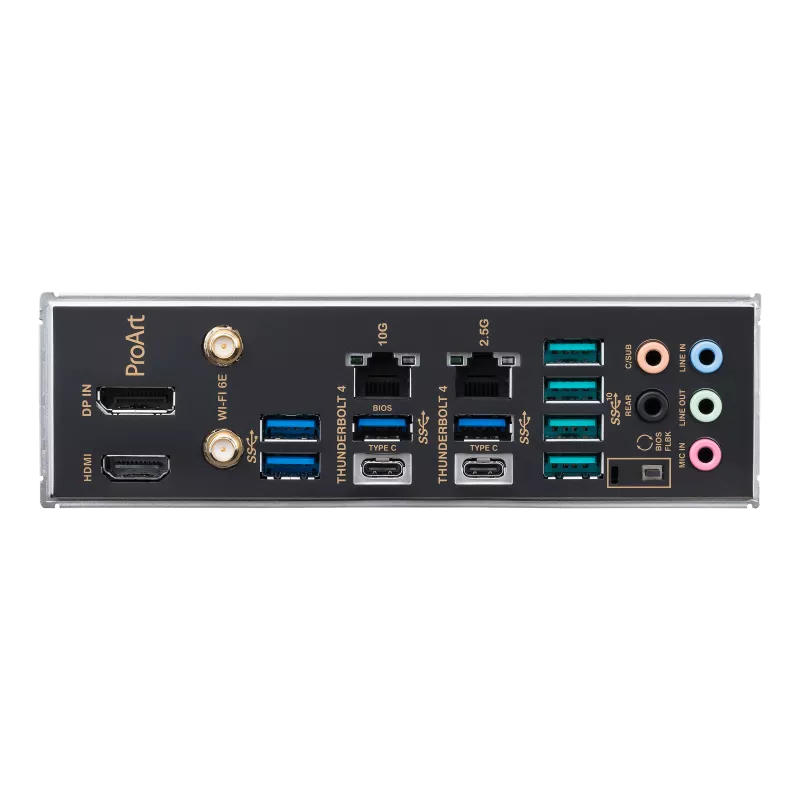

Motherboards:Additional information:Availability of interfaces 2xUSB Type-C/Thunderbolt 4, 4xUSB 3.2 Gen 2, 4xUSB 3.2 Gen 1, DisplayPort, HDMI, 5xAudio jacks
Motherboards:Processor and Chipset:Pro Supported AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series
RAM: Maximum memory frequency OC (overclocked), 5100
Length cm 34
Motherboards:Additional information:Form factor motherboards ATX
Base Features:Maximum CPU TDP, 105
Motherboards:Memory:Maximum RAM 128
Connectors on the rear panel: Network: Maximum transfer rate, MB 10000
Width, cm 7
Motherboards:Processor & Chipset:Network card Intel I225-V 2.5Gb Ethernet, Marvell AQtion AQC113CS 10Gb Ethernet
Basic characteristics:Slots for installing the processor, pcs one
ProductNameImported ASUS PROART X570-CREATOR WIFI AM4 ATX 3xDDR4 3xPCIEx16 3xM.2 HDMI 2xUSBC 2.5GLAN 10GLAN WIFI {5}
Internal connectors:Internal connectors:Com port (RS232, Serial, D one
Height, cm 27
Motherboards:Processor & Chipset:Number of sockets one
Internal Connectors: SATA / SAS: SATA RAID support 0, 1, 10
part number PROART X570-CREATOR WIFI
Short name ASUS PROART X570-CREATOR WIFI, Socket AM4 , X570, 4*DDR4, CrossFireX , HDMI + DP, SATA3 + RAID , Audio, Gb LAN, USB 3.2*10, USB 2.0*3,ATX ; 90MB18Z0-M0EAY0
Motherboards: Additional Information: Power 24 and 8+4 pin
Motherboards:Memory:RAM Slots 4
Motherboards:Memory:Memory type DDR4
Motherboards:Processor & Chipset:Audio System 7.1CH, HDA, based on Realtek S1220A
Motherboards:Processor & Chipset:Socket AM4
Motherboards:CPU & Chipset:Chipset AMD X570
Motherboards:Connectors:USB 10
Motherboards: Storage: RAID 0/1/10
Motherboards:Storage:SATA 6
Motherboards:Connectors:Wi-Fi Yes
Motherboards: Additional information: M.2 Yes
Motherboards:Memory:Supported Memory Types DIMM/un-buffered
Audio: Audio Chipset Realtek ALC1220
Audio: Number of audio channels 7.1
Base Features: Chipset Manufacturer AMD
Base Features: CPU Socket AM4
Basic characteristics: System bus frequency, MHz one hundred
Base Features: Chipset AMD X570
Internal connectors:Internal connectors:USB 2.0 int. 6
Graphics subsystem: Graphics chipset Depends on the processor used
RAM: Number of memory slots, pcs 4
RAM:Maximum memory, GB 128
RAM:Minimum memory frequency, MHz 2133
RAM:Memory mode 2 channel
RAM: Type of RAM DDR4
RAM:Memory form factor DIMM
Power:Main power connector 24pin
Power: CPU power connector 8+4pin
Power: 4 pin fan connectors 8
Other Features:BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Other characteristics: Type of delivery RTL
Other characteristics:Dimensions:Depth, mm 224
Other characteristics:Dimensions:Width, mm 305

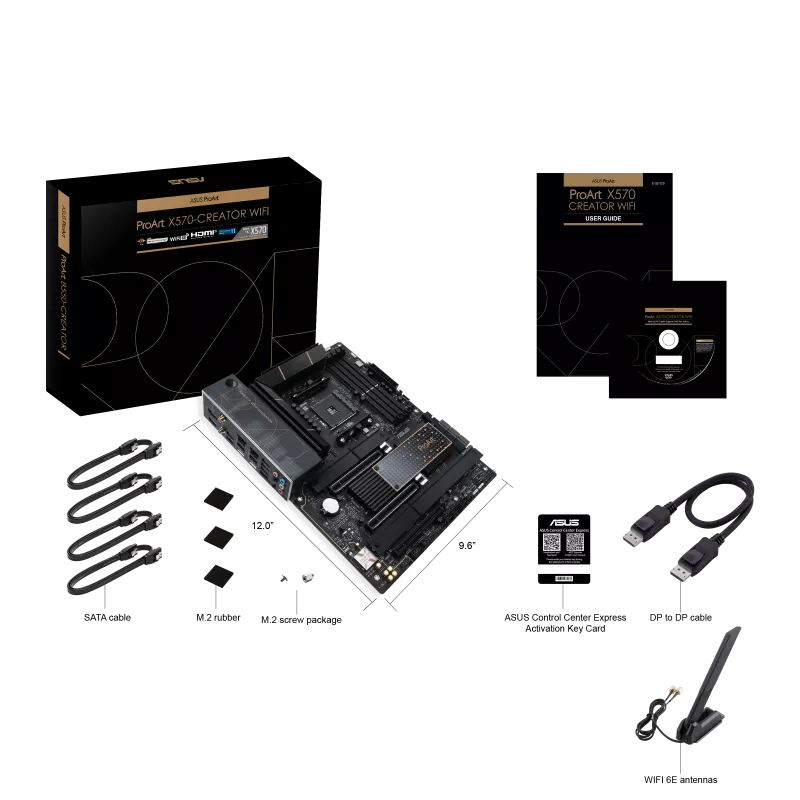

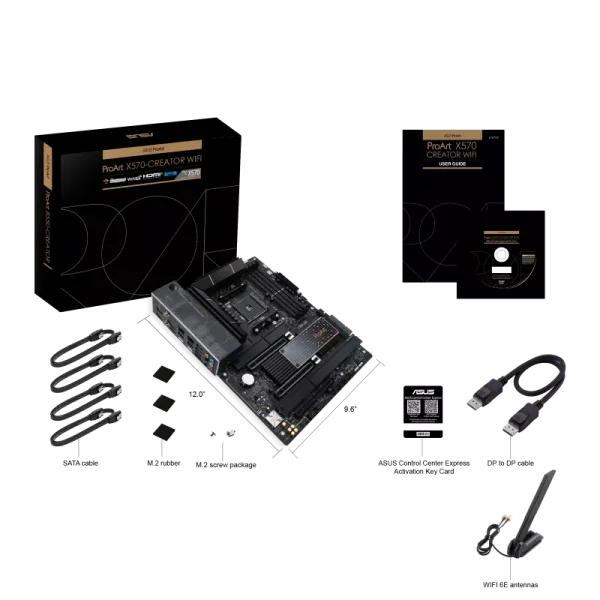

Other Features: Package Contents Motherboard, manual, software CD, I/O panel blank, 4 x SATA cables
Rear panel connectors:Audio connectors:Line in one
Rear panel connectors:Audio connectors:Microphone input one
Connectors on the rear panel: Network: RJ45 2
Expansion slots: PCI-Ex16 3
Expansion slots: PCI Express version 4.0
Graphics subsystem:Maximum video memory, MB 16384
RAM: Support ECC Not
Rear Panel Connectors: Network: Network Controller 1 – Intel i225V, 1 – Marvell AQC113CS
Internal connectors:M.2:Number of M.2 sockets 3
Internal Connectors:M.2:Max. valid M.2 form factor 22110
Internal connectors:M.2:Key type M
Internal connectors: M.2: M.2 socket type PCI-E x4 / SATA 6Gb/s
Internal Connectors:SATA / SAS:SATA 6Gb/s 6
Internal Connectors:Internal Connectors:Tunderbolt 2
Rear panel connectors:Audio connectors:7.1 out one
Rear connectors:Video outputs:HDMI one
Wireless interfaces:Wi-Fi:IEEE 802.11a Yes
Wireless interfaces:Wi-Fi:IEEE 802.11ac Yes
Wireless interfaces:Wi-Fi:IEEE 802.11b Yes
Wireless interfaces:Wi-Fi:IEEE 802.11g Yes
Wireless interfaces:Wi-Fi:IEEE 802.11n Yes
Rear panel connectors: Video outputs: DisplayPort (In) one
Expansion slots: Attention Specifications of PCI-E slots (number of lanes) should be specified on the manufacturer’s website
Other specs: Form factor ATX
Wireless interfaces:Wi-Fi:IEEE 802.11ax Yes
Internal connectors:Internal connectors:USB 3.2 Gen1 int. one
Internal connectors:Internal connectors:USB 3.2 Gen2 int. one
Back panel connectors: Back panel: USB 3.2 Gen1 4
Back panel connectors: Back panel: USB 3.2 Gen2 4
Base Features:Positioning use Desktop
Height, m 0.325
Length, m 0.375
Volume, m3 0.0102375
Weight, kg 2.66
Width, m 0.42
Logistics
Package dimensions (measured in NYX) 34.44 x 27.35 x 7.87 cm
Gross weight (measured in NYX) 2.45 kg
