SPECIFICATIONS |
Brand |
Asus |
Series |
TUF Gaming |
Model |

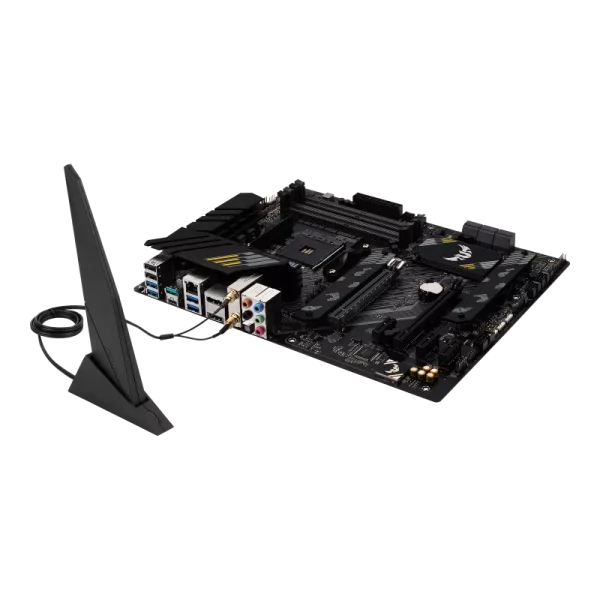

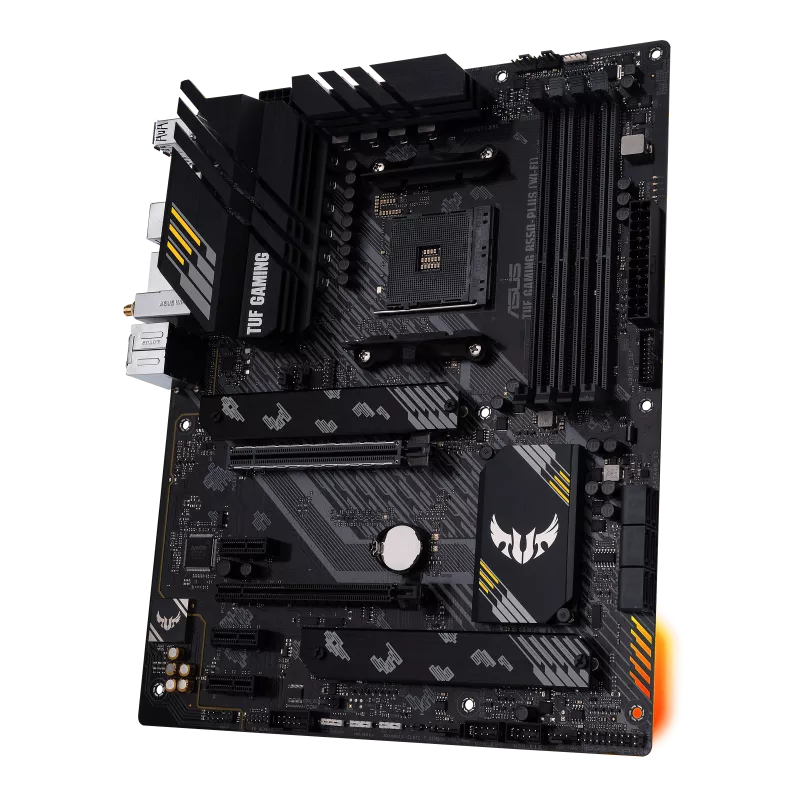

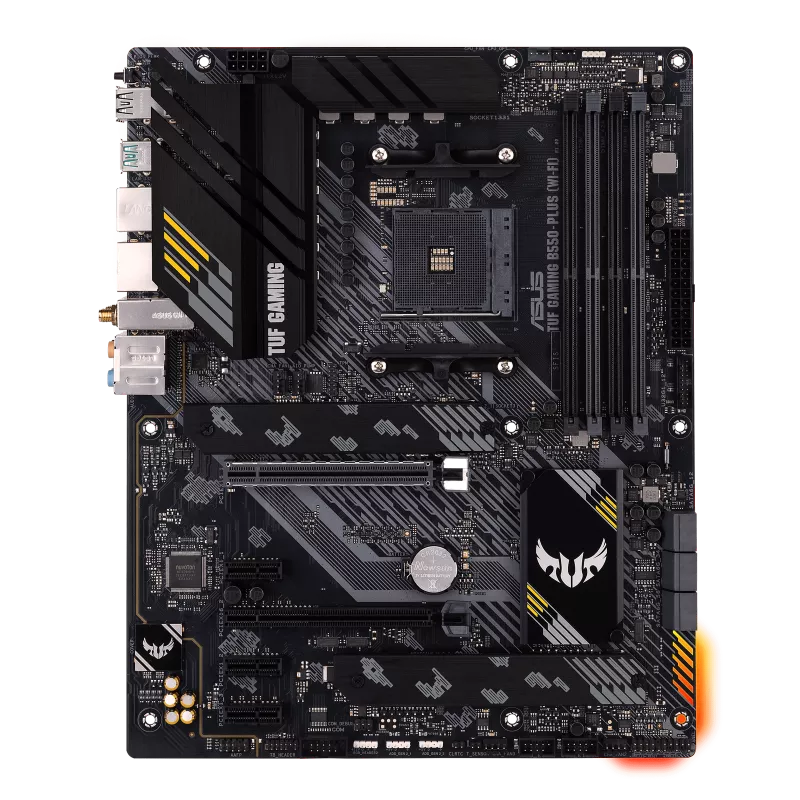

TUF GAMING B550-PLUS (WI-FI) |
CPU |
Build in AMD for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors |
Chipset |
AMD B550 |
Memory |
4x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-Buffered Memory |
Dual Channel Memory Architecture |
ECC Memory (ECC Mode) Support Varies by CPU. |
Graphic |
1x DisplayPort 1.2 |
1x HDMI 2.1 (4K@60HZ) |
(Graphics specifications may vary between CPU types.) |
Multi-GPU Support |
Supports AMD 2-Way CrossFireX Technology |
Expansion Slots |
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors |
1x PCIe 4.0 x16 (x16 Mode) |
AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors |
1x PCIe 3.0 x16 (x16 Mode) |
AMD B550 Chipset |
1x PCIe 3.0 x16 (x4 Mode) |
3x PCIe 3.0 x1 |
(Support PCIe bifurcation for RAID on CPU function.) *1 |
Storage |
Total Supports 2x M.2 Slots and 6x SATA 6Gb/s Ports |
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors: |
1x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 Storage Devices Support (SATA & PCIe 4.0 x4 Mode) |
AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors: |
1x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA Modes) Storage Devices Support |
AMD B550 Chipset: |
1x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA Modes) Storage Devices Support *2 |
6x SATA 6Gb/s Ports |
Support Raid 0, 1, 10 |
LAN |
Realtek RTL8125B 2.5Gb Ethernet |
TUF LANGuard |
Wireless Data Network |
Intel Wi-Fi 6 AX200 |
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Support 1024QAM/OFDMA/MU-MIMO |
Supports Up to 2.4Gbps Max Data Rate |
Supports Dual Band Frequency 2.4/5 GHz |
Supports Channel Bandwidth: HT20/HT40/HT80/HT160 |
Supports PCIe Interface |
Audio |
Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC |
Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking, Up to 24-Bit/192kHz Playback |
Audio Feature: |
Exclusive DTS Custom for GAMING Headsets |
Optical S/PDIF Out Ports at Back Panel |
Audio Cover |
Audio Shielding |
Dedicated Audio PCB Layers |
Premium Japanese Audio Capacitors |
Unique De-Pop Circuit |
USB Ports |
Rear USB Port (Total 8) |
2x USB 3.2 Gen 2 Ports (1x Type-A + 1x USB Type-C) |
4x USB 3.2 Gen 1 Ports (1x Type-A) |
2x USB 2.0 Ports (1x Type-A) |
Front USB Port (Total 6) |
2x USB 3.2 Gen 1 Ports (2x Type-A) |
4x USB 2.0 Ports (4x Type-A) |

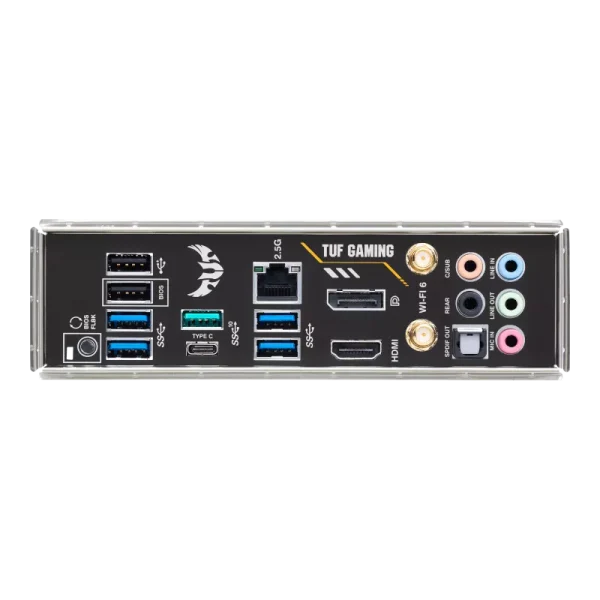

Back I/O Ports |
1x DisplayPort |
1x HDMI |
1x LAN (2.5G) Port |
2x USB 3.2 Gen 2 (Teal Blue) (1x Type-A + 1x USB Type-C) |
4x USB 3.2 Gen 1 (Blue) Type-A |
2x USB 2.0 (One Port can be Switched to USB BIOS FlashBack) |
1x Optical S/PDIF Out |
5x Audio Jacks |
1x BIOS FlashBack Button |
1x ASUS Wi-Fi Module |
Internal I/O Ports |
1x CPU Fan Connector |
1x CPU OPT Fan Connector |
3x Chassis Fan Connectors |
1x AIO_PUMP Connector |
2x Aura RGB Strip Headers |
2x Addressable Gen 2 Headers |
1x USB 3.2 Gen 1 (Up to 5Gbps) Connector Supports Additional 2 USB 3.2 Gen 1 Ports |
2x USB 2.0 Connectors Supports Additional 4 USB 2.0 Ports |
1x M.2 Socket 3 with M Key, Type 2242/2260/2280/22110 Storage Devices Support (SATA & PCIe 4.0 x4 Mode) |
1x M.2 Socket 3 with M Key, Type 2242/2260/2280/22110 Storage Devices Support (SATA & PCIE 3.0 x 4 Mode) |
1x SPI TPM Header |
6x SATA 6Gb/s Connectors |
1x Thunderbolt Header |
1x 24-pin EATX Power Connector |
1x 8-pin EATX 12V Power Connector |
1x Front Panel Audio Connector (AAFP) |
1x Thermal Sensor Connector |
1x Clear CMOS Jumper |
1x System Panel Connector |
1x COM Port Header |
BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
Manageability |
WOL by PXE |
Operating System Support |
Windows 10 64-bit |
Form Factor |
ATX Form Factor |
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Package Contents |
User Manual |
I/O Shield |
2x SATA 6Gb/s Cables |
1x Supporting DVD |
1x TUF Gaming Sticker |
1x TUF Certification Card |
1x Wi-Fi Antenna |
1x M.2 SSD Screw Package |
1x M.2 Rubber Package |
Notes |
*1 PCIE 3.0 X16_2 runs x1 mode when any of the PCIe 3.0 x1 slots is occupied. |
*2 M2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled. |
Warranty Information |
Warranty |
3 Year Warranty |
