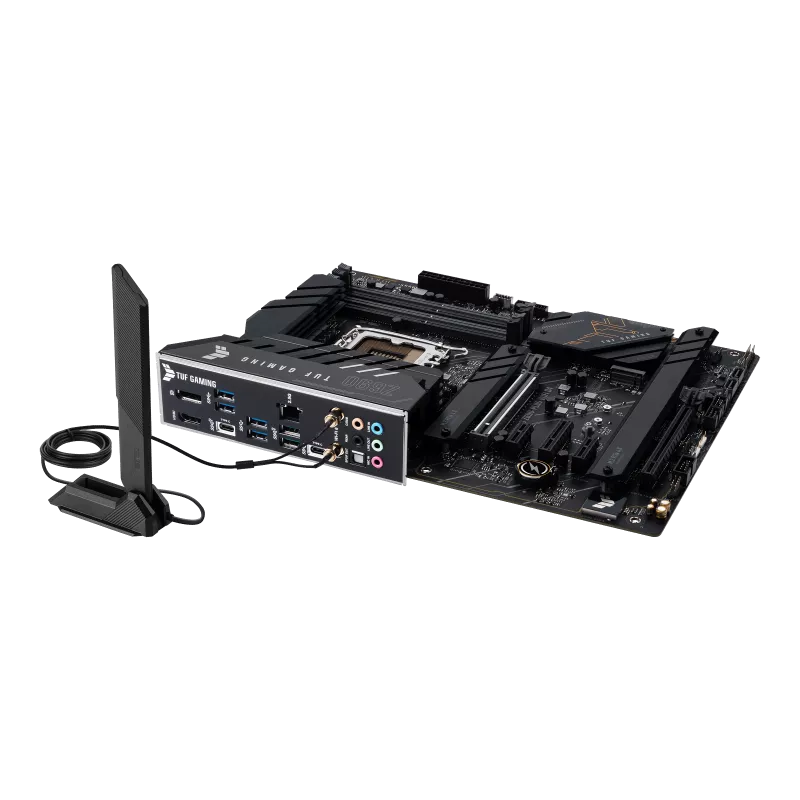

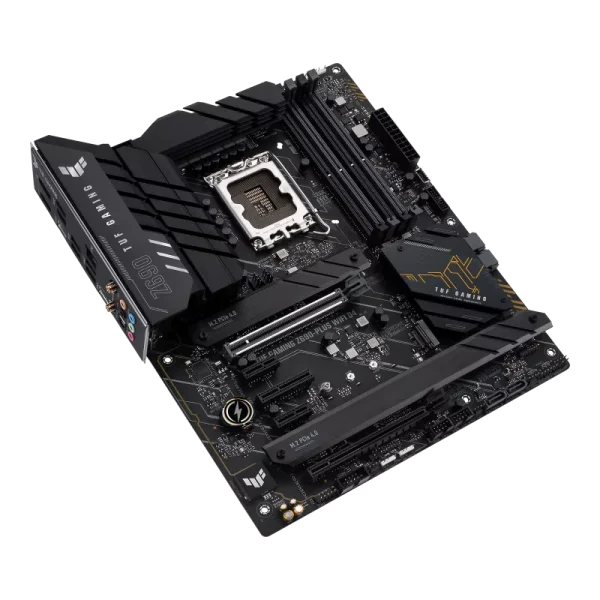

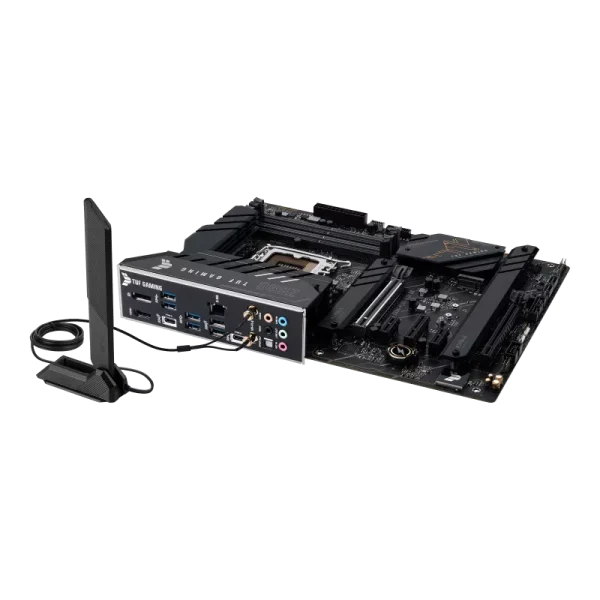

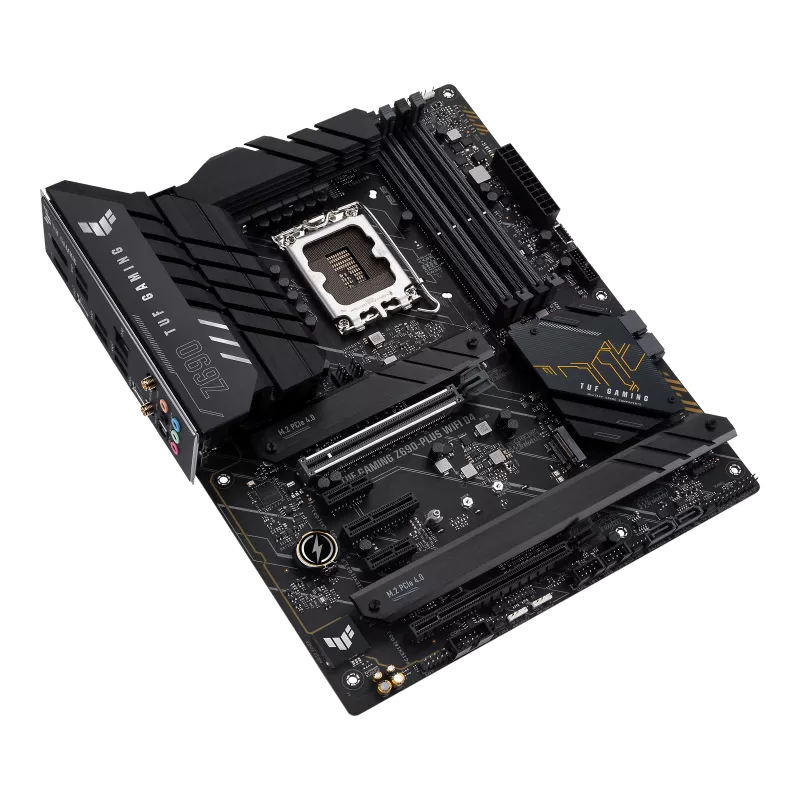

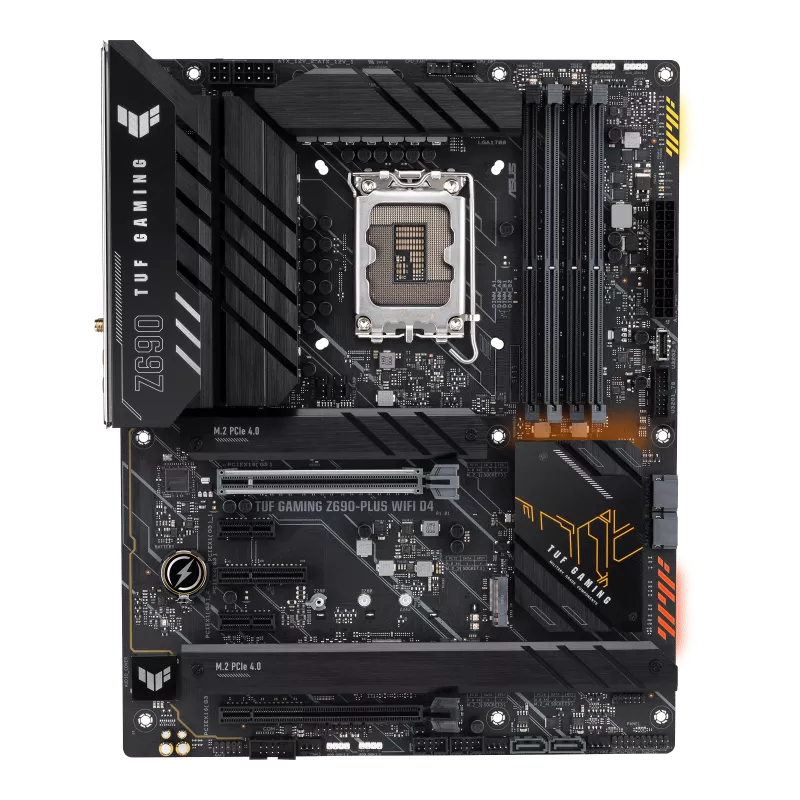

ASUS TUF GAMING Z690-PLUS WIFI D4 LGA 1700 DDR4

מק"ט 90MB18V0-M0EAY0 קטגוריות , תגיות , , , , , , ,

1,289

תיאור מוצר





Main characteristics
Description Driver-MOSFET (DrMOS), RAID from M.2 SSD, Diagnostic indication, Network card ESD protection, Sound card uses electrolytic audio capacitors, Backlighting heatsinks on board, CPU power subsystem uses solid polymer capacitors, Heatsink for M.2, USB 3.1 10 Gbps connectors, USB 3.1 20 Gbps connectors, Audio shielding
Manufacturer ASUS
Series TUF Gaming
Model TUF GAMING Z690-PLUS WIFI D4
Type of equipment Gaming motherboard
Purpose Desktop PC
Chipset mat. Boards Intel Z690
Processor socket Socket LGA1700
Board Format ATX (305 x 244 mm)
OS support Windows 11 (64 bit only), Windows 10 (64 bit only)
PTT/fTPM support Yes
Unique technologies
Unique ASUS Technologies DIGI+ VRM, Fan Xpert 4, Optimem II, ProCool, SafeDIMM, SafeSlot, TUF Components, TUF LANGuard
Backlight Aura RGB LED, backlight with a choice of colors, as well as backlight effects: constant, flickering, cyclic color, light music or backlight color depending on CPU temperature.
Support RGB backlight timing Aura Sync RGB LED
ARGB 5V connectors on the board 3x 3-pin Addressable RGB connector
RGB 12V connectors on the board 1x 4-pin RGB connector
Processor support
Max. number of processors on the motherboard one
Support for processor types Intel Core i9-12xxx, Core i7-12xxx, Core i5-12xxx seriescompatible processors
Support for processor cores Alder Lake
Memory support
Supported memory type DDR4. The maximum supported memory bandwidth is listed in the processor description
Number of memory slots 4
Number of DDR4 slots 4 (2-channel memory controller). Extreme Memory Profile ( XMP ) supported
Maximum Supported Memory Standards PC4-42664 (DDR4 5333 MHz), Processor dependent
Maximum RAM 128 GB
Disk system
Number of M.2 connectors ( NGFF ) 4 x M Key SATA/PCI-E connectors supporting Type 2242/2260/2280/22110 cards (up to 110mm long). The first slot works in PCI-E 4.0 4x mode. The second slot operates in PCI-E 4.0 4x/SATA mode and has a maximum length of 80 mm (2280). The third slot works in PCI-E 4.0 4x mode. The fourth slot operates in PCI-E 4.0 4x mode and has a maximum length of 80 mm (2280).m.2 SSD
M.2 RAID _ RAID 0, 1, 5 from NVME (PCI-E M.2 )
NVMe Boot support Yes
Intel Optane Memory Supported
RAID controller Built into the chipset, it is possible to build RAID arrays of levels 0, 1, 10, 5 from SATA devices
SATA 6Gb/s 4 channels
Communications
Net 2.5 Gbps. Intel network controller
WiFi standards WiFi AX (a/b/g/n/ac/ax)
Maximum Wi-Fi Speed 2400 Mbps
Integrated Bluetooth Yes, Bluetooth 5.2
Interface, connectors and outputs
USB controller USB 3.2 controller built into the chipset

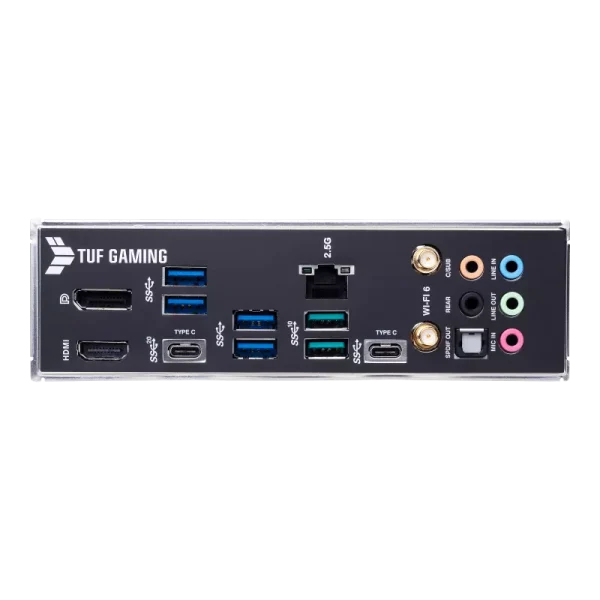

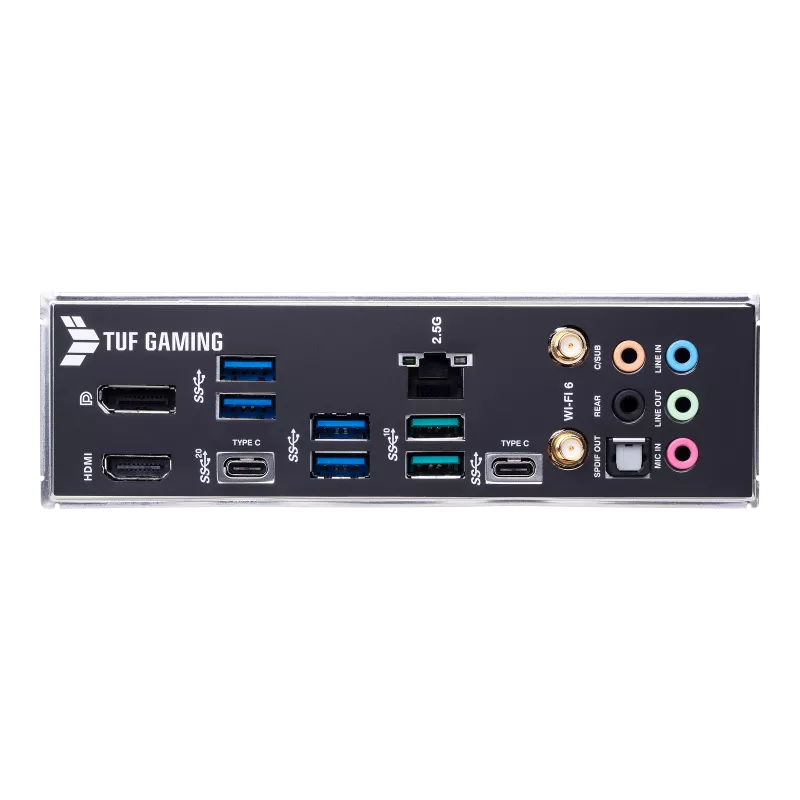

USB connectors on the rear panel 1x USB 3.2 Gen2x2 Type C, 2x USB 3.1 Gen2, 1x USB Type C (5 Gbps), 4x USB 3.0 ( USB 3.1 Gen1)
Internal USB ports on the board 1x USB 3.1 Gen2 (type C), 2x USB 3.0 ( USB 3.1 Gen1), 4x USB 2.0 can be connected on the case or via the port bar
Ports 2x wifi antennaports
Keyboard/mouse USB
Slots for installing expansion cards
Number of PCI Express 16x slots 2x 16x PCI-E slots operate in 16-4 mode; The first slot works as PCI-E 5.0; Second slot works as PCI-E 3.0
Number of PCI Express 4x slots 1 slot 4x PCI-E 3.0
Number of PCI Express 1x slots 2 slots 1x PCI-E 3.0
Integrated graphics
Video M/B Used built into the processor.
WARNING When using processors without integrated video, the video outputs on the board do not work .
Display Port Version 1.4
HDMI version 2.1
Maximum screen resolution 4096 x 2304 @ 60Hz with DP monitor, 4096 x 2160 @ 60Hz with HDMI monitor
Video connectors on the rear panel Display Port, HDMI
Max. number of connected monitors 2
Built-in sound card
Sound Realtek 8-channel HDA codec.192kHz/24bit
Audio connectors on the rear panel 1x optical S/PDIF-out, Front-out, Line-in, Line-out, Mic-in, Rear-out
Cooling
Cooling Passive cooling
Number of fan headers 7x 4-pin MP connector
Cooling System Noise Reduction Technologies Fan Xpert 4
Nutrition
Power Supply Requirements Only 24+8+4 pin power supplies are supported
Other characteristics
BIOS UEFI AMI BIOS, 192 (128+64) MB
OA 3.0 support Yes
External sources of information
Manufacturer hotline (495) 231-19-99 – in Moscow; 8-800-100-27-87 – a free call from any region of Russia. Mon – Fri: from 09:00 to 18:00
Logistics
Package dimensions (measured in NYX) 34.04 x 27.35 x 7.03 cm
Gross weight (measured in NYX) 1.959 kg
