₪1,639

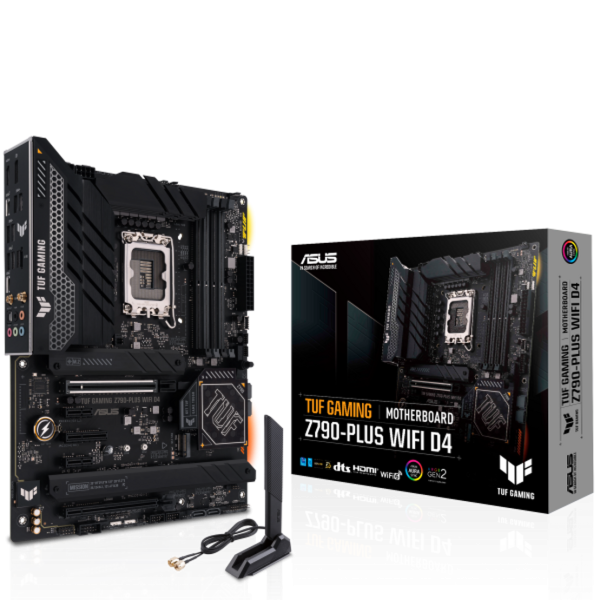

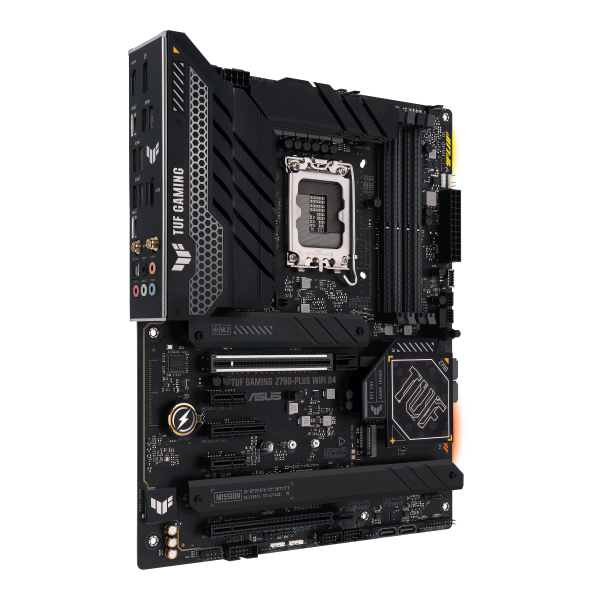

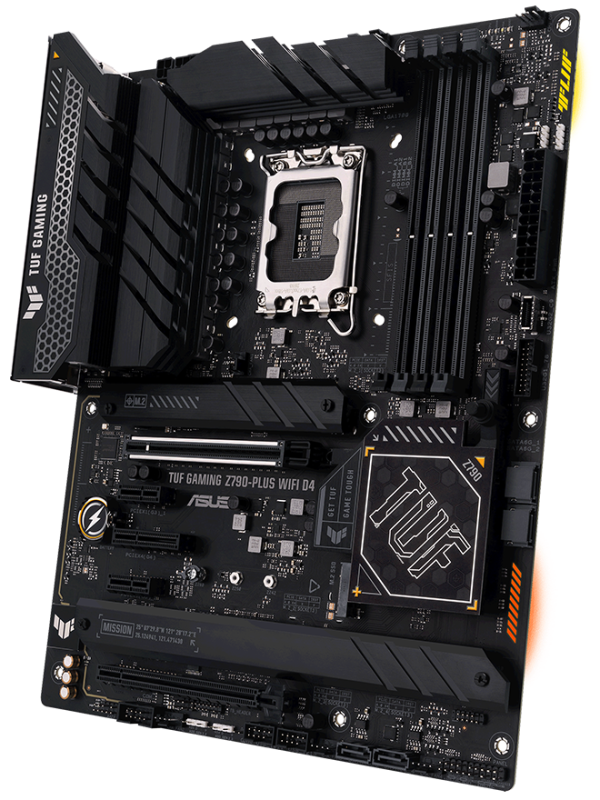

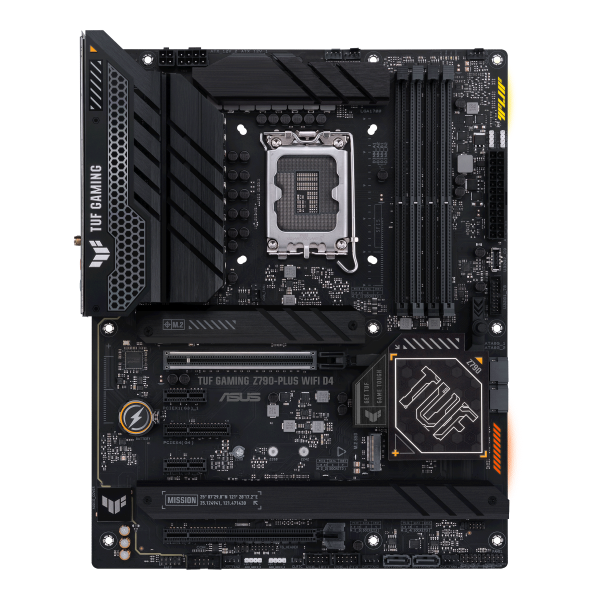

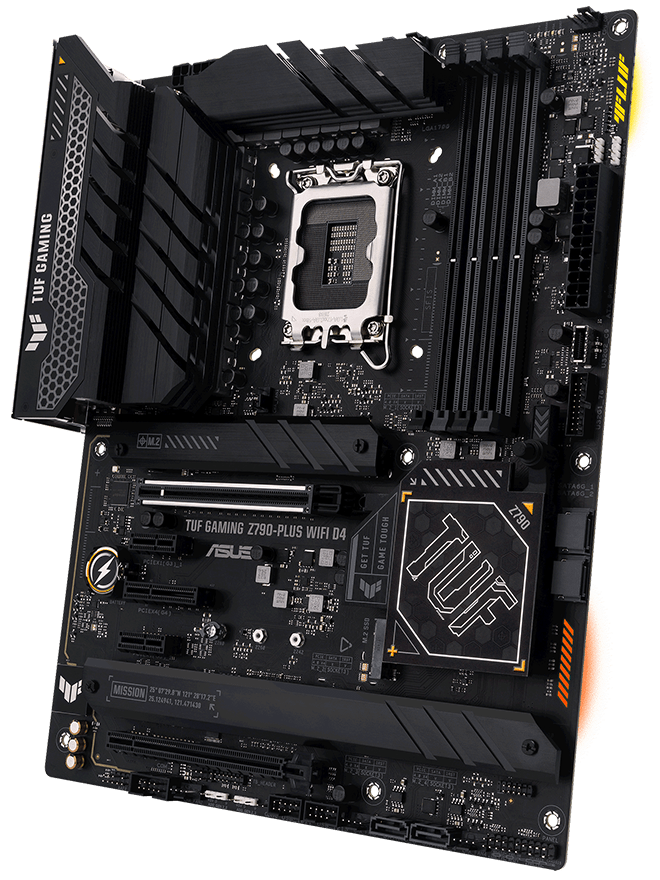

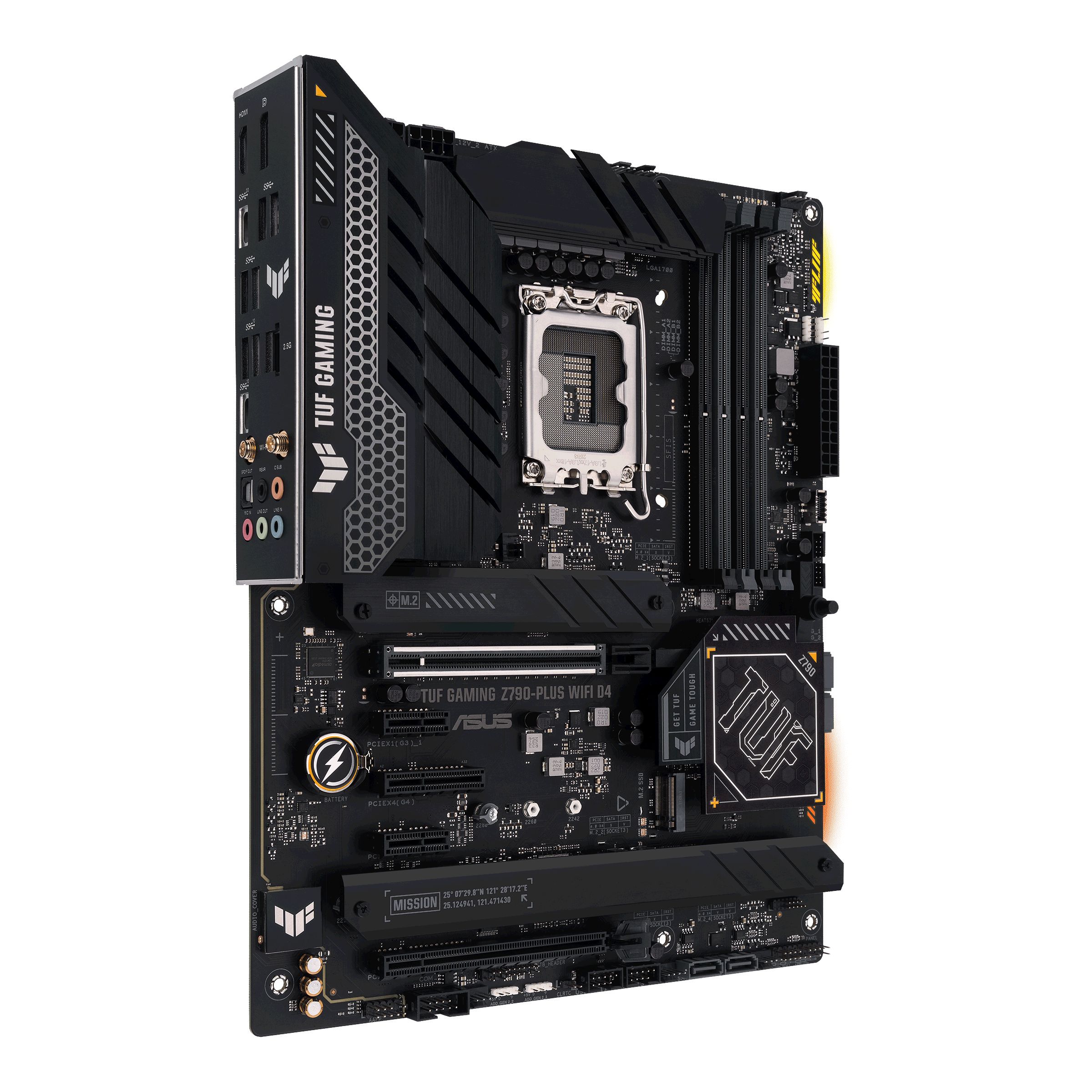

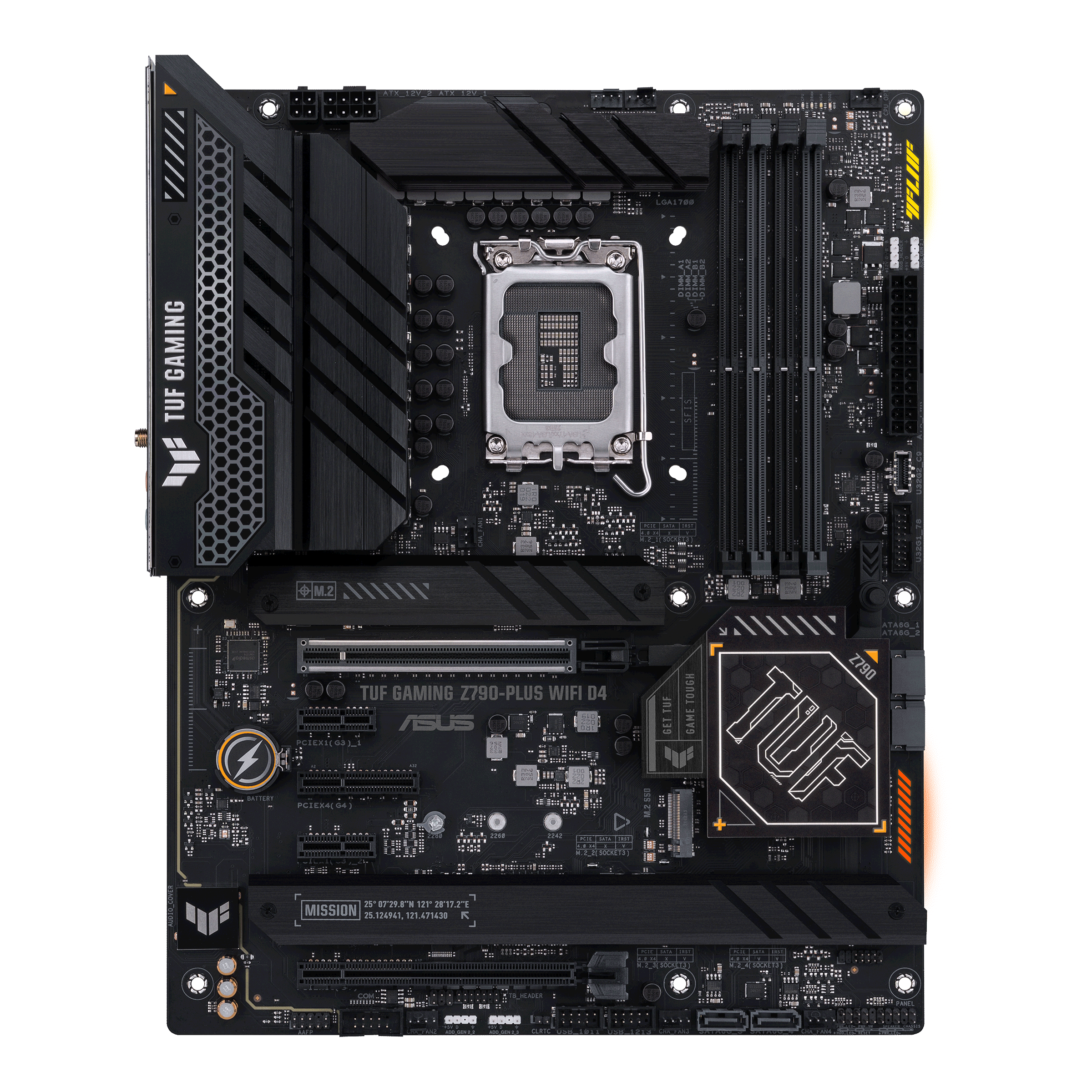

TUF GAMING Z790-PLUS WIFI D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and honeycomb design elements to reflect the dependability and stability that defines the TUF GAMING series.
| SPECIFICATIONS | |
| Brand | ASUS |
| Series | TUF GAMING |
| Model | TUF GAMING Z790-PLUS D4 |
| CPU Support | Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel Z790 Express |
| Memory Support | |
| Intel 13th Gen & 12th Gen Processors | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory |
| Dual Channel Memory Architecture | |
| Supports Intel Extreme Memory Profile (XMP) | |
| ASUS OptiMem II | |
| Video | |
| HDMI | 1 x HDMI 2.1 supports max. resolution up to 4K 60Hz |
| DisplayPort | 1 x DisplayPort 1.4 supports max. resolution up to 4K 60Hz |
| * Actual support may vary by CPU with integrated Intel UHD graphics. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 5.0 x16 Physical, x16 Electrical slot |
| Intel Z790 Chipset | 2x PCIe 4.0 x16 Physical, x4 Electrical slots |
| 2x PCIe 3.0 x1 slot | |
| Storage | |
| CPU Direct | M.2_1 slot (Key M), type 2242/2260/2280/22110 |
| Intel Z790 Chipset | M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) | |
| 4x SATA 6Gb/s ports | |
| Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 | |
| Networking | |
| LAN | Intel I225-V 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| WiFi | N/A |
| Bluetooth | N/A |
| Audio | |
| Codec | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC |
| Impedance sense for front and rear headphone outputs | |
| Internal audio Amplifier to enhance the highest quality sound for headphone and speakers | |
| Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) | |
| Supports up to 32-Bit/192 kHz playback* | |
| Audio Shielding | |
| Rear optical S/PDIF out port | |
| Premium audio capacitors | |
| Dedicated audio PCB layers | |
| Audio Cover | |
| *Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio | |

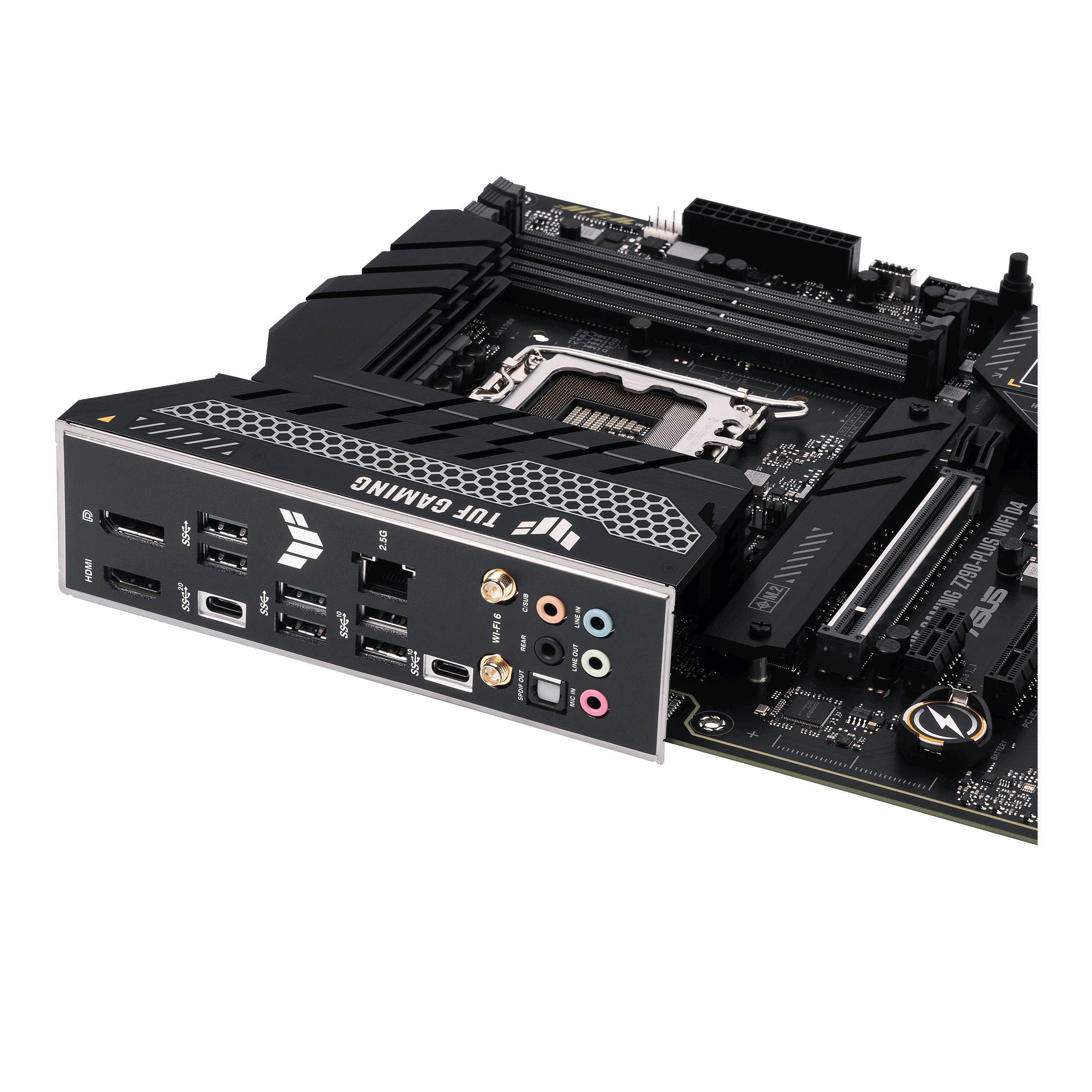

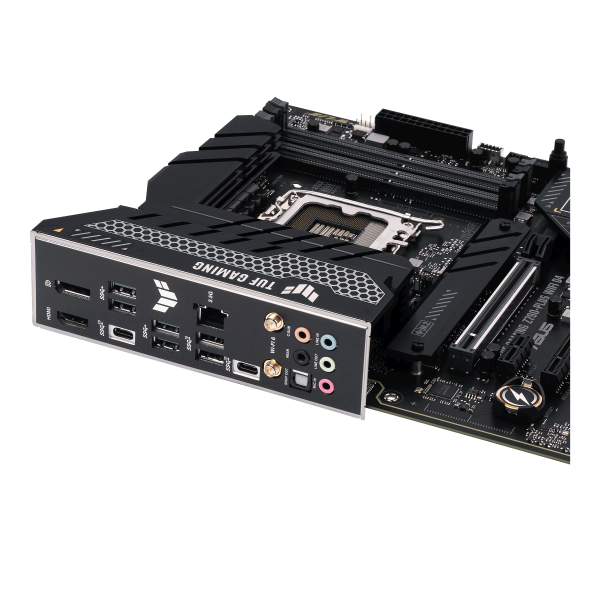

| Connectivity | |
| Ports | 1x USB 3.2 Gen 2×2 port (1 x USB Type-C) |
| 3x USB 3.2 Gen 2 ports (2 x Type-A 1 x USB Type-C) | |
| 4x USB 3.2 Gen 1 ports (4 x Type-A) | |
| 1x DisplayPort | |
| 1x HDMI port | |
| 1x Intel 2.5Gb Ethernet port | |
| 5x Audio jacks | |
| 1x Optical S/PDIF out port | |
| General | |
| Internal Connectors | 1x 4-pin CPU Fan header |
| 1x 4-pin CPU OPT Fan header | |
| 1x 4-pin AIO Pump header | |
| 4x 4-pin Chassis Fan headers | |
| 1x 24-pin Main Power connector | |
| 1x 8-pin 12V Power connector | |
| 1x 4-pin 12V Power connector | |
| 4x M.2 slots (Key M) | |
| 4x SATA 6Gb/s ports | |
| 1x USB 3.2 Gen 2 connector (supports USB Type-C) | |
| 1x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports | |
| 2x USB 2.0 headers support additional 4 USB 2.0 ports | |
| 3x Addressable Gen 2 headers | |
| 1x Aura RGB header | |
| 1x Clear CMOS header | |
| 1x COM Port header | |
| 1x Front Panel Audio header (AAFP) | |
| 1x 20-3 pin System Panel header with Chassis intrude function | |
| 1x Thunderbolt (USB4) header | |
| LED Displays | ASUS Q-LED Diagnostic Array |
| BIOS | 192 (128 64) Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX Form Factor, 305 x 244 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Box Contents | 2x SATA 6Gb/s cables |
| 1x TUF GAMING sticker | |
| 2x M.2 Rubber Packages | |
| 1x Screw package for M.2 SSD | |
| 1x TUF Certification card | |
| 1x User guide | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
המלאי אזל
