| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | Aorus |

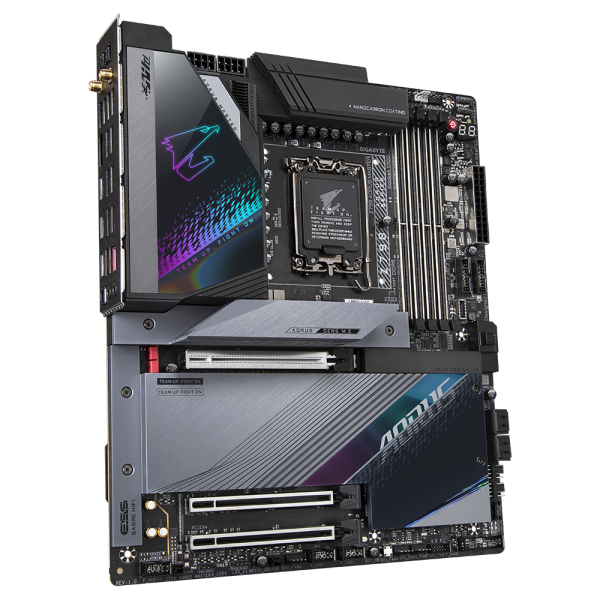

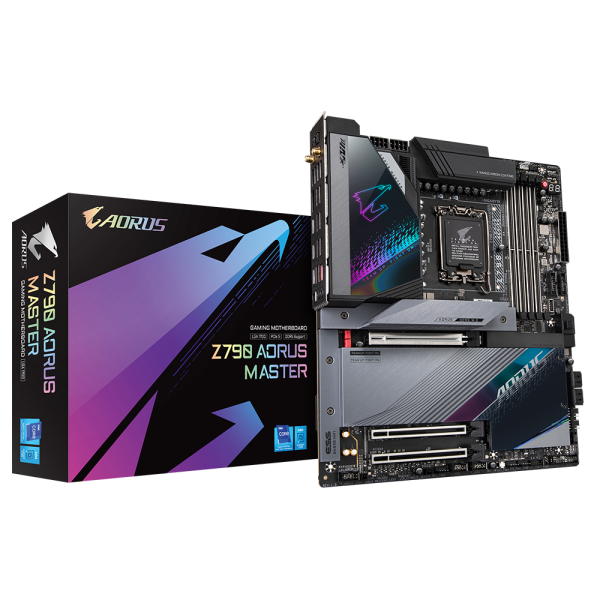

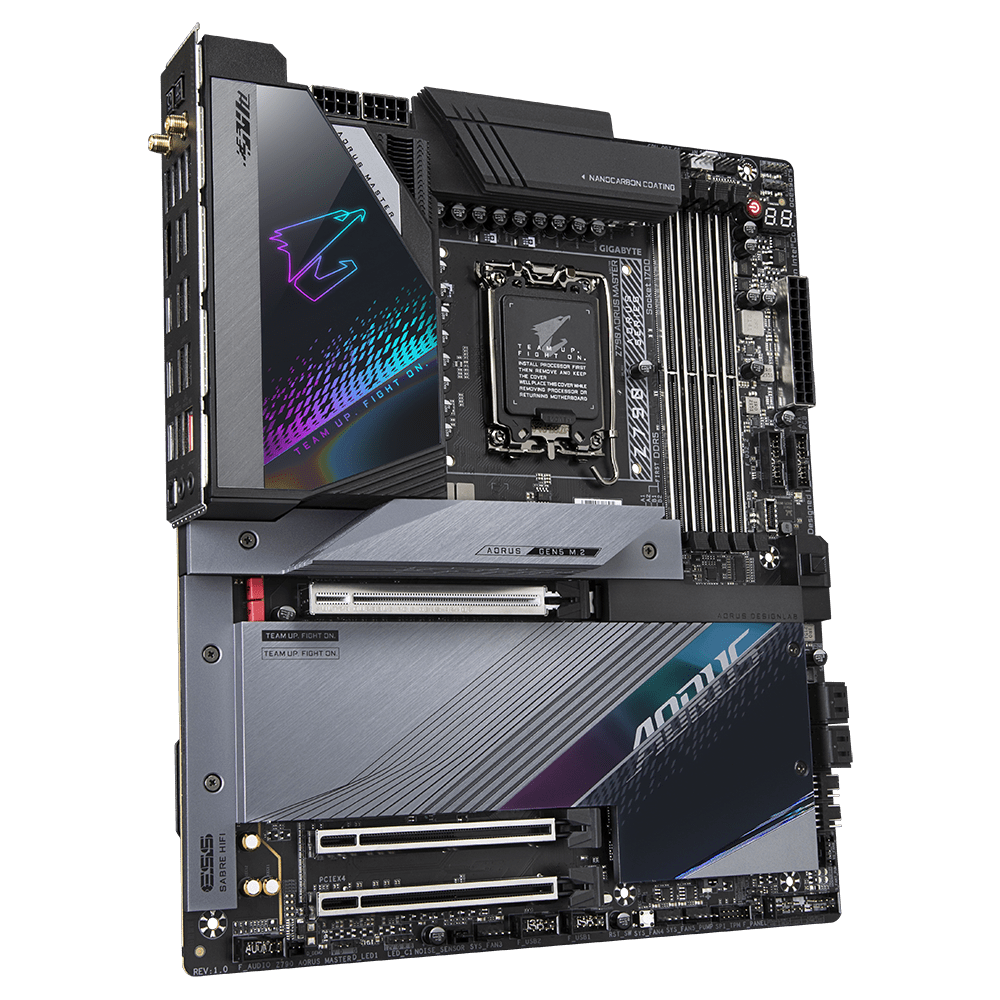

| Model | Z790 Aorus Master |
| CPU | LGA1700 Socket: Support For The 13th And 12th Generation Intel Core, Pentium Gold And Celeron Processors* |
| L3 Cache Varies With CPU | |
| Chipset | Intel Z790 Express Chipset |
| Memory | Support For DDR5 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 Memory Modules |
| 4x DDR5 DIMM Sockets Supporting Up To 128 GB (32 GB Single DIMM Capacity) Of System Memory | |
| Dual Channel Memory Architecture | |
| Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode) | |
| Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules | |
| Support For Extreme Memory Profile (XMP) Memory Modules | |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics Support: |
| – 1x DisplayPort, Supporting A Maximum Resolution Of 4096×2304@60 Hz | |
| * Support For DisplayPort 1.2 Version And HDCP 2.3 | |
| Audio | – Realtek ALC1220-VB CODEC |
| * The Front Panel Line Out Jack Supports DSD Audio. | |
| – ESS ES9118 DAC Chip | |
| – Support For DTS:X Ultra | |
| – High Definition Audio | |
| – 2/4/5.1-Channel | |
| * You Can Change The Functionality Of An Audio Jack Using The Audio Software. To Configure 5.1-Channel Audio, Access The Audio Software For Audio Settings. | |
| – Support For S/PDIF Out | |
| LAN | Marvell AQtion AQC113C 10GbE LAN Chip |
| Wireless Communication Module | Intel Wi-Fi 6E AX411 |
| – WIFI a, b, g, n, ac, ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands | |
| – BLUETOOTH 5.3 | |
| – Support For 11ax 160MHz Wireless Standard And Up To 2.4 Gbps Data Rate | |
| Expansion Slots | CPU: |
| – 1x PCI Express X16 Slot, Supporting PCIe 5.0 And Running At X16 (PCIEX16) | |
| * The PCIEX16 Slot Shares Bandwidth With The M2C_CPU Connector. The PCIEX16 Slot Operates At Up To X8 Mode When A Device Is Installed In The M2C_CPU Connector. | |
| * For Optimum Performance, If Only One PCI Express Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot. | |
| Chipset: | |
| – 1x PCI Express X16 Slot, Supporting PCIe 3.0 And Running At X4 (PCIEX4) | |
| – 1x PCI Express X16 Slot, Supporting PCIe 3.0 And Running At X1 (PCIEX1) | |
| Support For AMD CrossFire Technology (PCIEX16 And PCIEX4) | |
| Storage Interface | CPU: |
| – 1x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) | |
| – 1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | |
| Chipset: | |
| – 1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) | |
| – 1x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 4.0 x4/x2 SSD support) (M2P_SB) | |
| – 1x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) | |
| – 4x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices | |
| RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices | |
| USB | Chipset: |
| – 3x USB Type-C Ports, With USB 3.2 Gen 2×2 Support (2 Ports On The Back Panel, 1 Port Available Through The Internal USB Header) | |
| Chipset 2 USB 3.2 Gen 2 Hubs: | |
| – 1x USB Type-C Port On The Back Panel, With USB 3.2 Gen 1 Support | |
| – 7x USB 3.2 Gen 2 Type-A Ports (Red) On The Back Panel | |
| Chipset 2 USB 3.2 Gen 1 Hubs: | |
| – 8x USB 3.2 Gen 1 Ports (4 Ports On The Back Panel, 4 Ports Available Through The Internal USB Headers) | |
| Chipset USB 2.0 Hub: | |
| – 4x USB 2.0/1.1 Ports Available Through The Internal USB Headers | |
| Internal I/O Connectors | 1x 24-Pin ATX Main Power Connector |
| 2x 8-Pin ATX 12V Power Connectors | |
| 1x CPU Fan Header | |
| 1x Water Cooling CPU Fan Header | |
| 4x System Fan Headers | |
| 4x System Fan/Water Cooling Pump Headers | |
| 2x Addressable LED Strip Headers | |
| 2x RGB LED Strip Headers | |
| 5x M.2 Socket 3 Connectors | |
| 4x SATA 6Gb/S Connectors | |
| 1x Front Panel Header | |
| 1x Front Panel Audio Header | |
| 1x USB Type-C Header, With USB 3.2 Gen 2×2 Support | |
| 2x USB 3.2 Gen 1 Headers | |
| 2x USB 2.0/1.1 Headers | |
| 1x Noise Detection Header | |
| 2x Thunderbolt Add-In Card Connectors | |
| 1x Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only) | |
| 1x Power Button | |
| 1x Reset Button | |
| 1x Reset Jumper | |
| 1x Clear CMOS Jumper | |
| 2x Temperature Sensor Headers | |
| Voltage Measurement Points | |
| Back Panel Connectors | 1x Q-Flash Plus Button |
| 1x Clear CMOS Button | |
| 2x SMA Antenna Connectors (2T2R) | |
| 1x DisplayPort | |
| 1x USB Type-C Port, With USB 3.2 Gen 1 Support | |
| 2x USB Type-C Ports, With USB 3.2 Gen 2×2 Support | |
| 7x USB 3.2 Gen 2 Type-A Ports (Red) | |
| 4x USB 3.2 Gen 1 Ports | |
| 1x RJ-45 Port | |
| 1x Optical S/PDIF Out Connector | |
| 2x Audio Jacks | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage Detection |
| Temperature Detection | |
| Fan Speed Detection | |
| Water Cooling Flow Rate Detection | |
| Fan Fail Warning | |
| Fan Speed Control | |
| * Whether The Fan (Pump) Speed Control Function Is Supported Will Depend On The Fan (Pump) You Install. | |
| Noise Detection | |
| BIOS | 1x 256 Mbit Flash |
| Use Of Licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | E-ATX Form Factor |
| 30.5cm x 26.0cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
