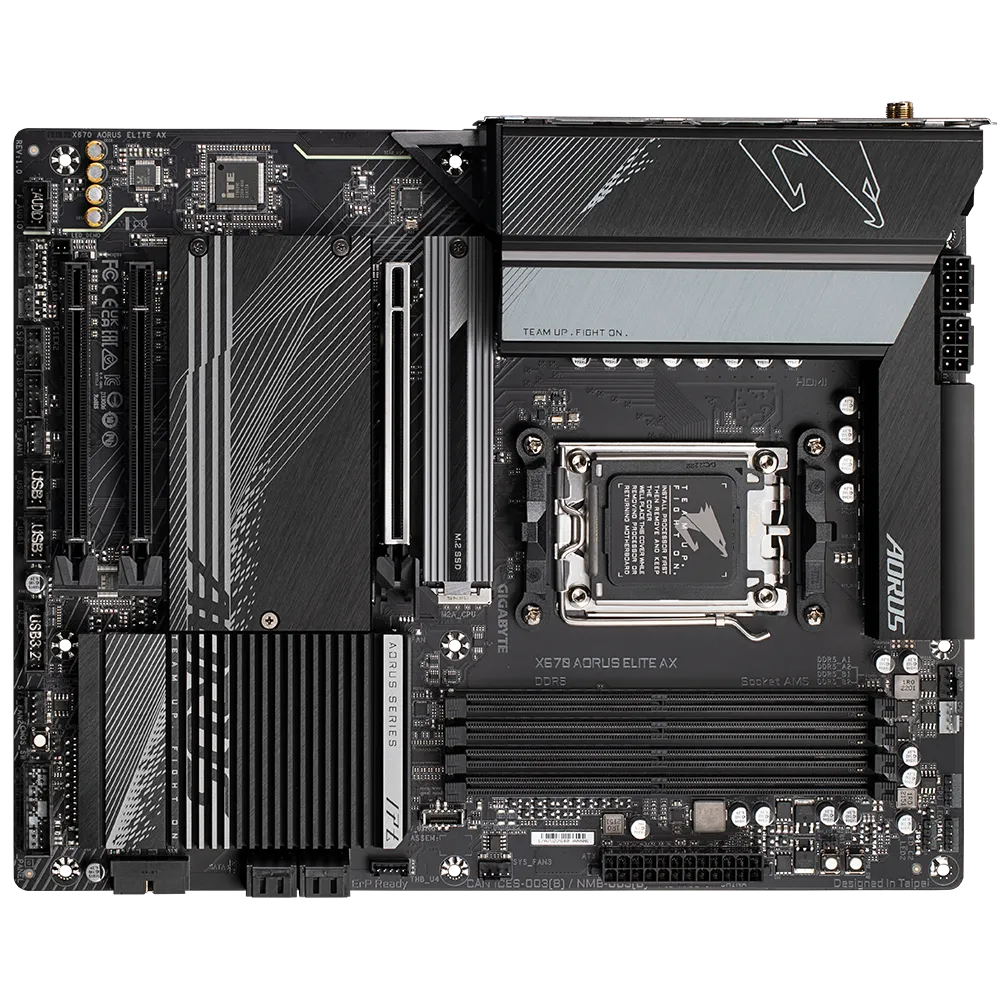

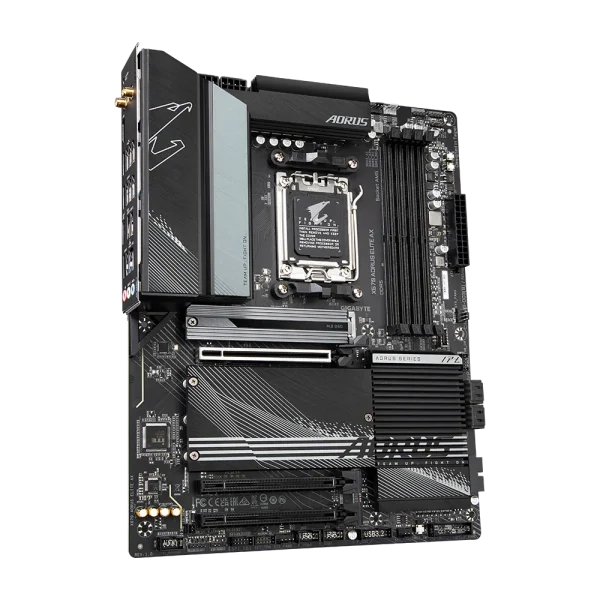

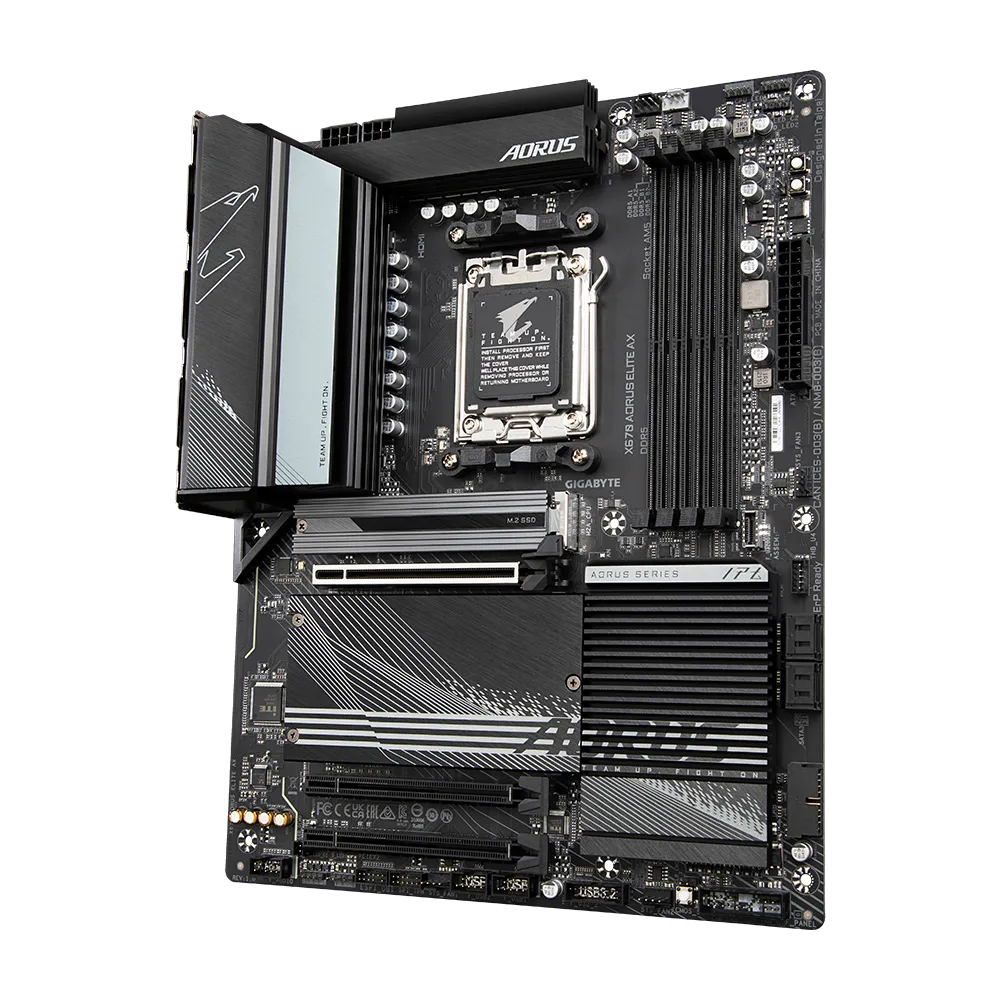

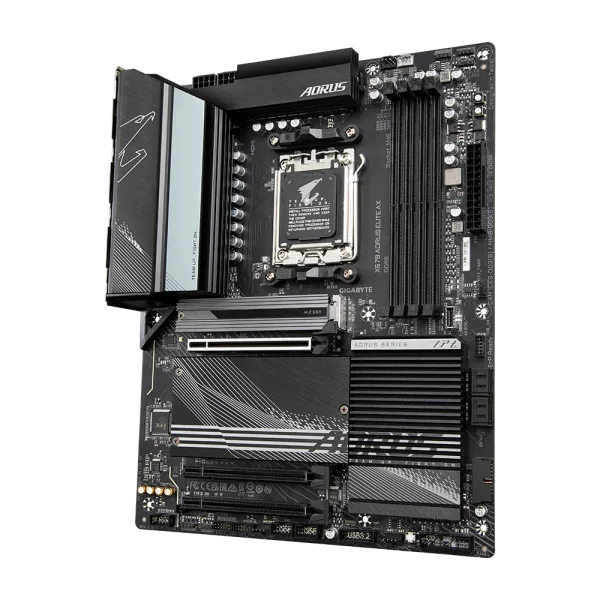

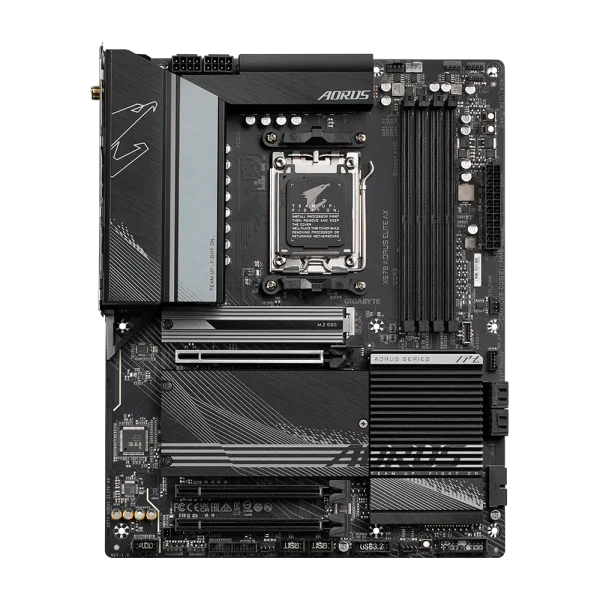

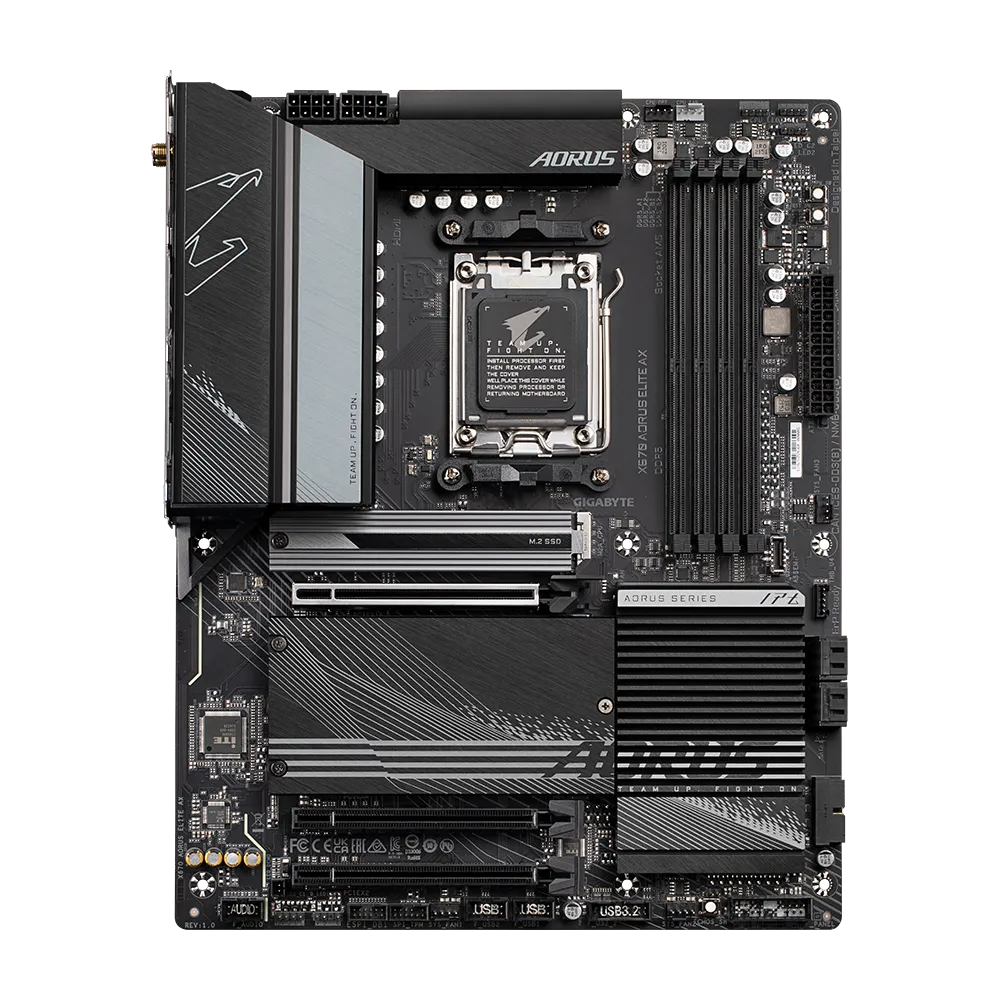

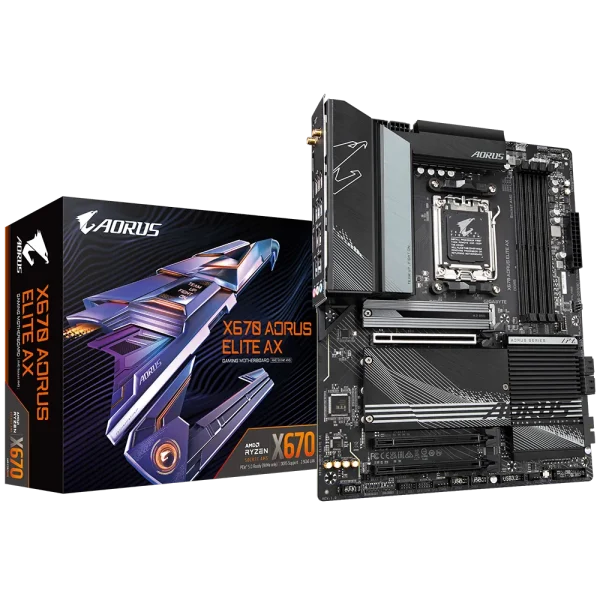

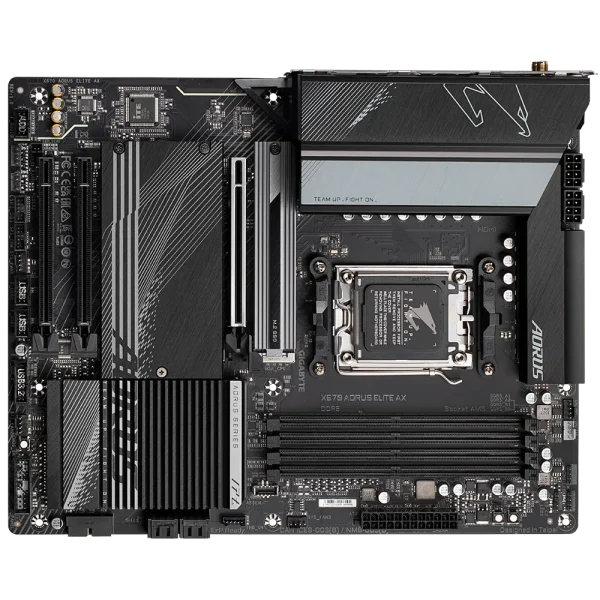

Gigabyte X670 AORUS ELITE AX (rev. 1.0)

מק"ט X670_AORUS_ELITE_AX קטגוריות , תגיות , , , , , ,

1,639

תיאור מוצר
    • Gigabyte X670 AORUS ELITE AX (rev. 1.0)

      CPU
      1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors



    • Chipset
      1. AMD X670
    • Memory
      1. Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
      2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
      3. Dual channel memory architecture
      4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

      (Please refer “Memory Support List” for more information.)

    • Onboard Graphics

      Integrated Graphics Processor:

      1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
        * Support for HDMI 2.1 version and HDCP 2.3.
        ** Support native HDMI 2.1 TMDS compatible ports.

      (Graphics specifications may vary depending on CPU support.)

    • Audio
      1. Realtek® Audio CODEC
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
        * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    • LAN
      1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    • Wireless Communication module

      AMD Wi-Fi 6E RZ616 (MT7922A22M)

      1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
      2. BLUETOOTH 5.2
      3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

      (Actual data rate may vary depending on environment and equipment.)

    • Expansion Slots

      CPU:

      1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

      Chipset:

      1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
      2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

      Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)

    • Storage Interface

      CPU:

      1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0(Note) x4/x2 SSD support) (M2A_CPU)
        (Note) Actual support may vary by CPU.
      2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

      Chipset:

      1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
      2. 4 x SATA 6Gb/s connectors

      RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
      RAID 0, RAID 1, and RAID 10 support for SATA storage devices

    • USB

      CPU:

      1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
      2. 2 x USB 3.2 Gen 1 ports on the back panel

      CPU + USB 2.0 Hub:

      1. 4 x USB 2.0/1.1 ports on the back panel

      Chipset:

      1. 2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header)
      2. 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
      3. 4 x USB 2.0/1.1 ports available through the internal USB headers
    • Internal I/O Connectors
      1. 1 x 24-pin ATX main power connector
      2. 2 x 8-pin ATX 12V power connectors
      3. 1 x CPU fan header
      4. 1 x water cooling CPU fan header
      5. 3 x system fan headers
      6. 1 x CPU cooler LED strip/RGB LED strip header
      7. 2 x addressable LED strip headers
      8. 2 x RGB LED strip headers
      9. 4 x SATA 6Gb/s connectors
      10. 4 x M.2 Socket 3 connectors
      11. 1 x front panel header
      12. 1 x front panel audio header
      13. 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
      14. 2 x USB 3.2 Gen 1 headers
      15. 2 x USB 2.0/1.1 headers
      16. 1 x THB_U4 add-in card connector
      17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
      18. 1 x power button
      19. 1 x reset button
      20. 1 x Clear CMOS button
      21. 1 x reset jumper
      22. 1 x Clear CMOS jumper

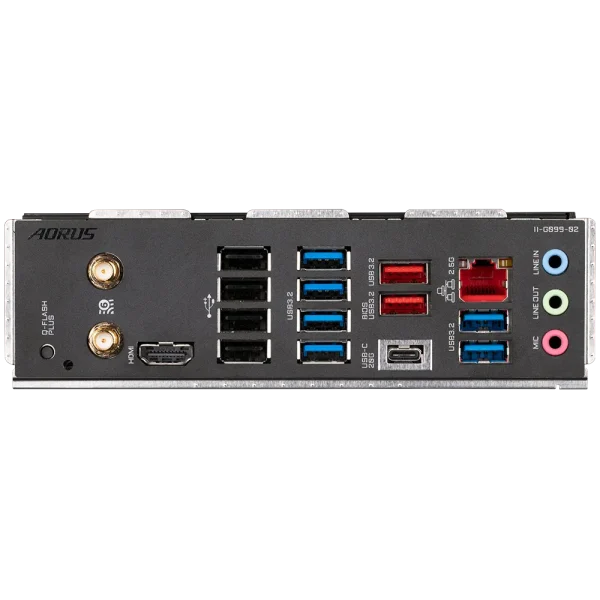

    • Back Panel Connectors
      1. 1 x Q-Flash Plus button
      2. 2 x SMA antenna connectors (2T2R)
      3. 1 x HDMI port
      4. 6 x USB 3.2 Gen 1 ports
      5. 4 x USB 2.0/1.1 ports
      6. 2 x USB 3.2 Gen 2 Type-A ports (red)
      7. 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
      8. 1 x RJ-45 port
      9. 3 x audio jacks
    • I/O Controller
      1. iTE® I/O Controller Chip
    • H/W Monitoring
      1. Voltage detection
      2. Temperature detection
      3. Fan speed detection
      4. Water cooling flow rate detection
      5. Fan fail warning
      6. Fan speed control
        * Whether the fan speed control function is supported will depend on the fan you install.
    • BIOS
      1. 1 x 256 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Unique Features
      1. Support for GIGABYTE Control Center (GCC)
        * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      2. Support for Q-Flash
      3. Support for Q-Flash Plus
      4. Support for Smart Backup
    • Bundled Software
      1. Norton® Internet Security (OEM version)
      2. LAN bandwidth management software
    • Operating System
      1. Support for Windows 11 64-bit
      2. Support for Windows 10 64-bit
    • Form Factor
      1. ATX Form Factor; 30.5cm x 24.4cm
