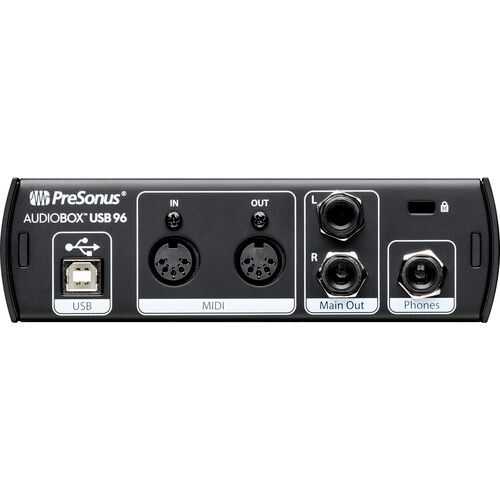

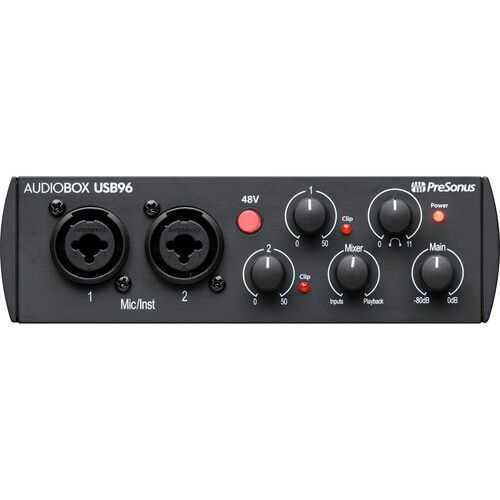

AudioBox USB® 96 (25th Anniversary Black) PreSonus

Microphone Preamp

• TypeXLR Female Balanced
• Frequency Response (±3.0 dB)20 Hz to 20 kHz
• Input Impedance (Balanced)1200Ω
• THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain)< 0.008%
• S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz)> 95 dB
• Common Mode Rejection Ratio (1 kHz, 55 dB Gain)> 45 dB
• Gain Control Range (± 1 dB)0 dB to 35 dB
• Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N)-3 dBu
• Phantom Power (±2 VDC)+48 VDC

Instrument Input

• Type¼” TS Female Unbalanced
• Input Impedance0.5 MΩ

Line Outputs

• Type¼” Balanced
• Output Impedance51Ω

Headphone Output

• Type¼” TRS Active Stereo
• Maximum Output60 mW/Ch @ 60Ω Load
• Frequency Response (±1.0 dB)20 Hz – 30 kHz

MIDI I/O

• TypeDual 5-pin Female DIN

Digital Audio

• ADC Dynamic Range (A-wtd, 48 kHz Sample Rate)105 dB
• DAC Dynamic Range (A-wtd, 48 kHz Sample Rate)105 dB
• Bit Depth24
• Reference Level for 0 dBFS+4 dBu
• Internal Sample Frequency Selections (kHz)44.1, 48, 88.2, 96
• PowerUSB 2.0 bus-powered

Physical

• Dimensions1/3U (steel chassis)
• Height5.5” (139.7 mm)
• Depth1.75″ (44.45 mm)
• Width5.5” (139.7 mm)
• Weight5 lbs (2.27 kg)
