Antec High Current Gamer HCG1000EX 1000W Modular 80+ Gold

מק"ט HCG-1000EX קטגוריות , תגיות , , ,

1,049

תיאור מוצר

High Current Gamer
Extreme Series

1000W

Engineered to meet the power demands of high-end systems, the Antec High Current Gamer Extreme power supply series boasts unparalleled stability and 80 PLUS® Gold-certified efficiency, thanks to the top-grade Japanese capacitors and Active PFC.

100% Japanese Capacitors
Using 100% high-performance Japanese capacitors,
the HCG Extreme Gold series ensures the tightest
DC stability and regulation, for reliability that you
and your system can count on.

PhaseWave™ Design:
A server-class full-bridge LLC design
with a synchronous rectification
based on a DC-DC topology.

Server-grade 50°C Temperature Rating:
HCG Extreme delivers non-stop industrial class
performance for high-end computer systems
at up to 50°C ambient.

Antec Quality 5 year parts and labor warranty, and you get unlimited access to Antec’s incomparable technical support and customer service.

135mm
FDB FAN

The whisper-quiet, 135 mm fluid-dynamic bearing(FDB) fan provides high airflow with the durability and longevity that is a signature of Antec quality.

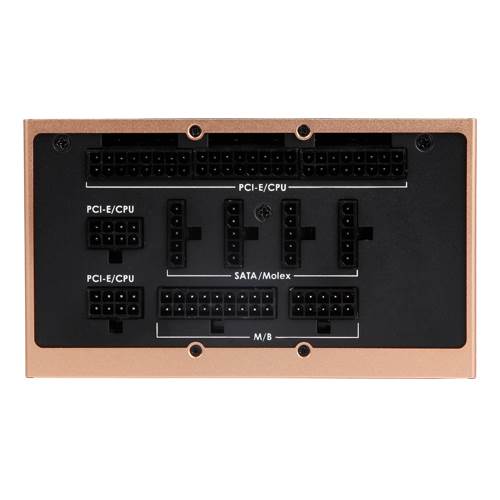

Connectors

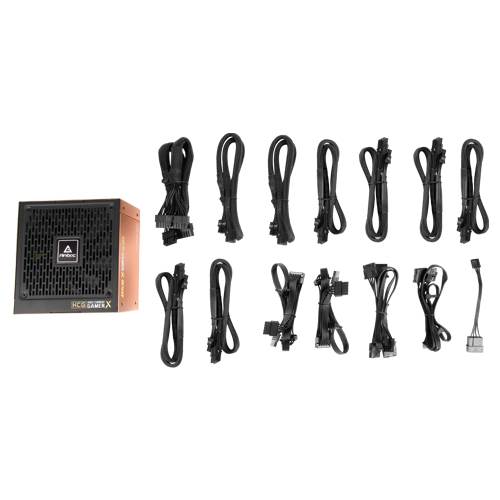

FullY Modular Cable
Management System

Input / Output
& Efficiency Chart

FEATURES

    • Guaranteed 1000W of Continuous Power from Antec
    • 100% Modular-Improves airflow and reduces clutter
    • 80 PLUS® GOLD certified-Up to 92% efficient, to reduce your electricity bill
    • PhaseWave™ Design-A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
    • Antec Quality 10-year warranty and lifetime global 24/7 support
    • 120mm FDB Silence-Whisper-quiet high-quality fluid-dynamic bearing fan with long lifetime
    • Zero RPM Manager-An advanced low voltage fan control with fan-off mode at low loads for absolute silence
    • 99%+12V – Output for maximum CPU & GPU support
    • CircuitShield™-Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
    • 100% Japanese capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance
    • 28(18+10) pin MBU socket – For possible future MBU connectors
    • ATX12V 2.4-Engineered according to the newest PSU guideline and compatible with the latest CPU generation
    • Compact size 140mm depth power supply is the best choice for compact ATX chassis

SPECIFICATIONS

Product Name HCG1000 Extreme
Model Name HCG1000 Extreme
Type ATX 12V 2.4
Modular Fully Modular
Dimension (W x L x H) 160(L) x 150(W) x 86(H)
Warranty 10 years
Input Voltage 100-240 VAC ±10%
Input Current 13A-6.5A
Input Frequency Range 50Hz-60Hz
PFC Active PFC (>0.9 typical)
Power Good Signal 100-500ms
Efficiency 92% Typically
Protection OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO
Output Capacity 1000W
Operation Temperature 0~50°C
Regulatory cTUVus/TUV/CB [IEC62368 Compliant] /RCM/CE/EAC/CCC/BSMI/FCC/KR
Fan 135mm FDB Fan
Certifications 80 Plus Gold
Connector 1 x MB 24(20+4) Pin
2 x 8(4+4) Pin EPS 12V
8 x 8(6+2) Pin PCI-E
12 x SATA
6 x Molex
1 x FDD
Net Weight 1.66 Kgs
Gross Weight 3.40 Kgs
UPC# 0-761345-11563-6  HCG1000 Extreme
0-761345-11562-9  HCG1000 Extreme CN
0-761345-11561-2  HCG1000 Extreme AU
0-761345-11560-5  HCG1000 Extreme EC
0-761345-11559-9  HCG1000 Extreme GB
0-761345-11558-2  HCG1000 Extreme JP

המלאי אזל
