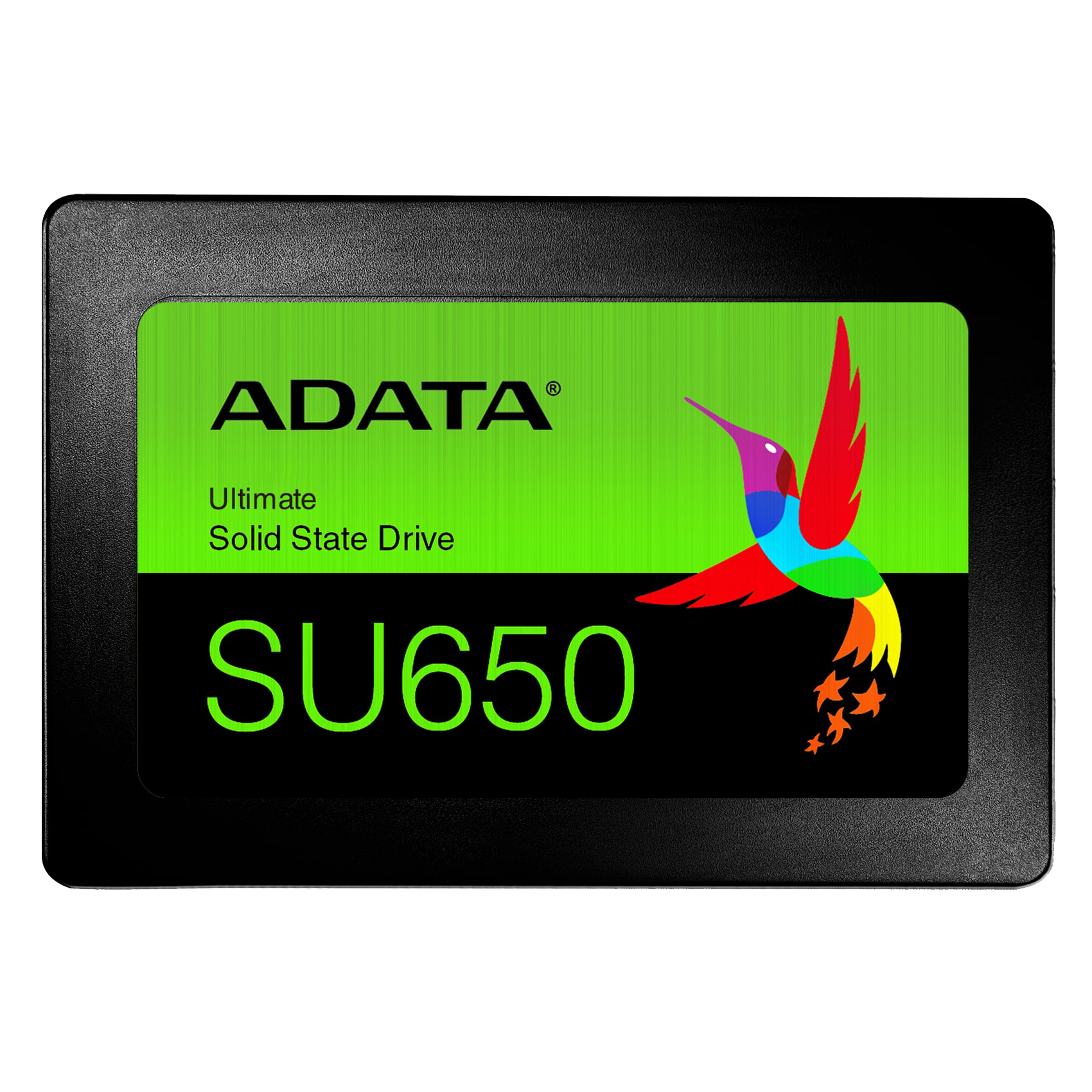

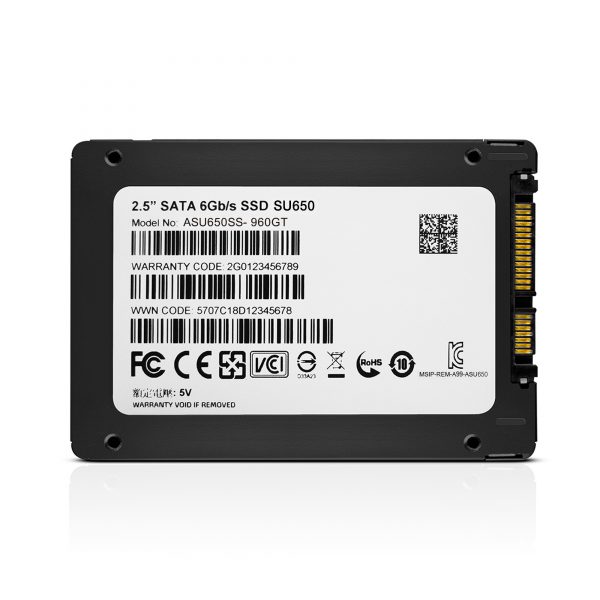

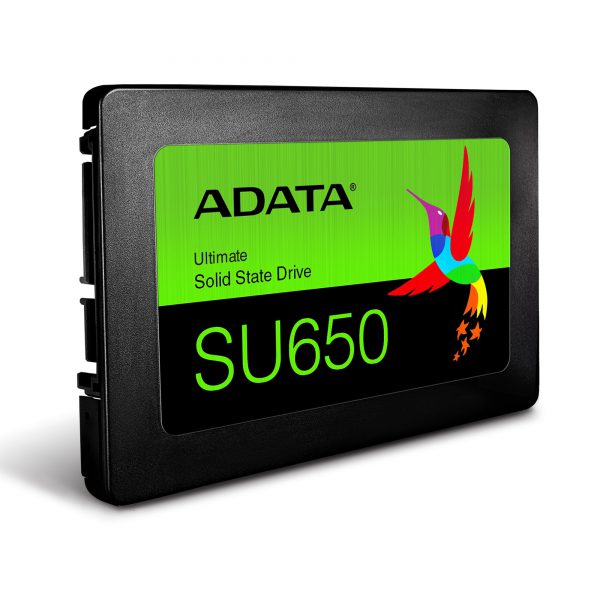

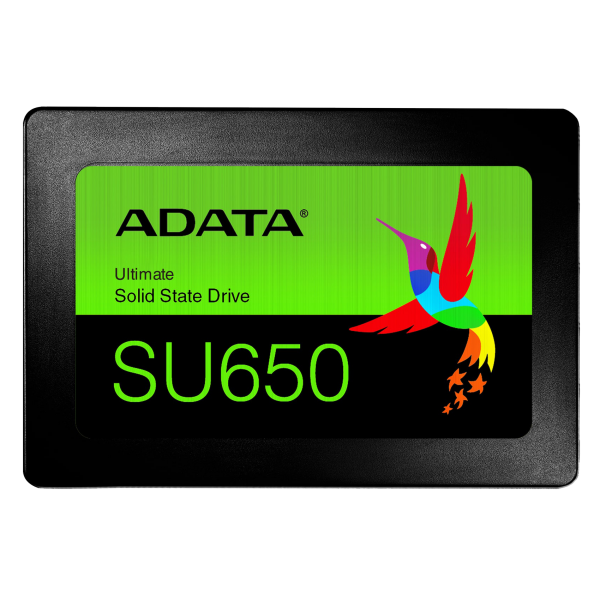

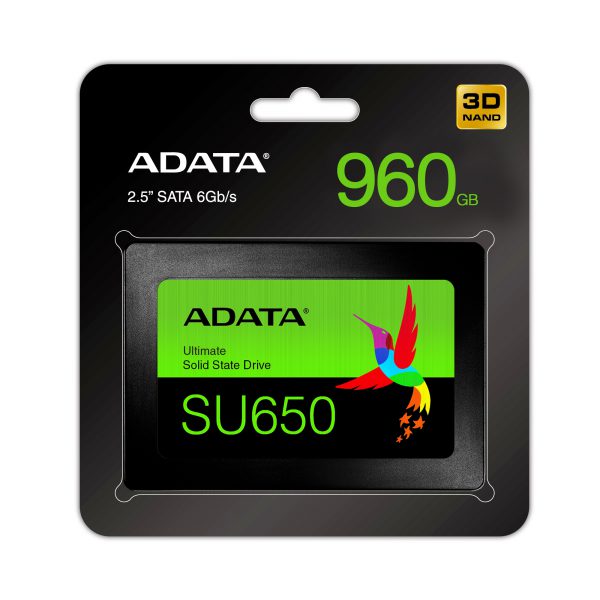

ADATA SU650 3D QLC 2.5 Inch 960GB SSD

The Ultimate SU650 solid state drive implements 3D NAND Flash and a high speed controller, offering capacities up to 480GB. It delivers read/write performance up to 520/450MB/s and greater reliability than 2D NAND SSDs. The SU650 features SLC caching and advanced error correction technologies to ensure optimized data performance and integrity. For those who want to experience a clear PC upgrade, the SU650 is an excellent choice with a great cost-performance ratio.

3D NAND in an easy PC upgrade

With 3D NAND Flash, the SU650 features higher efficiency and increased reliability compared to 2D NAND SSDs with an improved cost-performance ratio.

Faster performance

The intelligent SLC caching algorithm allows NAND Flash memory to operate in single-level cell mode and boosts performance, helping sustain peak SU650 read/write speeds up to 520/450MB per second for smoother and faster boot, file transfers, and downloads.

Advanced error correction code

With the support for ECC (error correction code) technology, the SU650 can detect and fix errors to ensure data integrity and help to extend SSD lifespan Its MTBF (mean time between failures) is up to 2 million hours, or 25% more than 2D NAND SSDs

Tougher , quieter , and more reliable

There’s no mechanical component inside SSDs, so they outperform traditional HDDs with higher resistance to shock, vibration (1500G/0.5ms) and extreme temperatures (0°C-70°C). They are also completely silent and consume very little power, all while better protecting your data.

Proprietary software – SSD Toolbox and Migration Utility

Every SU650 purchase qualifies for free downloads of ADATA SSD Toolbox and Migration Utility. SSD Toolbox allows users to monitor and manage the SU650, with drive status, wear level, and lifespan information. The Migration Utility is especially helpful for users making the move from HDD to SSD, as it is designed for simple and quick backup and migration of the contents of entire drives, including the operating system.

For notebooks and desktops

Just 7mm thick, the SU650 is an easy fit in ultrabooks. A 2.5mm spacer is bundled for use in 9.5mm drive bays, allowing compatibility with virtually every notebook, desktop, and console.



Warnings
A WARNING	This drive is not suitable for the server due to insufficient resource Link to SSD for servers
SSD resource WARNING	If the “Life in TBW” or “Resource DWPD” parameter specified in the specification is exceeded, the device will be voided from the warranty. You can check the status of the SSD using a special utility . The misuse of the SSD drive, for example, mining, leads to the rapid exhaustion of the resource.
Main characteristics
Manufacturer	ADATA
Series	Ultimate SU650
Model	ASU650SS-240GT-Rfind a similar SSD
Type of equipment	SSD for personal computers
Drive capacity	960 GB
Distinctive features
Background Garbage Collection	Supported
TRIM support	There is
Transfer and Clone Software	Yes, an application for transferring an operating system of the Windows family and other operating systems from HDD to SSD or from an old SSD to a new SSD. The software usually allows you to clone a hard drive to an SSD, that is, it completely transfers data, system, and applications to a new SSD.
Reliability
SSD resource ( TBW )	560TBW
MTBF	2 million hours
PC connection interface
SSD interface	SATA 6Gb/s (SATA III)
Interface Bandwidth	6 Gbps
Configuration
Controller	Silicon Motion SM2258 – data from unofficial sources
NCQ Support	There is
Chip type	3D TLC (Triple Level Cell) – data from unofficial sources
Performance options
Reading speed	up to 520 MB/s
Recording speed	Up to 450 Mb/s
IOmeter, write speed 4Kb files, queue depth=32	75000 IOPS
Format
Drive Format	2.5″ (7mm thick)
Scope of delivery and options
Software included	Free download from ADATA SSD ToolBox and Acronis True image HD, disk migration utility
Options (can be purchased separately)	Adapter for installing an SSD drive in a 3.5″ bayBracket for installing 2.5 SSD in 3.5 case bay
Logistics
Dimensions (width x height x depth)	70 x 7 x 100 mm
Package dimensions (measured in NYX)	13.5 x 12.8 x 1 cm
Gross weight (measured in NYX)	0.051 kg
