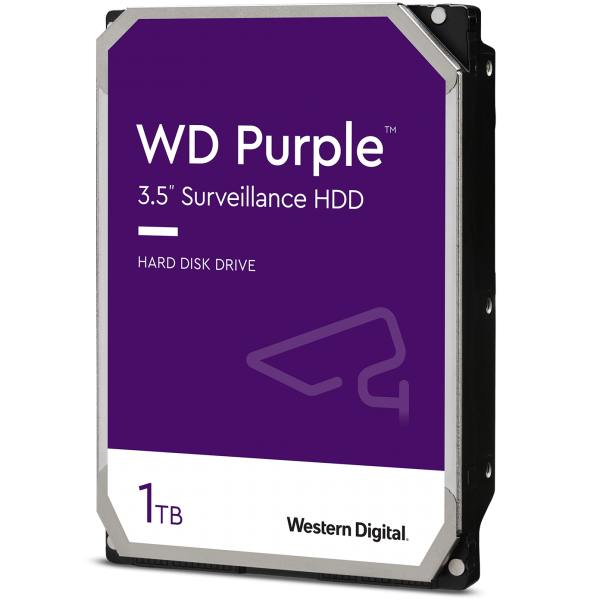

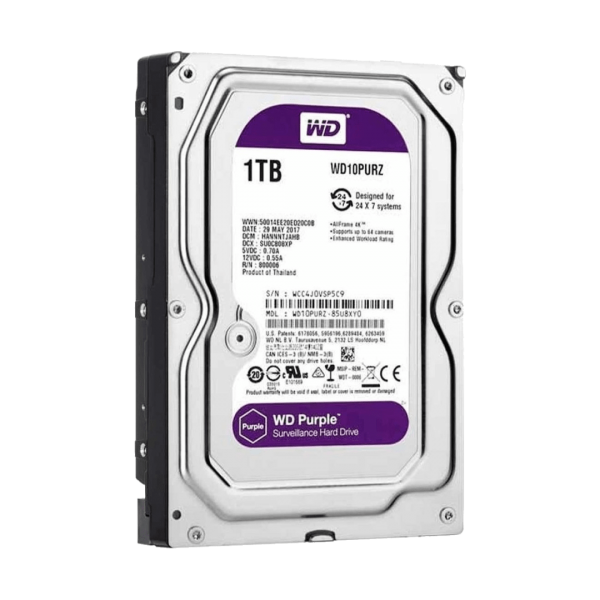

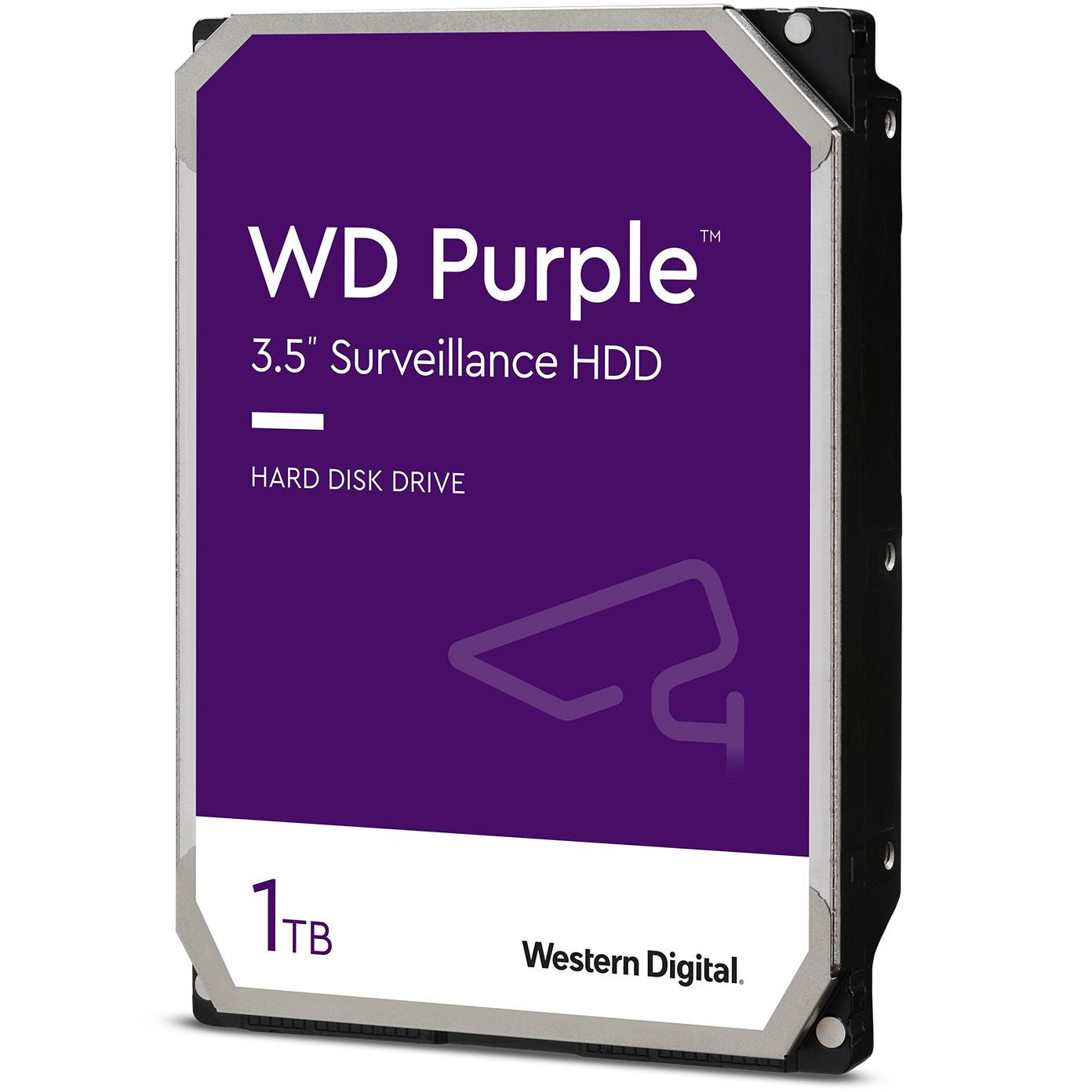

Western Digital Purple 1TB 64MB Sata III WD10PURZ

מק"ט WD10PURZ קטגוריות , , תגיות , , , ,

209

תיאור מוצר

WD10PURZ

Specifications 1TB
Model number WD10PURZ
Formatted capacity 1TB
Form factor 3.5-inch
Advanced Format (AF) Yes
RoHS compliant Yes
Product Features
Cameras supported Up to 64
Maximum drive bays supported 8
Tarnish resistant components No
Performance
Interface transfer rate (max)
Buffer to host 6 Gb/s
Host to/from drive (sustained) 110 MB/s
Cache (MB) 64
Performance Class 5400 RPM Class
Reliability/Data Integrity
Load/unload cycles 300,000
Annualized workload rating 180TB/yr
Non-recoverable read errors per bits read 1 in 1014
Power Management
Average power requirements (W)
Read/Write 3.3
Idle 2.9
Standby and Sleep 0.4
Environmental Specifications
Temperature (°C, on the base casting)
Operating 0 to 65
Non-operating -40 to 70
Shock (Gs)
Operating (2 ms, read/write) 30
Operating (2 ms, read) 65
Non-operating (2 ms) 350
Acoustics (dBA)
Idle 21
Seek (average) 22
Physical Dimensions
Height (in./mm, max) 1.028/26.1
Length (in./mm, max) 5.787/147
Width (in./mm, ± .01 in.) 4/101.6
Weight (lb/kg, ± 10%) 0.99/0.45
Warranty 3 Years
Note

WD Purple drives are built for 24/7, always-on, high-definition security systems. With a supported workload rate of up to 180 TB/yr and support for up to 64 cameras, WD Purple drives are op-timized for surveillance systems. WD Purple surveillance storagealso comes with WD’s exclusive AllFrame 4K™technology, so you can confidently create a security system tailored to the needs of your business.

Industry-leading storage. Surveillance you can trust.

WD is a worldwide leader in the hard drive industry. With WD Purple surveillance storage, you have a drive engineered for high temperature, always-on surveillance systems so you can rely on quality video playback when you need it most. Whether you’re protecting loved ones or monitoring your business, WD Purple offers performance you can trust

WD’s exclusive AllFrame 4K technology

All WD Purple drives are equipped with AllFrame 4K technology, which improves ATA streaming to help reduce frame loss, improve overall video playback, and increase the number of hard drive bays supported within a NVR. Future-proof your surveillance solution knowing that WD Purple is ready for ultra high definition cameras.

Enhanced workload rating

With a workload rating of 180 TB/yr – three times that of desktop drives – WD Purple is designed to handle the unique demands of modern video surveillance DVR and NVR systems.

Expand your view to 64

Each WD Purple drive is optimized to support up to 64 cameras. With so many options, you have the flexibility to upgrade or expand your security system in the future.

Designed for today’s and tomorrow’s surveillance solutions

Engineered for 24/7 operation in all sizes of mainstream surveillance DVRs and NVRs. With support for more than eight bays and tarnish resistant components, WD Purple drives deliver reliable operation in larger scale surveillance systems in harsher environments.

Field-proven high capacity

Now on its 4th generation and with more than 15 million drives shipped, field-proven HelioSeal™ Technology delivers trusted high-capacity WD Purple storage (8TB and 10TB) for the massive storage needs of 4K surveillance video.

Wide compatibility. Seamless integration.

WD Purple hard drives are built with compatibility in mind, so you can quickly and seamlessly add capacity to your surveillance system. With a wide range of industry-leading enclosures and chipsets supported, you’re sure to find the DVR or NVR configuration that’s right for you

Less power. More efficient.

With our exclusive IntelliSeek™ technology, WD Purple drives are able to calculate optimum seek speeds. This keeps power consumption low so ambient noise and vibrations are at a minimum.
